Codelocks CL255 Mechanical, Light Duty, Grade 2, Optional Finish, Tubular Mortise Latchbolt, Key Override Gate Box Kit
Secure transactionCouldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
All orders are shipped between 24 hours or less Monday through Friday from 9:00 am to 6:00pm. Orders placed after 4 p.m. EST will be shipped next business day.
Learn more
Codelocks CL255 Mechanical, Light Duty, Grade 2, Optional Finish, T...
Description
Description
Codelocks CL255 Mechanical, Light Duty, Grade 2, Optional Finish, Tubular Mortise Latchbolt, Key Override Gate Box Kit
Gate Solutions by Codelocks provides simple and effective access control solutions for fenced perimeters/outdoor spaces. Gate Box Panic Hardware Kits contain all components required for a straightforward installation. Suitable for indoor and outdoor applications. An ideal choice for pool areas, schools and colleges, hospitals, hotels, backyards - any restricted area that will benefit from controlling access, commercial or residential.
Features:
- Easy, effective gate and fence installation
- Complete kits with all required components
- 14-gauge weldable steel boxes with pre-drilled fixing holes
- Supplied as raw steel, ready to paint
- Adjustable stop bracket
- Stainless steel or marine grade finish

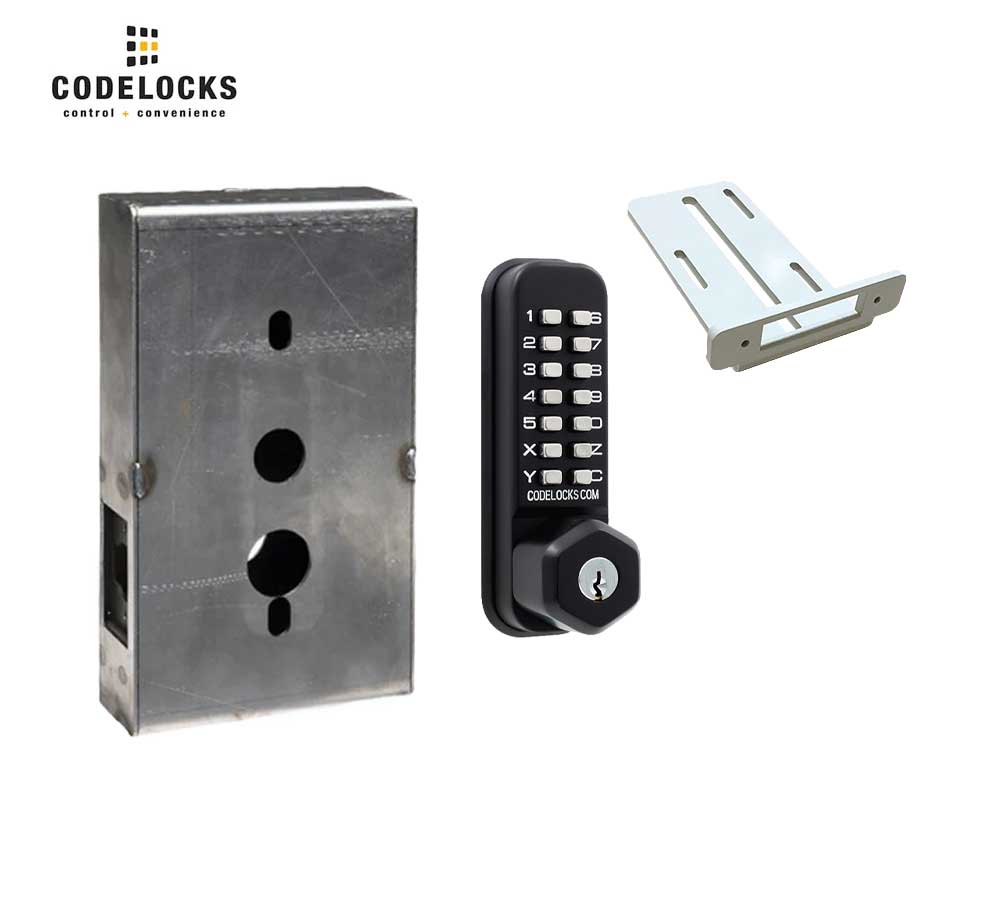

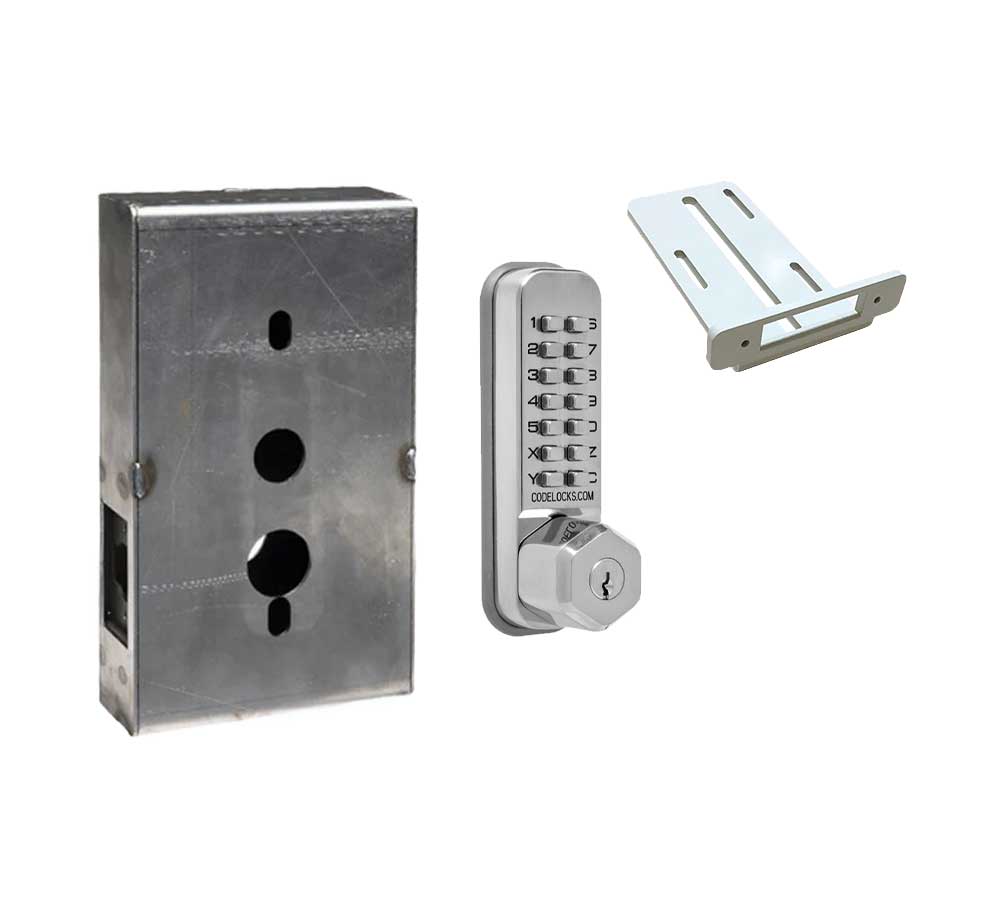

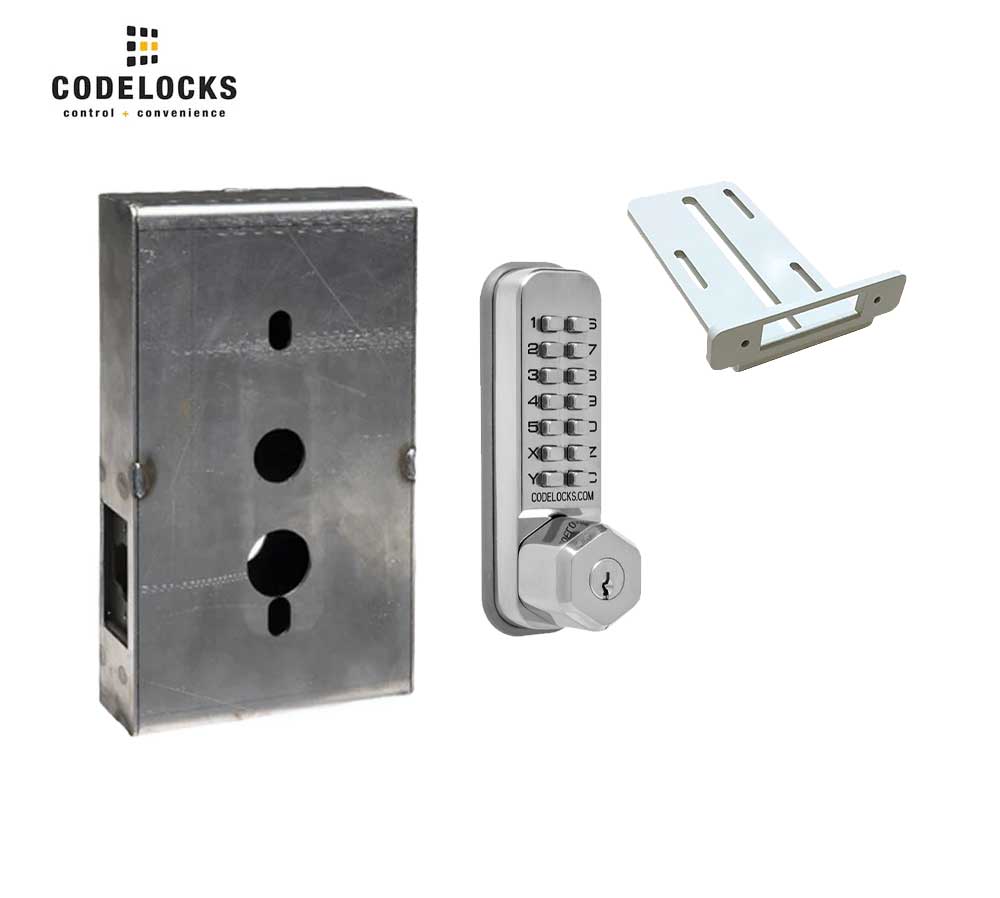

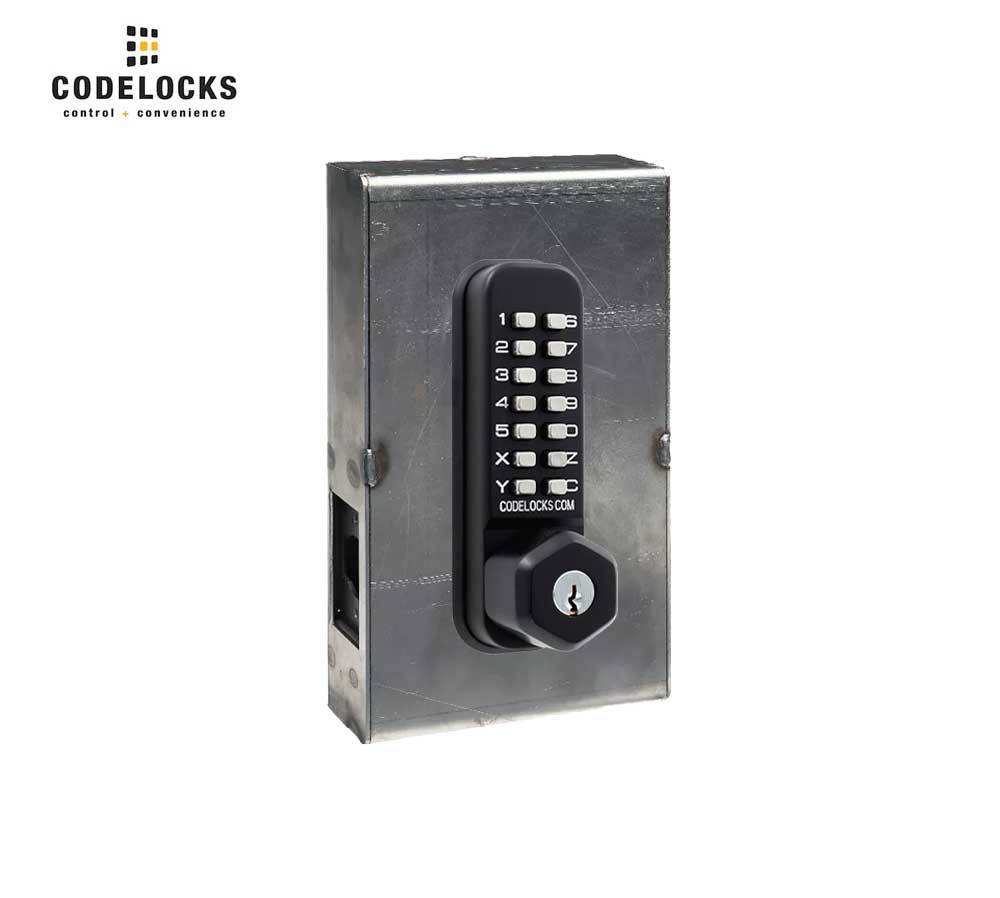

Gate Box Kit Components:
- CL255 Tubular Latch with Key Override
- Codelocks installation, operating/programming instructions, fastening bolts and latch
- 14-gauge steel weldable Gate Box, pre-drilled for the specified Codelock
- Adjustable stop bracket
About the CL255 Tubular Latch with Key Override Mechanical Codelock:
Light duty mechanical lock with hexagonal knob handles, offering key override, deadbolt and tubular latch options. The CL255 is a light duty lock that utilizes a tubular latch. The latch is spring loaded and will latch automatically when the door is closed. The deadlocking plunger on the latchbolt prevents the latch from being shimmed open. The slide button on the backplate of the lock can be used to hold the latchbolt in a retracted position. When in use with the latchbolt retracted, the door will not latch and can be opened without requiring a code to be entered. If use of the holdback feature is not desired, it can be disabled when the lock is installed on the door. It features:
- Allow Locks to be overridden via a key
- Hold back feature
- Light duty mortise latch with dual backplate
- Hexagonal beveled handle and lock case
- Use in offices / schools / warehouses / hospitals / care homes / nurseries / hotels / leisure facilities / the home
Technical Specifications:
| Gate Box Dimensions | 9.5” x 5.5” x 1.75” (H x W x D) |
| Gate Box Material | 14-Gauge Steel |
| Buttons | 2 x 7 |
| User Types | Code |
| Code Change Method | Keypad (On Door) |
| Codes | 8,191 Non-Sequential Combinations Available |
| Code Storage | Single Code |
| Door Thickness | 1 3⁄8"- 2 3⁄8" (35mm - 60mm) |
| Finish Color | Stainless Steel |
| Latch Type | Tubular Latchbolt |
| Lock Dimensions | 177mm (7") x 48mm (1 ⅞") |
| Handed | Non-Handed |
| Keypad | 14 Individual Stainless Steel Buttons |
| Lock Material | Zinc Alloy |
| Orientation | Vertical |
| Spindle | Flat Spring Loaded Spindle |
| Suitable For | Internal, External |
| Manufacturer Warranty | Limited Lifetime Warranty |
| Fire Rated | 3-hour UL 10C |
| Certifications | Grade 2 ANSI A156.2 / A156.25, UL/ULC |
Download:
