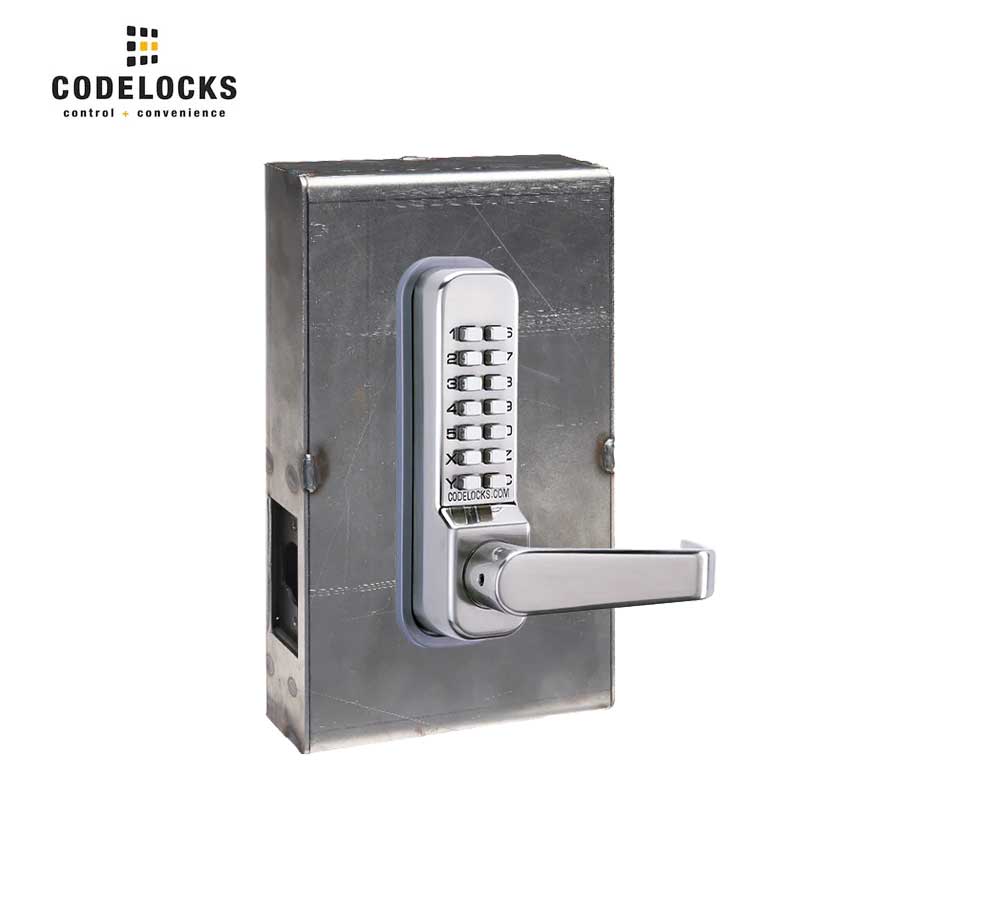

Codelocks CL410 Mechanical, Medium Duty, Stainless Steel, Back to Back, Tubular Latchbolt Gate Box Kit
Gate Solutions by Codelocks provides simple and effective access control solutions for fenced perimeters/outdoor spaces. Gate Box Panic Hardware Kits contain all components required for a straightforward installation. Suitable for indoor and outdoor applications. An ideal choice for pool areas, schools and colleges, hospitals, hotels, backyards - any restricted area that will benefit from controlling access, commercial or residential.
Features:
- Easy, effective gate and fence installation
- Complete kits with all required components
- 14-gauge weldable steel boxes with pre-drilled fixing holes
- Supplied as raw steel, ready to paint
- Adjustable stop bracket
- Stainless steel finish

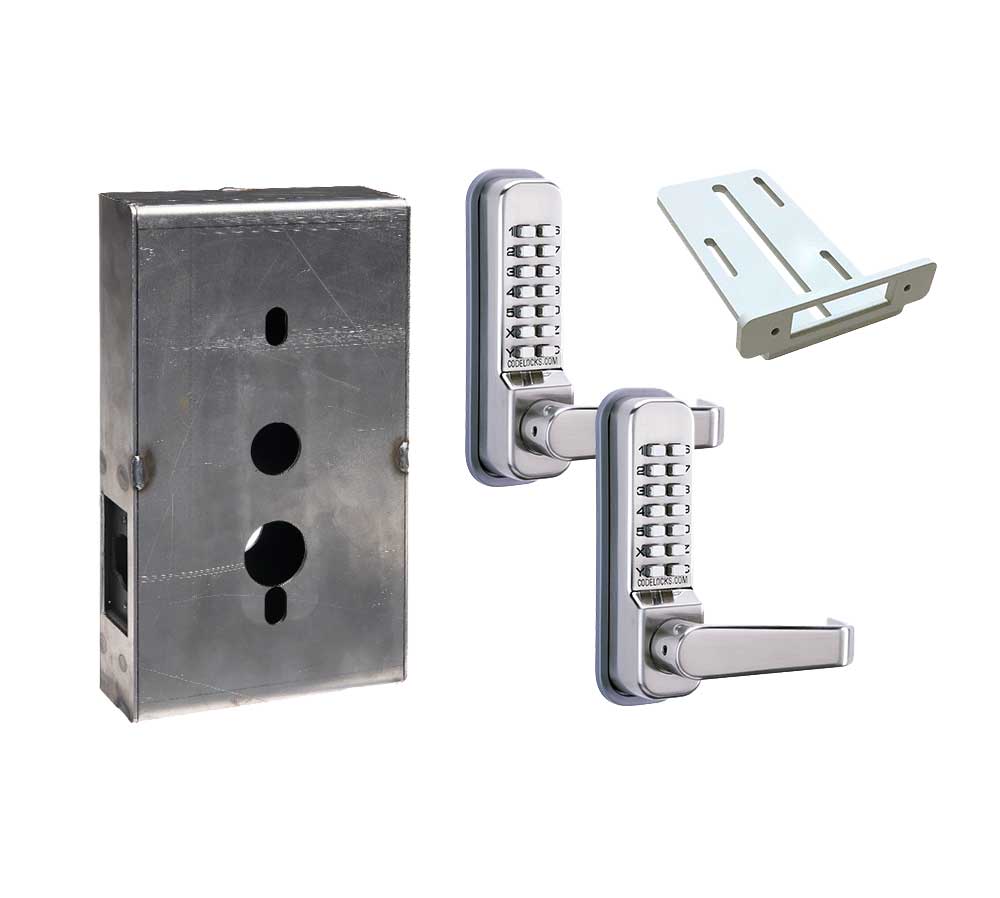

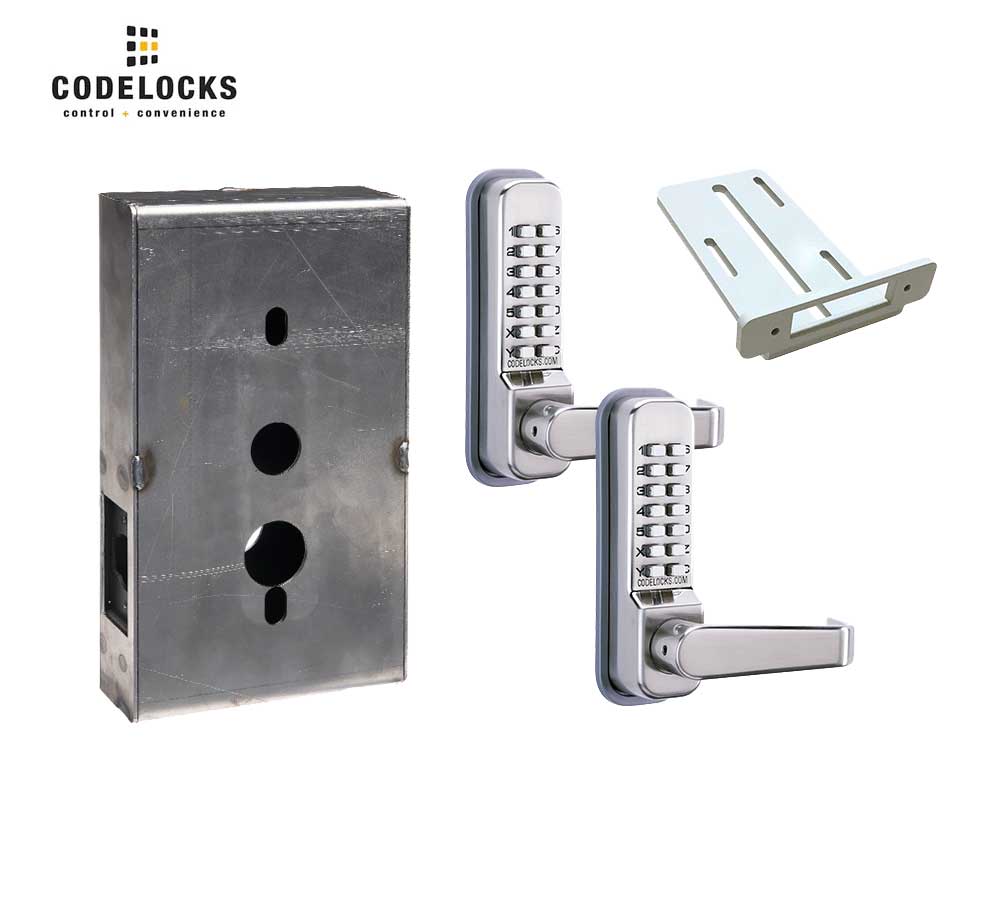

Gate Box Kit Components:
- CL410 Tubular Latchbolt Back to Back
- Codelocks installation, operating/programming instructions, fastening bolts and latch
- 14-gauge steel weldable Gate Box, pre-drilled for the specified Codelock
- Adjustable stop bracket
About the CL410 Tubular Latchbolt Back to Back Mechanical Codelock:
Medium duty mechanical locks with full size lever handles. Ideal for use in environments where a lever operated lock would be preferred. The CL410 is a medium-duty push button tubular latch bolt. The outside lever handle will retract the latch after a correct code is entered. The spring-loaded latch bolt will lock automatically when the door is closed. It features:
- Medium duty tubular mortise latch
- Lever handle lock for doors hung on the left or right
- Use in offices / schools / warehouses / hospitals / care homes / nurseries / hotels / leisure facilities / the home
Technical Specifications:
| Gate Box Dimensions | 9.5” x 5.5” x 1.75” (H x W x D) |
| Gate Box Material | 14-Gauge Steel |
| Buttons | 2 x 7 |
| Code Change Method | Tumblers (Off Door) |
| Codes | Single Code Storage - 8,191 Non-Sequential Combinations Available |
| Finish Color | Stainless Steel |
| Latch Type | Tubular Latchbolt |
| Lock Dimensions | 177mm (7") x 48mm (1 ⅞") |
| Handed | Non-Handed |
| Keypad | 14 Stainless Steel Buttons |
| Lock Material | Zinc Alloy |
| Orientation | Vertical |
| Spindle | Two-part 5⁄16" (8 mm) Spring Loaded Spindle |
| Manufacturer Warranty | Limited Lifetime Warranty |
