Codelocks  |  SKU: CL-97606-CL510SS

Codelocks CL510 Mechanical, Heavy Duty, Optional Finish, Tubular Latchbolt Gate Box Kit

$25319 $30383
Shipping calculated at checkout.
Trust Guard Security Scanned
Color: Stainless Steel
Trust Guard Security ScannedSecure transaction

Found a better price? Call for Price Match!
Shop with confidence knowing you’re getting the best deal.

Delivery and Shipping

All orders are shipped between 24 hours or less Monday through Friday from 9:00 am to 6:00pm. Orders placed after 4 p.m. EST will be shipped next business day.
Learn more

Description

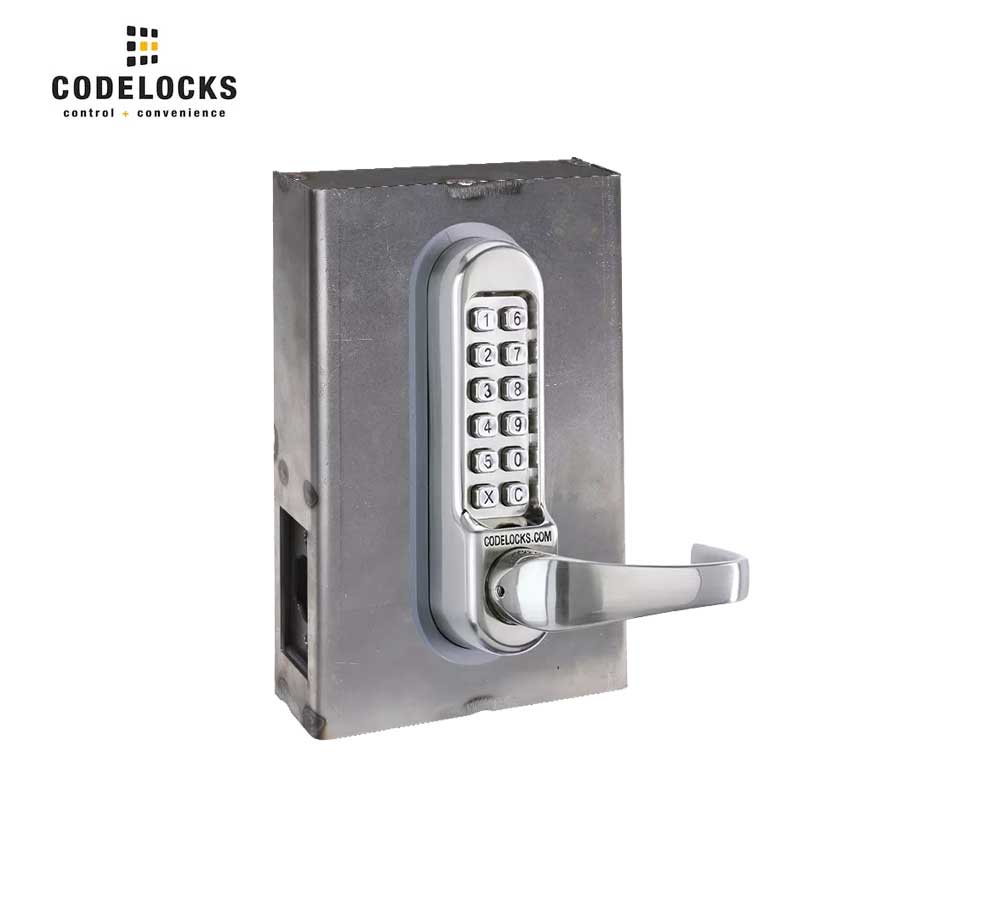

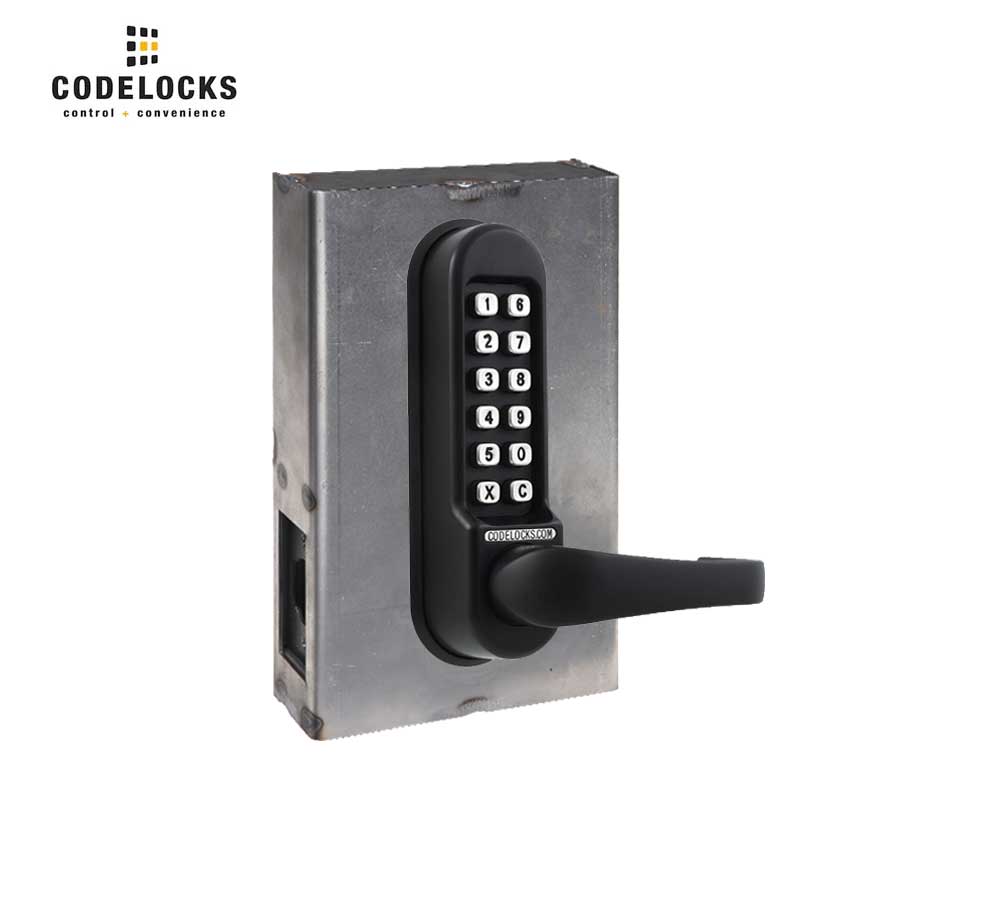

Codelocks CL510 Mechanical, Heavy Duty, Optional Finish, Tubular Latchbolt Gate Box Kit

Gate Solutions by Codelocks provides simple and effective access control solutions for fenced perimeters/outdoor spaces. Gate Box Panic Hardware Kits contain all components required for a straightforward installation. Suitable for indoor and outdoor applications. An ideal choice for pool areas, schools and colleges, hospitals, hotels, backyards - any restricted area that will benefit from controlling access, commercial or residential.

Features:
  • Easy, effective gate and fence installation
  • Complete kits with all required components
  • 14-gauge weldable steel boxes with pre-drilled fixing holes
  • Supplied as raw steel, ready to paint
  • Adjustable stop bracket
  • Stainless steel or marine grade finish
  • Back to back installation option

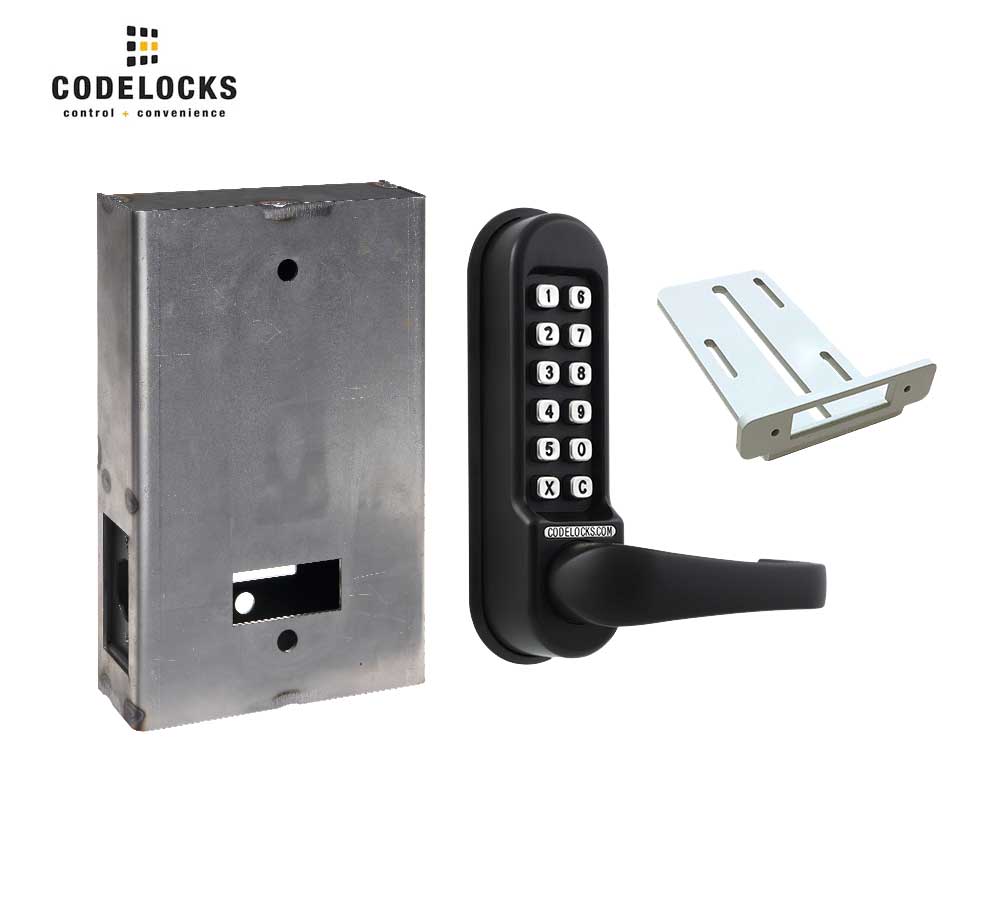

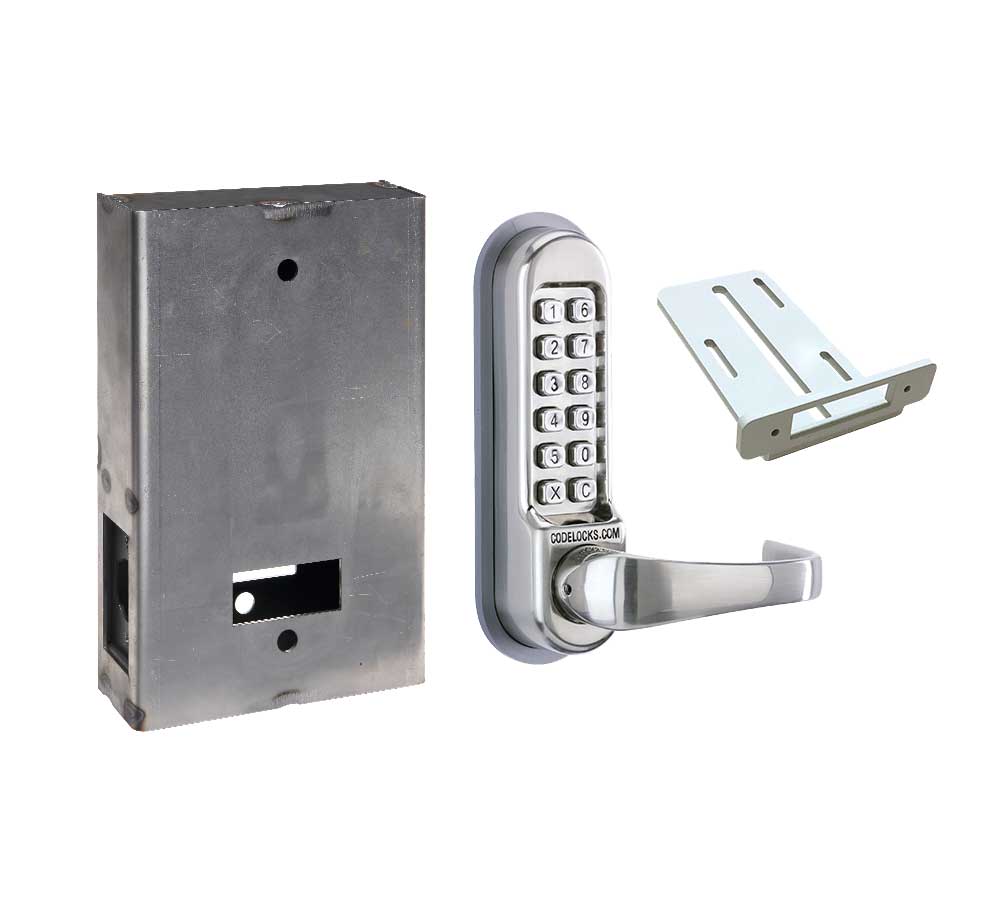

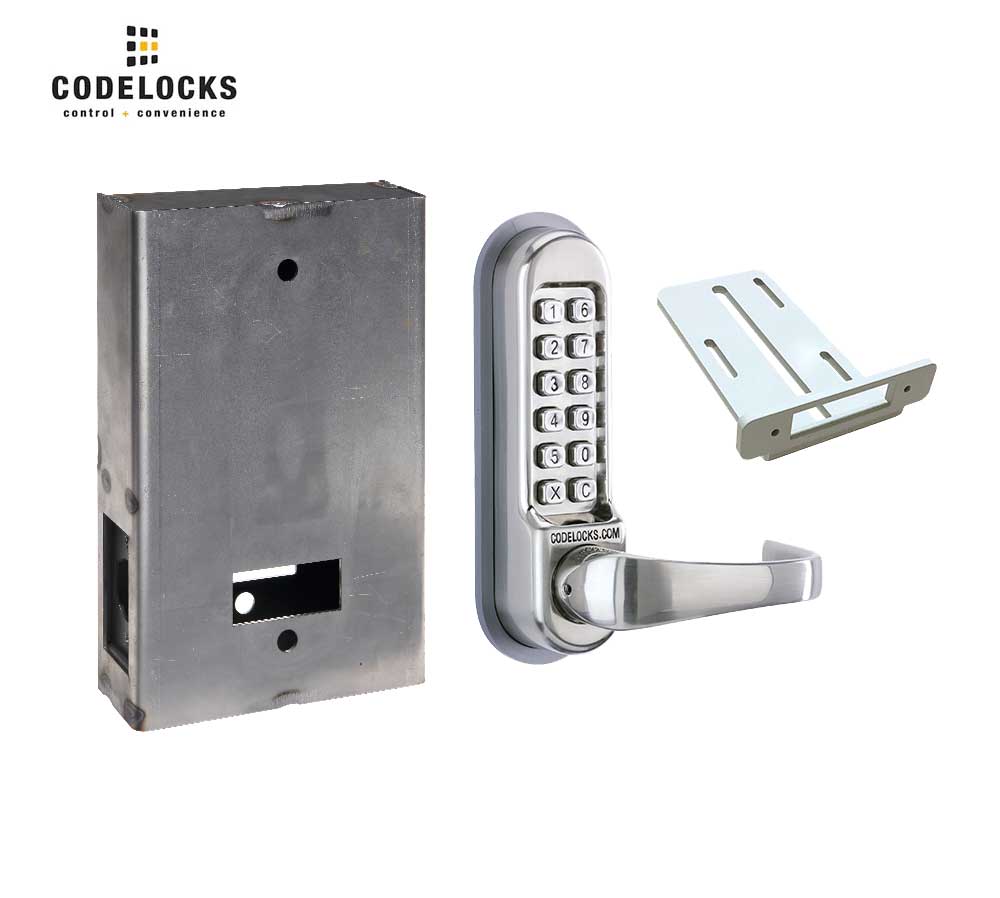

Gate Box Kit Components:
  • CL510 Heavy Duty Tubular Latchbolt
  • Codelocks installation, operating/programming instructions, fastening bolts and latch
  • 14-gauge steel weldable Gate Box, pre-drilled for the specified Codelock
  • Adjustable stop bracket
About the CL510 Heavy Duty Tubular Latchbolt Mechanical Codelock:

Heavy duty lock with tubular latch and full size lever handles, suitable for high traffic use. Code free passage function and back to back options available. The CL510 is a heavy-duty push-button tubular latch bolt. The outside lever handle will retract the latch after a correct code is entered. The spring-loaded latch bolt will lock automatically when the door is closed. It features:

  • Heavy duty tubular mortise latch
  • Lever handle lock for doors hung on the left or right
  • Use in offices / schools / warehouses / hospitals / care homes / nurseries / hotels / leisure facilities / the home
  • Back to back model available
Technical Specifications:
Gate Box Dimensions 8.5” x 5.5” x 1.75” (H x W x D)
Gate Box Material 14-Gauge Steel
Buttons 2 x 6
Code Change Method Tumblers (Off Door)
Codes 2,047 Non-Sequential Code Combinations Available
Latch Type 2 3⁄4"- 2 3⁄8" Tubular Latch Bolt
Lock Dimensions 177mm (7") x 48mm (1 ⅞")
Handed Non-Handed
Keypad 12 Stainless Steel Buttons
Lock Material Zinc Alloy
Orientation Vertical
Spindle Two-part 5⁄16" (8 mm) Spring Loaded Spindle
Manufacturer Warranty Limited Lifetime Warranty
