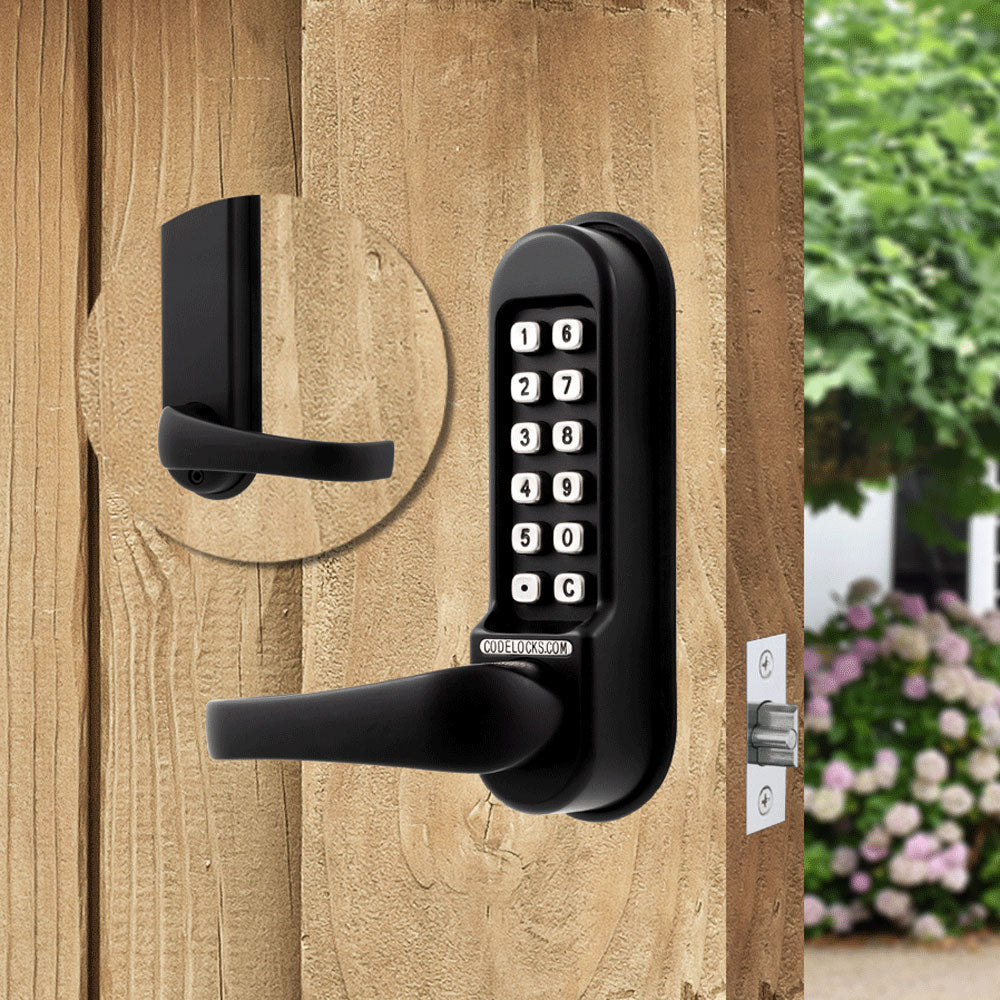

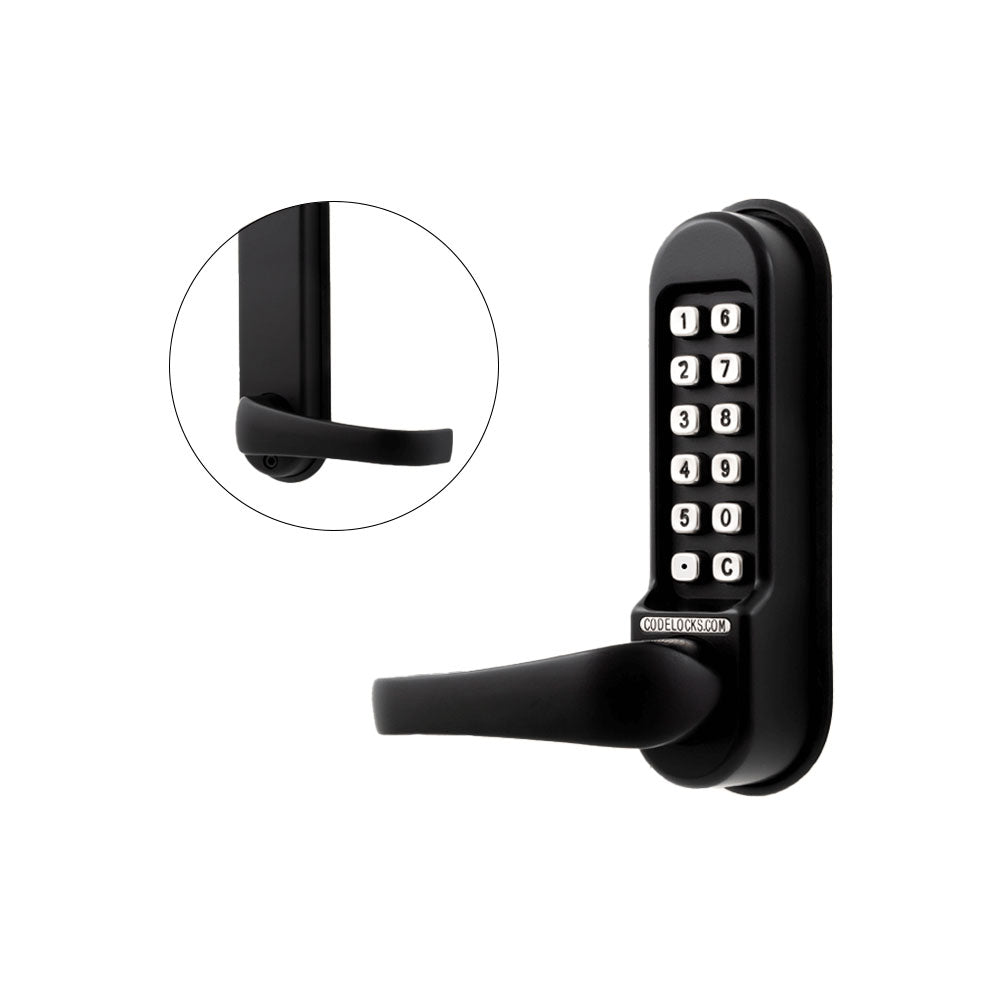

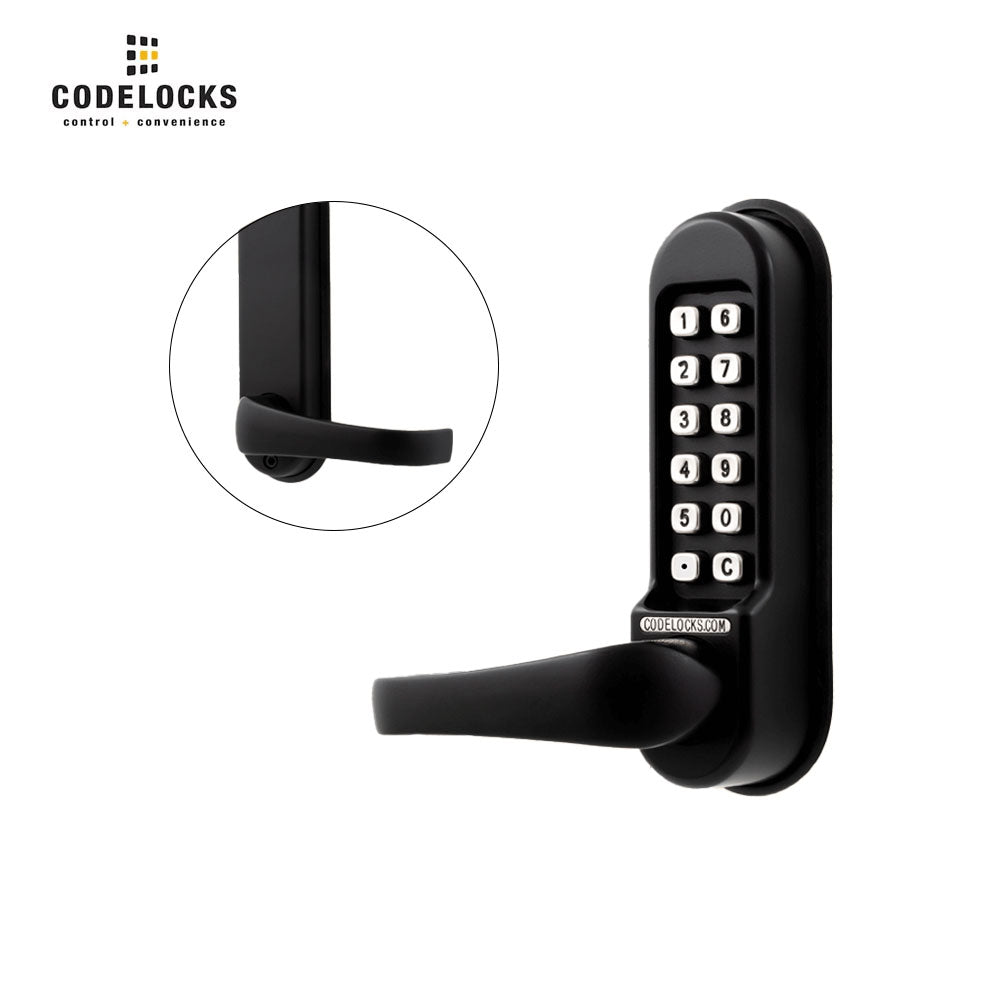

Codelocks CL515 Mechanical, Heavy Duty, Marine Grade, Optional Backset Tubular Mortise Latch with Passage Function

Codelocks CL515 Mechanical, Heavy Duty, Marine Grade, Optional Backset Tubular Mortise Latch with Passage Function

CL500 Mechanical Range - heavy duty mechanical locks with ball knob or large full size lever handles, allowing use as the primary lock on doors.
The CL515 marine grade lock is a heavy duty mechanical lock with mortise latch, full size lever handles and code free option. It is a tubular mortise latch with ‘anti-shim’ plunger. Latch retracts by turning inside handle freely, or the outside handle after code input. The CL515 model provides a Code Free option. The outside lever will retract the latch freely until disabled.
The Marine by Codelocks range features a selection of locks that have been specially enhanced to withstand harsh outdoor environments and coastal applications. Reliable and durable, the marine grade black finish has proven to be resistant against moisture and salt spray, following rigorous salt spray testing for up to 1000 hours.

Features:

• Salt spray tested 1000 hours*
• Durable marine grade black finish
• Specially enhanced finish for harsh environments
• Large full size lever handles with return to door
• Ball shape knob available
• Code Free access option
• Suitable for internal and external use
• Tumbler alignment for easy code change
• Large three coil lever return spring suitable for high traffic use
• Neoprene seals included
• Codelocks Fire Kit Packs can be fitted to latch locks for 30 or 60 minute fire doors.
• Tested in accordance with BS EN 1634-1:2008

Technical Specifications:

Download:

• Installation Instructions
• Code Change Instructions
• Brochure
• Installation Template
• Marine Grade Data Sheet
