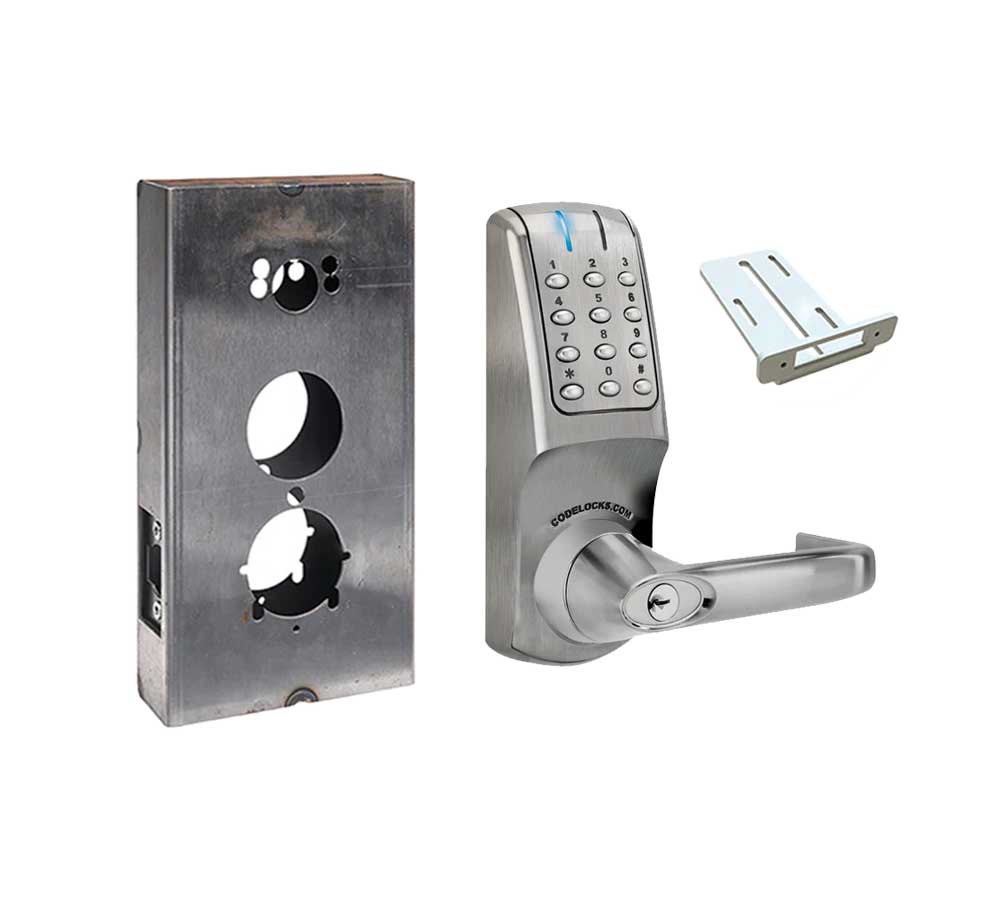

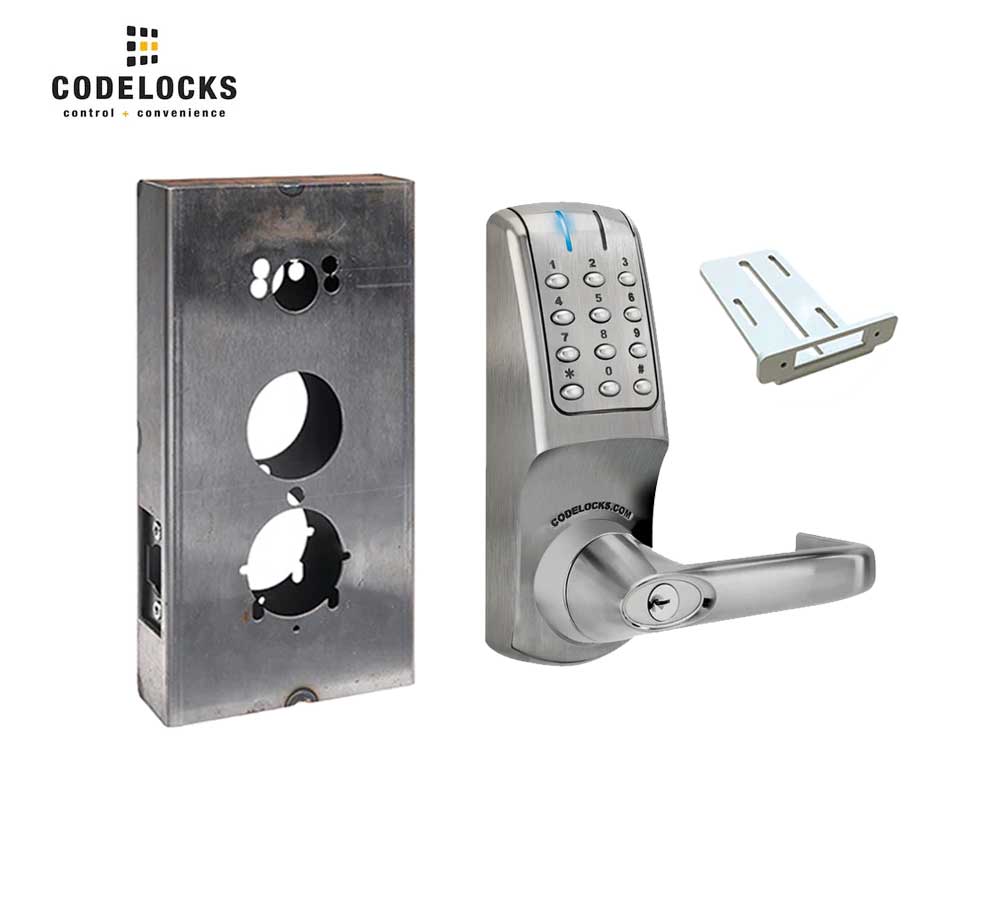

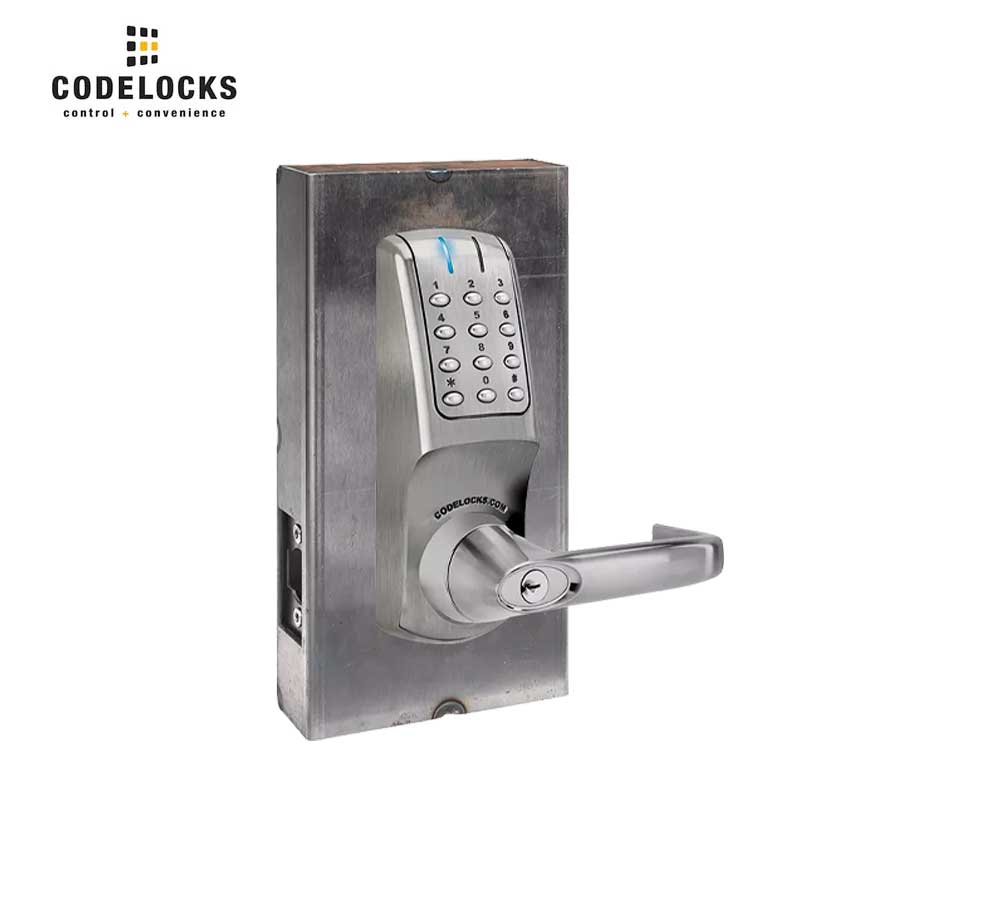

Codelocks CL5210 Electronic, Brushed Steel, Grade 2, Tubular Latchbolt Gate Box Kit
Gate Solutions by Codelocks provides simple and effective access control solutions for fenced perimeters/outdoor spaces. Gate Box Panic Hardware Kits contain all components required for a straightforward installation. Suitable for indoor and outdoor applications. An ideal choice for pool areas, schools and colleges, hospitals, hotels, backyards - any restricted area that will benefit from controlling access, commercial or residential.
Features:
- Easy, effective gate and fence installation
- Complete kits with all required components
- 14-gauge weldable steel boxes with pre-drilled fixing holes
- Supplied as raw steel, ready to paint
- Adjustable stop bracket
- Brushed steel finish
- Back to back installation option
Gate Box Kit Components:
- CL5210 Heavy Duty Electronic Tubular Latchbolt
- Codelocks installation, operating/programming instructions, fastening bolts and latch
- 14-gauge steel weldable Gate Box, pre-drilled for the specified Codelock
- Adjustable stop bracket
About the CL5210 Heavy Duty Tubular Latchbolt Electronic Lock:
Heavy duty lock with tubular latch and full size lever handles, suitable for high traffic use. Code free passage function and back to back options available. The CL5210 has a conventional 3x4 button keypad layout for instant familiarity, providing quick programming with a multiple range of functions. Medium duty tubular latch retracts via the outside knob after a valid code input. When the door closes, the spring latch will lock the door. Particularly suitable for use in health, educational, commercial and residential environments. It features:
- Mortise Latch
- Allows up to 80 User Codes
- Allows up to 10 one-time User Codes to be entered
- PVD low maintenance finish
- Over 200,000 operations from 4 x AA cells (provided)
- Tamper time out and low battery warning
- Connections for remote release by reception desk button
- Alarm release included
- Code Free entry
- Lever handle lock for doors hung on the left or right
- Use in offices / schools / warehouses / hospitals / care homes / nurseries / hotels / leisure facilities / the home
Technical Specifications:
| Gate Box Dimensions | 10.25” x 5.5” x 1.75” (H x W x D) |
| Gate Box Material | 14-Gauge Steel |
| Buttons | 3 x 4 |
| User Types | Code |
| Code Change Method | Keypad (On Door) |
| Codes | User Codes 4, 5 or 6 Digits Long |
| Finish | Brushed Steel |
| Handed | Non-Handed - Locks Will Fit Doors Hung on The Left or Right |
| Keyed Alike | Available |
| Keypad | Individual Stainless Steel Buttons |
| Lock Material | Zinc Alloy |
| Latch Type | Tubular Latchbolt |
| Door Thickness | 1 3⁄8"- 2 3⁄8" (35mm - 60mm) |
| Memory | Stores up to 80 User Codes |
| Low Battery Warning | Red LED Will Flash on Opening to Indicate Low Battery |
| Operations | Up to 200,000 Per Set of 4 x AA Batteries |
| Orientation | Vertical |
| Power | 4x AA |
| Spindle | 2 5⁄16" (8 mm) Spring-Loaded Spindle |
| Suitable For | Internal, External |
| Gate Kits By Codelocks | Gate Solutions by Codelocks |
| Fire Rated | 3-Hour UL 10C |
| Certifications | Grade 2 ANSI A156.2 / A156.25, UL/ULC |
