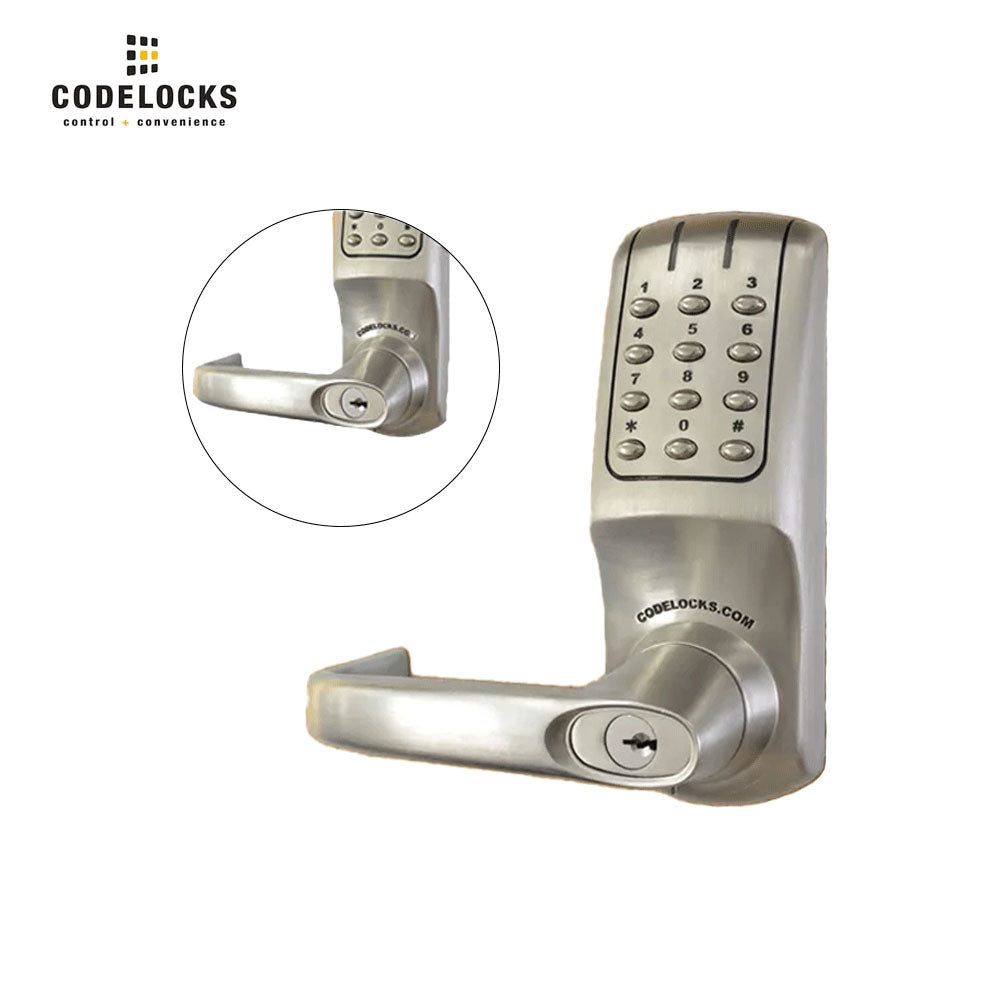

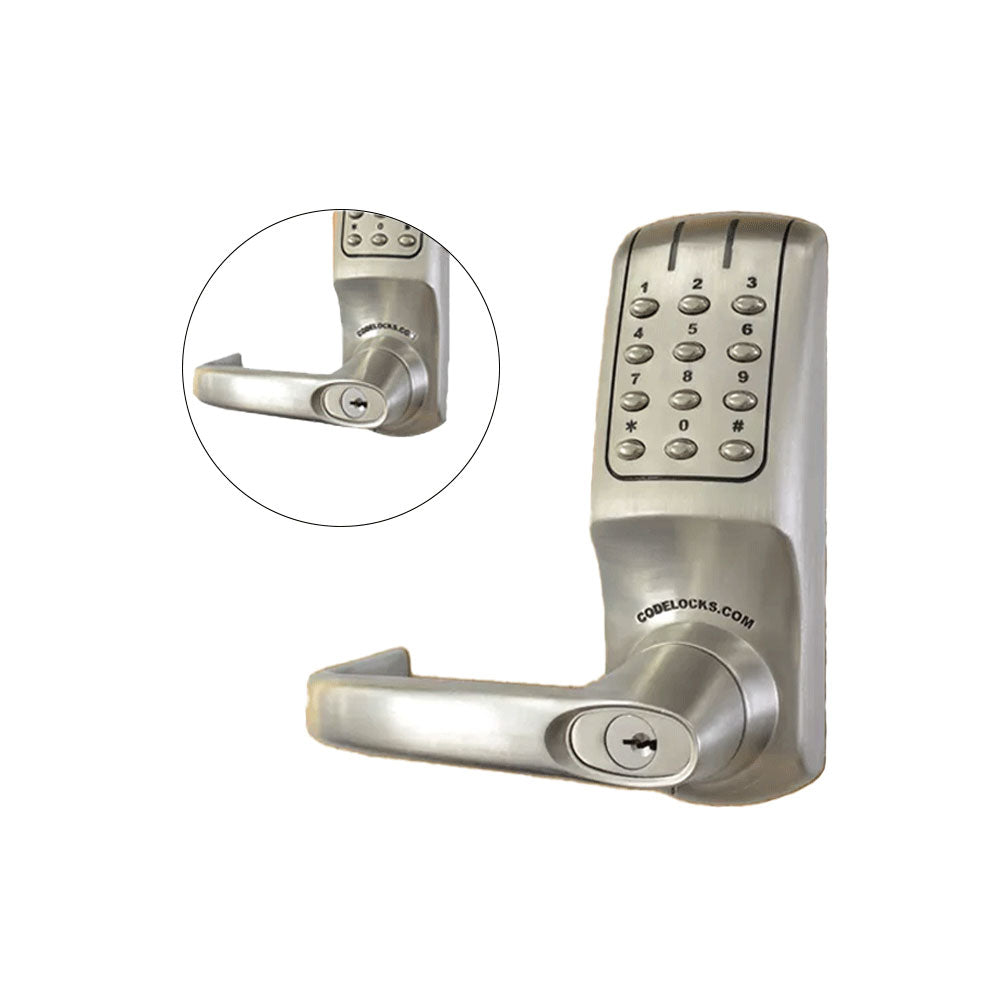

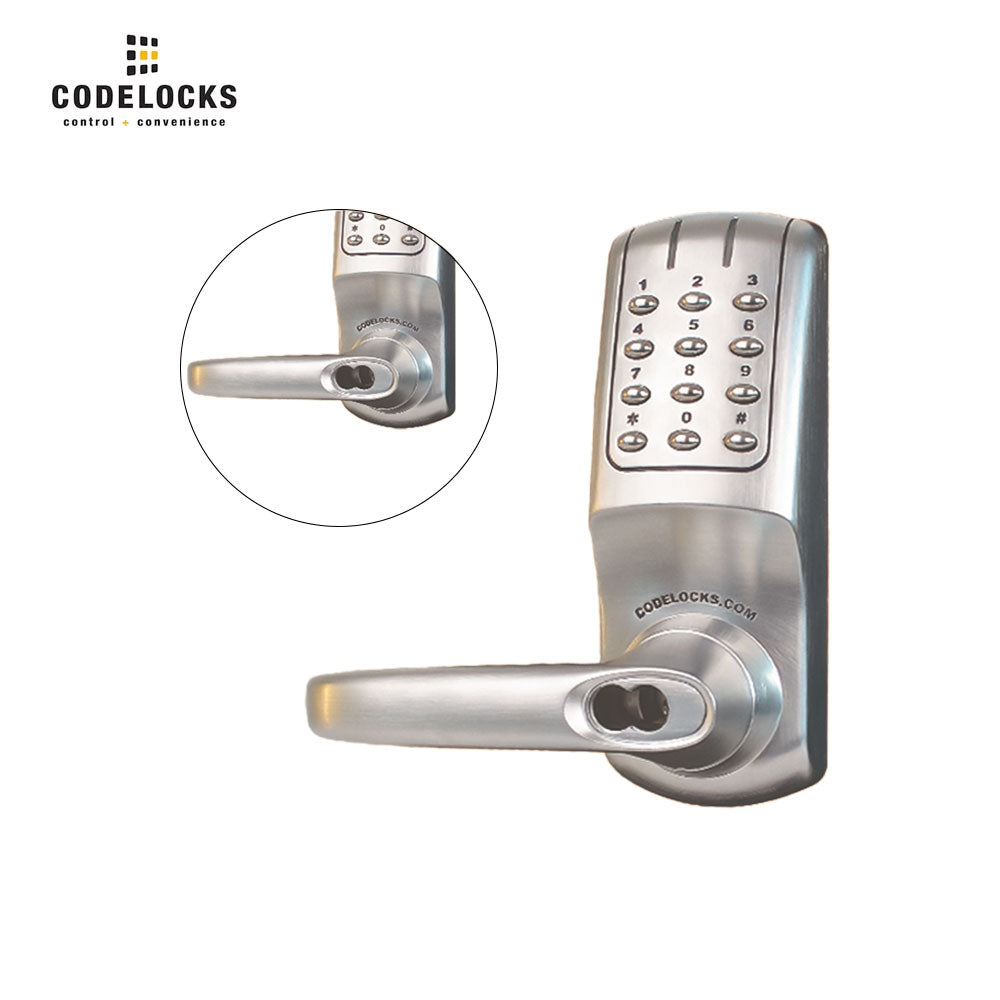

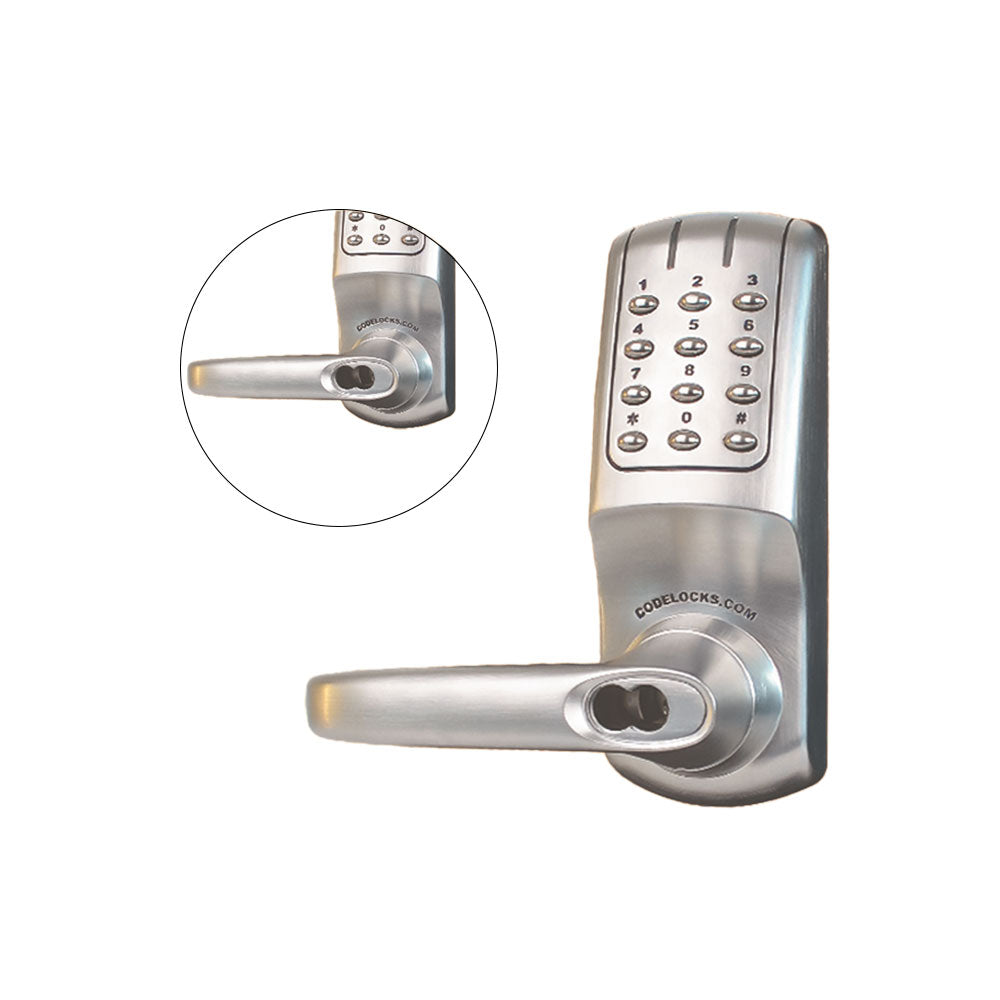

Codelocks CL5210 Electronic, Heavy Duty, Grade 2, Brushed Steel, Back to Back, Optional Backset Tubular Latchbolt with Optional Cylinder
CL5000 Electronic Range - heavy duty electronic locks for use in high traffic applications. The stylish design incorporates all the features of CL2000 and CL4000, in a larger, more robust assembly. Top of the range digital locks tested to Grade 2 ANSI A156.2/A156.25.

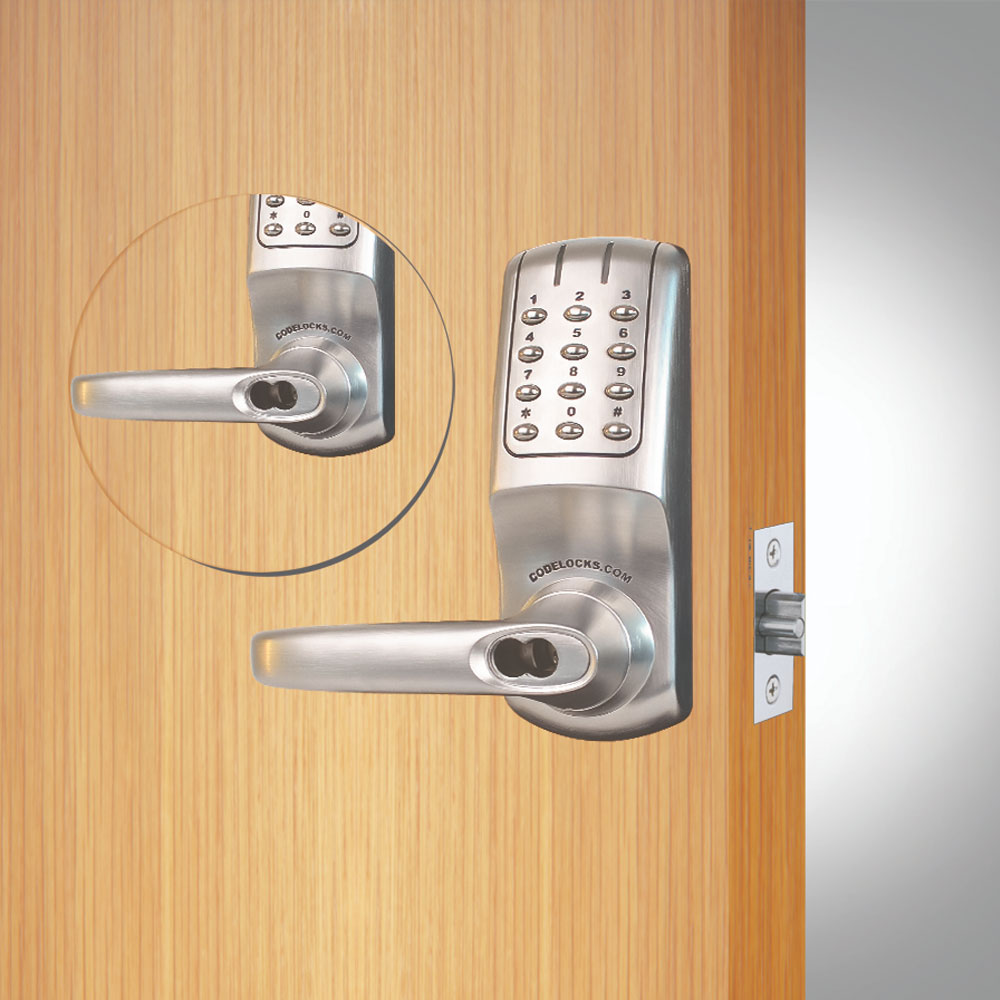

The CL5210 is a heavy duty electronic tubular mortise latch back to back providing coded access in both directions. Featuring a familiar 3x4 button keypad layout, the CL5210 ensures instant recognition and easy programming with its versatile functions. Its medium duty tubular latch retracts using the exterior knob after a valid code is entered, and the spring latch locks the door upon closure. This makes it ideal for health, educational, commercial, and residential settings, offering convenience and security in one package.
Features:

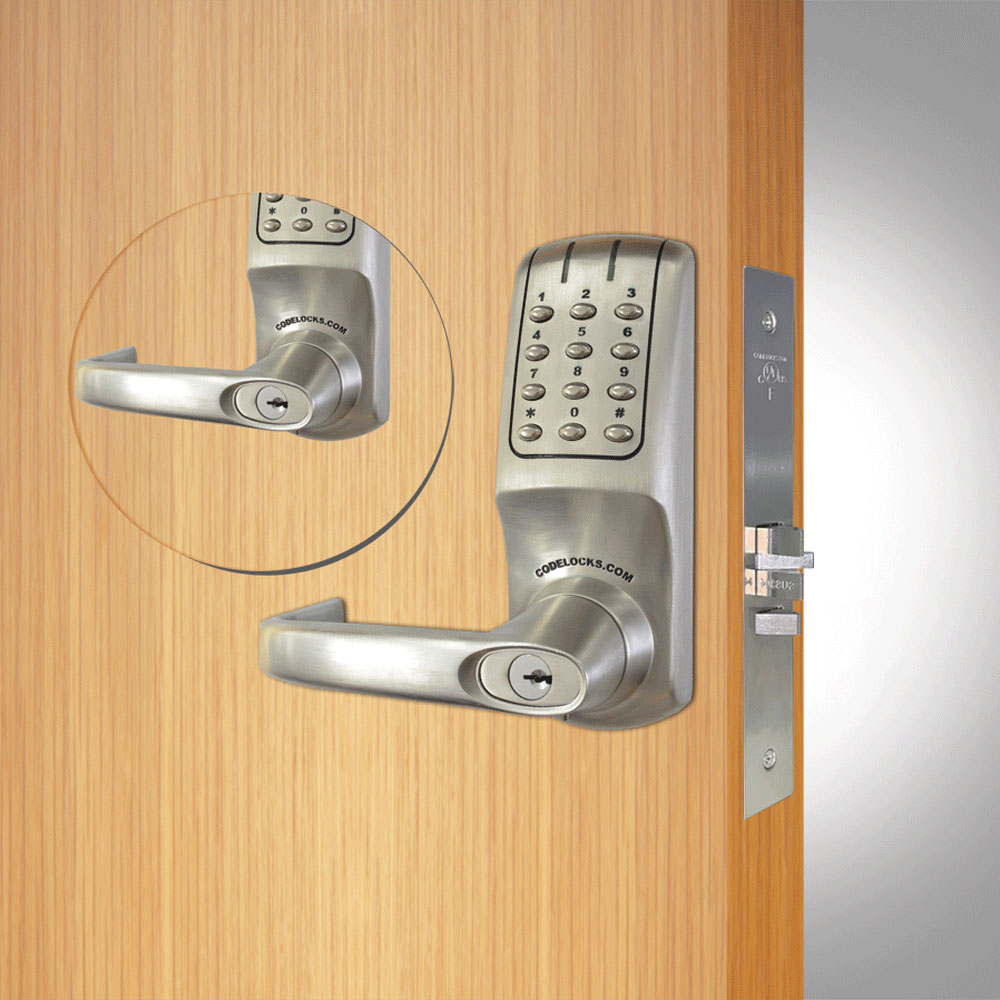

- Mortise latch back to back
- Allows up to 80 User Codes
- Allows up to 10 one-time User Codes to be entered
- PVD low maintenance finish
- Brushed Steel finish
- Over 200,000 operations from 4 x AA cells (provided)
- Tamper time out and low battery warning
- Connections for remote release by reception desk button
- Alarm release included
- Code Free entry
- Lever handle lock for doors hung on the left or right
- Use in offices / schools / warehouses / hospitals / care homes / nurseries / hotels / leisure facilities / the home
The outside lever turns freely without operating the latchbolt. When a valid code is entered and the blue LED lights, the lever will retract the latchbolt. When the door closes the spring latch will automatically lock the the door.
Technical Specifications:
| Buttons | 3 x 4 |
| Code Change Method | Keypad (On Door) |
| Codes | User Codes 4, 5 or 6 Digits Long |
| Door Thickness | 1 3⁄8" - 2 3⁄8" (35mm - 60mm) |
| Finish | Brushed Steel |
| Handed | Non-Handed - Locks will Fit Doors Hung on the Left or Right |
| Hinge Type | Heavy-Duty |
| Keyed Alike | Available |
| Keypad | 12 Individual Stainless Steel Buttons |
| Latch Type | Tubular Latchbolt |
| Lock Material | Zinc Alloy |
| Low Battery Warning | Red LED will Flash on Opening to Indicate Low Battery |
| Memory | Stores up to 80 User Codes |
| Operations | Up to 200,000 Per Set of 8 x AAA Batteries |
| Power | 4x AA |
| Orientation | Vertical |
| Spindle | Two Part 5⁄16" (8mm) Spring Loaded Spindle |
| Suitable For | Internal, External |
| User Types | Code |
| Certifications | Grade 2 ANSI A156.2 / A156.25, UL/ULC |
