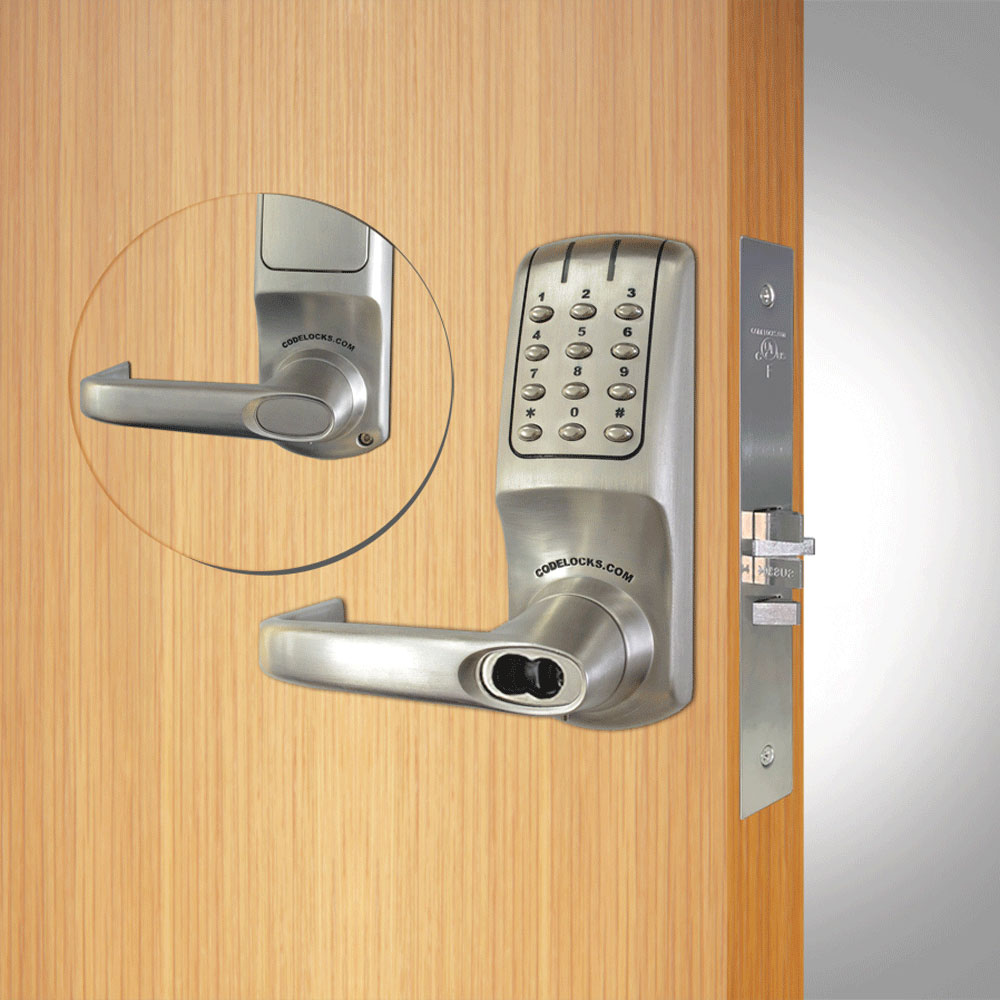

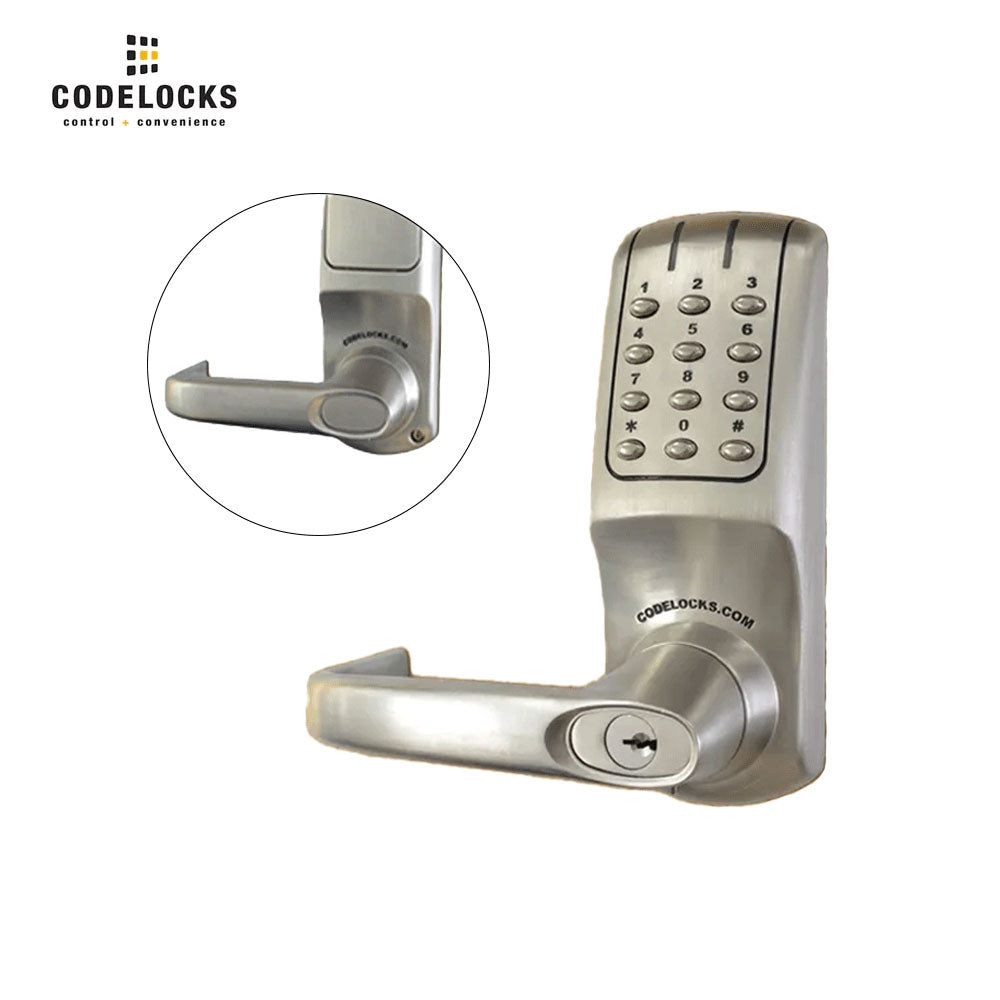

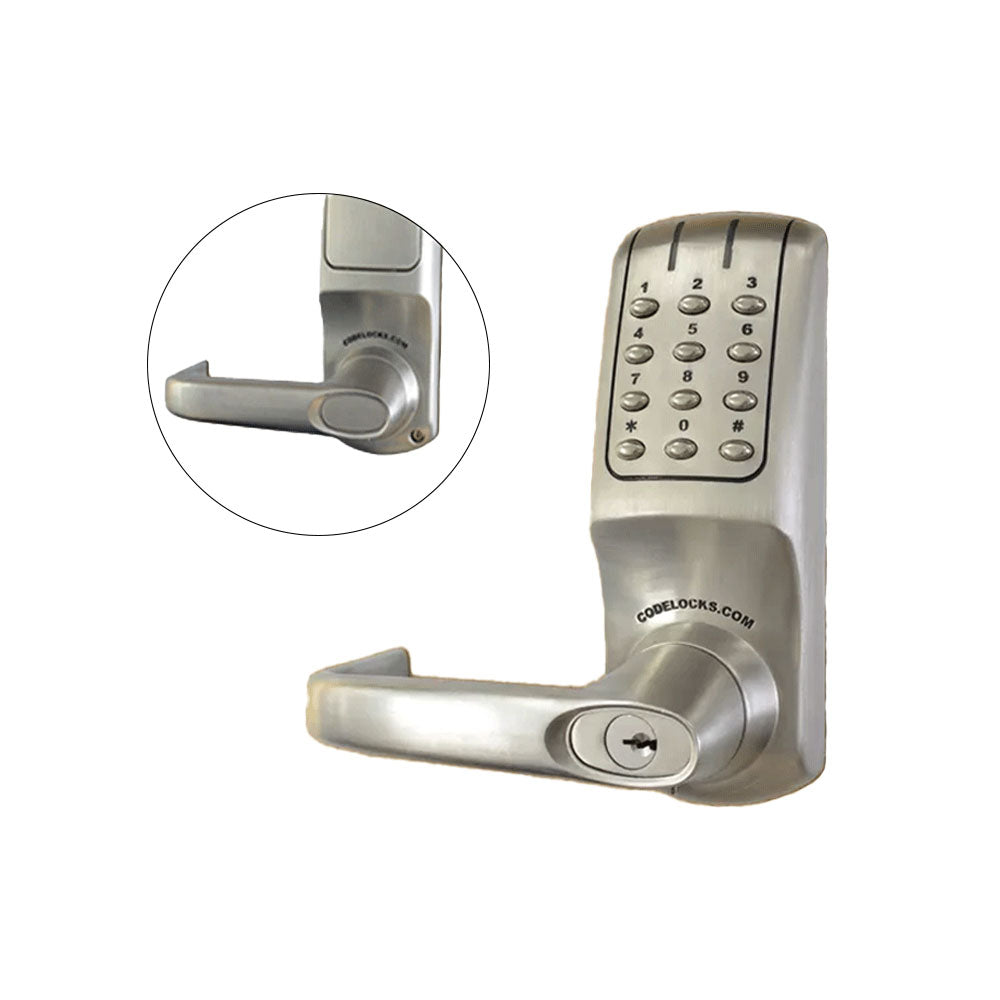

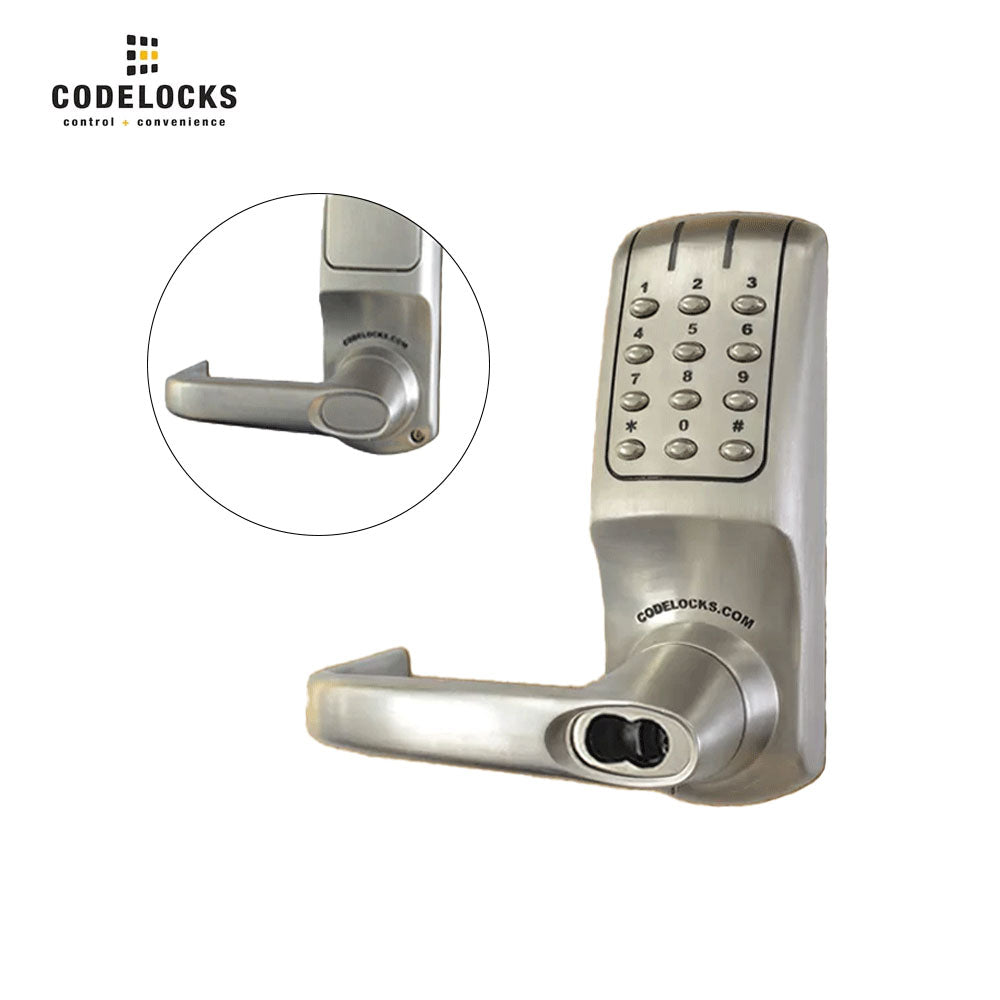

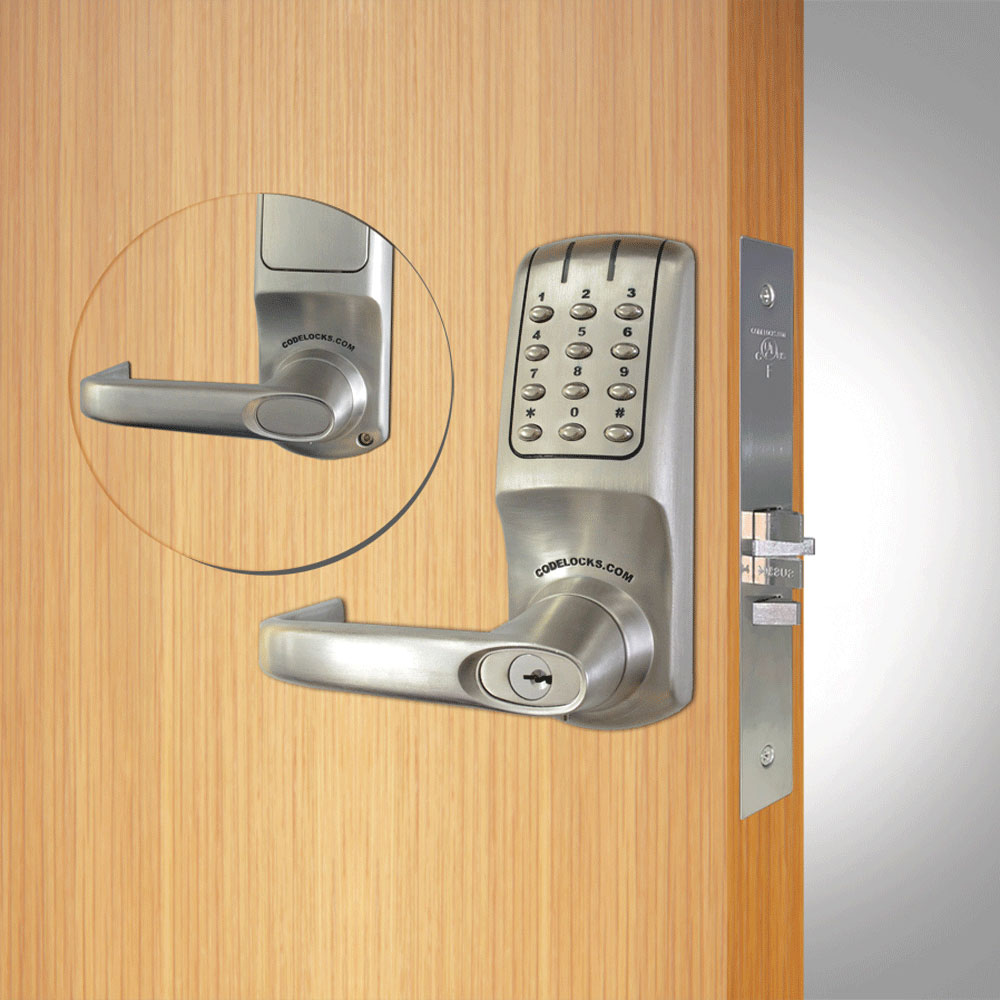

Codelocks CL5250 Electronic Smart Lock, Heavy Duty, Grade 2, Brushed Steel, 86 Prep Mortise Lock with Optional Cylinder Prep
Secure transactionCouldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
All orders are shipped between 24 hours or less Monday through Friday from 9:00 am to 6:00pm. Orders placed after 4 p.m. EST will be shipped next business day.
Learn more
Codelocks CL5250 Electronic Smart Lock, Heavy Duty, Grade 2, Brushe...
Description
Description
Codelocks CL5250 Electronic Smart Lock, Heavy Duty, Grade 2, Brushed Steel, 86 Prep Mortise Lock with Optional Cylinder Prep
CL5000 Electronic Range - heavy duty electronic locks for use in high traffic applications. The stylish design incorporates all the features of CL2000 and CL4000, in a larger, more robust assembly. Top of the range digital locks tested to Grade 2 ANSI A156.2/A156.25.
The CL5250 is a heavy duty electronic full ANSI mortise lock. Featuring a familiar 3x4 button keypad layout, the CL5250 ensures instant recognition and easy programming with its versatile functions. Its medium duty tubular latch retracts using the exterior knob after a valid code is entered, and the spring latch locks the door upon closure. This makes it ideal for health, educational, commercial, and residential settings, offering convenience and security in one package.
Features:
- Allows up to 80 User Codes
- Allows up to 10 one-time User Codes to be entered
- PVD low maintenance finish
- Brushed Steel finish
- Over 200,000 operations from 4 x AA cells (provided)
- Tamper time out and low battery warning
- Connections for remote release by reception desk button
- Alarm release included
- Code Free entry
- Lever handle lock for doors hung on the left or right
- Use in offices / schools / warehouses / hospitals / care homes / nurseries / hotels / leisure facilities / the home
- Back to back model available
The key can be used to open doors for management functions such as security and cleaning. The lock can store up to 80 different User Codes. Codes may be 4, 5 or 6 digits long. Programming is via the keypad, using the Master Code. The lock has fitted as standard two alarm release terminals.
Technical Specifications:
| Buttons | 3 x 4 |
| Code Change Method | Keypad (On Door) |
| Codes | User Codes 4, 5 or 6 Digits Long |
| Door Thickness | 1 3⁄8" - 2 3⁄8" (35mm - 60mm) |
| Finish | Brushed Steel |
| Handed | Non-Handed - Locks will Fit Doors Hung on the Left or Right |
| Hinge Type | Heavy-Duty |
| Keyed Alike | Available |
| Keypad | 12 Individual Stainless Steel Buttons |
| Latch Type | Mortise Latch |
| Lock Dimensions | 7" (177mm) x 1 7⁄8" (48mm) |
| Lock Material | Zinc Alloy |
| Low Battery Warning | Red LED will Flash on Opening to Indicate Low Battery |
| Memory | Stores up to 80 User Codes |
| Operations | Up to 200,000 Per Set of 8 x AAA Batteries |
| Orientation | Vertical |
| Spindle | Two Part 5⁄16" (8mm) Spring Loaded Spindle |
| Suitable For | Internal, External |
| User Types | Code |
| Certifications | Grade 2 ANSI A156.2 / A156.25, UL/ULC |
