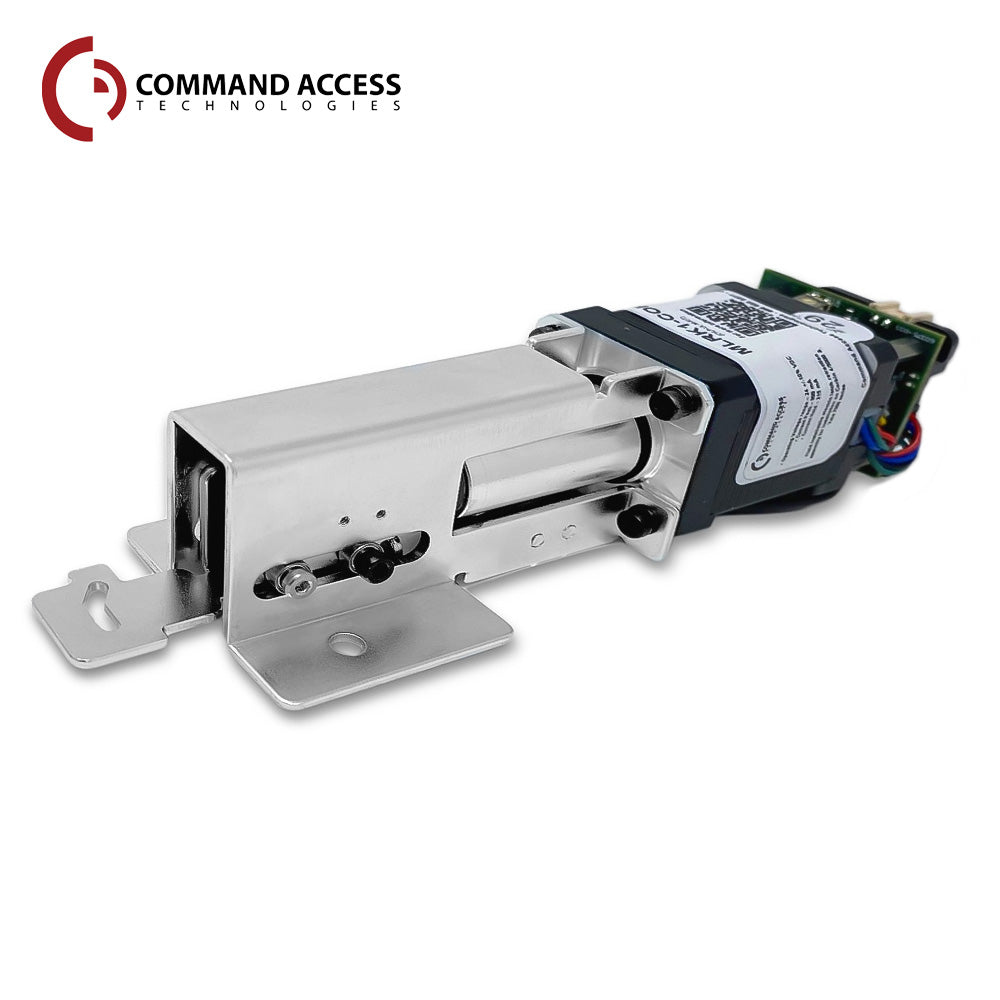

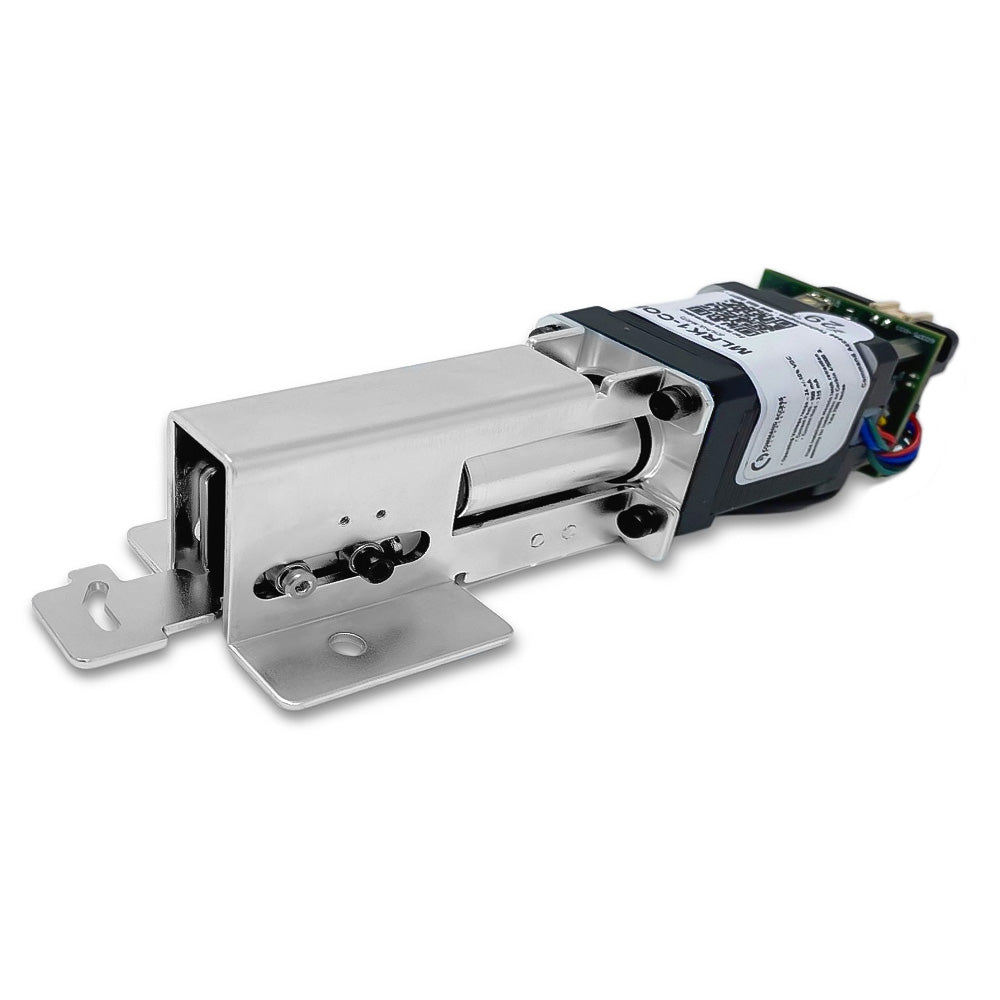

Command Access - MLRK1-COR - Motorized Latch Retraction Kit for Corbin Russwin 4/5000 & Yale 7000 Series Exit Device

Command Access - MLRK1-COR - Motorized Latch Retraction Kit for Corbin Russwin 4/5000 & Yale 7000 Series Exit Device

The MLRK1-COR is a high quality, cost-effective method of converting a Corbin Russwin 4/5000 & Yale 7000 series device to an electrified motor-driven latch retraction exit device. All our kits retract not just the latch/latches but the push pad too. Allowing electronically dogged devices to remain in a push/pull state for as long as it is desired. Patent Pending Push to Set (PTS) Technology allows for an easy post-installation adjustment of the latch/latches. Last but not least, it features our motor module with built-in audible diagnostics & equipped with 2 different torque settings from energy-conscious, to High Torque to get the tough jobs done!

• “PTS” Push to set technology
• Powerfully Built & Easy to Install!
• Fast, quiet, smooth
• True Electronic Dogging - Full push pad retraction
• UL Listed
• Retrofits Corbin Russwin 4/5000 & Yale 7000 series exit devices

Features:

• MM4S Smart Module: On board diagnostics with audible feedback for adjustment and power issues
• “PTS”: 5 second electronic adjustment for easy post installation adjustment
• Electric dogging rated for continuous duty - Auto re-engage if push pad is pulled from dogged position
• Low Current Draw - Field switchable to “High Torque” mode
• Up to 300’ wire run with 2-18ga wire - Long wire runs provides installer with convenience of placing the Command locking hardware power supply in a centralized location; i.e. the same closet as the access control panel
• 8’ cable with Quick Connect for MM4S module to easily connect to power supply lead
• Optional Request-to-exit can be added
• 3-year “no hassle” warranty

Voltage:

• Voltage range – 24 to 28 VDC
• System protection – unit shutdown when voltage exceeds 28VDC
• Standard - Average Current Peak: 900A, Average Current Hold: 215mA
• High Torque - Average Current Peak: 2A, Average Current Hold: 250mA
• PTS adjustment – approx. 1/4”

Wire Run:

• 300' with 18ga wire

Product Details:

• Weight: 2 Lbs

Device Cutdown Details:

• 36” - 4” from end cap
• 48” - 10” from end cap

Accessories:

• CAL77REXKIT-ED - Field Installable REX Kit

Corbin Ruswwin & Yale Kit:

• Mechanical Device
• CAT Modified Solenoid
• CAT Modified Motor
• SDC Motor (LR100CRK)
• ACSI Motor (1150K-MDC)

Download:

• Installation Instruction
