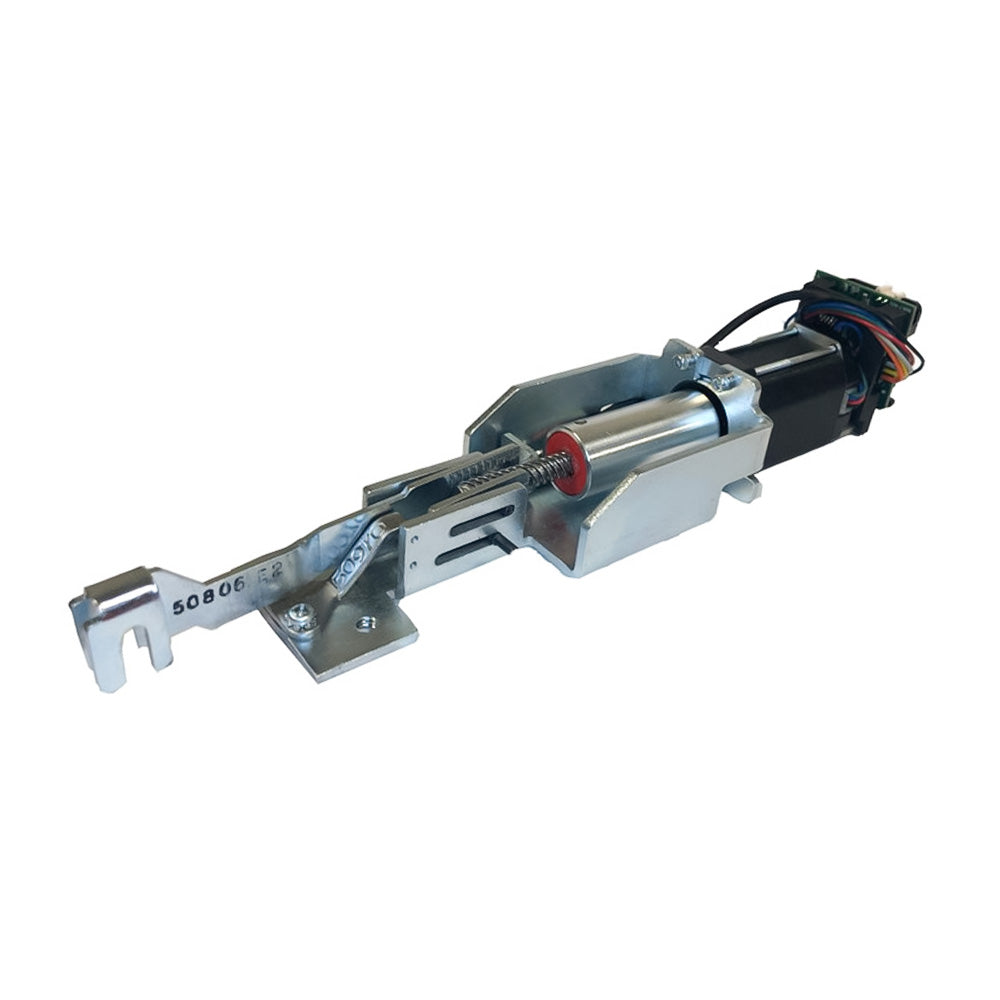

The MLRK1-FAL17 is a robust, straightforward field-installable motorized latch retraction kit for Falcon Dor-o-Matic 1690/1790 & First Choice 3600/3700 series exit devices. It utilizes a CAT-designed custom assembly to maximize the pulling force. The only hole you’ll need to drill is the raceway! It uses our new 1 TOUCH PTS “Push to Set” technology, making post-installation adjustments a breeze.

• 1 Touch “PTS” Push to set technology
• Easy installation - Fast, quiet, smooth
• True Electronic Dogging - Full push pad retraction
• UL Listed
• 3 year warranty

Features:

• Next Generation MM5 Smart Module: On board diagnostics with audible feedback for adjustment and power issues
• 1 Touch “PTS”: Quick & easy post-installation adjustment
• Electric dogging rated for continuous duty - Auto re-engage if push pad is pulled from dogged position
• Low Torque Mode: Now capable of pulling all devices, even tall vertical rod doors!
• Up to 300’ wire run with 2-18ga wire - Long wire runs provides installer with convenience of placing the Command locking hardware power supply in a centralized location; i.e. the same closet as the access control panel
• 6’’cable with Robust Quick Molex Connect for MM5 module to 6’ Power Lead to easily connect to Power Supply.
• 3-year “No Hassle” Warranty

Voltage:

• Voltage range – 24 to 28 VDC
• System protection – unit shutdown when voltage exceeds 28VDC
• Standard - Average Current Peak: 900A, Average Current Hold: 215mA
• PTS adjustment – approx. 1/4”

Wire Run:

• 300' with 18ga wire

Product Details:

• Weight: 2 Lbs

Device Cutdown Details:

• 36” - 1-1/4”
• 48” - 1-1/4”

Built-in REX:

• SPDT rated at .5A @ 24V
• Green (C)
• Blue - (NO)
• Gray (NC)

Falcon Kit:

• Mechanical Device
• CAT Modified Motor
• CAT Modified Solenoid
• FALCON Solenoid
• SDC Motor (LR100-FAK)

Download:

• Installation Instruction
