Command Access - MLRK1-HAG - Motorized Latch Retraction Kit for Hager 4500 Series Exit Device

Command Access - MLRK1-CAL - Motorized Latch Retraction Kit for Hager 4500, IDC 8000, PDQ 6200, Stanley QED, LSDA 9000 and Lawrence 8000 Series Exit Device

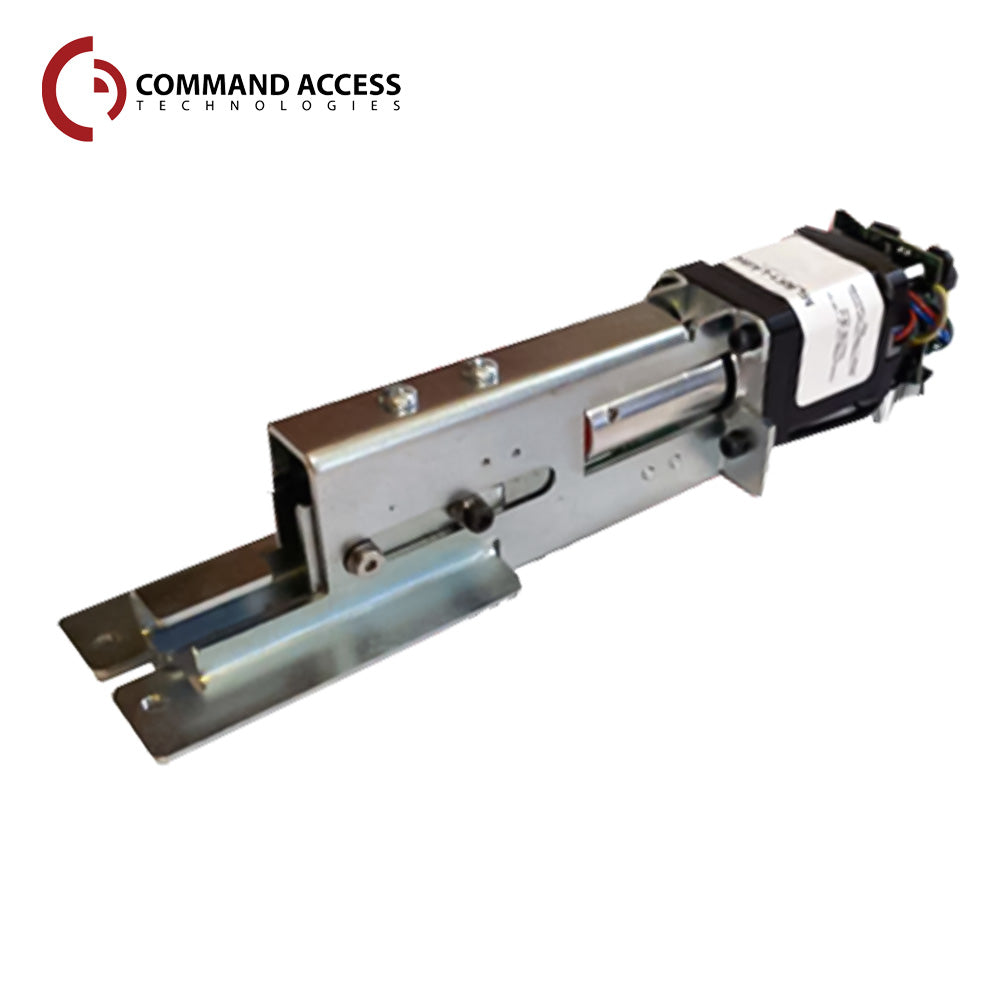

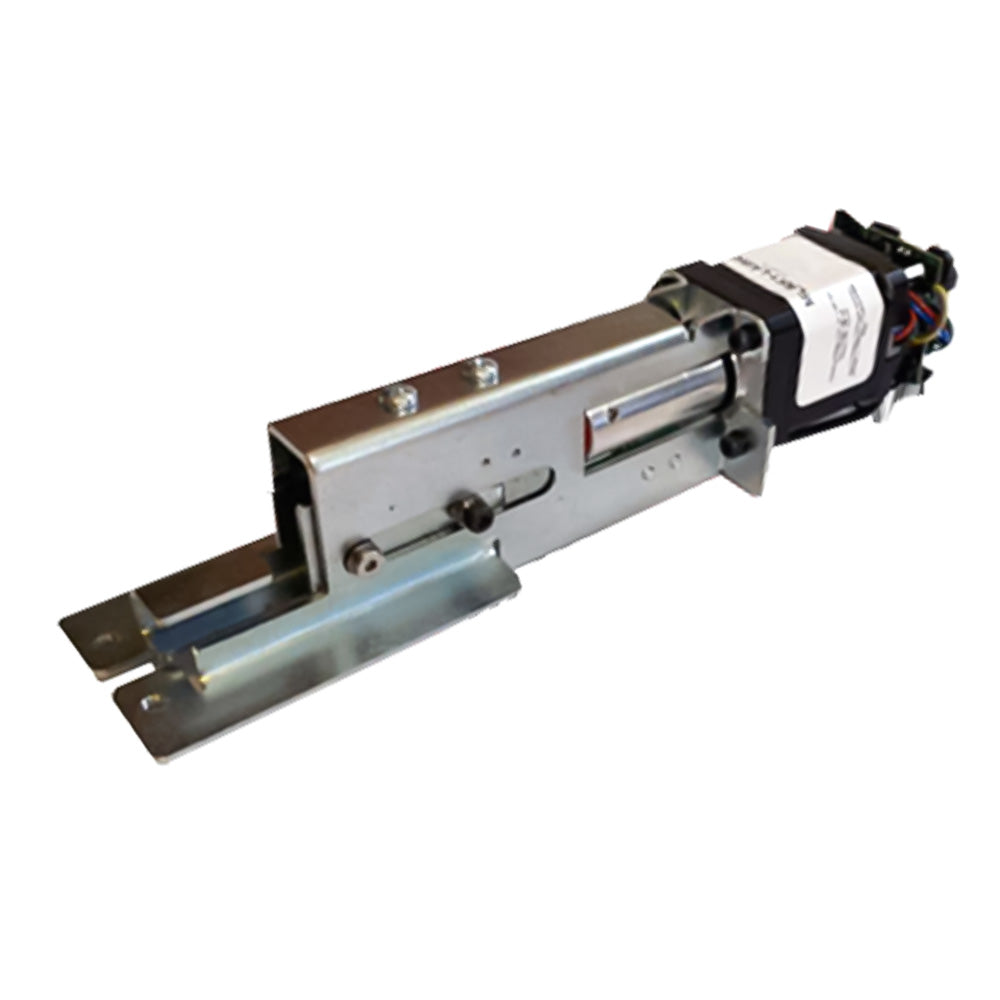

The MLRK1-HAG is a practical and cost-effective way to convert a mechanical Hager 4500, IDC 8000, LSDA 9000 R/V, PDQ 6200, Stanley QED 1/2000 & Lawrence 8000 series device to an electrified latch pullback device while maintaining the UL listing. Our easy-to-install motor-driven kit installs in moments. It is equipped with PTS technology allowing for an easy post-installation adjustment of the latch/latches. Last but not least, it features an updated MM5 module with improved torque & 1 Touch PTS!

• 1 Touch “PTS” Push to set technology
• Easy installation - underneath the push pad for ultimate cutdown
• Fast, quiet, smooth
• True Electronic Dogging - Full push pad retraction
• UL Listed

Features:

• MM5 Smart Module: On board diagnostics with audible feedback for adjustment and power issues
• “PTS”: 5 second electronic adjustment for easy post installation adjustment
• Electric dogging rated for continuous duty - Auto re-engage if push pad is pulled from dogged position
• Low Current Draw - Field switchable to “High Torque” mode
• Up to 300’ wire run with 2-18ga wire - Long wire runs provides installer with convenience of placing the Command locking hardware power supply in a centralized location; i.e. the same closet as the access control panel
• 6” robust Molex Pigtail + 6’ Power lead to easily connect to power supply lead
• Request-to-exit kit available
• 3-year “no hassle” warranty

Voltage:

• Voltage range – 24 to 28 VDC
• System protection – unit shutdown when voltage exceeds 28VDC
• Average Current Peak: 900A
• Average Current Hold: 215mA
• PTS adjustment – approx. 1/4”

Wire Run:

• 300' with 18ga wire

Product Details:

• Weight: 2 Lbs

Device Cutdown Details:

• • 36” & 48” - Minimum 8.5” of Filler Plate

Accessories:

• LLPREXKIT-M-ED - Built-in or Field Installable REX kit

Hager Kit:

• Mechanical Device
• CAT Modified Motor
• Hager Motor
• SDC Motor (LR100-FRK)
• ACSI Motor (1550K-MDF)

Download:

• Installation Instruction
