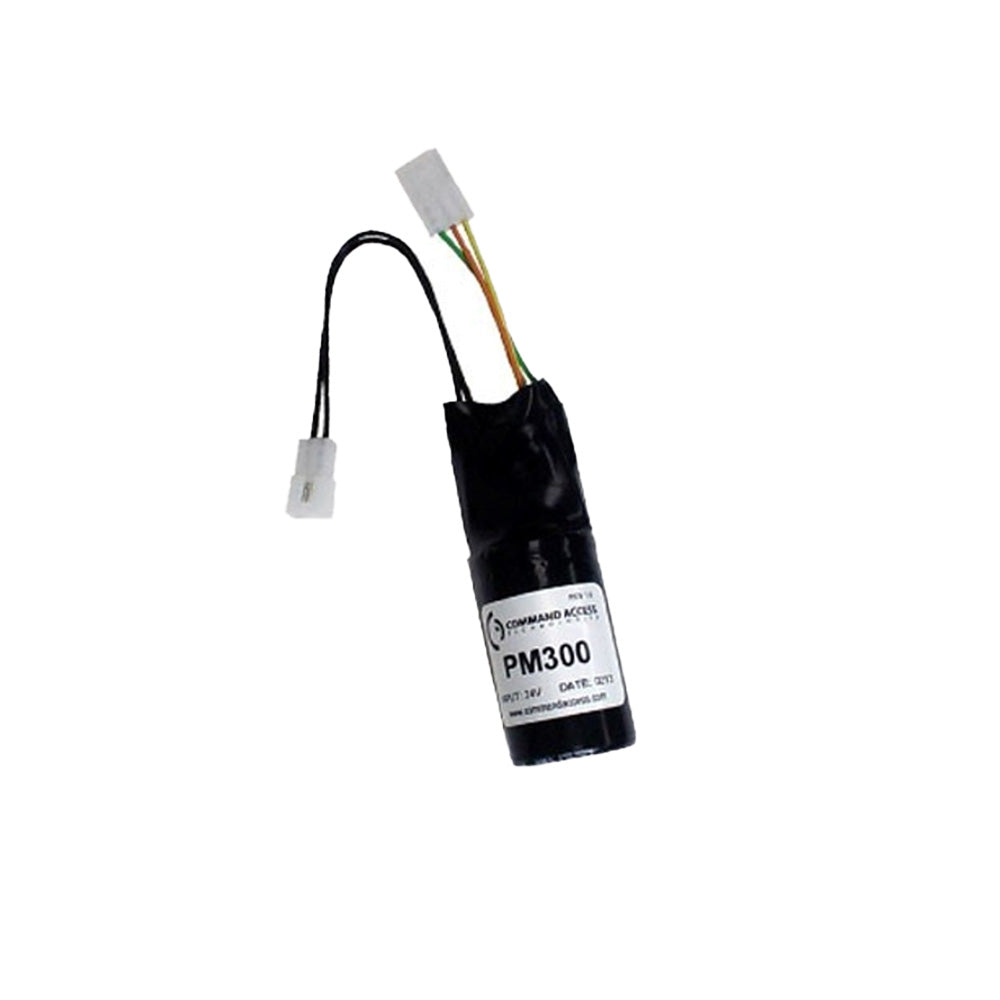

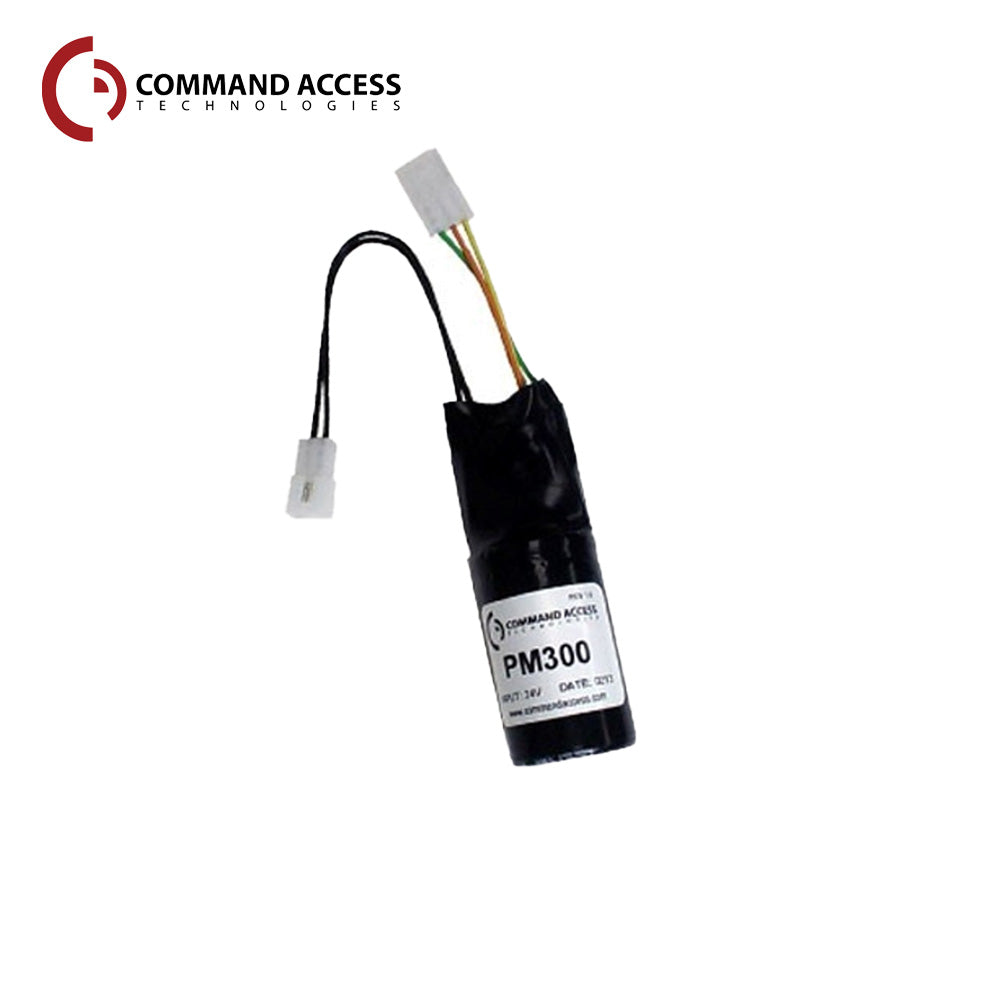

Command Access - PM300AC - Power Booster Module
The patented Command Access PM300 series power booster module is an interface module that connects between the solenoid circuit of a latch-pullback exit device and the power supply. The PM series modules have been offering a reliable, cost-effective interface solution for exit devices for nearly a decade. The PM300 series modules integrate all the upgrades and improvements we’ve made over the years and are available for nearly all exit device applications. Over the past decade our customers have discover different uses for this module which include the following: Allows a solenoid-driven exit device to be used with a lower cost power supply - The PM300 provides a local power boost and will work with most 1.5 A or greater, 24VDC, non-switching power supplies, eliminating the need for the expensive “speciality” power supply. Longer wire runs from the power supply to the exit device – Since the PM300 is the located in the exit device the allowable distance between the power supply and the exit device without compromising the performance of the device increases significantly Gives a needed boost to an anaemic power supply/exit device installation – For various reason our customers have encountered conditions where the PM300 saves the day! The anaemic conditions could be due to marginal power supply, minor device binding, too small of gauge wire run, too long of a wire run to name a few.
- PM300AC: Designed to work with 24VAC & unregulated 24VDC power supplies
- PM300ACD: Same as PM300AC with built-in .5 second delay
Features:
- Allows a wire run from the power supply to the exit device of up to 700’ with 18/2 wire (see below)
- PM300AC compatible with most 24VAC/VDC 1.5A or greater unfiltered or unregulated power supplies.
- Built high output switch for added power when using Command Access power supplies*
- Solid-state design with high quality components make for years of trouble-free operation
- Built-in safety feature that protects module for over-voltage
- Patented Technology
- No hassle 3-Year Warranty
Specifications:
| PM300AC Input Voltage Range: | 20-26 VAC Unfiltered/ 20-26 VDC Unregulated Voltage |
| Dimensions: | Tubular 3.5”L x 1.25”W |
| Standard Mode: | Fuse: Glass - 3.5 to 5A • Resetable - 1.0Amp trip Relay: 5A or greater |
| High Output Mode: | Fuse: Resetable - 2.0Amp trip, 1.1Amp hold (minimum) Relay: 10A or greater |
| Maxiumun Wire Runs: | 700’ with 18ga wire 1000’ with 16ga wire |
