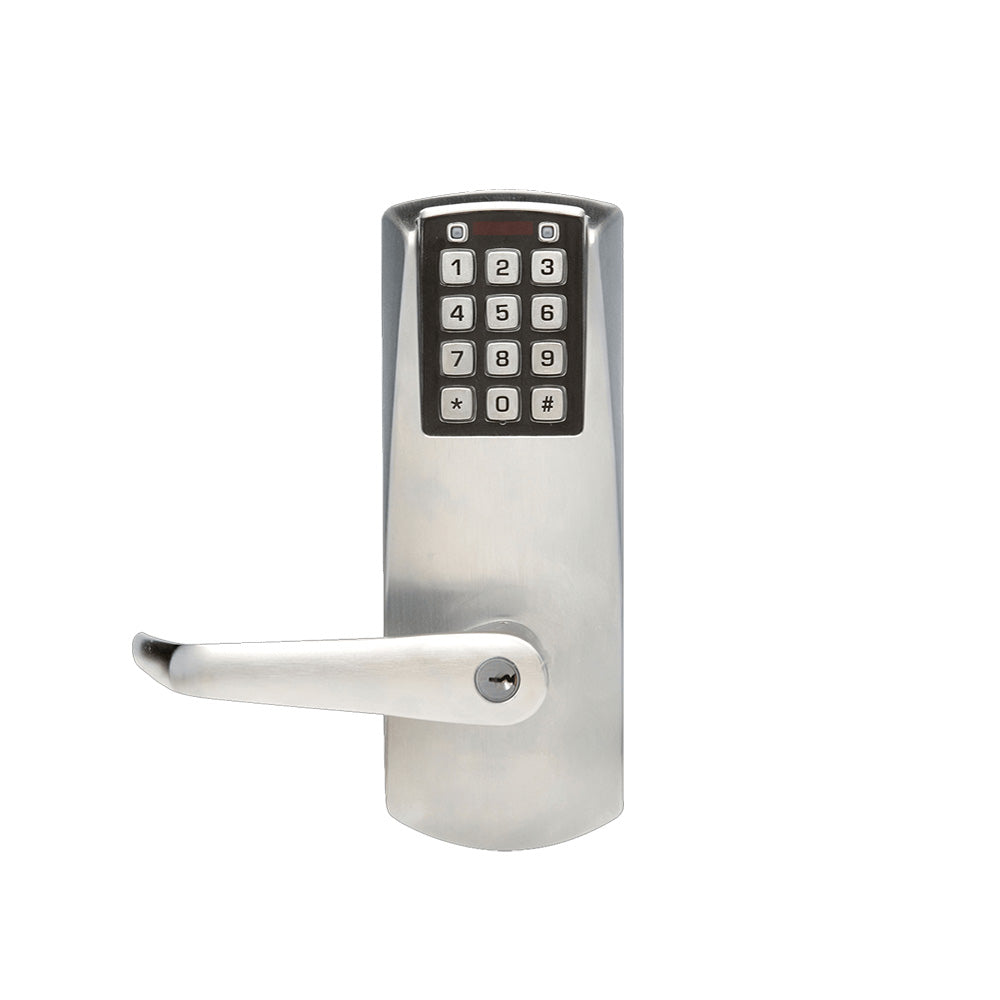

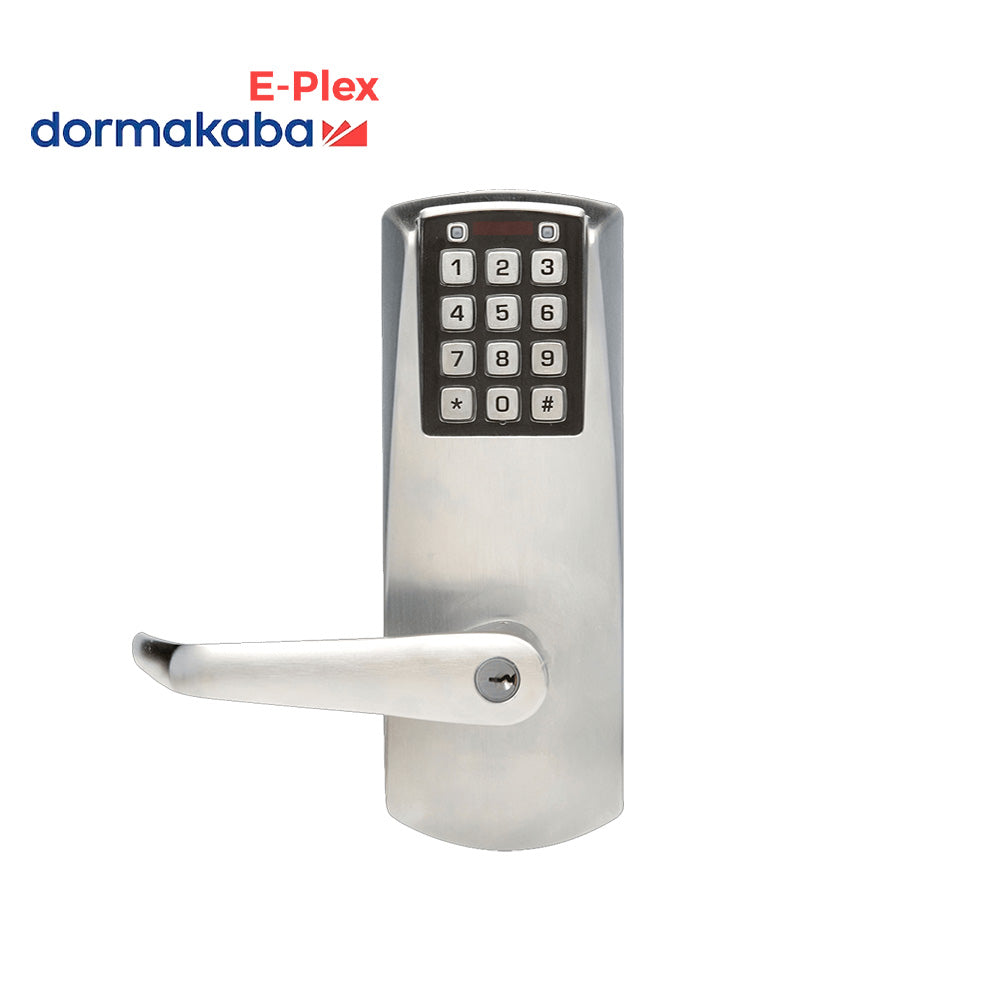

Dormakaba E-Plex - E201UXSLL - Electronic Pushbutton Exit Trim Lever with Mortise and SVR Devices - Schlage C Keyway - Grade 1
The E-Plex 2000 Series provides exterior access by combination, while allowing free egress. This electronic pushbutton lock eliminates problems and costs associated with issuing, controlling, and collecting keys and cards. Exit Trim only, see compatibility list below.
Features:
- Requires no wiring to or through the door-eliminates risk of damage from pinched wires that can result in costly callbacks.
- Multiple Users-100 Codes.
- Non-handed; pre-assembled for left-hand door installations-easily changed in the field.
- The most recent 1,000 events are recorded in memory, including the use of mechanical key override. Software is required to view Audit Events.
- Lock is easily programmed via keypad without removing lock from the door or with optional Microsoft Excel-based software.
- PIN access.
- Five different authority levels allow who has access to specific lock functions, including: Master, Manager Level, Access User, Service, and Maintenance Level.
- Code length-adjustable to accept 4 to 8 digits.
- Anti-tamper lockout-adjustable from 3 to 9 invalid attempts with an adjustable period of 0 to 90 seconds.
- Re-lock time-adjustable from 2 to 20 seconds.
Specifications:
| Construction | Heavy-duty commercial Grade 1 lockset, solid cast exterior housing, solid cast levers |
| Numeric Keypad | Vandal resistant, solid metal pushbuttons |
| Handing | Non-handed, pre-assembled for left-hand door installation-easily changed in the field |
| Locking Device | Exit Trim-Rim, Mortise, Surface Vertical Rod |
| Backset | Varies by Exit Device and Mounting Hardware (Not Included) |
| Key Override | Key-In-Lever, 1539 6-pin cylinder-Schlage "C" Keyway included |
| Minimum Stile Recommended | 5" (127 mm) |
| Door Preparation | ASA 161 (easily installs on door preparation with three additional through bore holes; wood or metal doors) |
| Door Thickness | 1-3/4" (44 mm) to 2-1/4" (57 mm); pre-assembled to accommodate doors 1-3/4" (44 mm) to 2-1/8" (54 mm) |
| Interchangeable Core | Small format-Best and equivalent (6 or 7-pin length); cylinder not included |
| Accessibility Standard | Americans with Disabilities Act (ADA) |
| Certification | ANSI/BHMA Grade 1 Certified |
| Fire Rating | UL 10C fire rated |
Exit Device Compatibility:
- Arrow Rim # 3800
- Corbin Rim # 5200
- Detex Rim # F1001Detex Surface Vertical Rod #s 20/F20
- Dorma Rim # F9300
- Precision Rim #s 21/FL21
- Precision Surface Vertical Rod #s 22/FL22
- Sargent Rim # 8800
- Von Duprin Concealed Vertical Rod #s 9847/9947
- Von Duprin Mortise #s 9875/9975
- Von Duprin Rim #s 89/99
- Von Duprin Surface Vertical Rod #s 9827/9927
- Yale Concealed Vertical Rod # 7160
- Yale Rim # 7100
