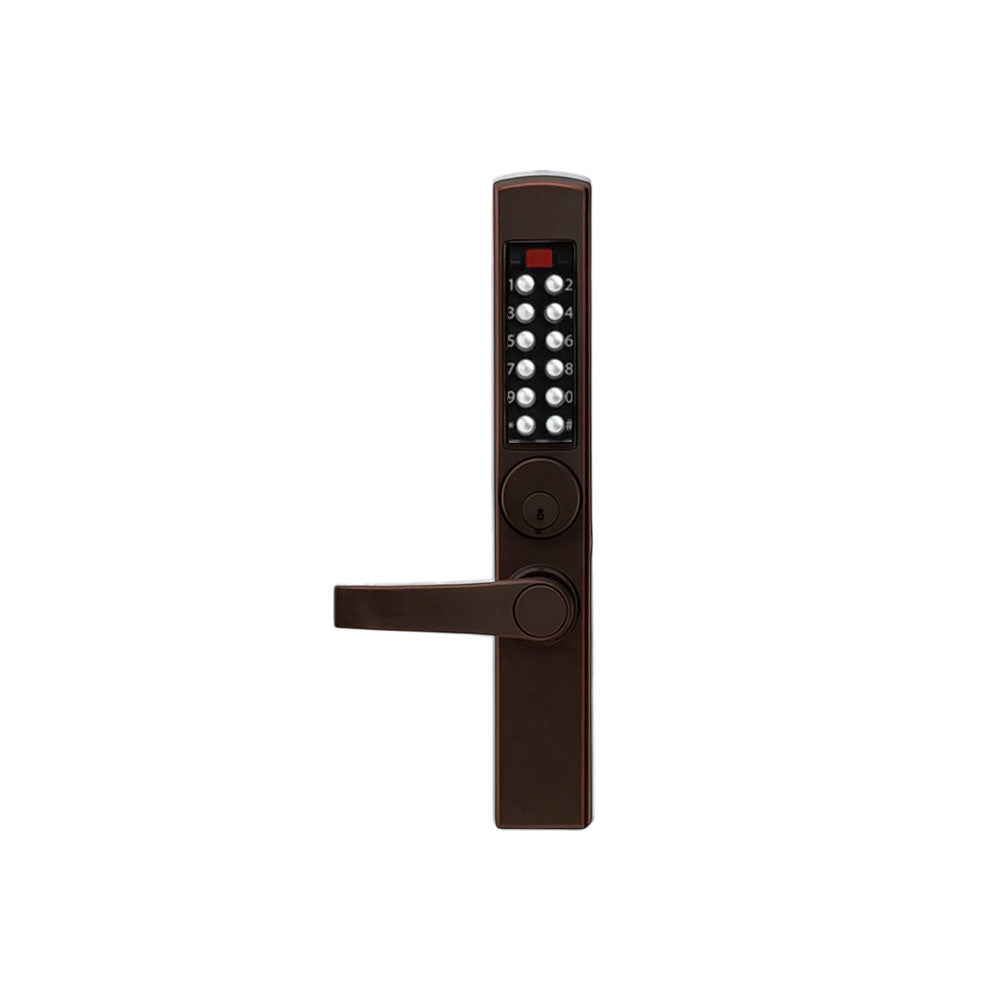

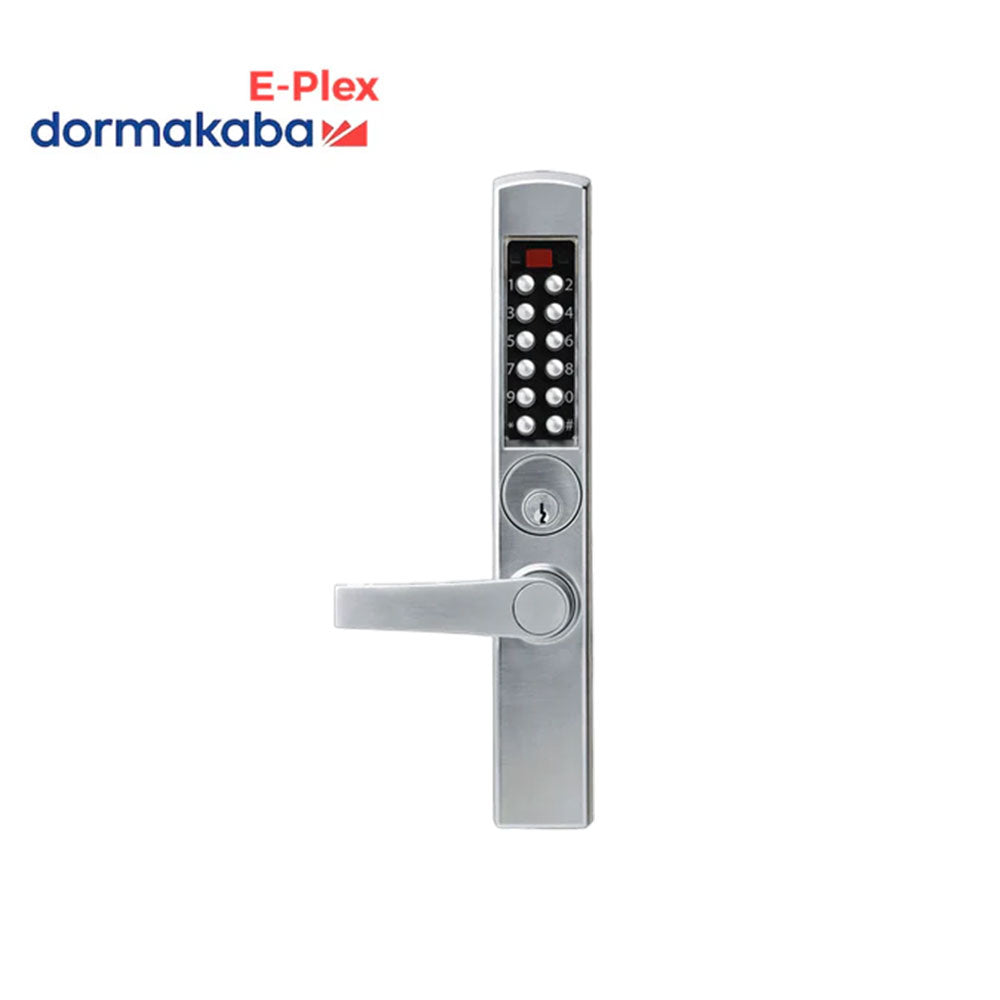

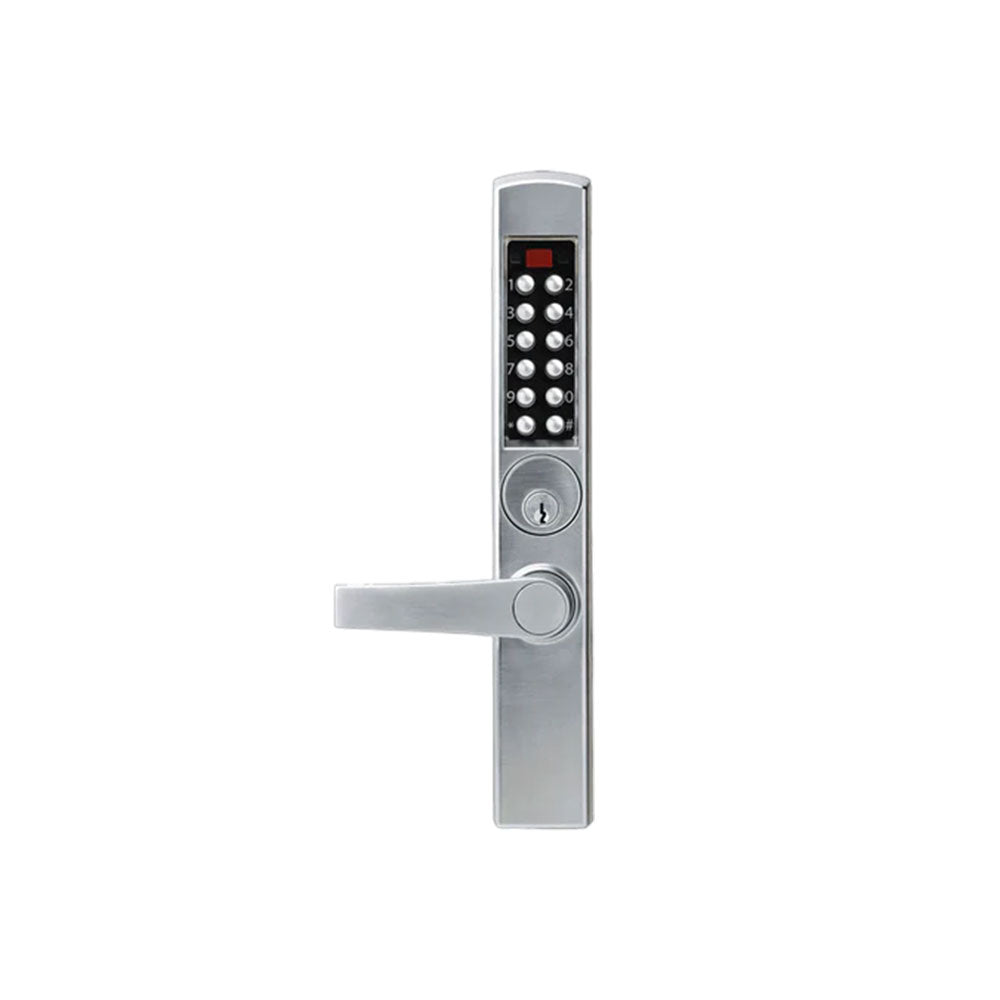

Dormakaba E-Plex - E3065MSNL - Electronic Pushbutton Mortise Dead latch for Adams Rite with Narrow Stile Lever Lock and Schlage C Keyway - Grade 1
The E-Plex 3000 Series provides exterior access by combination, while allowing free egress. This electronic pushbutton narrow stile lock eliminates problems and costs associated with issuing, controlling, and collecting keys and cards, has up to 300 Access Codes and 9,000 Audit Events. Mortise Dead latch for Adams Rite. Not Included.
Features:
- No wire installation-eliminates wiring to or through the door-no risk of pinched wires.
- 300 access codes per door.
- The most recent 9,000 events are recorded in memory, including use of the mechanical key override.
- Locks are programmed via keypad or with optional Microsoft Excel-based software-simplifies management of doors and users as facility’s number of users and access points grow.
- Five different levels (Master, Manager, Access User, Service, Maintenance) allow who has access to specific lock functions.
- Five different authority levels allow who has access to specific lock functions, including: Master, Manager Level, Access User, Service, and Maintenance Level.
- Code length: adjustable to accept 4 to 8 digits.
- Anti-tamper lockout: adjustable from 3 to 9 invalid attempts with an adjustable period of 0 to 90 seconds.
- Re-lock time-adjustable from 2 to 20 seconds.
Specifications:
| Construction | Extra heavy-duty lockset, solid cast housing, solid cast lever wear tested for extensive use in indoor and outdoor applications |
| Numeric Keypad | Vandal resistant, solid metal pushbuttons |
| Handing | Non-handed, easily changed in the field |
| Locking Device | Mortise Dead Latch for Adams Rite 4070, 4510, 4520, 4530, 4710, 4720, 4730, 4900, and 4920AN. Also fits 8400 Mortise Exit. (Not Included) |
| Key Override | Mortise, Kaba Cylinder (Schlage "C" Keyway) included |
| Minimum Stile Recommended | 2" (51 mm) |
| Backset | 31/32" (25 mm) minimum |
| Door Preparation | Easily installs on narrow stile doors with four mounting screws |
| Door Thickness | 1-3/4" (44 mm) |
| Accessibility Standard | Americans with Disabilities Act (ADA) |
| Certification | ANSI/BHMA Grade 1 Certified |
