Description
Description

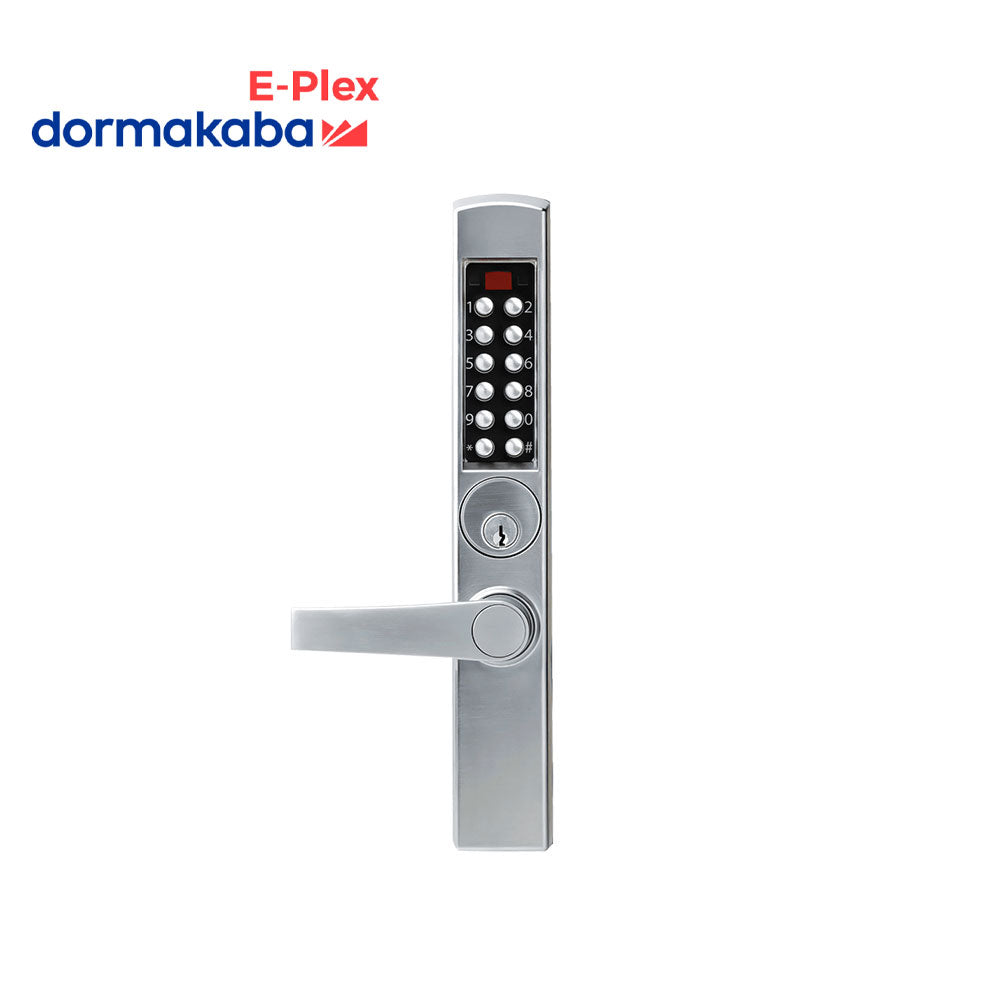

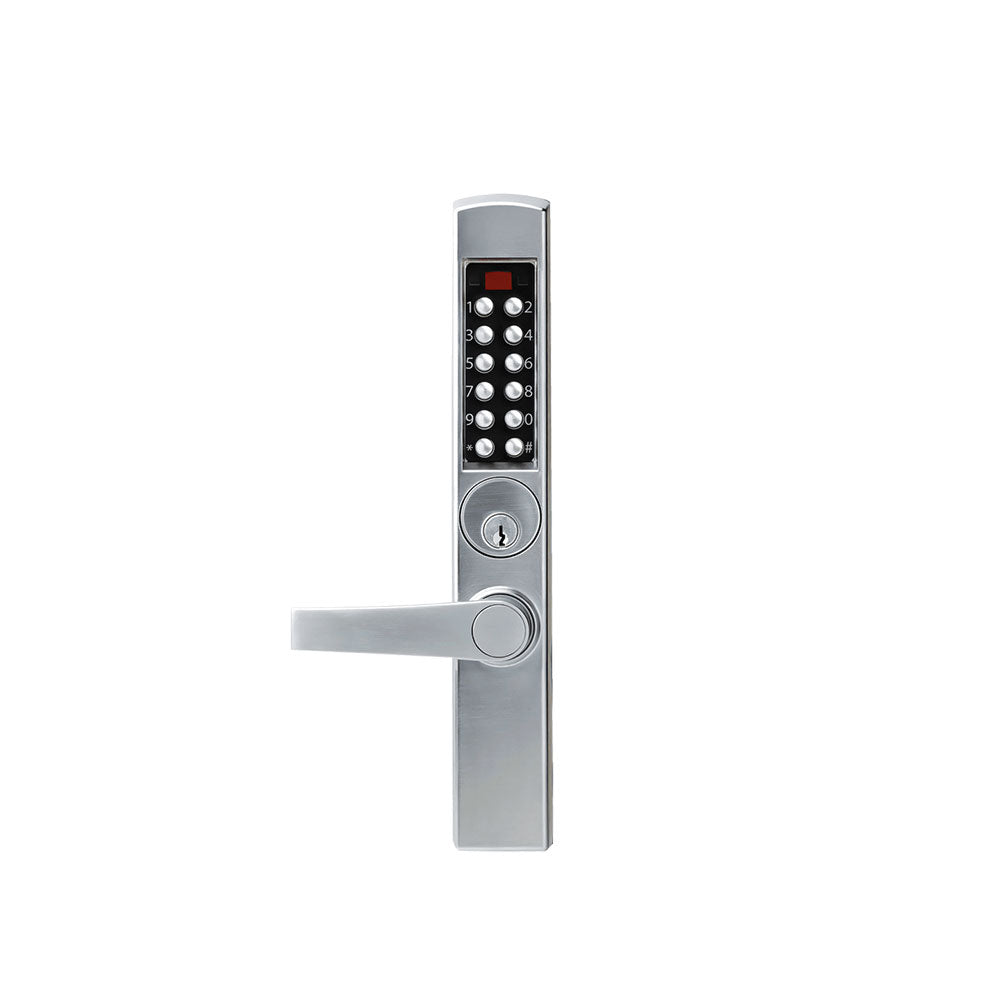

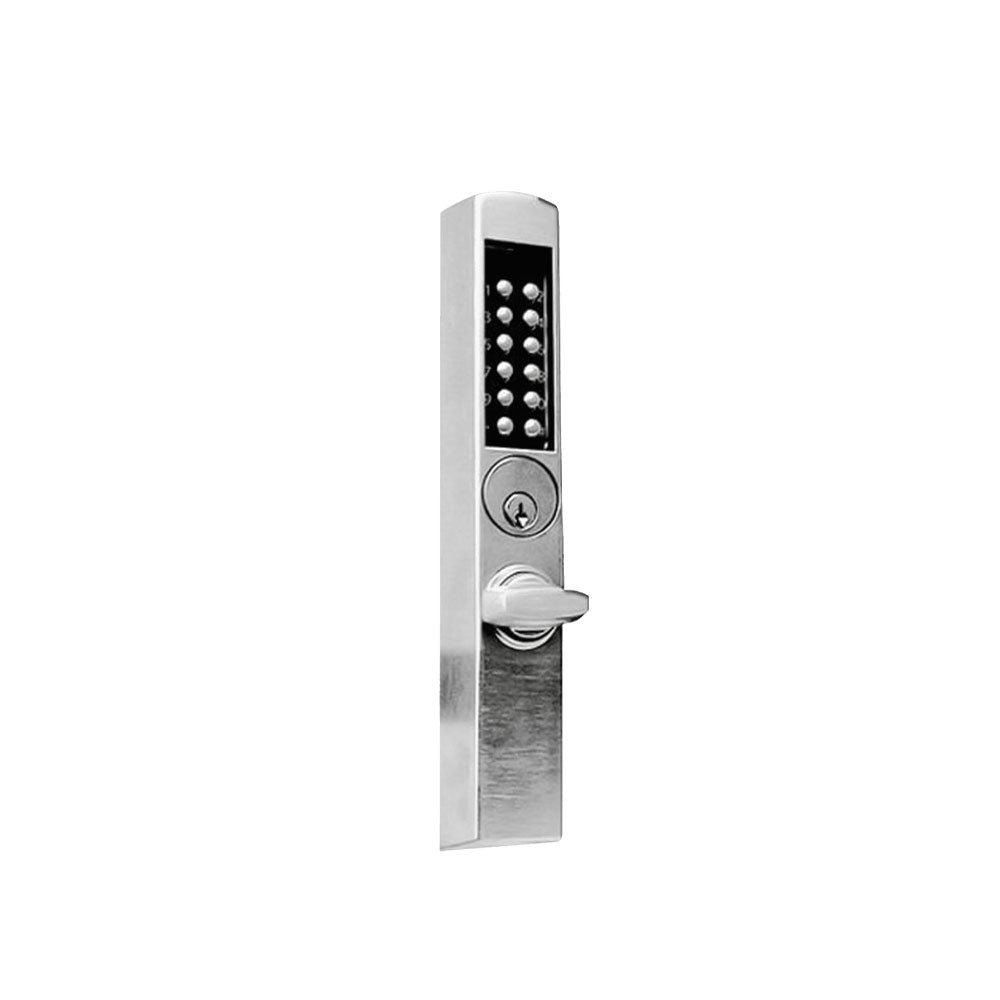

Dormakaba E-Plex - E3066 - E3000 Series Electronic Pushbutton Mortise Narrow Stile Lock for Adams Rite Deadbolts
The E-Plex 3000 Series eliminates problems and costs associated with issuing, controlling, and collecting keys and cards.
Features:
- Number of Users: 300 Access Codes
- Audit Capability: The most recent 9,000 lock events are recorded in memory including use of the mechanical key override (accessible with optional software)
- Programming: Locks are programmed via keypad or with optional Microsoft Excel-based software-Simplifies management of doors and users as facility's number of users and access points grow.
- Authority Levels: Five different levels control who has access to specific lock functions, including: Service codes-programmed for one-time or come-and-go access for 1 to 24 hours.
E-Plex 3000 Series:
- Construction: Extra heavy-duty lockset, solid cast housing, solid cast lever or thumbturn wear tested for extensive use in indoor and outdoor applications
- Handing: Non-handed, easily changed in the field
- Standard Backset: 2-3/4" (25 mm) minimum
- Minimum Stile Recommended: 2" (51 mm)
-
Key Override
- Mortise Cylinder: Mortise Cylinder in Schlage "C" Keyway
- Interchangeable Cores: Optional Mortise Shell accommodates small format-Best and equivalent (6-pin length)
- Door Preparation: Easily installs on narrow stile doors with four mounting screws
- Door Thickness: 1-3/4" (44 mm)
- Accessibility Standard: American with Disabilities Act (ADA)
- Programming and Audit Trail: Lock memory stores 30,000 audits, max 10,000 users, wireless locks using Aurora software stream lock transactions in real time with on-line programming. Stand-alone lock programming and audit retrieval requires M-Unit (Handheld device - available soon).
- Programming command card: Command card set matching card technology of lock ordered is required to be purchased separately to program all locks with that same card technology (not included with lock).
- Accessibility Standard/Certification: ADA compliant, BHMA/ANSI Grade 1, Florida Windstorm (mortise), UL10/UL10C, ULC S104, FCC Part 15 Class C and CE directive 2014/53/EU and industry Canada compliant.
- Operating Conditions: -31°F to 149°F (-35°C to 65°C) 0% to 85% non-condensing humidity at 86°F (30°C).
Specifications:
| Manufacturer | DormaKaba |
| Series Name | E-Plex |
| Installation | Commercial |
| Base Material | Brass or Bronze |
| Pin | 6 |
| Lock Platform | Narrow Stile Mortise Keypad Trim |
| Cylinder Type | Conventional Cylindere |
