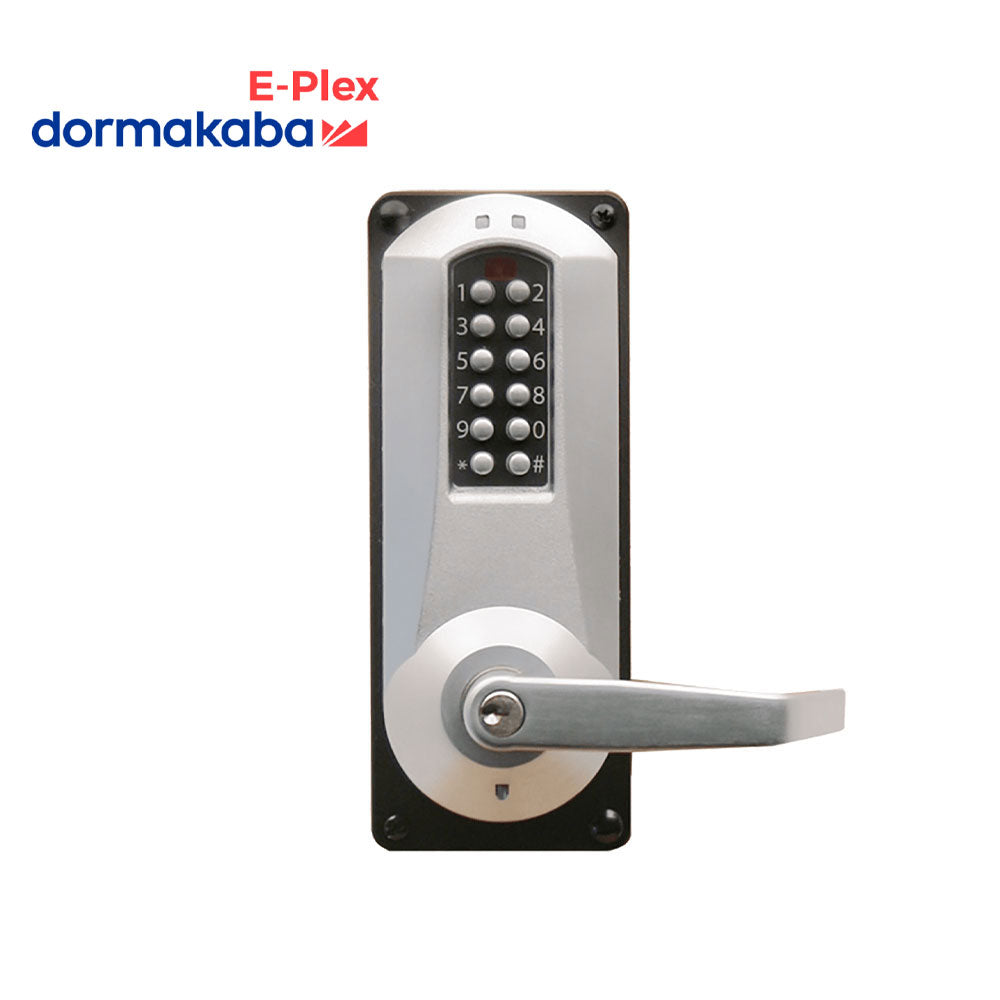

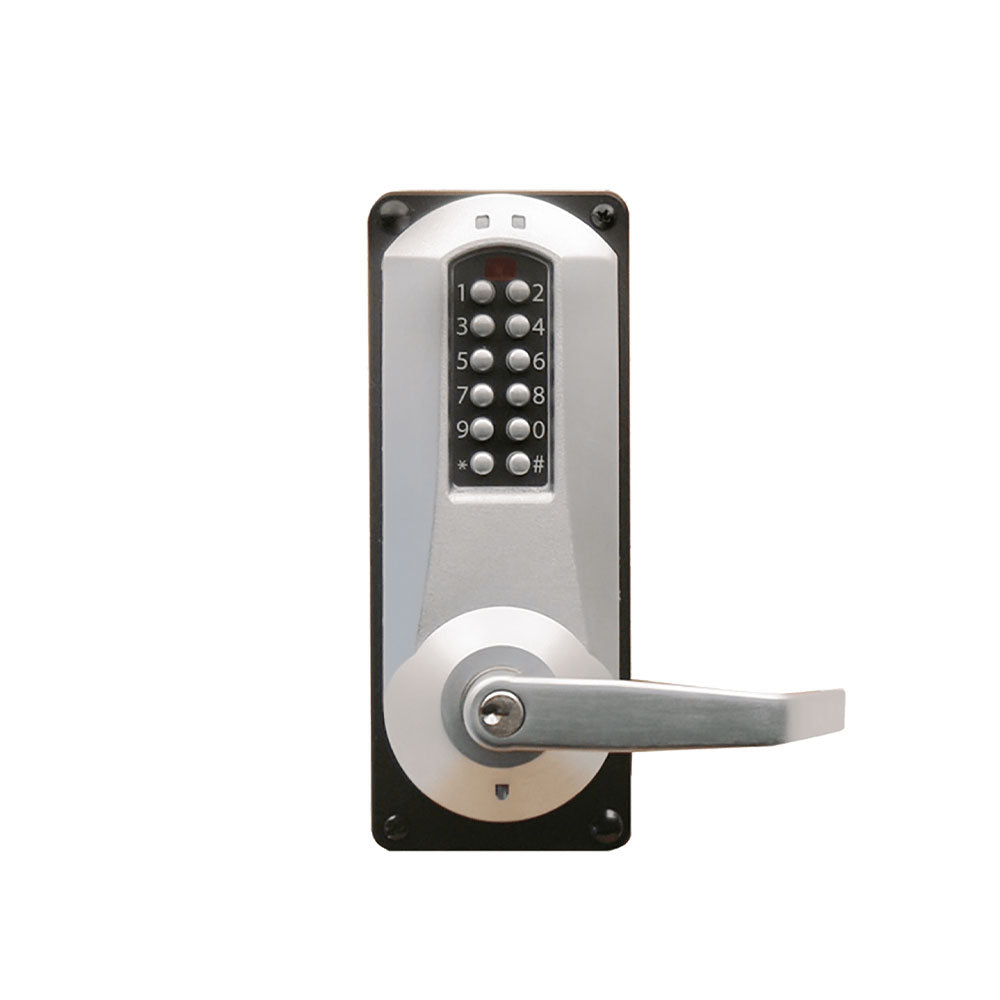

Dormakaba E-Plex - E5086 - E5x86 Series Entry/Egress Back to Back Mortise Lock with Winston Lever
The E-Plex 5x86 Electronic pushbutton/card lock provides combination access control for both interior and exterior sides of door, eliminates problems and costs associated with issuing, controlling and collecting keys and cards. Provides exterior access control for multiple users using specific PINs (Personal Identification Numbers)-E-Plex 5086
E-Plex 5086 Series:
Provides exterior access control for multiple users using specific PINs
- Construction: Extra heavy-duty, mortise lockset, solid cast housings, solid cast levers, wear tested for extensive use in indoor and outdoor applications
- Door Handing: Non-handed, easily changed in the field
- Backset: 2 3/4" (70 mm) backset
- Latch: 3/4" (19 mm) latch
- Minimum Stile Recommended: 5" (127 mm)
- Key Override: Find a list of compatible key overrides in the Electronic Lock pricebook
- Door Preparation: Easily installs on wood or metal doors; four bolt installation; no wiring
- Door Thickness: 1 3/4" (44 mm) to 2 1/4" (57 mm). Pre-assembled to accommodate doors 1 5/8" (41 mm) to 2-1/8" (54 mm)
- Accessibility Standard: Americans with Disabilities Act (ADA)
- Durability: ANSI/BHMA A156.13, Grade 1 Certification per F30 Asylum Function
- Fire Rating: Three-hour UL/ULC fire door rating for "A" labeled doors
- Environmental: Indoor/Outdoor Approved: Interior/Exterior Housing: -31°F (-35°C) to + 151°F (66°C)
- Warranty: One-year warranty from date of installation; built-in warranty counter in lock memory
Specifications:
| Manufacturer | DormaKaba |
| Series Name | E-Plex |
| Installation | Commercial |
| Base Material | Brass or Bronze |
| Pin | 6 |
| Lock Platform | Mortise Lock with Keypad Trim |
| Cylinder Type | Conventional Cylinder |
