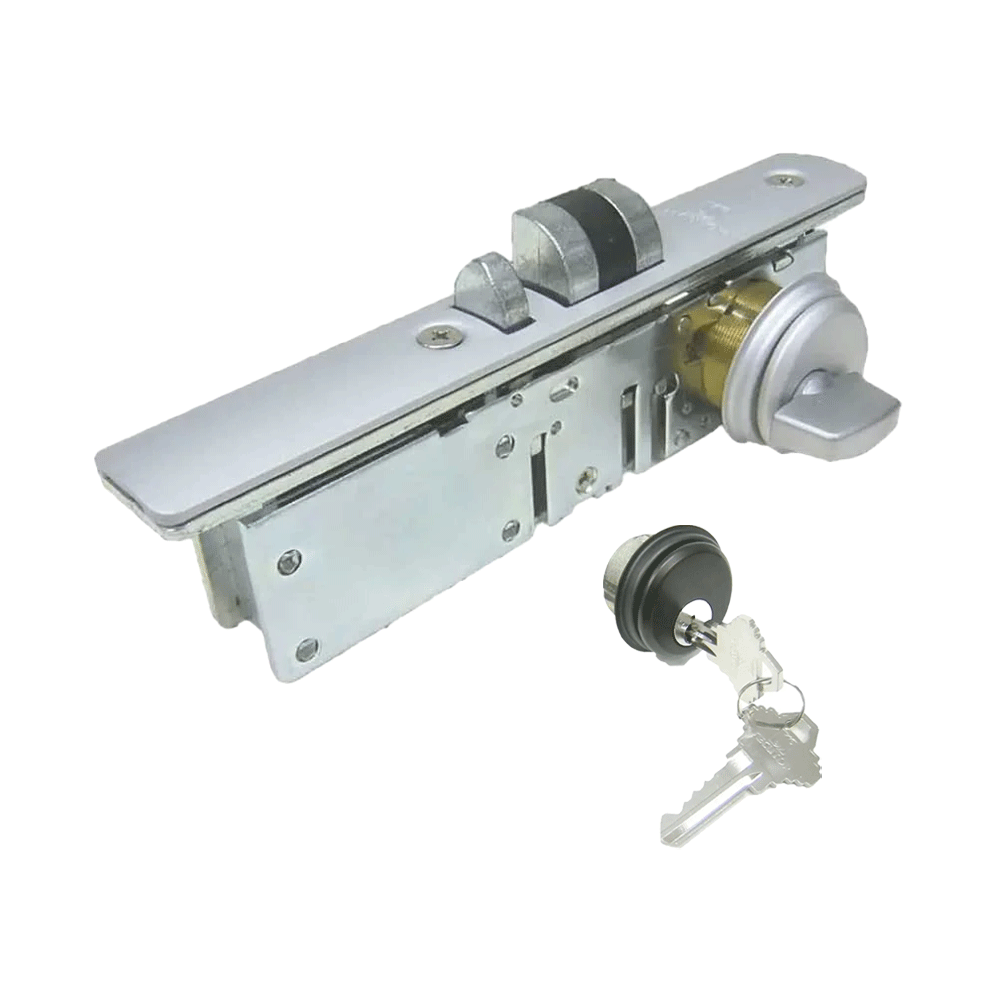

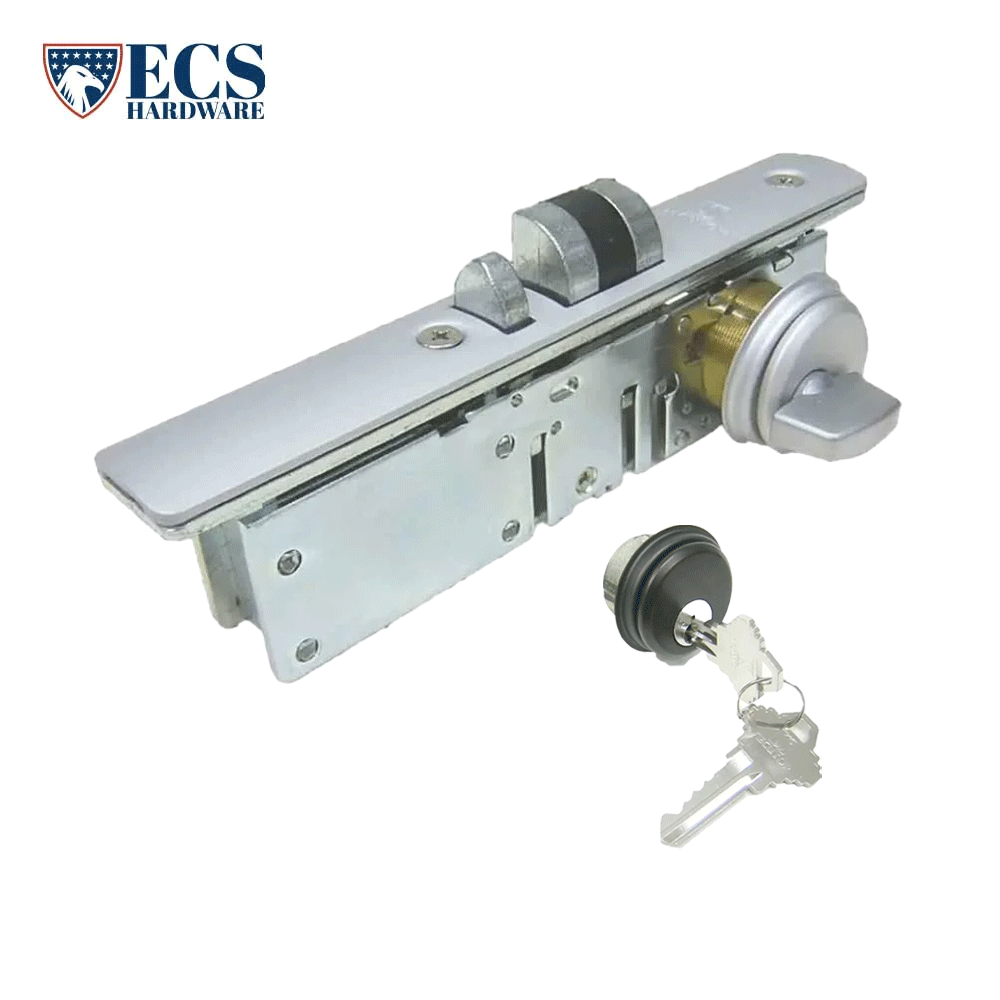

ECS HARDWARE - 31/32" Backset Zinc Plated Steel Lock Body with 2 Aluminum Faceplates and 1-5/32" Diameter Anodized Bronze Zinc Mortise Cylinder SC1 Keyway with 2 Brass Keys

ECS HARDWARE - 31/32" Backset Zinc Plated Steel Lock Body with 2 Aluminum Faceplates and 1-5/32" Diameter Anodized Bronze Zinc Mortise Cylinder SC1 Keyway with 2 Brass Keys

Includes:

• 31/32" Backset with 2 Aluminum Faceplates
• 1-5/32" Mortise Cylinder - Anodized Bronze - SC1

ECS HARDWARE - Narrow-Stile - 31/32" BACKSET, Steel Lock Body Zinc Plated Chrome Plated Latch with 2 Aluminum Faceplates

Description:

The Premium Narrow-Stile Latch Lock Body with EZ Reverse offers flexibility of traffic control. The EZ Reverse system allow the Lock to be reversed to Left or Right Hand applications in seconds. The Lock Body includes 2 faceplates in Oil Rubbed Bronze and Aluminum Finish. Fits standard 1" to 1-1/8" Mortise Cylinder.

Features:

• American Type Latch Deadlatch Lock
• Swinging door hardware for aluminum stile doors
• Backset: 31/32"
• Standard latch (16mm width)
• The lock accepts any standard thread mortise cylinder (1-5/32") from either or both sides
• Steel case with corrosion-resistant plating
• Case: 1" x 5-13/16" x depth (Depth varies by backset)
• Faceplate: flat, radius, radius with weatherstrip, right bevel or left bevel available
• The latch bolt is designed for use in commercial industrial, and institutional buildings
• Latch bolt, all metal with hardened steel internal pins
• Latch bolt can be reversed by Hand
• The latch bolt cannot be moved after the faceplate be installed onto the mortise lock.
• Latch bolt, 13mm chrome plated with delrin insert for smooth, quiet latching
• Auxiliary bolt, all metal
• For use with lever handles & paddles
• Faceplate and strike for optional

ECS HARDWARE - ZINC Mortise Cylinder- 1-5/32” Diameter, 1” Length, Anodized Bronze SC1 keyway with 2 brass keys

Description:

Premium ZINC Mortise Cylinders are machined engineered and manufactured to OEM specifications. Re-keyable to original manufacturers systems. The broad selection of models and components within our line provides you with the flexibility to cover numerous applications at a reasonable cost.

Specifications:
