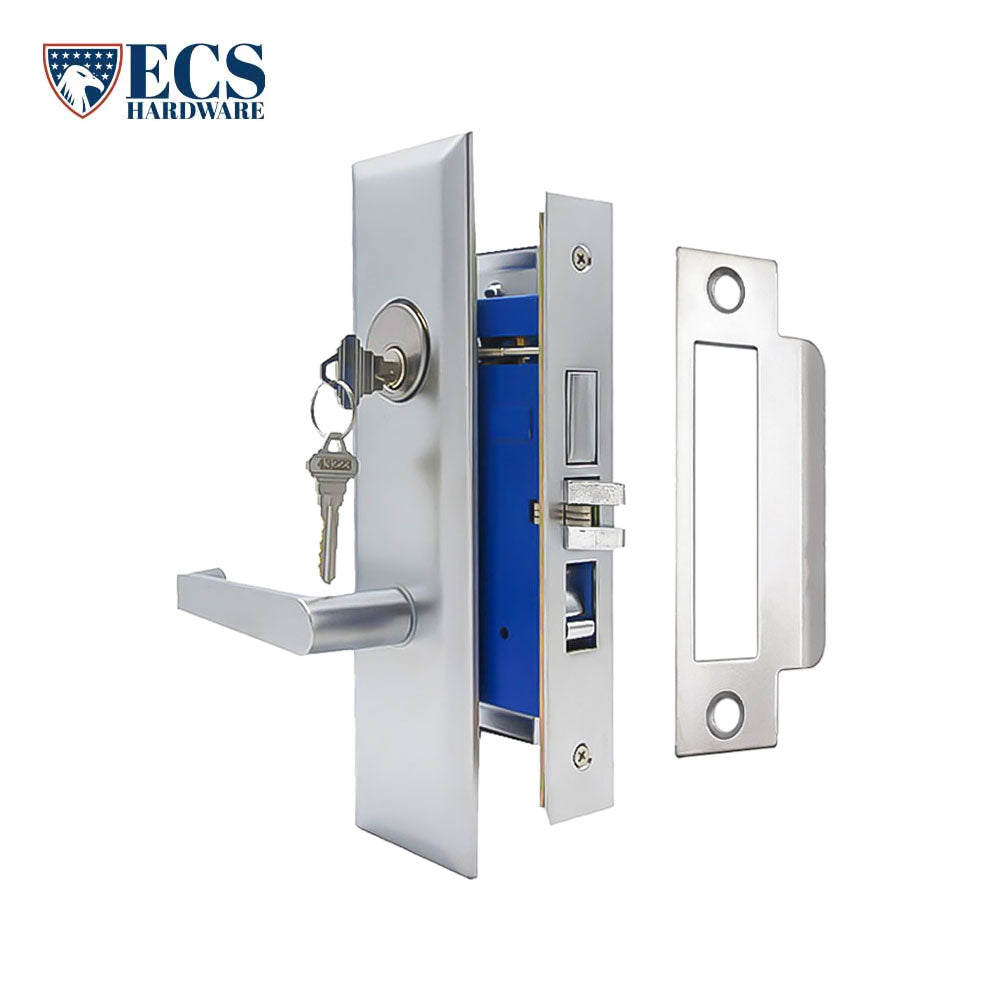

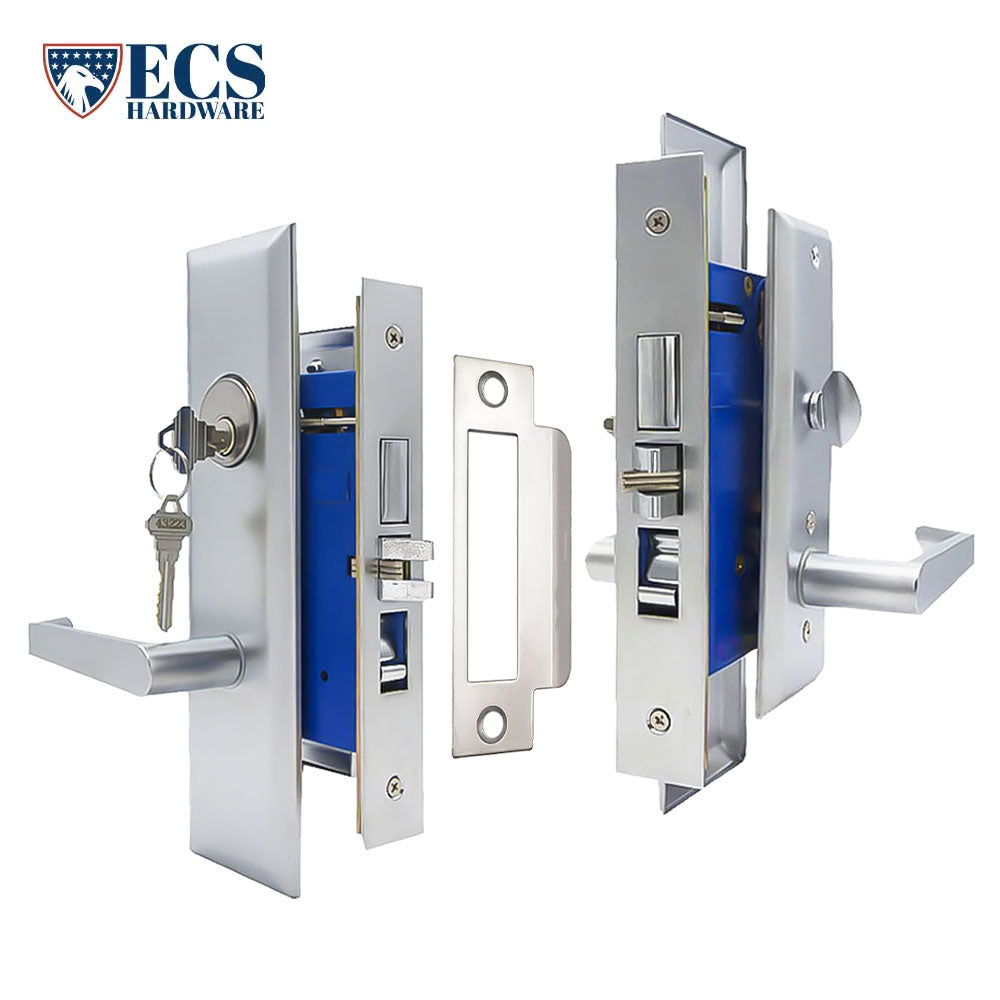

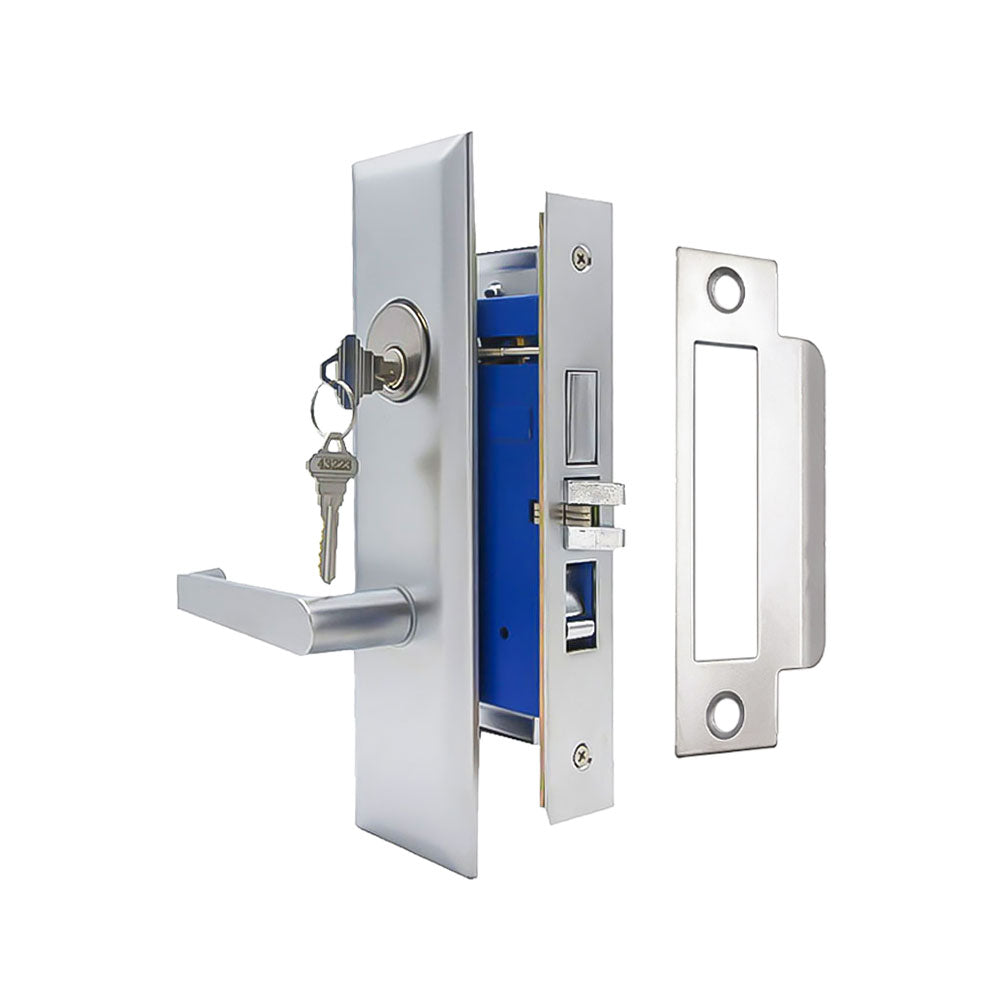

ECS HARDWARE - Durable Heavy Duty Mortise Lockset with Lever 26D Satin Chrome - 2-3/4″ Larger Backset - Left Handed
Specification:
- Single Mortise Entry Lever Lockset
- Solid Brass Mortise Cylinder with Heavy Duty Locking System
- SC1 Cylinder with 2 Brass Keys
- Backset: 2-3/4" Backset
- Keyed Alike up to 10 (KA10) option available
Description:
|
Function: |
Entrance - ANSI F08, F10 Latch by lever either side except when outside locked by stop button; then by key outside, a lever inside. Deadbolt by key outside, turn piece inside. Deadbolt deadlocks latch |
|
Thru Bolts: |
Thru-bolted lever/plate assemblies integrate and align with the lock body. |
|
Finish: |
26D Satin Chrome |
|
Handing: |
Left Handed |
|
Exterior: |
Wrought brass lever on steel reinforced brass plate, 10" x 2-3/4". Two-thru posts pass-thru lock body. Integral spring-loaded 9/32" spindle. |
|
Interior: |
Wrought brass lever, 2-1/4" diameter on steel reinforced brass plate, 7" x 2-1/4". Exposed 8-32 mounting. Bolts engage outside plate assembly. Integral spring loaded 9/32" spindle. |
|
Cylinder: |
5-pin SC1 Mortise Cylinder 1-1/8" long |
|
Door Thickness: |
1-1/4" to 1-3/4" |
|
Backset: |
2-3/4" |
|
Deadbolt: |
Cast brass 1" throw |
|
Latch: |
Solid brass 1/2" throw reversible |
|
Rocker Switch: |
Locks or unlocks hub |
|
Case: |
High pressure cast Zamac baked enamel finish |
