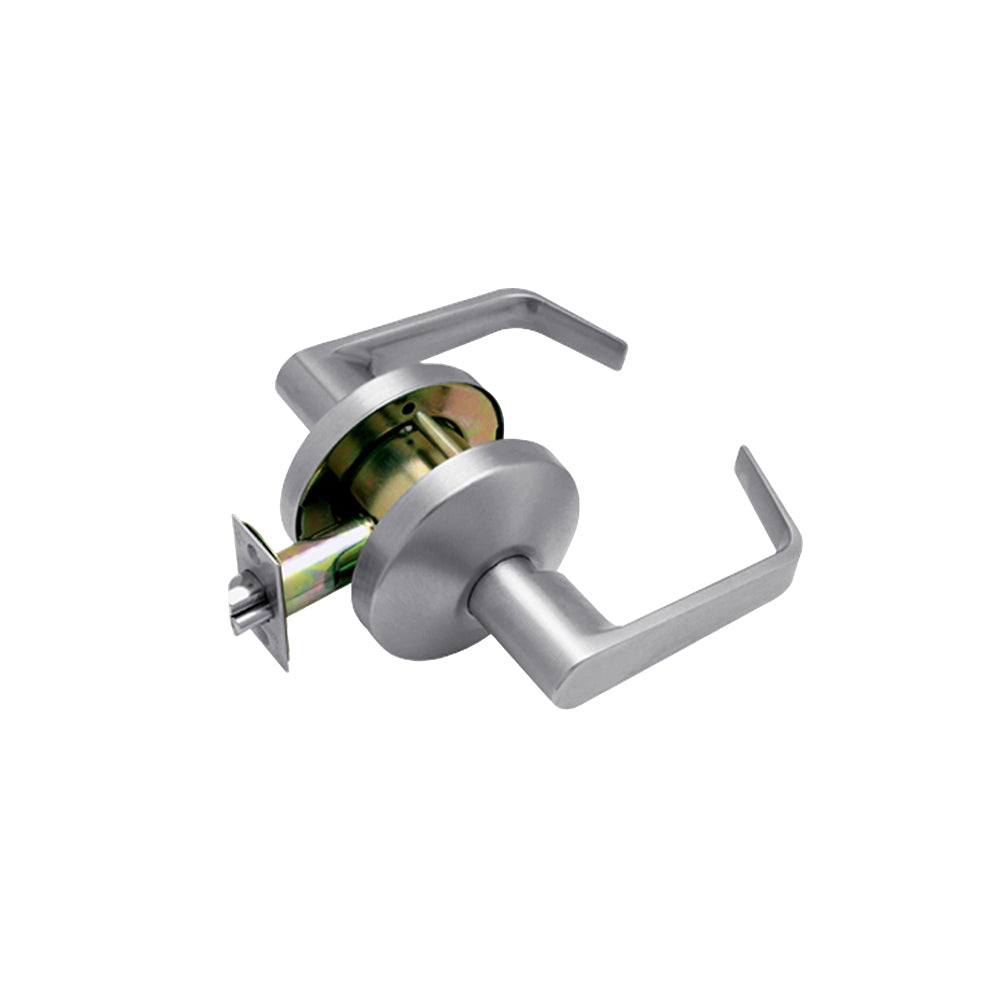

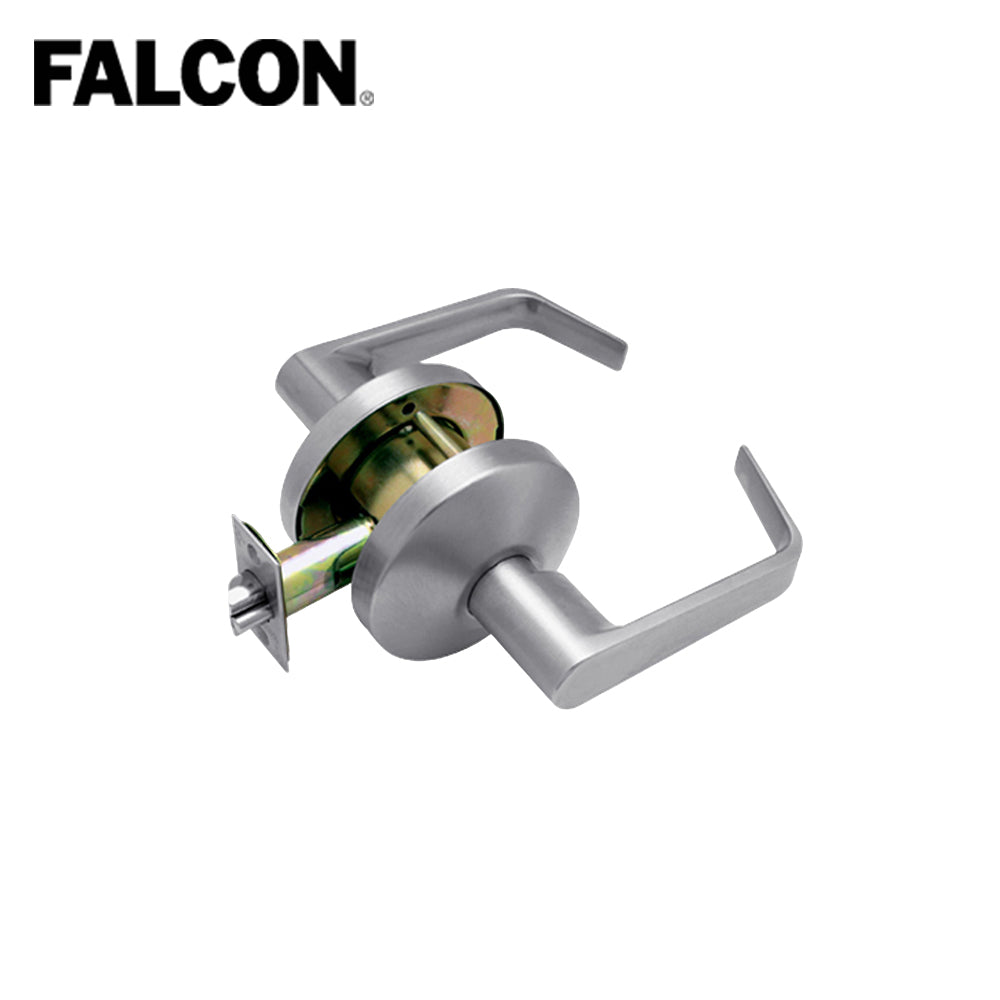

Falcon B101S - B Series Passage Dane Lever Lock with 57435 Latch 5164 Strike - 626 (Satin Chrome)
When you need a tough, reliable lock for government/military, retail, industrial or multi-family project, you need a Falcon B-Series Lock. Our full line of Grade 2 locksets are a perfect replacement for existing locks, or a smart spec in new construction. With upgraded finishes these locks deliver style as well as strength. Falcon B-Series locks feature an interchangeable core that can be removed for quick, easy re-keying and are compatible with SFIC products from other manufacturers. Most important, they are backed by one of the best names in the industry.
Features:
- Passage/Closet Latchset
- 2-3/4" Backset
- Dane Lever
- 4-7/8" ANSI Strike
- Satin Chrome
Product Specifications:
| Vendor | Allegion |
| Manufacturer | Falcon |
| SKU | B101S D 626 |
| UID | FAL100B101SD626 |
| Grade | Grade 2 |
| Installation | Commercial |
| Origin | Taiwan |
| Unit of Measure | Each |
| UL Listing Type | UL 10B, 10C |
| ANSI Number | A156.2 Series 4000 |
| Restrictions | No |
| BAA Qualified | No |
| Limited Warranty | 10 Years |
| Fire Rated | 3 Hours {A} |
| Burglar Rated | No |
| ADA Compliance | Yes |
Technical Specifications:
| Function | B101-Passage/Closet |
| ANSI Function | F75 - Passage |
| Lever/Knob Design | D - Dane Lever |
| Lever/Knob Design Family | Straight Return Lever |
| Rose/Escutcheon Design | Standard Rose |
| Rose/Escutcheon Dimensions | 3-1/2" Rose Diameter |
| Cylinder Type | Non-Keyed |
| Handing | Non-handed |
| Door Thickness | 1-3/8" - 2" |
| Std. Latch Number | A57435-000 |
| Std. Latch Type | Springlatch |
| Std. Latch Backset Dim | 2-3/4" |
| Latch Bore Diameter | 1" |
| Lock Face Size | 1-1/8" x 2-1/4" |
| Bolt Projection | 1/2" |
| Bore Hole Diameter | 2-1/8" |
| Std. Strike Number | 5164 |
| Std. Strike Type | ANSI Strike |
| Std. Strike Height | 1-1/4" |
| Std. Strike Width | 4-7/8" |
| Screws | Combination |
| Product Type | Cylindrical Lock |
