GAAB | SKU:
GAAB-T300-00B
17% off

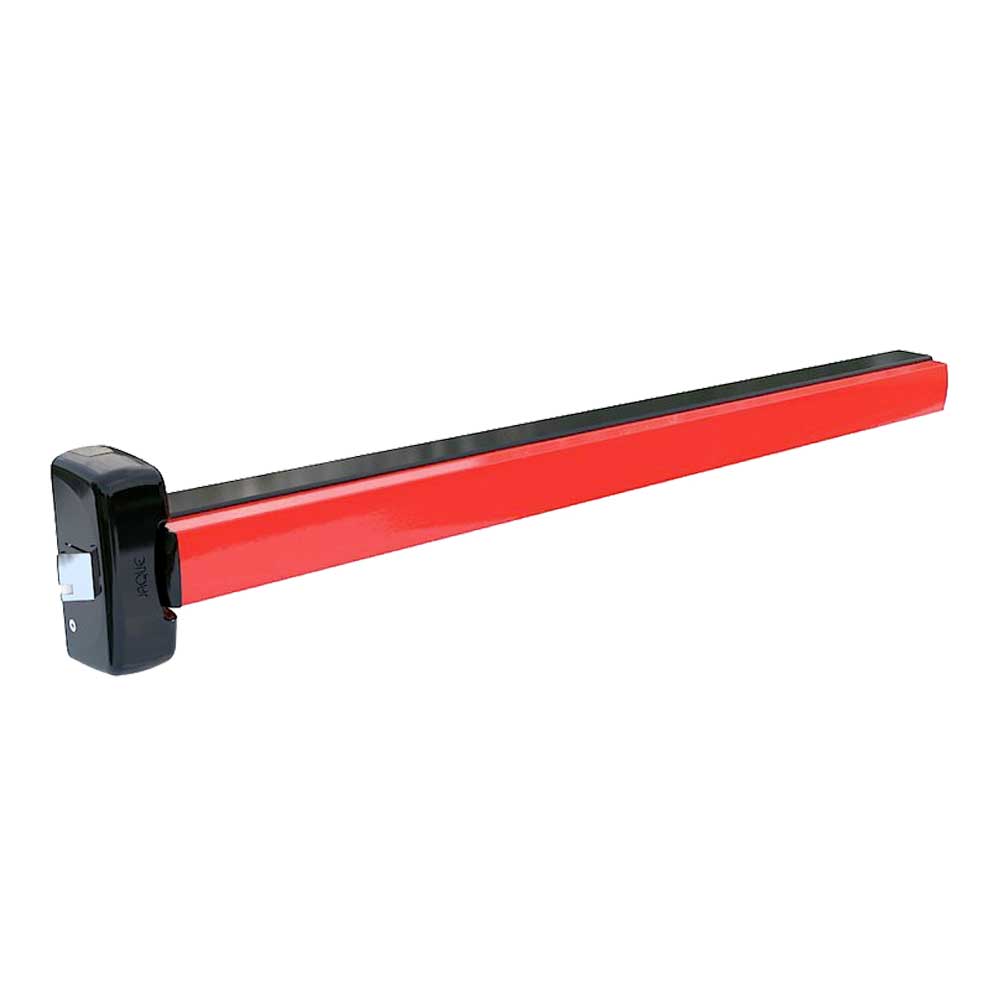

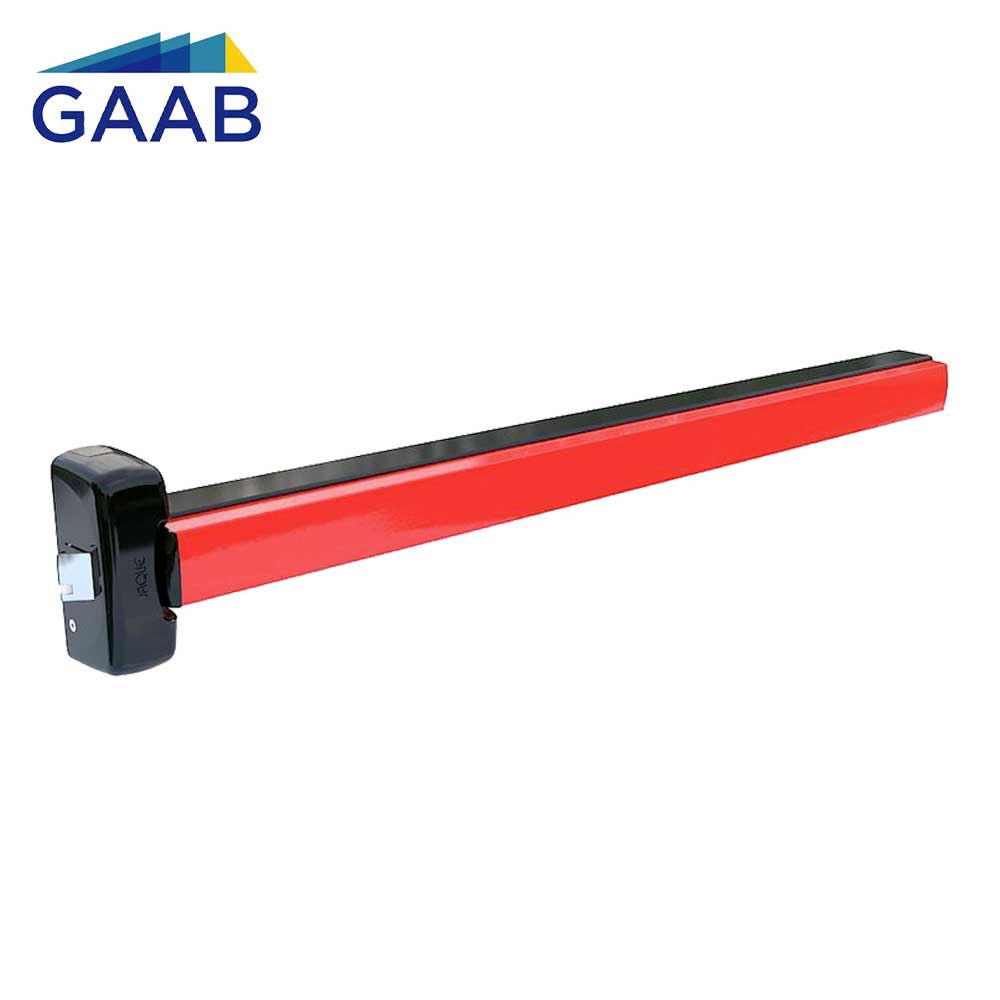

GAAB T300-00B Rim Panic Exit Device UNE EN-1125 Modular and Reversible Single Doors 33 Red
$6995
$8394
Unit price
/
Unavailable
Shipping calculated at checkout.
Secure transactionCouldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
All orders are shipped between 24 hours or less Monday through Friday from 9:00 am to 6:00pm. Orders placed after 4 p.m. EST will be shipped next business day.
Learn more
GAAB T300-00B Rim Panic Exit Device UNE EN-1125 Modular and Reversi...
$6995
$8394
Unit price
/
Unavailable
Description
Description
GAAB T300-00B Rim Panic Exit Device UNE EN-1125 Modular and Reversible Single Doors 33" Red
Description:
- Approved under UNE EN-1125 standards (European)
- Approved with 200,000 opening cycles
- Modular & Reversible
- For single or double doors add (T291 series)
- Three-point latching option for single doors
- Suitable for metal, wood, aluminum & glass doors (kit for glass sold separately)
- Suitable for heavy traffic doors
- Zamak - made front and back covers
- Extruded aluminum - made rail case and touch bar
- High performance epoxy paint finish with high strength and durability
- Optional outside trim
- Equipped with dogging / undogging function
- Total nominal length of the device:
- Standard length: 33" (850mm)
- Minimum length: 16" (400mm)
- Suitable for doors up to 8' (2440mm) height - 4' (1220 mm) width
- Max weight 440 lbs (200kgs)
- Dogging Function
Specifications:
| Material: | Zamak-made front and back covers. 0.07 in. thickness Steel. |
| Finish: | High-performance epoxy Satin Chrome paint finish with high strength and durability. |
| Application: | For single doors. Can be used for double doors ( with T29 Vertical Rod Kitsold separately).Suitable for steel, wood, aluminum and glass. |
| Total nominal length of the device: | Standard length: 33“ (850 mm) Minimum length: 16“ (400 mm) |
| Suitable for doors: | up to 8’ (2440 mm) height – 4’ (1220 mm) width |
| Max Weight: | 440.925 lbs. |
| Handing: | Modular and Reversible |
| Latch: | Three-point latching option for single doors. |
| Warranty: | 2-year manufacturer warranty |
| Dogging: | Includes dogging / undogging system |
| Certifications: | IRAM and INTI listed. Approved under UNE EN-1125 standards (European) Approved with 200,000 opening cycles. |
