GAAB | SKU:
GAAB-T391-01
17% off

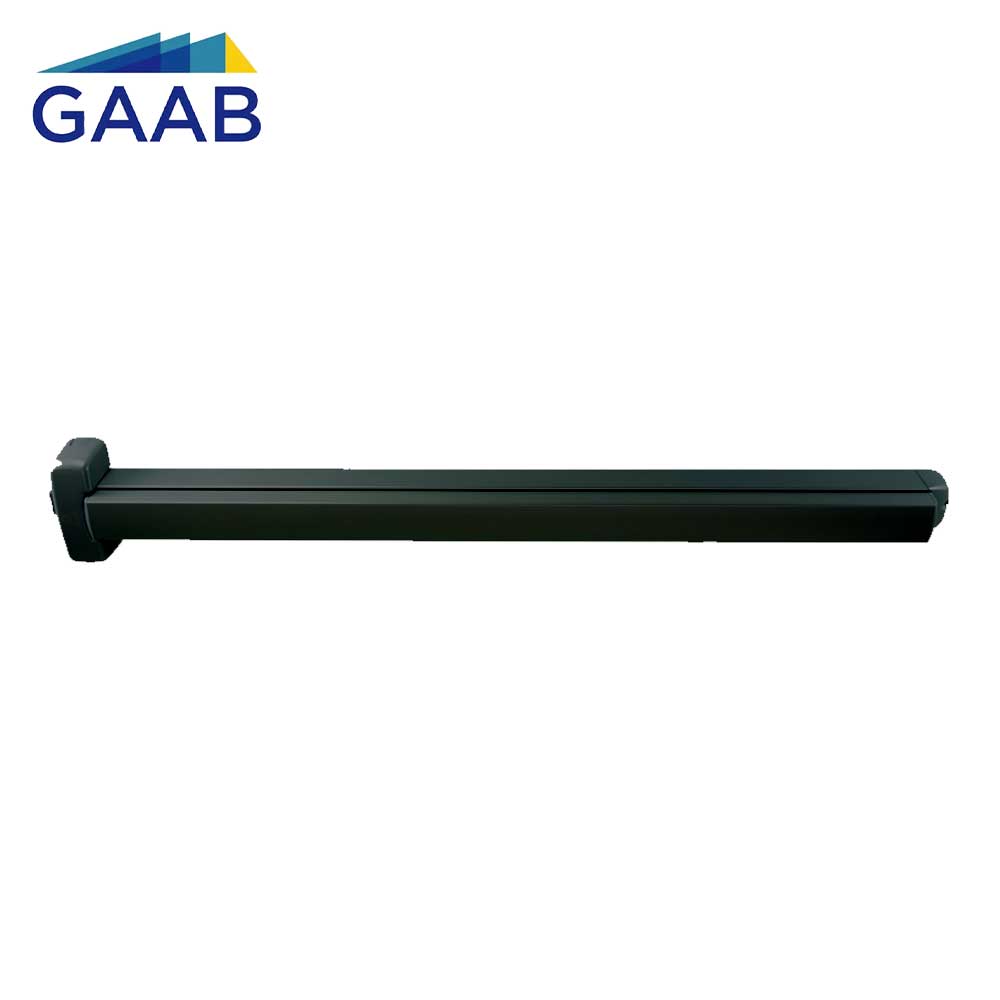

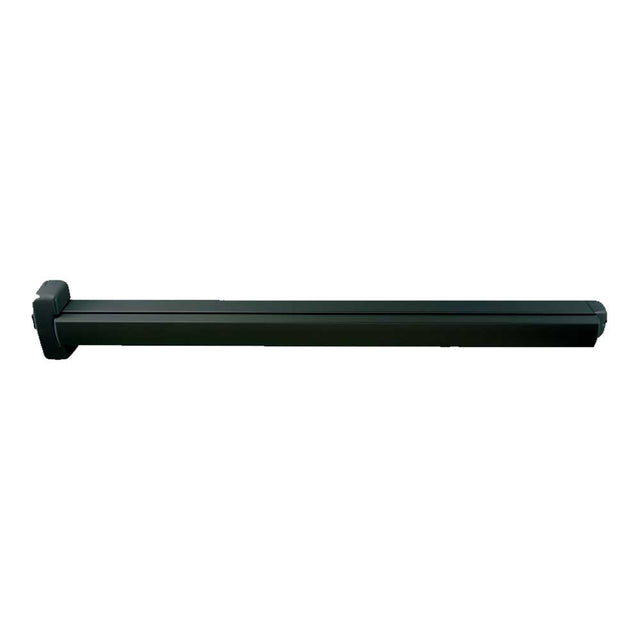

GAAB T391-01 Rim Panic Exit Device UL 305 Modular and reversible Black Matte
$8995
$10794
Unit price
/
Unavailable
Shipping calculated at checkout.
Secure transactionCouldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
All orders are shipped between 24 hours or less Monday through Friday from 9:00 am to 6:00pm. Orders placed after 4 p.m. EST will be shipped next business day.Â
Learn more
GAAB T391-01 Rim Panic Exit Device UL 305 Modular and reversible Bl...
$8995
$10794
Unit price
/
Unavailable
Description
Description
GAAB T391-01 Rim Panic Exit Device UL 305 Modular and reversible Black Matte
Description:
- 1 point latching.
- UL listed (UL 305).
- Modular and reversible.
- For single doors.
- Suitable for metal, wood and aluminium doors.
- Suitable for heavy traffic doors.
- Strike (roller type).
- Zamak-made front and back covers.
- Extruded aluminium-made rail case and touch bar.
- High performance epoxy paint finish with high strength and durability.
- Optional outside trim.
- Shipped with dogging / undogging system.
-
Total nominal length of the device:
- Standard length: 33“ (850 mm)
- Minimum length: 16“ (400 mm)
- Suitable for doors up to 8″ (2440 mm) height – 4″ (1220 mm) width.
- Max weight 440 lbs (200 kgs).
Specifications:
| Extruded aluminum-made rail case and touch bar measurements:Â | 16 in. - 33 in. (maximum and minimum length) |
| Material:Â | Zamak-made front and back covers |
| Finish: | High-performance epoxy Matte Black paint finish with high strength and durability. |
| Application:Â |
For single or double doors |
| Max Dimensions: | Suitable for doors up to 8′ height and 4′ width. |
| Max Weight: | 440 lbs. |
| Handing:Â | Modular and Reversible |
| Latch:Â | Single-point latching |
| Strike: | roller type |
| Warranty: | 2-year manufacturer warranty |
| Dogging: | Includes dogging / undogging system |
| Certifications: | UL listed (UL 305) |
