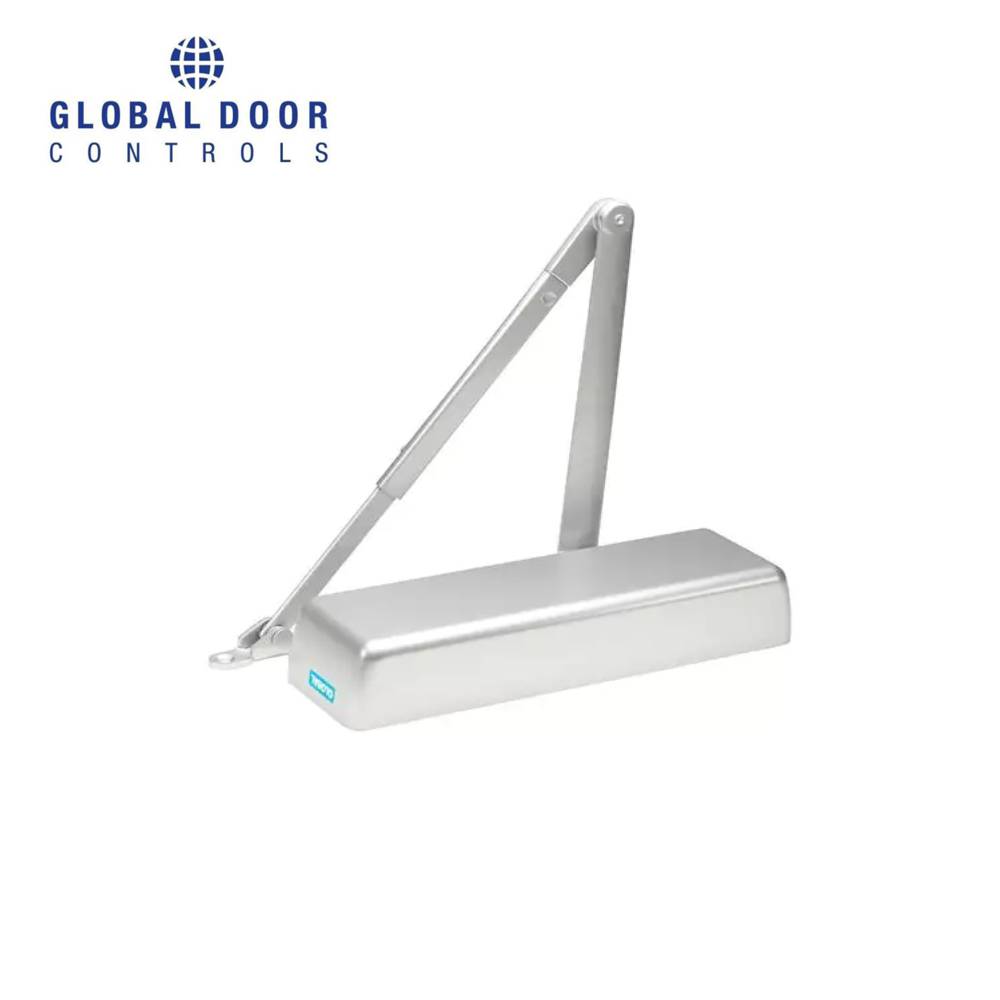

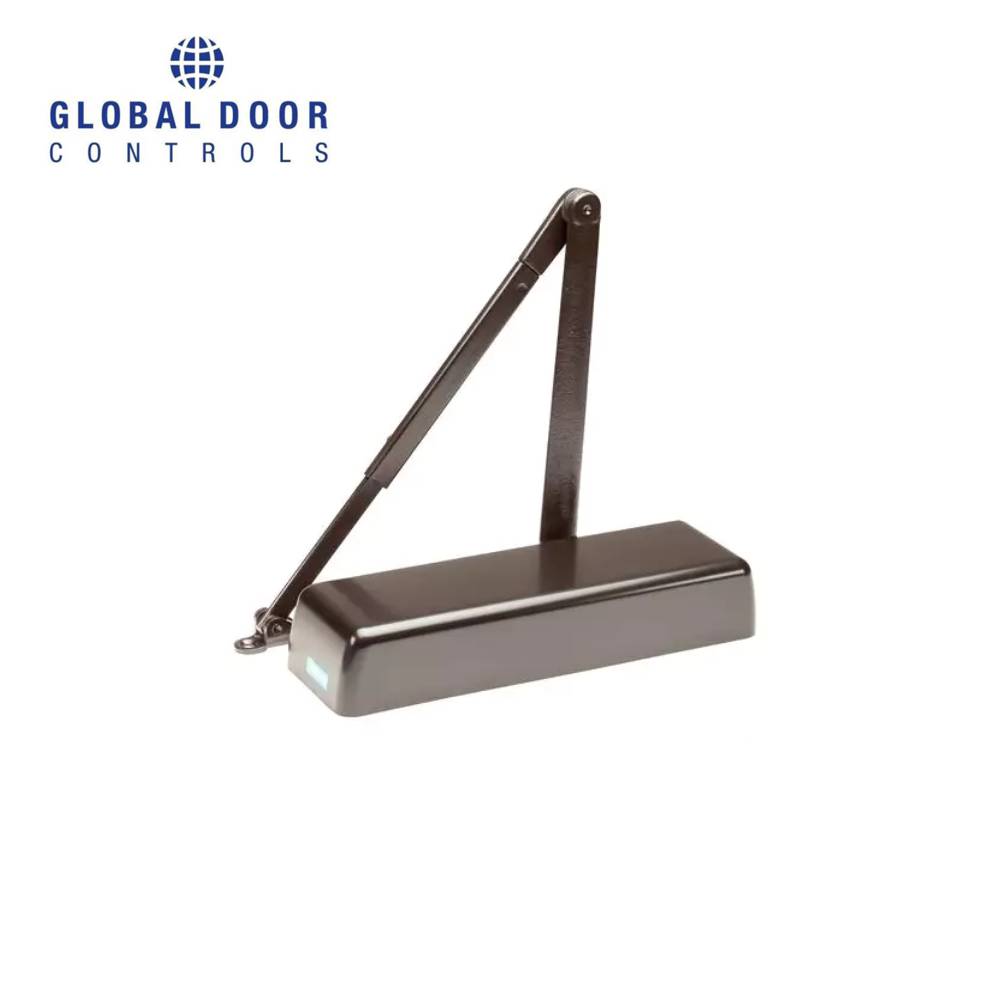

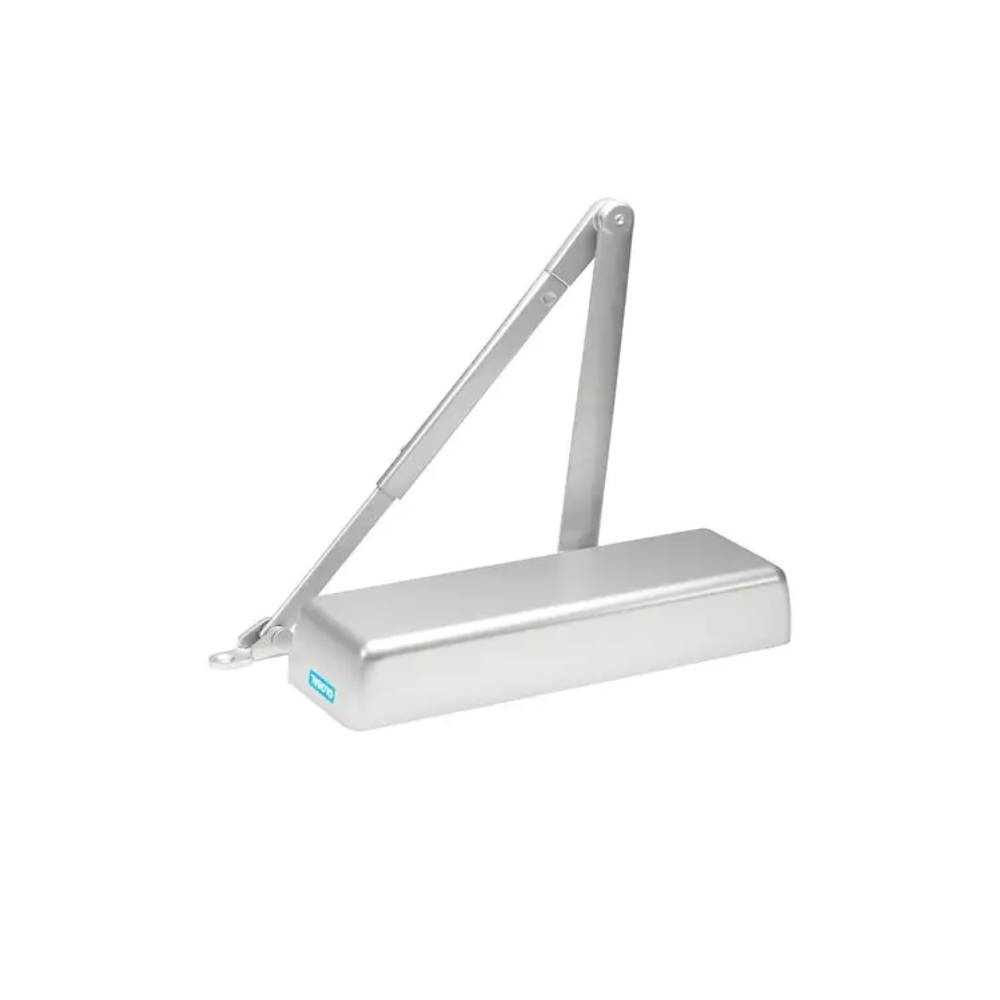

Global Door Controls - TC4300CNS - Door Closer with Cush-N-Stop Arm 4041 REP - Size 1-6 - Grade 1

Global Door Controls - TC4300CNS - Door Closer with Cush-N-Stop Arm 4041 REP - Size 1-6 - Grade 1

The TC4300 has all the same design features and specifications as our TC4361 and is our heaviest duty closer for institutional and all other high traffic demanding applications. It has a wide choice of options and installation accessories to accommodate the requirements specified in any industrial or institutional environment. This model comes tri-packed standard and can be ordered with different arm styles for maximum versatility. Fully compliant with opening force requirements for ADA and ANSI/BHMA standards.

Features:

• Grade 1 certified, ANSI/BHMA A156.4
• UL Listed R7483
• Cast Iron Body with Hardened Steel rack & pinion
• Non-handed / reversible
• Multi-size springs: 1-6 adjustable power ADA compliant
• Three independent regulating valves - control sweep, latch closing speeds, and backcheck
• Tri packed- regular pull side, top jamb, parallel arm
• Supplied with both wood and machine screws
• Finish: AL- Aluminum, DU - Duranotic, Black

Options:

• Heavy Duty - HD
• Cush-N-Stop Arm - CNS
• Hold Open Cush-N-Stop Arm - HOACNS
