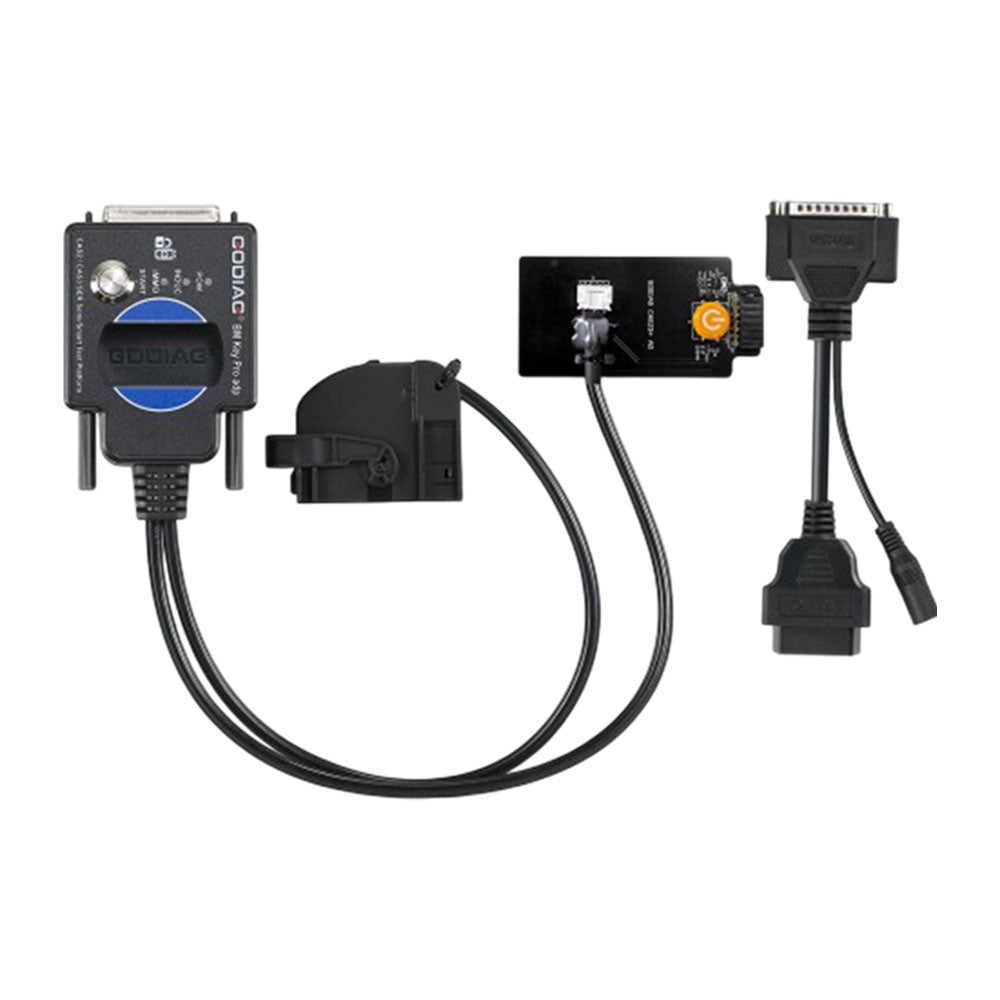

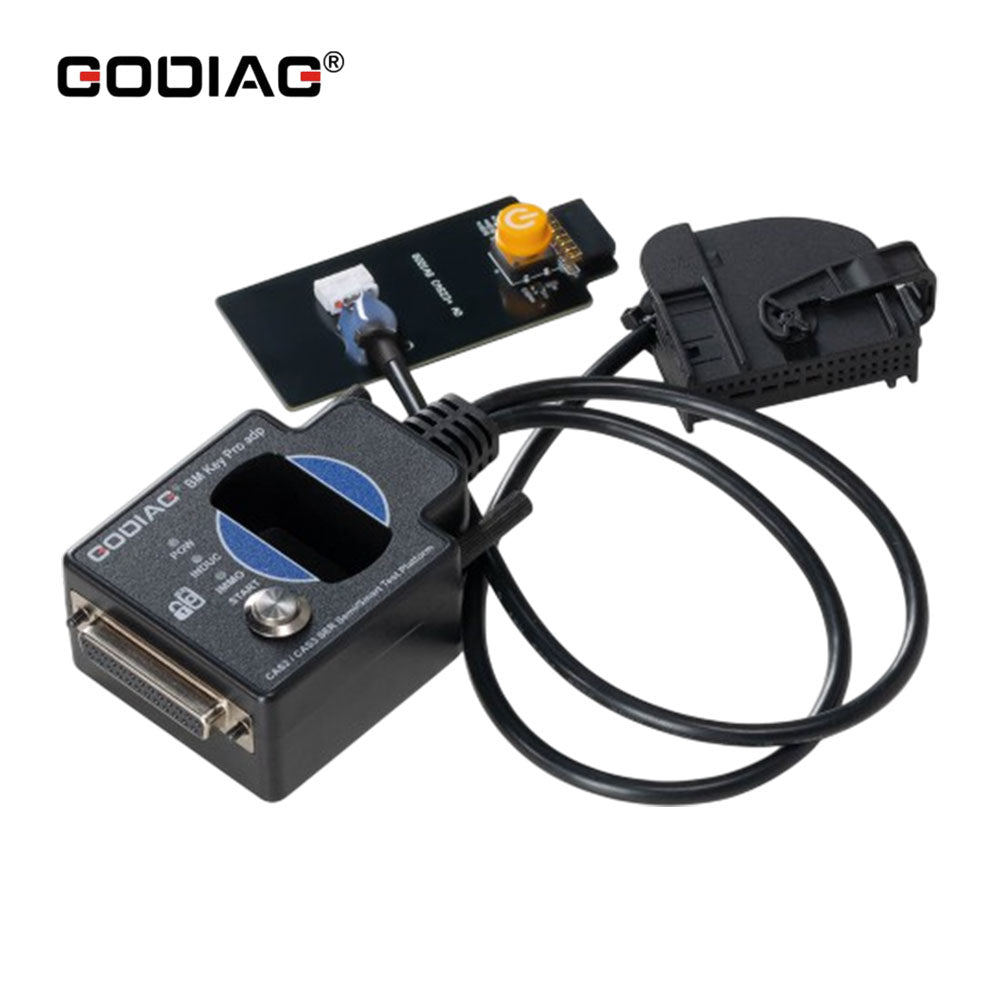

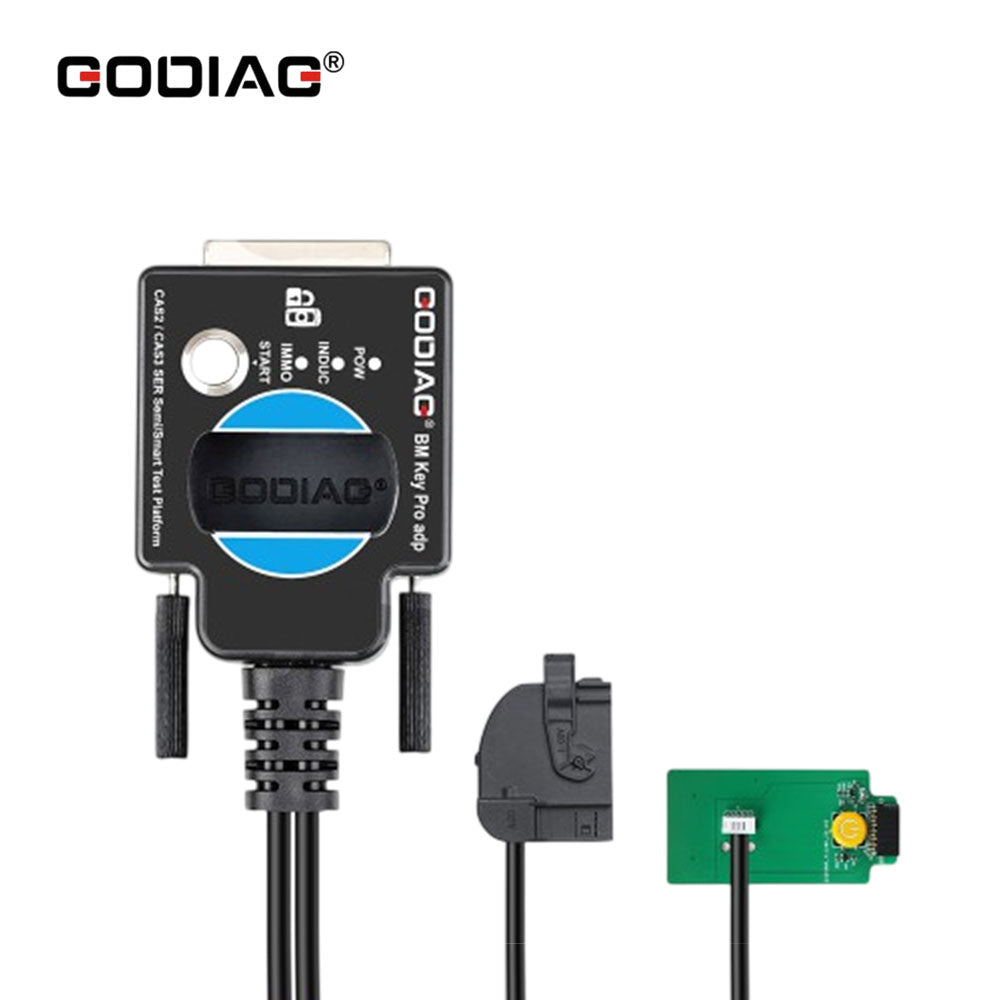

GODIAG CAS2 CAS3 SER Semi Smart Test Platform Detect CAS and Key Synchronization Solder-free Matching CAS Data Read Write and Program

GODIAG CAS2 CAS3 SER Semi Smart Test Platform Detect CAS and Key Synchronization Solder-free Matching CAS Data Read Write and Program

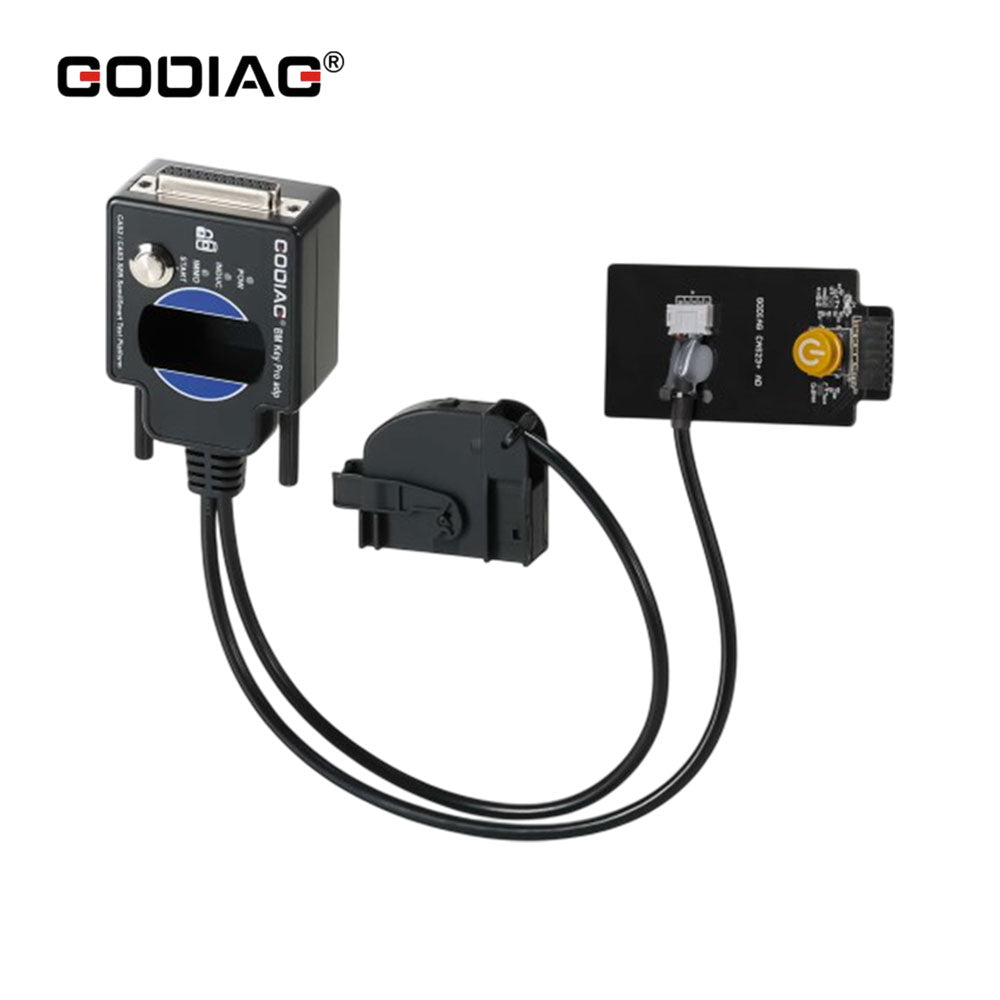

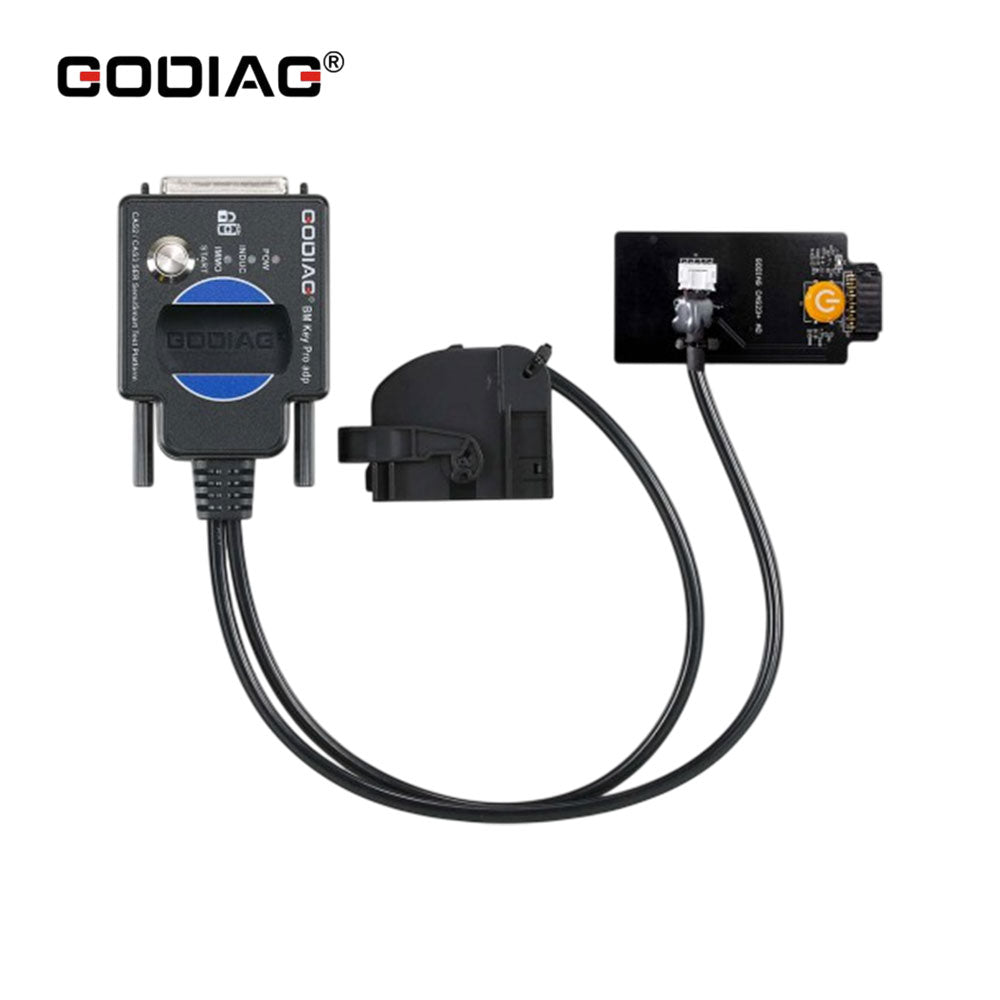

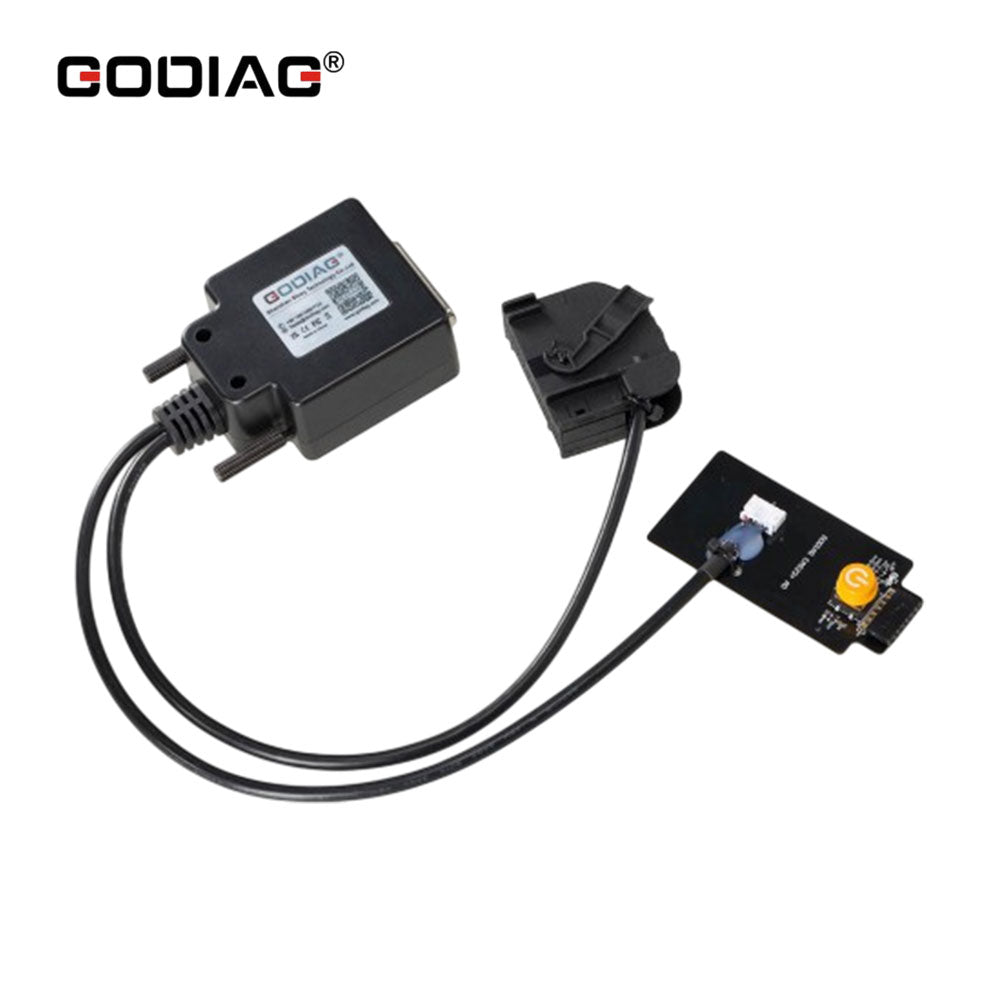

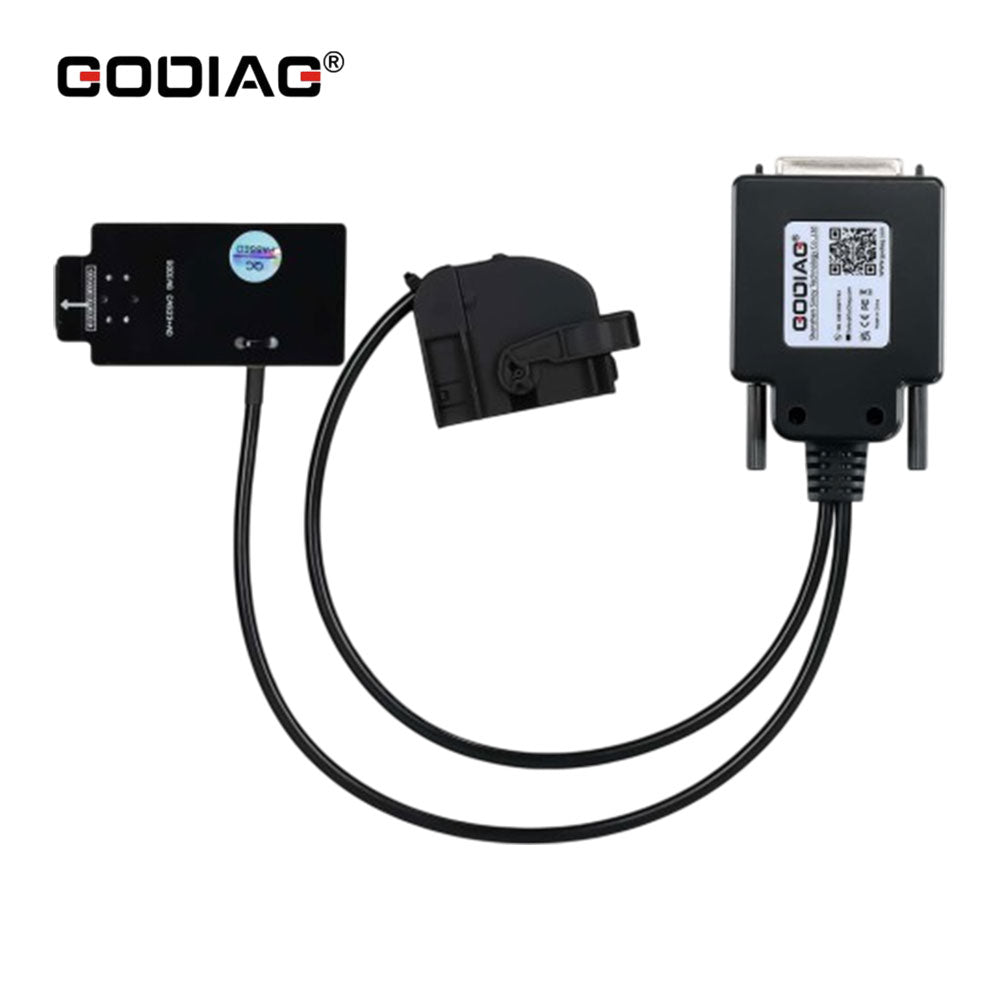

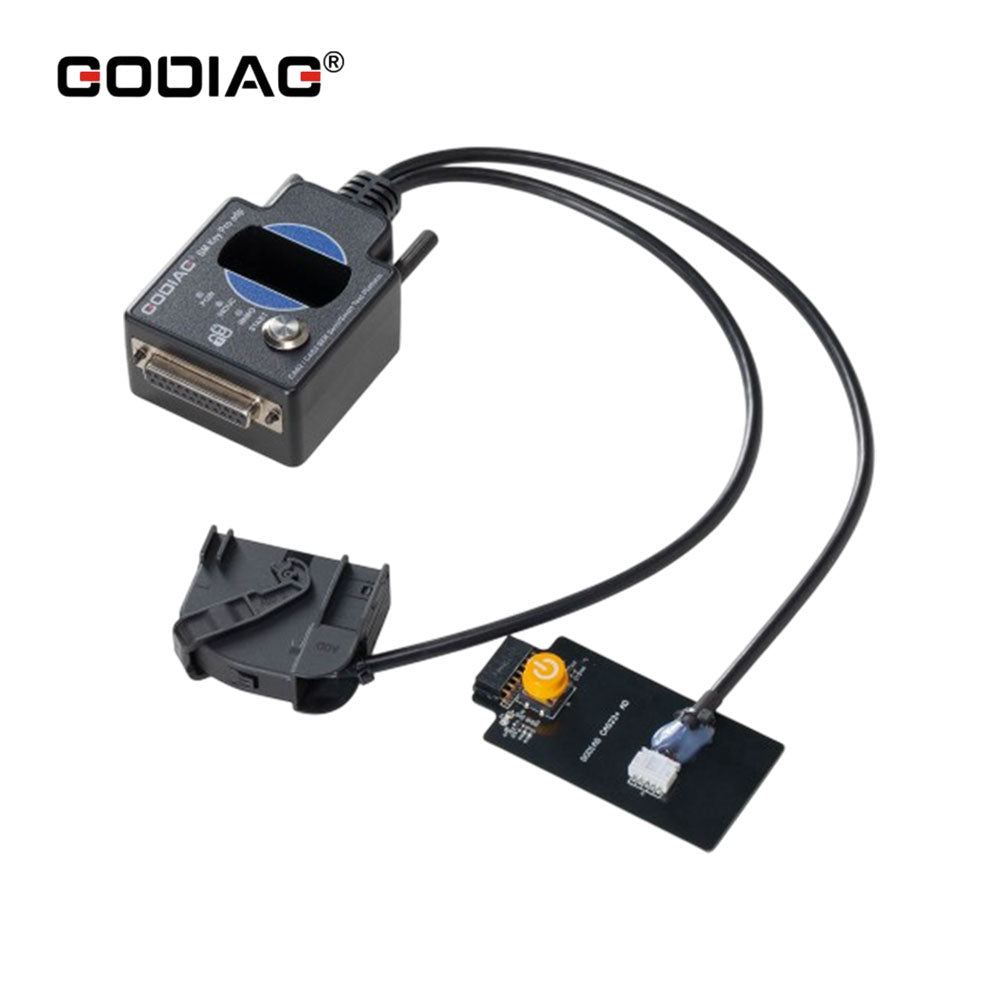

Godiag CAS2 CAS3 SER Semi Smart Test Platform is a dedicated device developed for BMW locksmiths, maintenance engineers and CAS2 / CAS3,CAS3+ CAS3++ programming engineers. It can cooperate with the key programming devices like Xhorse Key Tool Plus Pad / Xhorse vvdi 2 / bmw vvdi bim tool / CGDI BMW / Lonsdor devices, OBDSTAR devices, etc., to perform all key lost matching or key addition operations. This product is suitable for magnetic semi-intelligent or smart keys.

Features:

• Detect CAS and key synchronization
• Solder-free matching CAS2/CAS3 serial smart key
• CAS data reading, writing and programming
• All keys lost /adding keys matching
• CAS key data backup
• CAS module function judgment

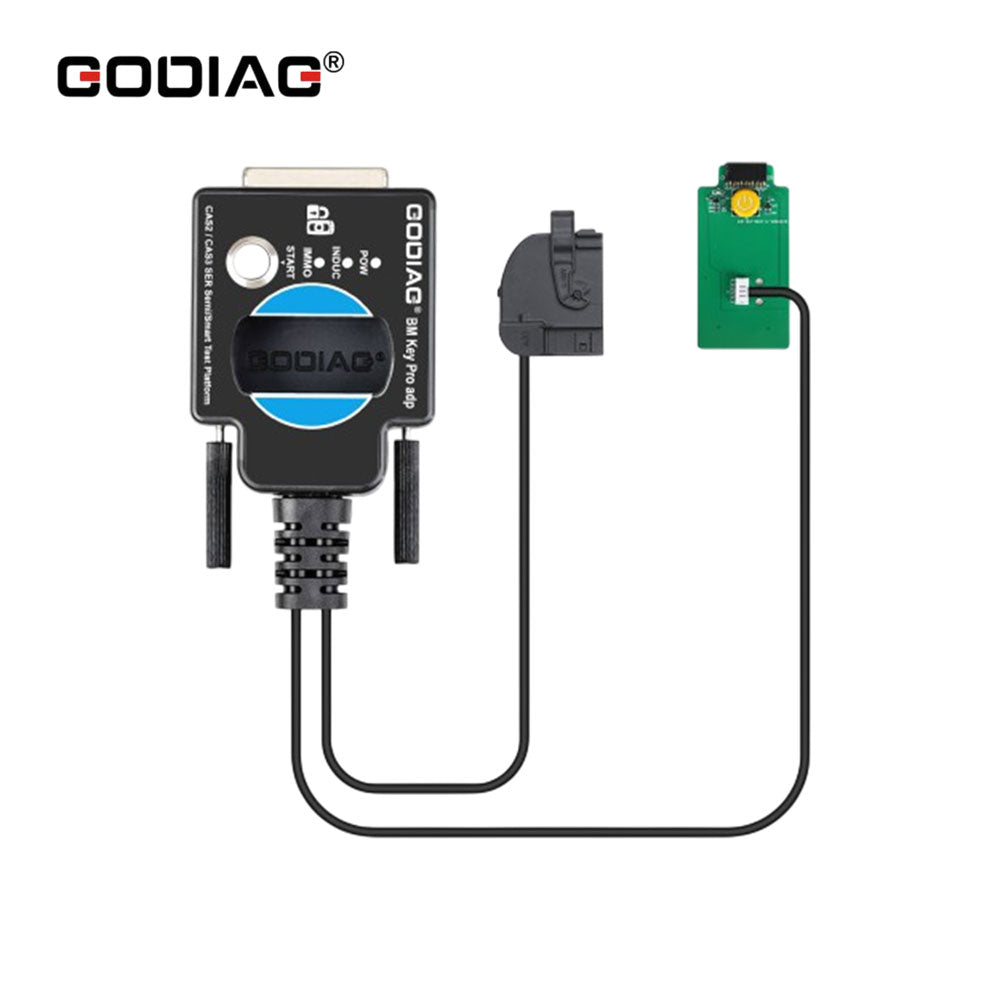

GODIAG CAS2 CAS3 Test Platform Functions:

• Check wheteher CAS2 / CAS3, CAS3+ CAS3++ modules and magnetic semi-intelligent/smart keys are synchronized.
• Cooperate with the key programming devices like Xhorse Key Tool Plus Pad / Xhorse vvdi 2 / bmw vvdi bim tool /CGDI BMW / Lonsdor devices, OBDSTAR devices, etc., to perform all key lost matching or key addition operations.
• CAS2 / CAS3, CAS3+ CAS3++ module diagnostics
• CAS2 / CAS3, CAS3+ CAS3++ module programming

• Check the start switch.
• IMMO synchronization detection indicator light.
• CAS module key induction coil indicator light.
• Power indicator light.
• Key identification port.
• CAS module 41PIN connector.
• CAS module 14PIN connector.
• Analog start-stop switch.
• Start/stop button light.

Note: Can not support mechanical key cas2

Module and key synchronization detection:

Check whether the CAS2 / CAS3, CAS3+ CAS3++ module and the magnetic semi-intelligent smart key can be synchronized

• Step 1: Connect the CAS2/CAS3, CAS3+ CAS3++ modules according to the connection diagram.

• Step 2: Put the key into the key sensing area.
• Step 3: Connect the power supply and the corresponding power indicator light will light up. The start/stop button light is on. The coil sensor light will flash. (Indicates that the module can send out the key sensing signal normally. If the key and the module are synchronized, the light will flash regularly or stay on. If the key and module are out of sync, the flashing will be irregular and will stop after one minute.)
• Step 4: Press the start switch. (If the key is synchronized with the CAS module, the IMMO synchronization detection indicator light will light up and the internal buzzer of the machine will sound. If the key is not synchronized with the CAS module, the IMMO synchronization detection indicator light will not light up and the internal buzzer of the machine will not sound.)
• Step 5: Press the analog start and stop button, the IMMO synchronization detection indicator light will go out after 3 seconds. Press the analog start/stop button again and the IMMO synchronization detection indicator light will light up.

The following uses Xhorse vvdi2 device to perform BMW CAS2/CAS3, CAS3+ CAS3++ semi-intelligent/smart key programming and matching operations:

• Connect the CAS2/CAS3, CAS3+ CAS3++ module and the key programming diagnostic device according to the connection diagram.
• Select "key learn-CAS Key Learn-Connect".

• After successfully identifying the CAS information, select "Get Key Info" and "Save Key Info".

• Select an unused key position, be sure to select the "prepare dealer key with programmer" menu, and use the VVDI2 key programmer to generate the key. If the key is placed in the GODIAG CAS2 CAS3 SER Semi Smart Test Platform key sensing area, the dealer key will not be generated.

• After programming the dealer key, put the key into the Godiag CAS2 CAS3 SER Semi Smart Test Platform induction port for testing. For test steps, please refer to "Synchronous Detection of Module and Key".
  If the IMMO light cannot light up, enter the VVDI2 menu "Key Learn-CAS/EWS Information-Connect-Synch DME-CAS or Synch CAS-ELV". (When performing synchronization, the key must be placed in the key sensing area of the VVDI2 device.)

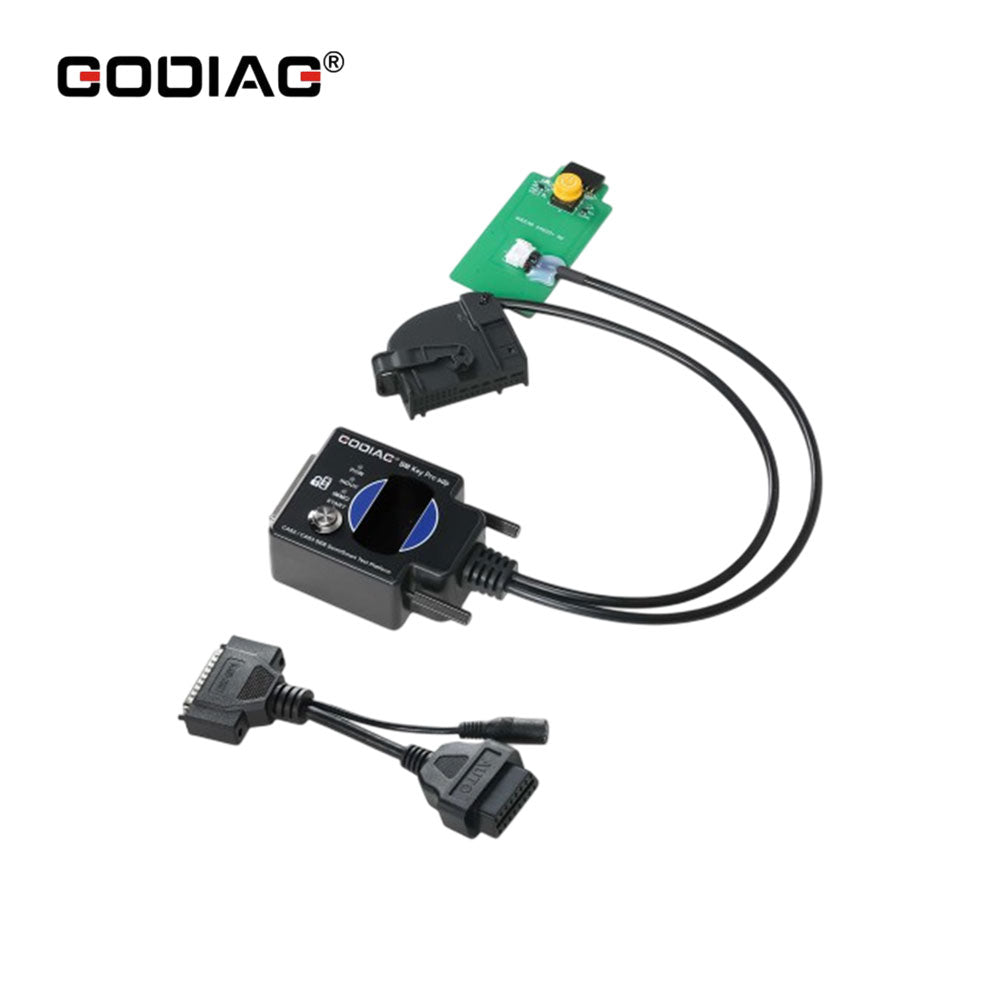

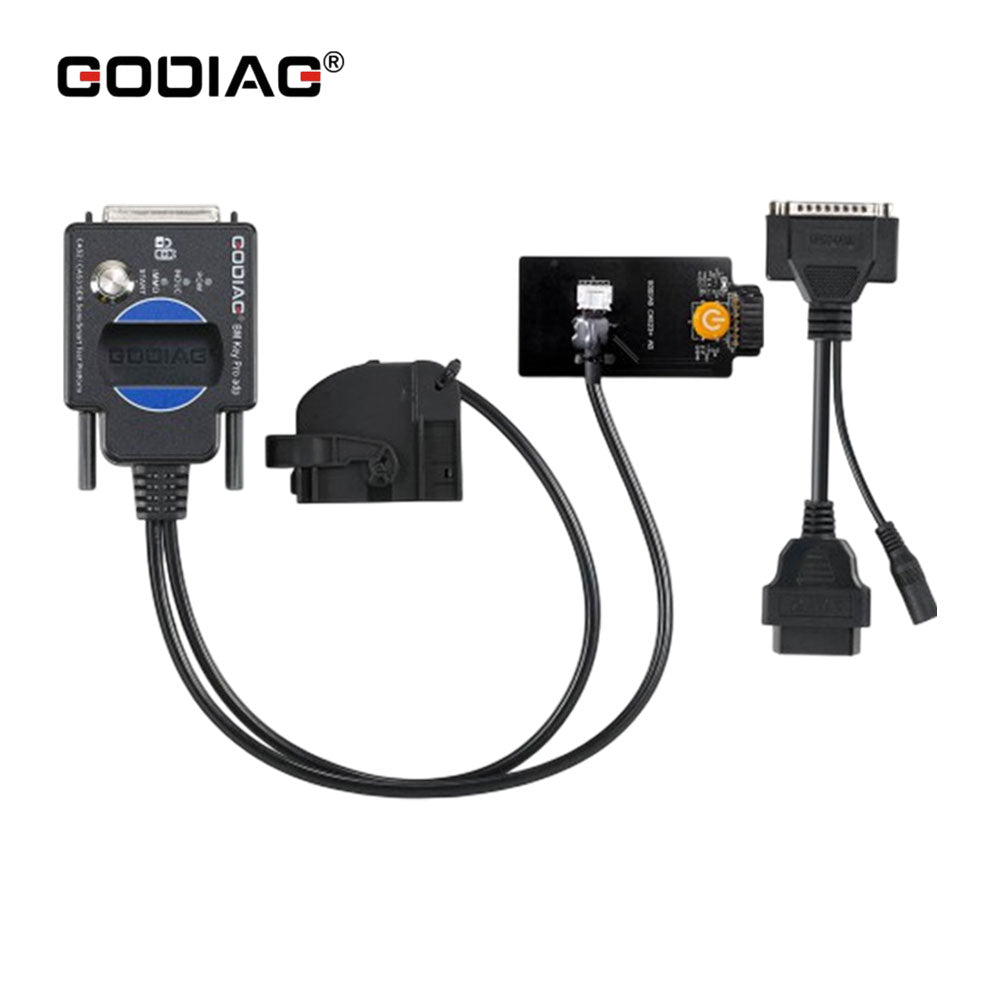

Includes:

• 1pc x GODIAG CAS2 CAS3 SER Semi Smart Test Platform
• 1pc x OBD2 to DB25 Cable
