Description

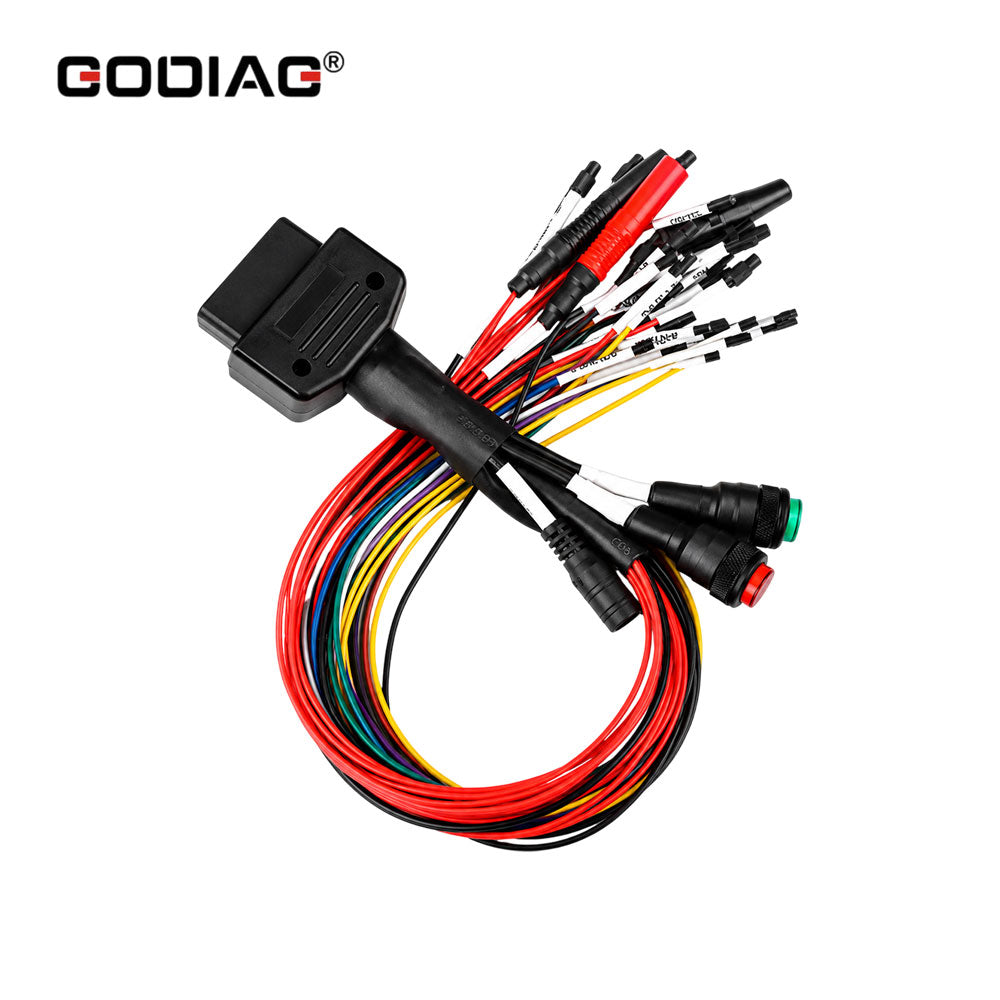

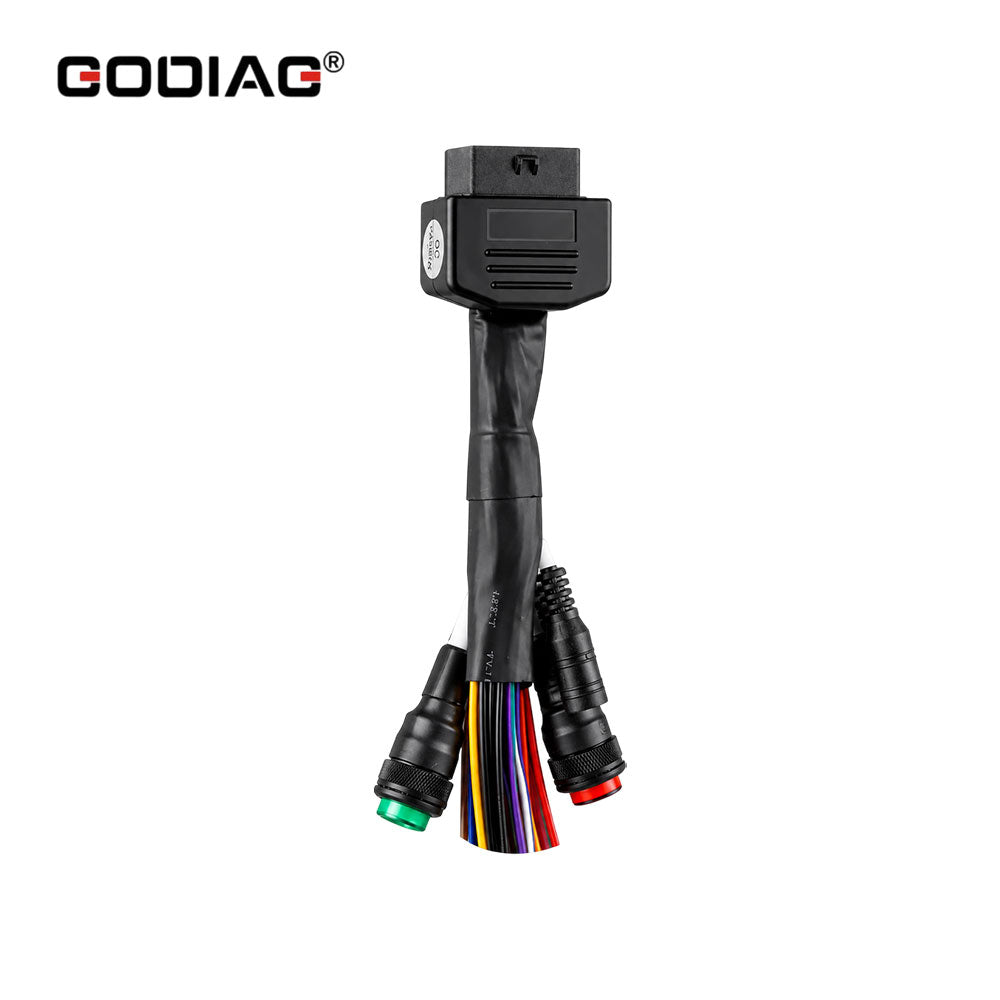

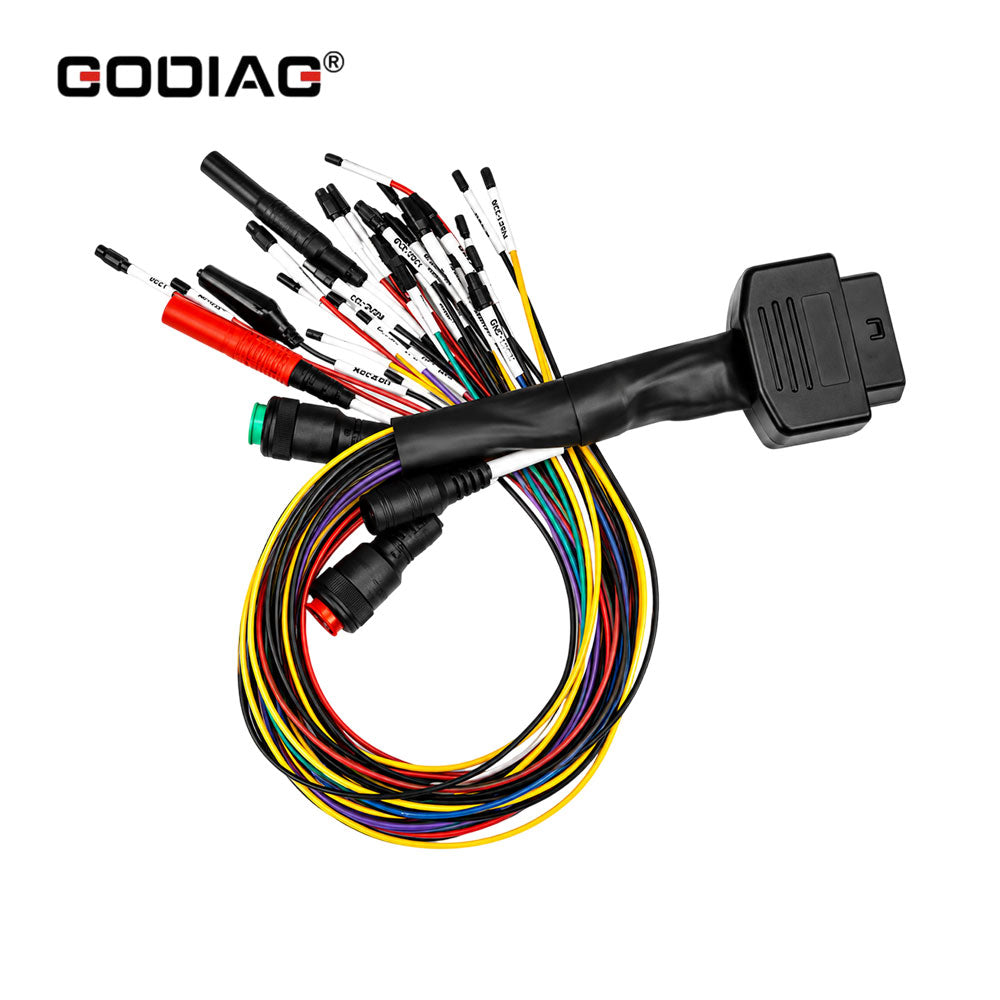

GODIAG Full Protocol OBD2 Jumper Adapter Used to Connect ECU for ECU Programing Via MPPS, FGTECH, KESSV2, BYSHUT, DISPROG, PCMtuner

GODIAG Full protocol OBD2 jumper is used to connect ECU for ECU programming via OBD2 way such as MMPS, FGTECH, KESSV2, BYSHUT, DISPROG, PCMtuner etc.

Features:

Supports DC power supply
Support safety protection banana head super programming dedicated connection port power supply.
Independent GND4, GND5 [meet the needs of special ECU programming].
With boot GND4 clip, compatible with programming equipment such as MPPS, FGTECH, KESSV2.
With GND4 GND5 short-circuit switch [some ECUs need to be switched to short-circuit mode when programming].
Note: The switch of GND4-5 is normally pressed to make it light. When some ECUs need to be independently connected to GND4 and GND5, release the switch.
With ignition analog switch [equipped with 1 large and 2 small dedicated ignition cables].
Support standard obd2 full protocol connection [double K line, double CAN line], 3 large and 2 small power plugs, 4 large GND, 4 small GND.

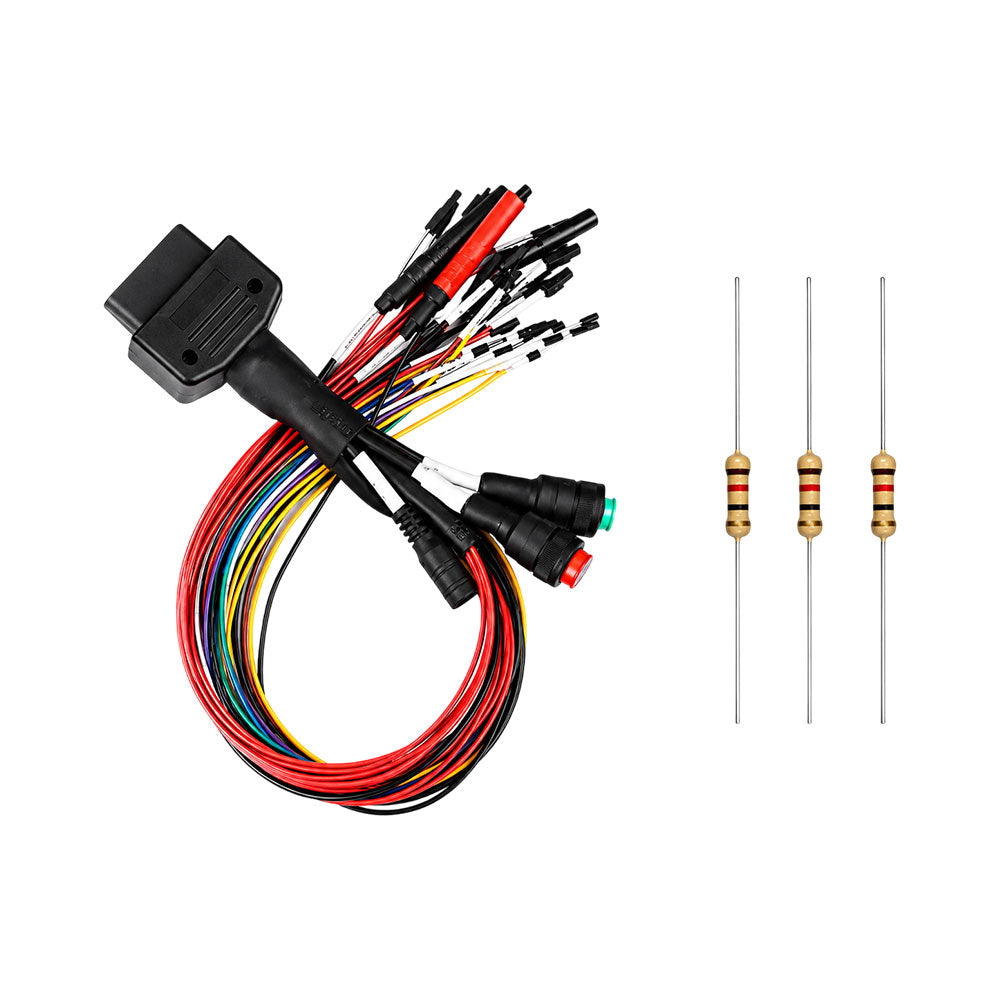

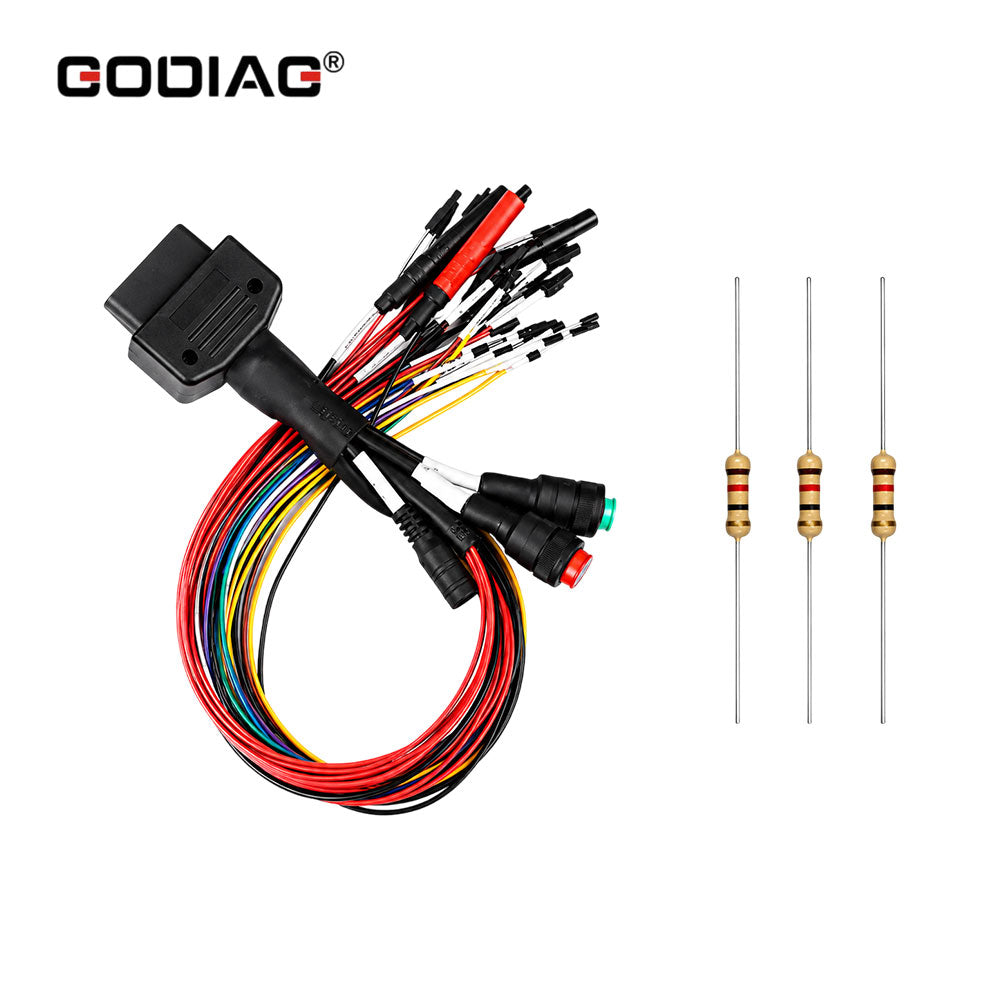

Equipped with CAN protocol communication resistance.

Supported Models:

BMW 20, BENZ38, PSA- , DAIHATSU-4, FIAT-3, GAZ NISSAN-14 SUZUKI-3 AUDI 4, BENZ 1, CHRYSLER 6, DAEWOO 12, FORD6+1, GM12, HONDA3, KIA20, MAZDA17, MITSUBISHI 12,SSANGYONG 20, SUBARU 9, TOYOTA 17, TOYOTA 22, BENZ 8, BENZ OD1 16
