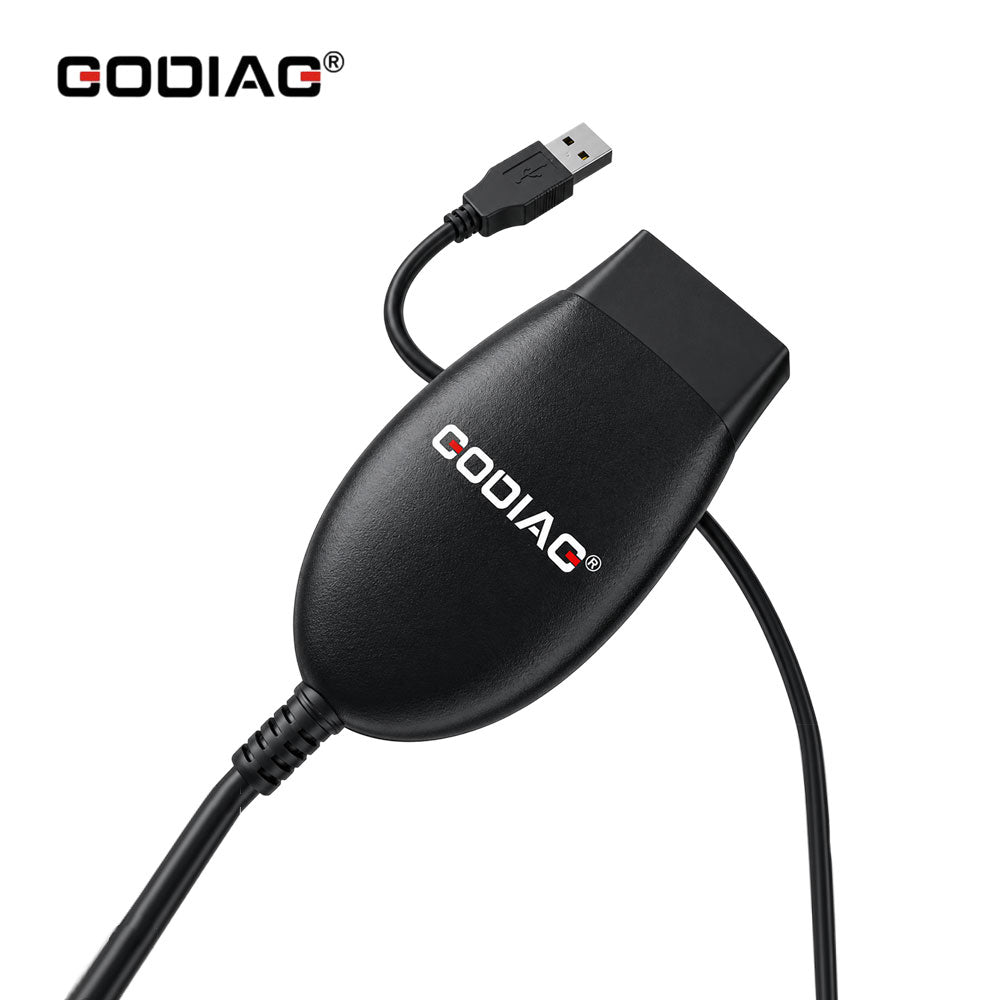

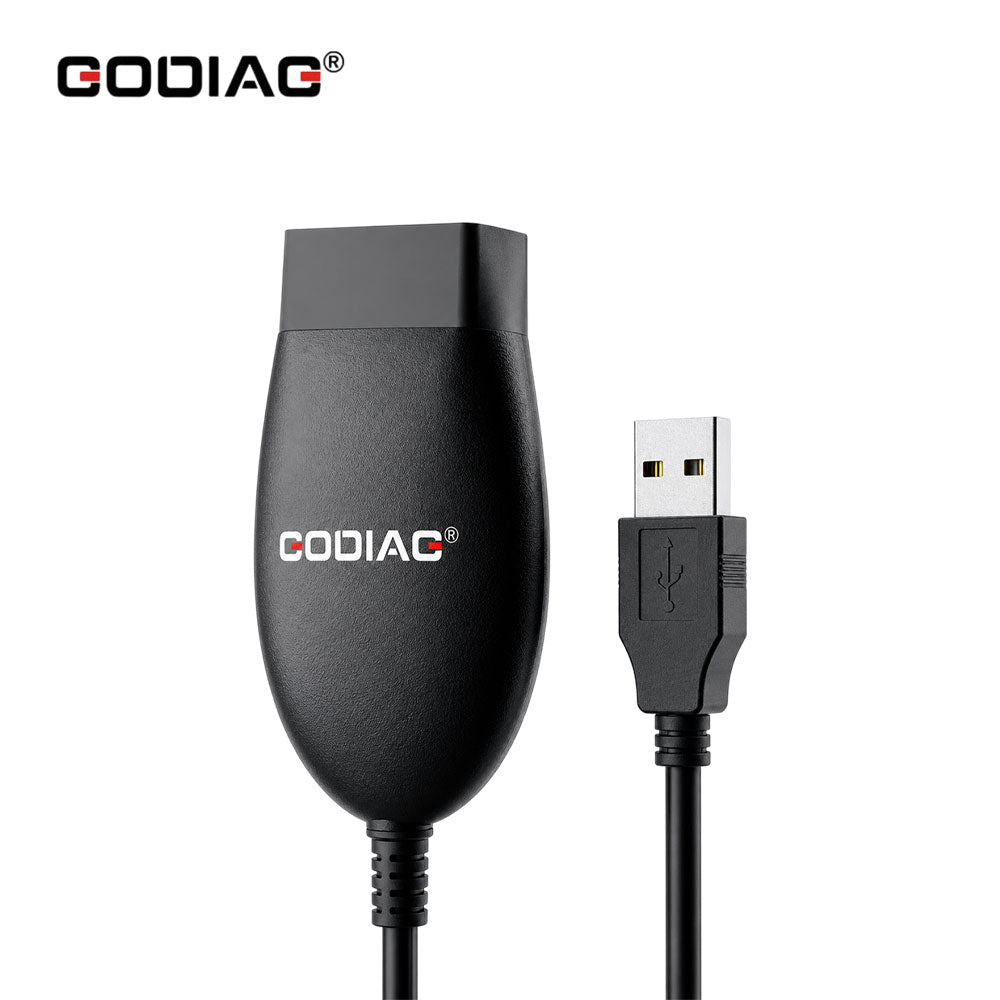

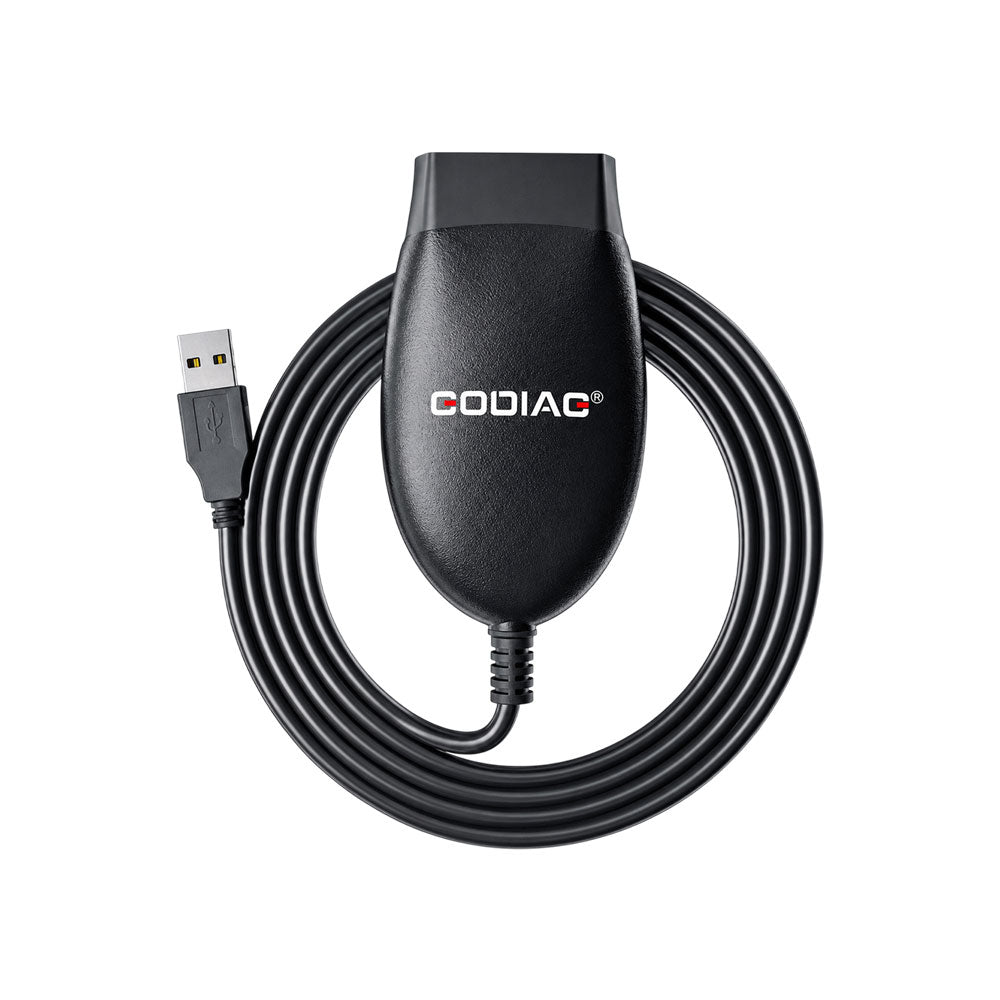

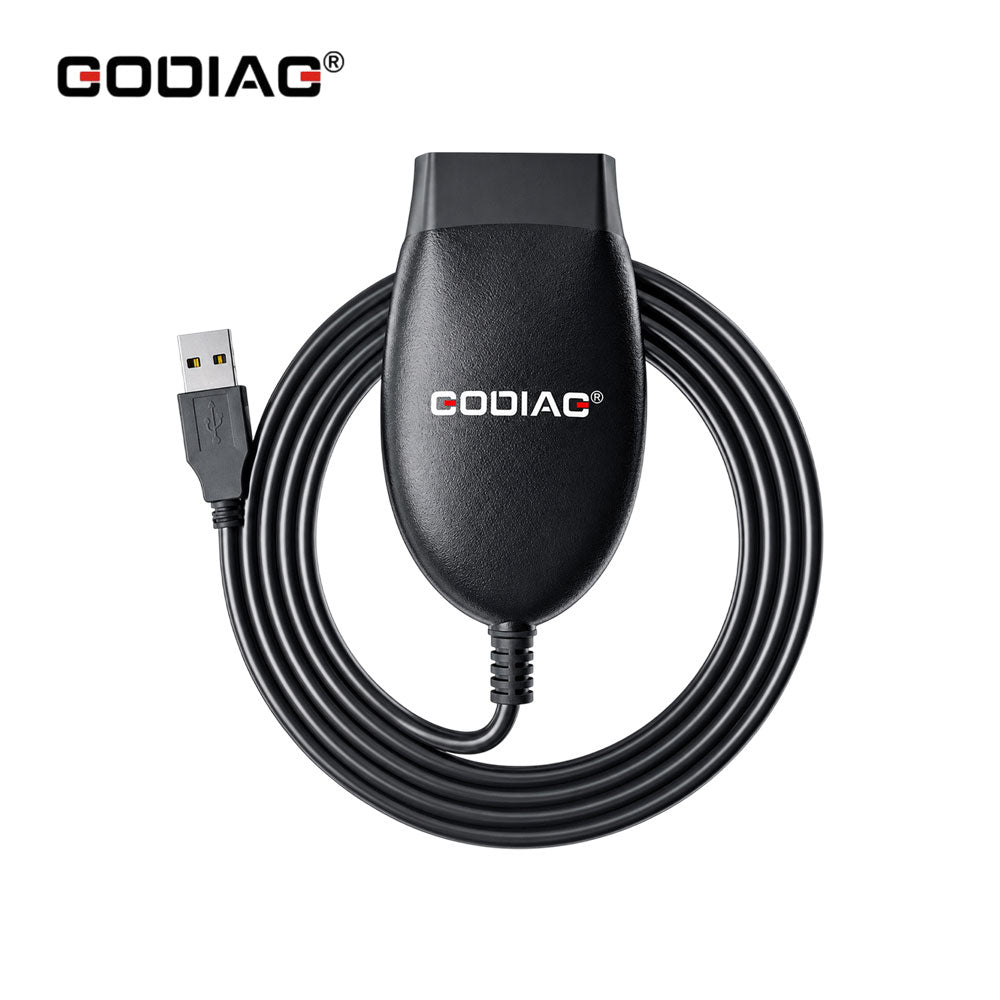

GODIAG GD101 J2534 Pass-Thru OBD2 Diagnostic Cable Compatible with IDS, HDS, TIS, Forscan, ScanMaster, SDD, PCM-Flash and ELM327

GODIAG GD101 J2534 Pass-Thru OBD2 Diagnostic Cable Compatible with IDS, HDS, TIS, Forscan, ScanMaster, SDD, PCM-Flash and ELM327

GODIAG GD101 Openport 2.0 J2534 Diagnostic Cable Compatible with J2534 Passthru IDS HDS TIS Forscan SDD PCM-Flash and ELM327 Diagnose J1979, Switch Mode Automatically, Diagnosis on Windows 8/10/11, 32/64bit,alternative to Tactrix Openport 2.0

GODIAG GD101 J2534 Highlights:

• Support J2534 and ELM327 mode in one device. Switch mode automatically.
• Compatible with Honda HDS 3.104.024, Toyota Techstream V17.30.011, JLR SDD V163, Forscan
• 3.48, scanmaster v2.1, pcm-flash 1.2.0, VAG ODIS 9.1.0.
• GODIAG GD101 J2534 has the similar functionality as Tactrix Openport 2.0.
• More speedup. Faster communication and reprogramming.
• More stability. Never let you down while reprogramming.
• Portable and convenient. Small package and easy to carry.
• Wok on Windows 8/10/11, 32/64bit
• Multi-Languages Available:
  • ODIS: English, Japanese, Portuguese, Romanian, Korean, Dutch, Polish, Turkish, Spanish, French, Italian, Croatian, Danish, German, Swedish, Finnish, Slovenian, Czech, Russia, Greece, Chinese
  • Toyota: English, French, Spanish, Japanese, German, Italian, Russian, Turkish, Chinese
  • Honda: English, German, Czech, Dutch, Finnish, French, Greek, Hungarian, Italian, Norwegian, Polish, Portuguese, Russian, Slovenian, Spanish, Swedish, Turkish, Japanese, Chinese
  • JLR SDD: German, English, Spanish, French, Italian, Dutch, Portuguese, Russian, Japanese, Chinese, Korean
  • Forscan: English, Russian, Polish, Italian, German, Hungarian, Turkish, French, Latvian, Bosnian, Finnish, Romanian, Portuguese, Traditional Chinese, Simplified Chinese, Czech, Lithuanian, Slovak , Ukrainian
  • Scanmaster elm 327: English, Czech, German, Spanish, French, Hungarian, Italian, Polish, Serbian, Turkish, Danish, Croatian
  • Pcmflash: English, Russian

GODIAG GD101 J2534 Function List:

Notice : Can't support MS-CAN

GODIAG GD101 J2534 OBD2 Openport 2.0 Features:

• Support most all of J2534 compatible software (HDS, TIS, ODIS, JLR SDD, PCMFLash...).
• Support most all of ELM327 software (ELMConfig, Forscan, ScanMaster...).
• Support ECU reprogramming in J2534 mode with programming voltage.
• Supply free software for diagnosing J1979 compatible vehicles

Notice:

• For PCMFlash 1.20, will need to buy a PCMtuner Dongle. And only supports the OBD part. It does not support bench, boot, vag, dsg and gearboxes.
• Not Support Win7 System

GODIAG J2534 Software Firmware Upgrade Notice (March 31, 2023)

• Software upgrade to 2.1
• Firmware upgrade to 1.8
• Solve the following problems:
  • In J2534 mode, the sending length of J1850VPW is extended to 4128
  • PyOBD software cannot be connected in ELM327 mode
  • ELM327 mode cannot read ISO9141 VIN

GODIAG GD101 J2534 Supported Car Models:

• .JLR SDD Software for Land Rover/Jaguar
  Support for L316, L319, L320, L322, L359, L538 Land Rover vehicle lines.
  Support for x100, x150, x202, x250, x350, x351, x400 Jaguar vehicle lines.
• HDS Software for Honda
  Support for Accord, Civic, Crv, City, et al.
• Toyota
  Support for Camry, Rav4, Carolina, Prius, Lexus
• ODIS VAG
  Support for Vw, Audi, Seat, Skoda
• GM GDS2 Software
  Support for Buick, Chevrolet, Cadillac, etc.

GODIAG GD101 J2534 Protocol Configuration:

• ISO15765 (Standard/Extended frame).
• ISO9141.
• ISO14230.
• J1850 PWM (Support IFR and 2x speed mode).
• J1850 VPW (Support 4x speed mode).
• Programming voltage.
• Short to ground.
• ELM327 with command set version 1.3a

Notice : Can't support MS-CAN

GODIAG GD101 J2534 Hardware Configuration:

• ISO11898-2 high speed CAN (OBDII PIN 6 and PIN 14. Speed up to 1000Kbps).
• ISO9141 and ISO14230 K line (OBDII PIN 7 and PIN 15).
• J1850 PWM (OBDII PIN 2 and PIN 10).
• J1850 VPW (OBDII PIN 2).
• Programming voltage (OBDII PIN 12 or PIN 13. Programming voltage up to 20V).
• Short to ground (OBDII PIN 9. Short to OBDII PIN5).
• Dimension(L*W*H): 95mm*55mm*23mm
• Environmental:-20°C-45°C(-4°F-113°F)
• Vehicle voltage requirements: 8-18V DC
• Vehicle connection: Molded DLC3(OBDII-16)
• Host connection: USB 2.0

Used the GODIAG GD101 J2534:

Open the startup software, connect the device, and click upgrade firmware.

Update log:

Updated on 2023-03-31

• 1.Software update to v2.1
• 2.Firmware update to v1.8

Fixed the following bugs:

• J2534 mode J1850 VPW Tx message size extended to 4128 bytes
• ELM327 mode can not be connected by PyOBD
• ELM327 mode can not read ISO9141 VIN

Feedback:

• For ELM327 mode, errors can also be read out without problems using ForScan.
• With Forscan, vehicles can be read without any problems.This adapter is ideal for simple operations such as reading and deleting fault memories.
• The optical processing is good.The cable is recognized by the laptop.I then downloaded a corresponding free program from the Internet to test it, the reading of errors worked quite well with a little trial and error, for more you will probably have to use paid programs.
• GODIAG J2534 Openport 2.0 Cable is a professional OBD2 diagnostic cable used for vehicle diagnostics and flash chip tuning.Overall, GODIAG's J2534 Openport 2.0 Cable is a professional diagnostic and flash chip tuning tool that provides a fast and reliable connection to a wide range of vehicles and diagnostic tools. It is an excellent choice for mechanics, tuners and professionals who need a powerful and reliable diagnostic solution.
• The special thing about this adapter is that it only has to be connected to the PC and if the COM port is set to "Auto" in the ForScan settings, it will be recognized directly and can be used. This automatic port detection is really practical and saves time because you don't have to make any settings.
• The OBD II adapter is tight and makes reliable contact.
• I tested it on a 2018 Ford Focus and it worked really well here.
  Unfortunately, I can't speak to the overall look of older models, especially pre-2010 models.
  All in all, it's a decent OBD2 cable, with impeccable quality and an affordable price that you can definitely get if you need one.
• GODIAG J2534 V2.1 Driver Works Perfectly with ODIS V10.0 on Win10 Pro The interface is well made and is used to connect the notebook or computer to the vehicle's OBD2 connector via USB. For me it was important to be compatible with ODIS. Installation was quick and the included QR code takes you to a website with instructions.
• The plug works perfectly and does what it is supposed to do 100%. The data transmission speed is very fast and I can't write anything negative about this connector. The cable is long enough and due to its quality you don't have to struggle with cable breaks so quickly. All in all, the device promises longevity. Great value for money.

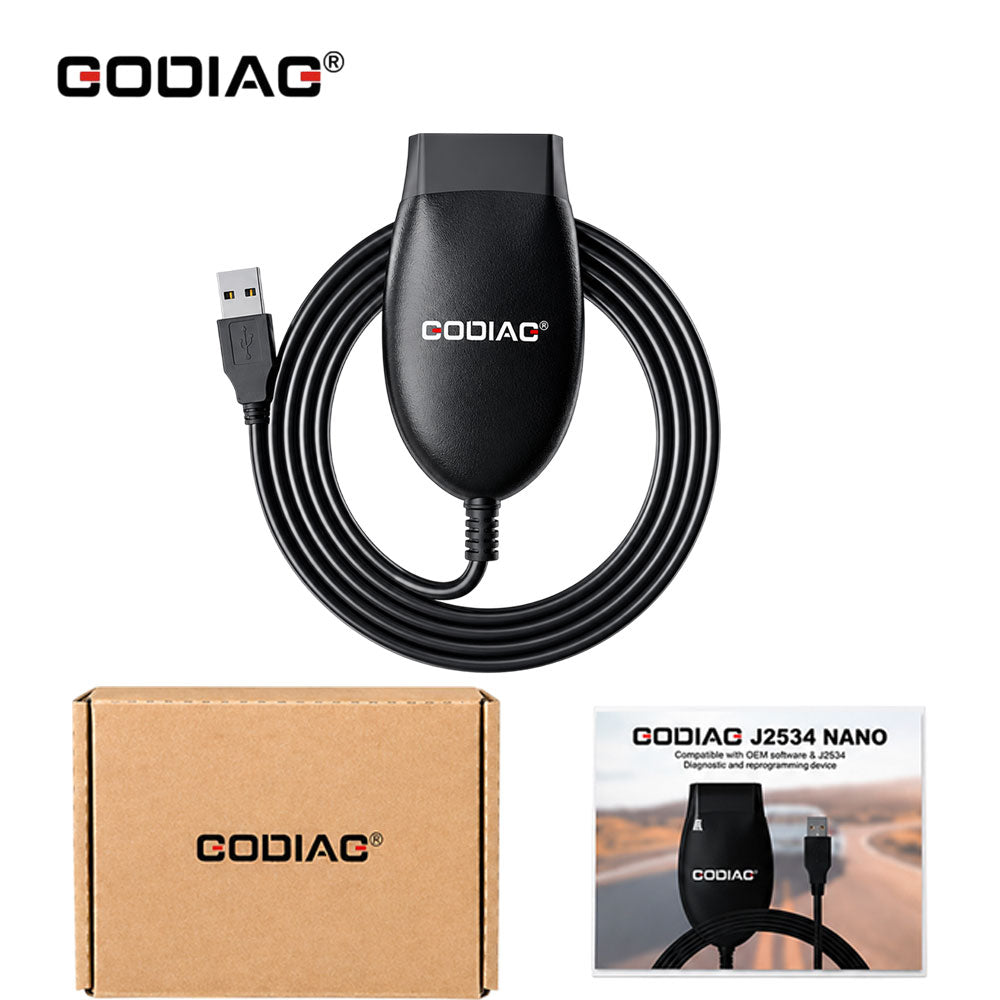

Includes:

• 1pc x GODIAG GD101 J2534
