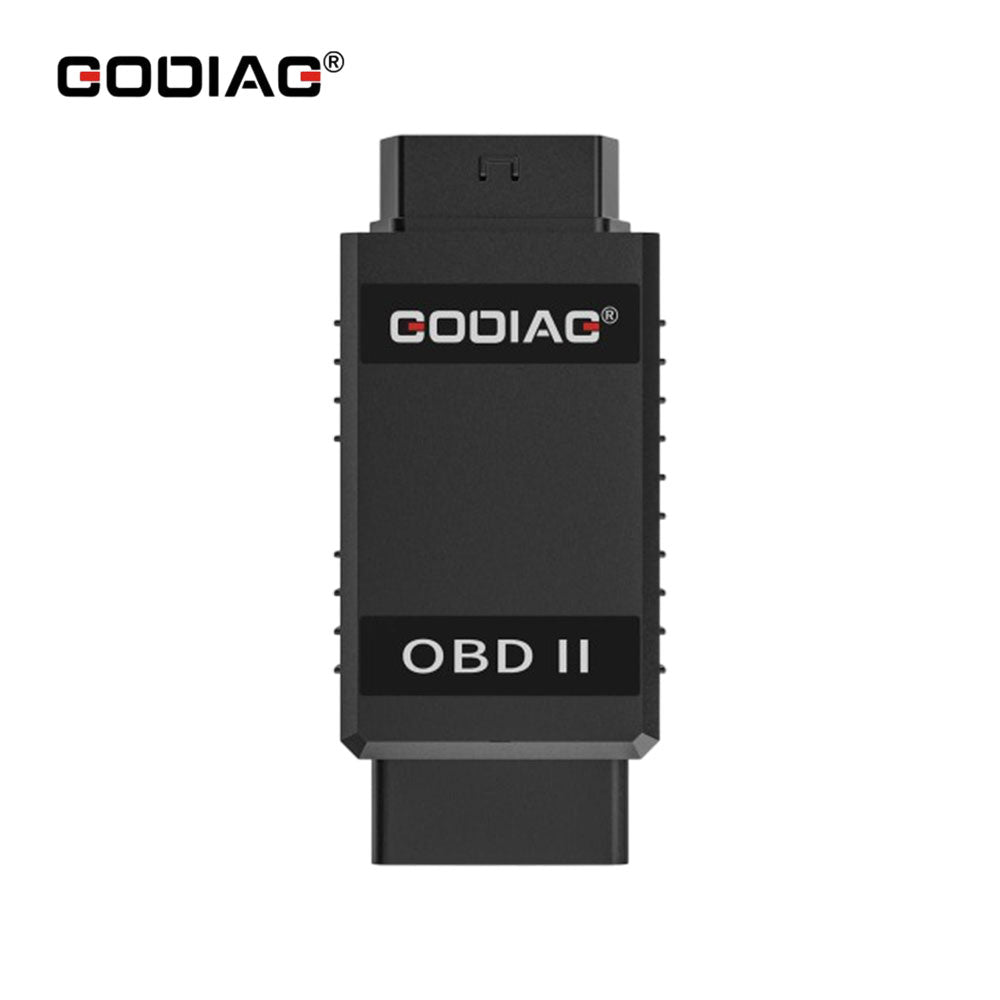

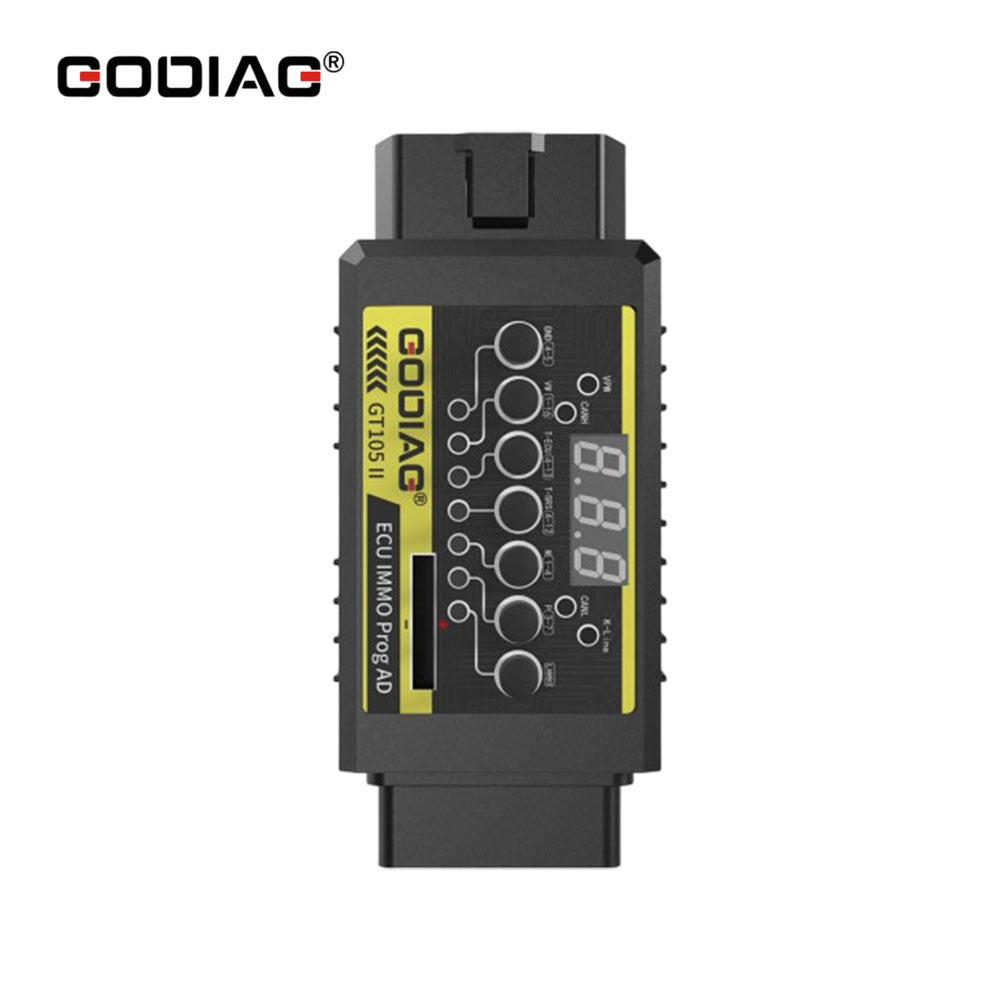

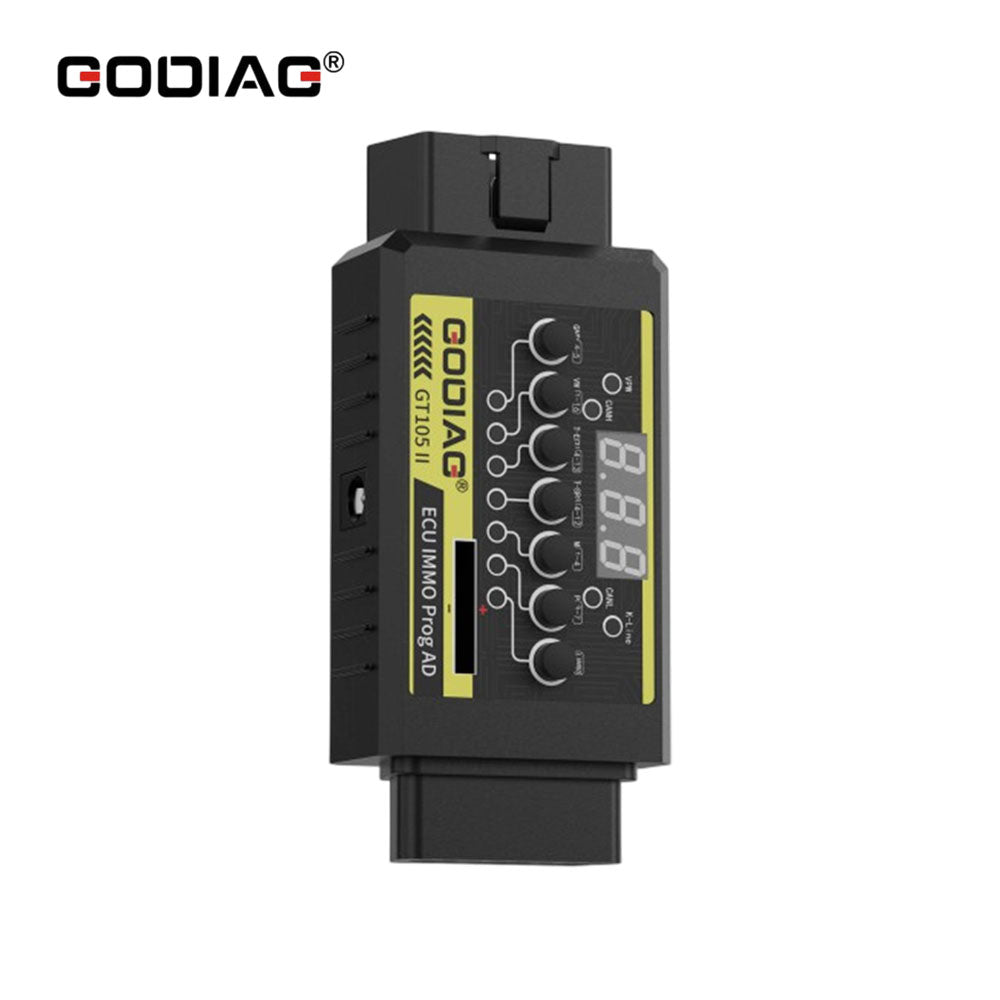

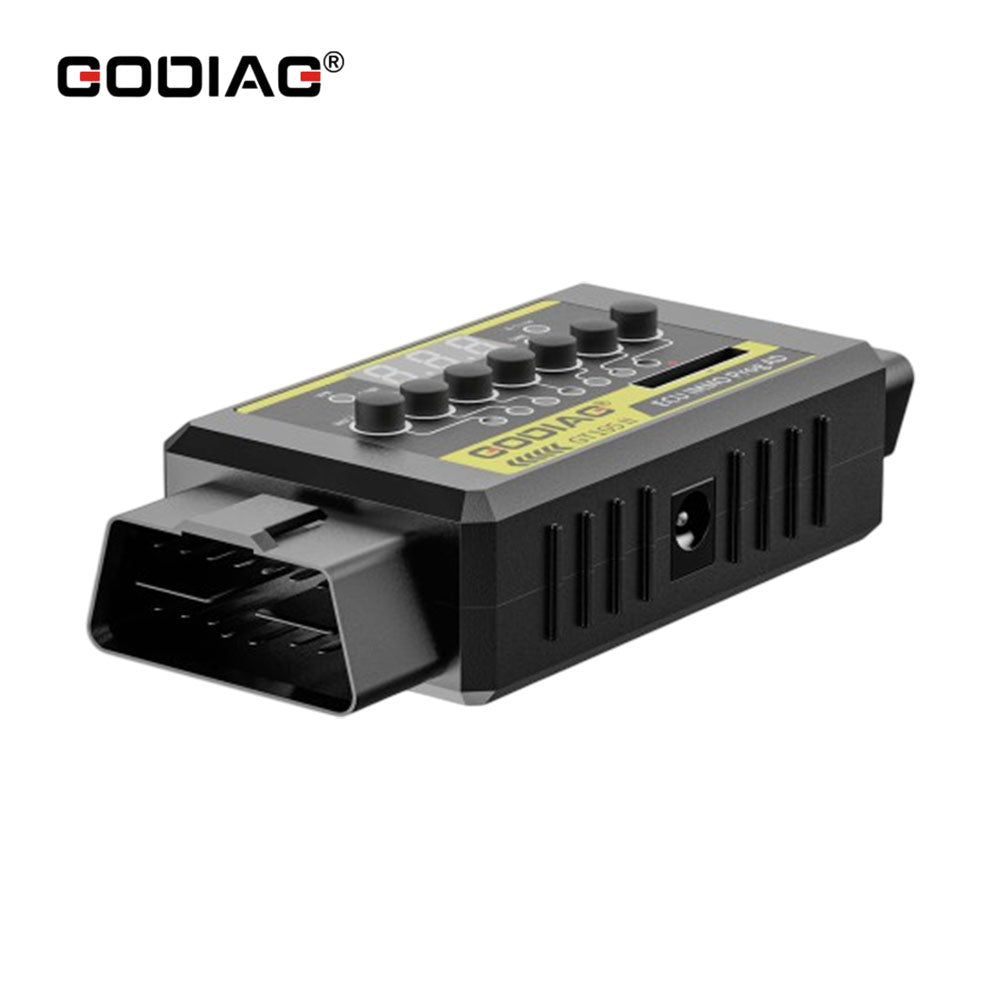

GODIAG GT105 II OBD2 Breakout Box ECU IMMO Programmer with Voltage Display and 11V Low Battery Alarm

GODIAG GT105 II OBD2 Breakout Box ECU IMMO Programmer with ECU Connector, Voltage Display and 11V Low Battery Alarm

GODIAG GT105 II ECU IMMO Prog AD OBD2 Break Out Box ECU Connector Display Vehicle Voltage Car Battery Voltage Lower Than 11 V Alarm Prompt

GODIAG ECU IMMO Prog AD GT105 II is used for short-circuiting OBD2 in the car for IMMO activation matching, ECU diagnosis and programming connection, and drawing power from the vehicle's battery for outdoor on-site vehicle maintenance. Compared with GT105, it it has added 5 new functions: vehicle voltage display, car remote control battery CR2032 battery test, car battery voltage alarm prompt(lower than 11V), TOYOTA steering angle matching, Lamborghini ID48 key IMMO auxiliary activation.

GODIAG GT105 II Highlights:

A full-protocol ECU connection line for ECU programming power adjustment
OBD2 independent PIN 4 body GND, PIN5 signal GND for special programming of some modules.
PIN4 and PIN5 can be switched between short-circuit and non-short-circuit.
Standard OBD2 independent PIN4, PIN5.
Pure copper female seat supports repeated insertion and removal, and has a long service life.
Battery clip treated with environmentally-friendly salt spray, with a thickness of 0.5mm.
The DC car battery cable adopts 0.75mm² 2-core sheathed cable, which supports DC5.5*2.5/ DC5.5*2.1 interface.
The DC connector has a resettable 7A fuse.

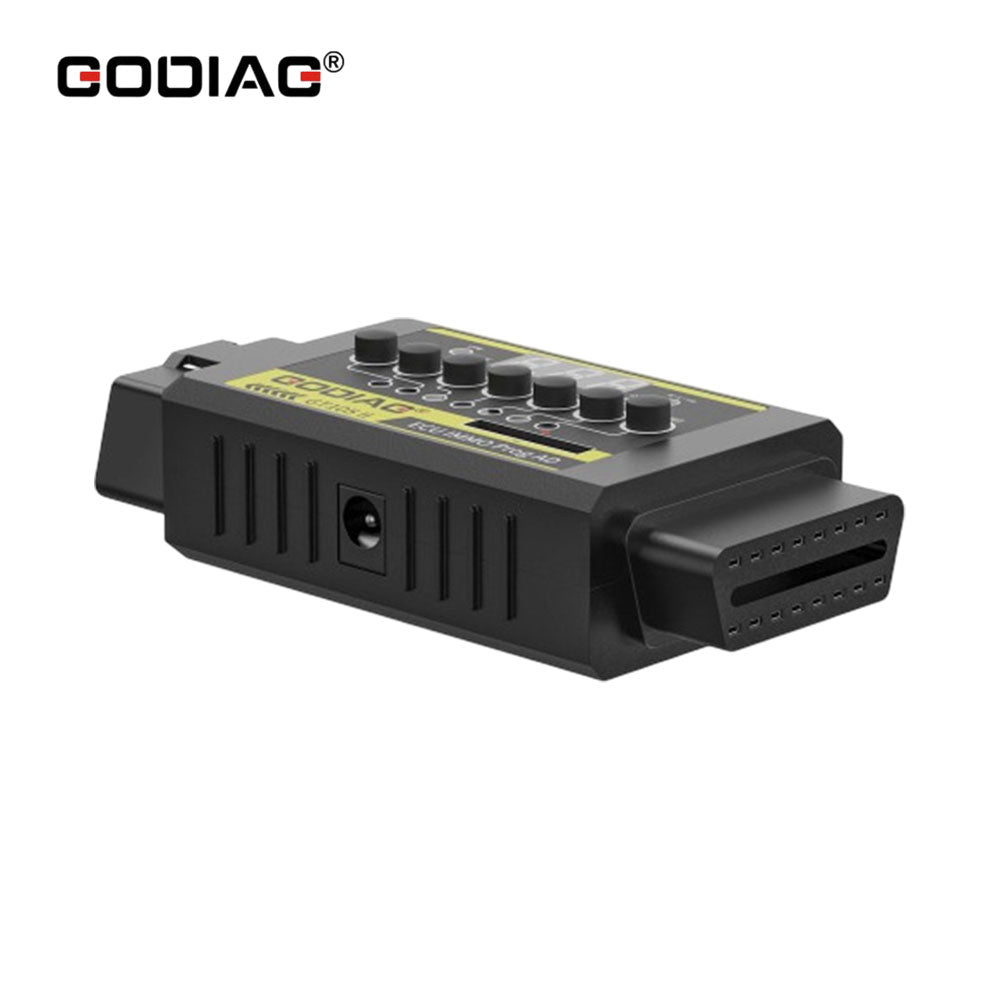

DC power interface, dedicated laboratory power connector.

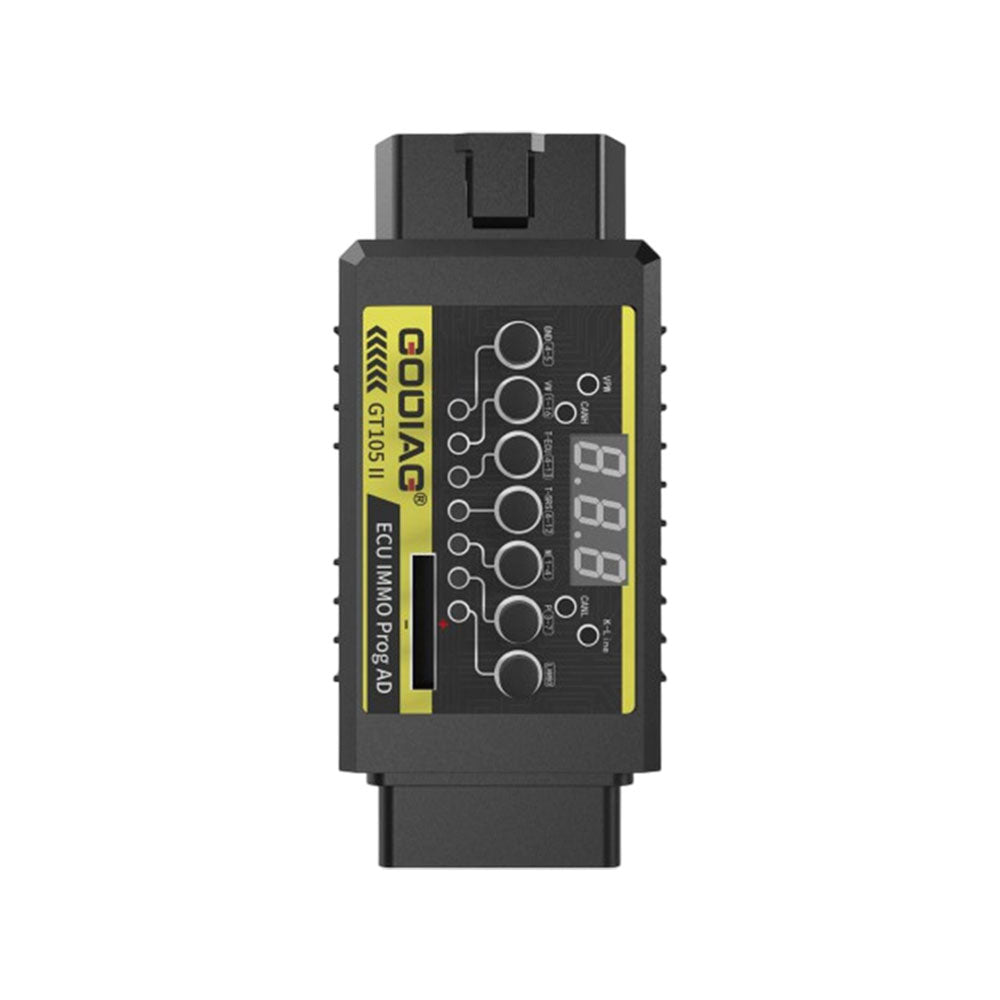

GODIAG GT105 II is equipped with PWM+(PIN2), CANH(PIN6), CANL(PIN14), K-line(PIN7) signal communication indicators. When there is data communication, the corresponding protocol indicator will flash, therefore the communication status can be judged and you can also determine whether the diagnostic programming device is able to communicate.

GT105 II Functions:

• Vehicle voltage display
• Car remote control battery CR2032 battery test
• Car battery voltage alarm prompt(lower than 11V)
• TOYOTA steering angle matching
• Lamborghini ID48 key IMMO auxiliary activation

IMMO AD power adapter function:

After 2016, for Ford all smart keys lost, GT105 II cooperates with VVDI equipment (OBDSTAR, AUTEL,) and other anti-theft matching equipment to program the keys.

All car keys lost matching:

wake up the meter or wake up the anti-theft ECU. (Support VAG 4th and 5th generation anti-theft, Toyota ECU synchronization, auxiliary Mitsubishi all key lost matching or all lost remote control key setting, old Porsche Cayenne car for IMMO key learning.)

VPW, CANH, CANL, K-Line indicator lights can judge the communication status between the vehicle and the diagnostic programming device. (If the product is used to connect the device, the user can simply judge whether the diagnostic programming is normal or not according to whether the device can send communication.)

On-site Maintenance:

The GT105 II power adapter cable obtains 12V power from the car battery. (For programming equipment such as Xhorse Key Tool Plus Pad, VVDI Prog, CGDI Prog, IM608, etc., it provides 12V power supply when they need power outdoors, so as to read the data of BMW BENZ IMMO ECU, or other car ECUs, and finally realize the on-site maintenance of outdoor faulty vehicles. )

Provide 12V power supply for the key cutter (12V):

Standard OBD2 full protocol ECU programming line. (With MPPS, FGTech, Kess v2, etc., for ECU data reading and writing, ECU cloning, ECU tuning, etc.) (Note: OBD2 full protocol ECU programming line is purchased separately)

OBD Battery Replacement Tool:

Realize the uninterruptible power supply during the battery replacement, so it can prevent data loss, key failure or re-matching caused by power interruption during the battery replacement.

With GT105 II, you can enjoy the functions listed below during the battery replacement:

• The clock does not change.
• The speaker is not locked.
• IMMO is not locked.
• Glass door is not set.
• The throttle is not set.
• The warning light is off.
• No fault code

Includes:

• 1pc x GT105 II host
• 1pc x Power cord with battery clip
