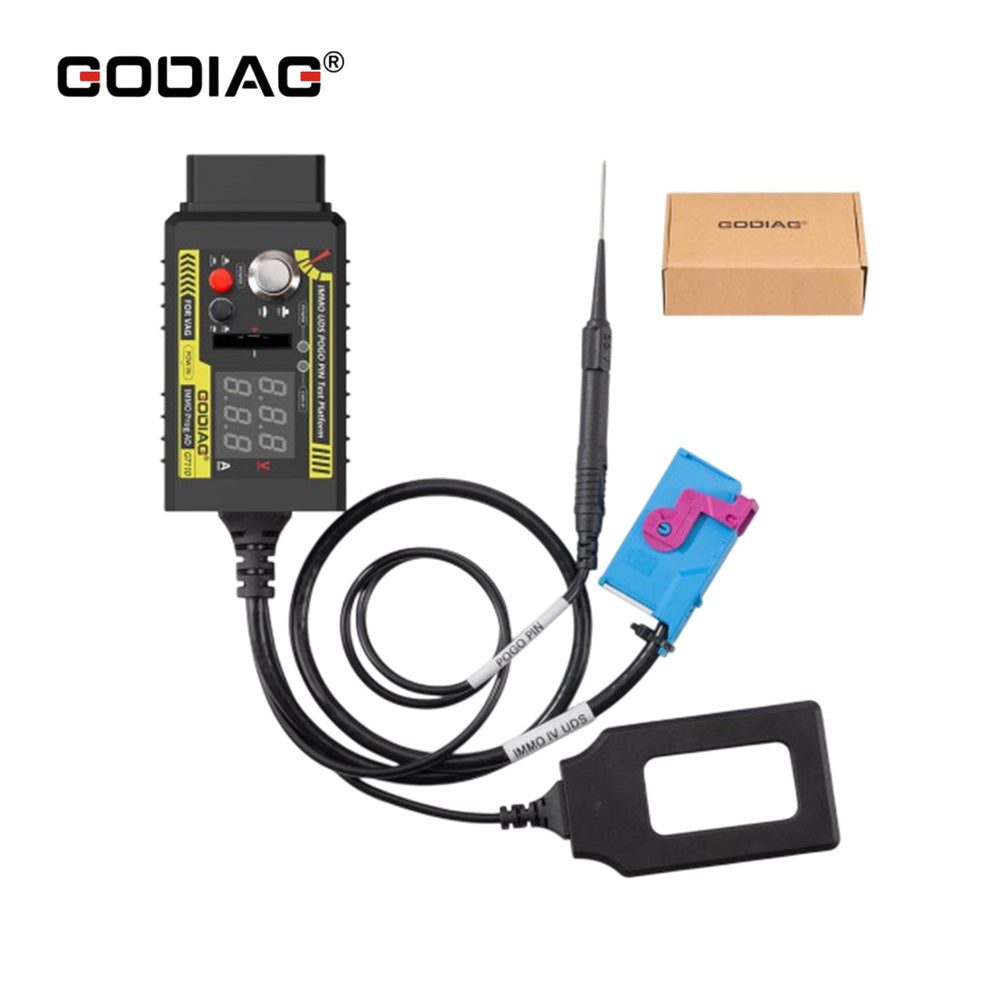

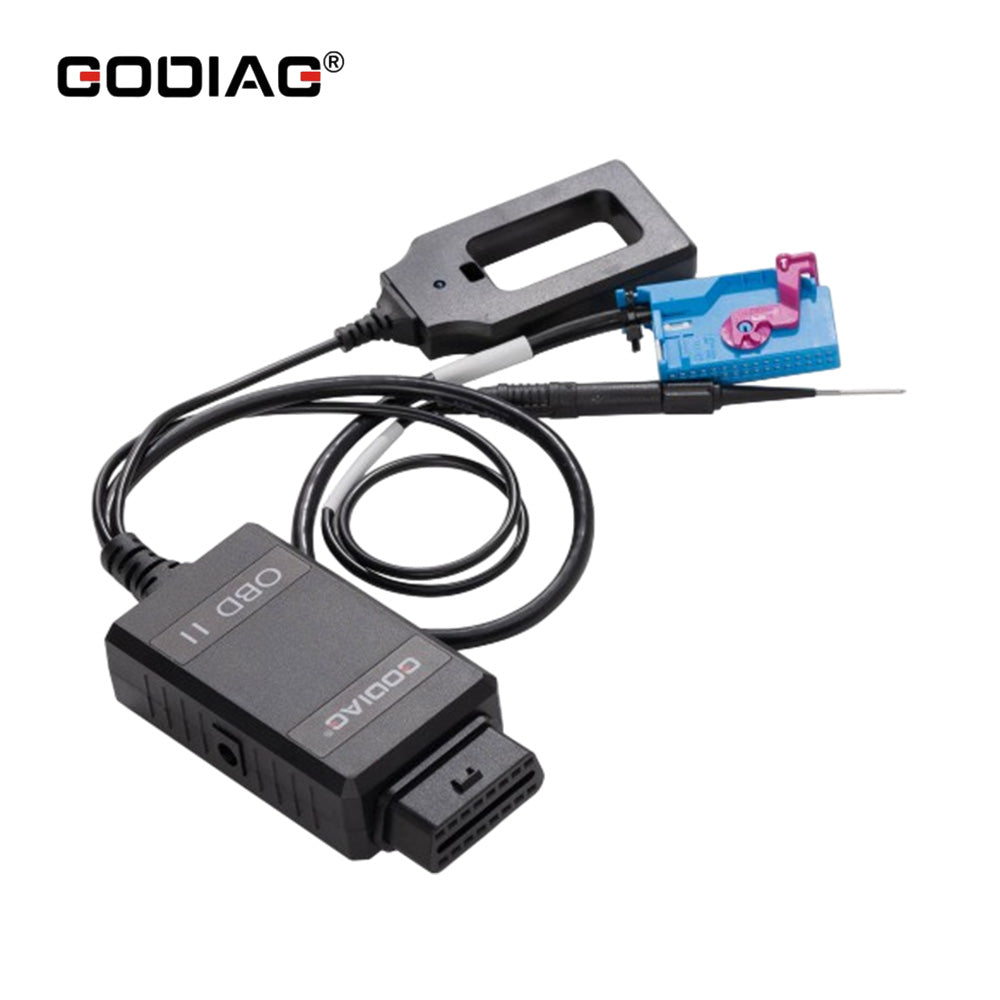

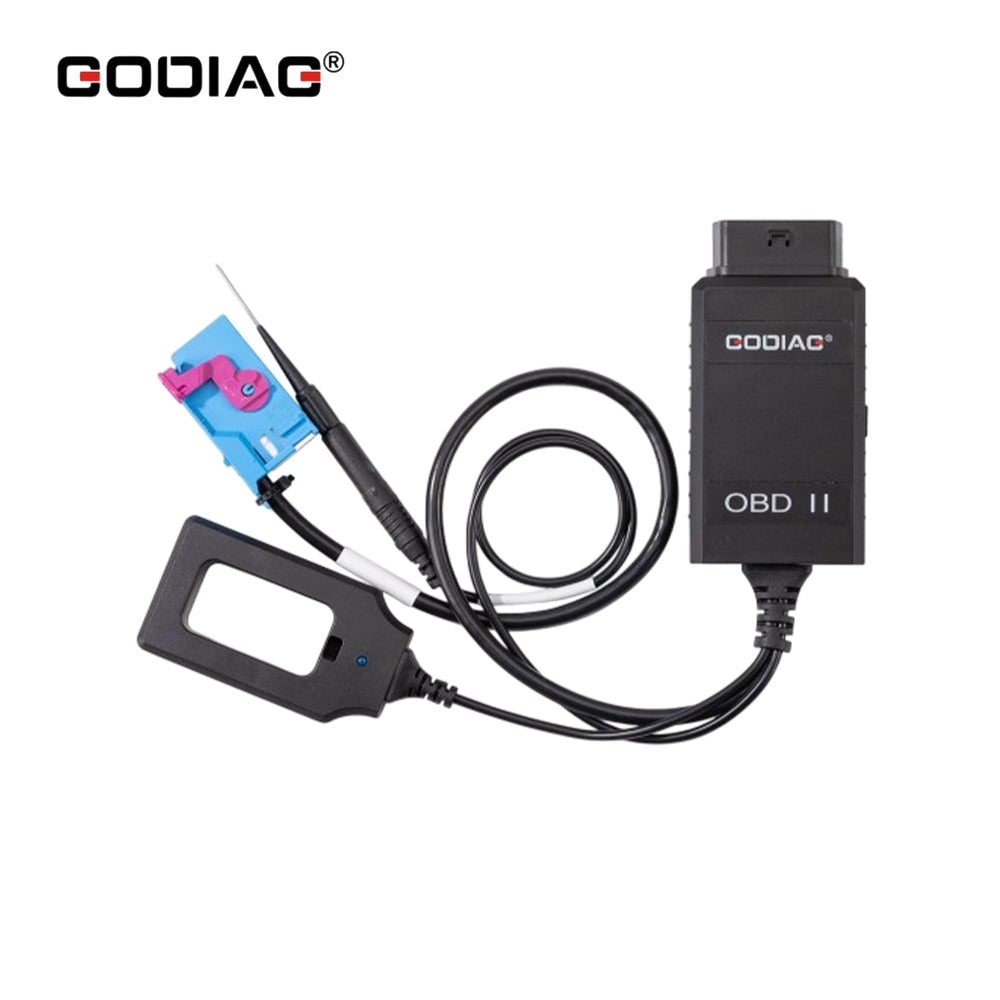

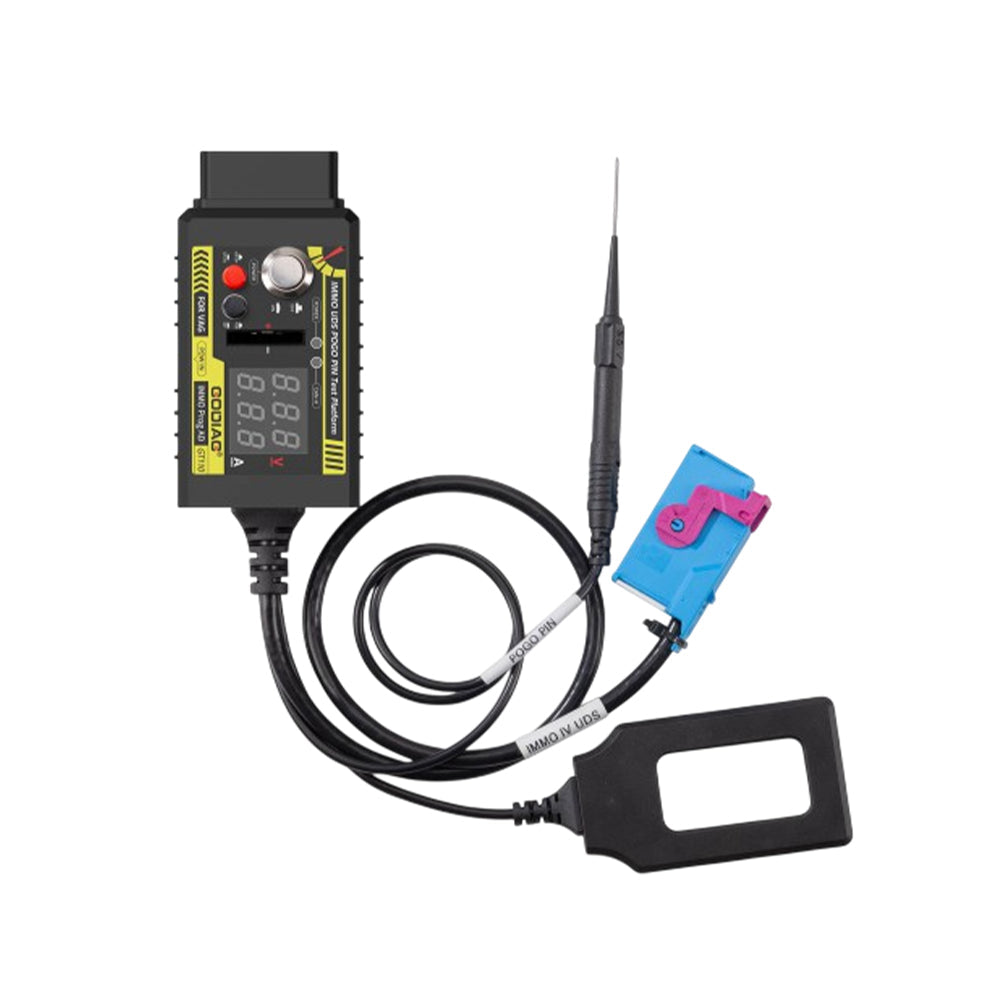

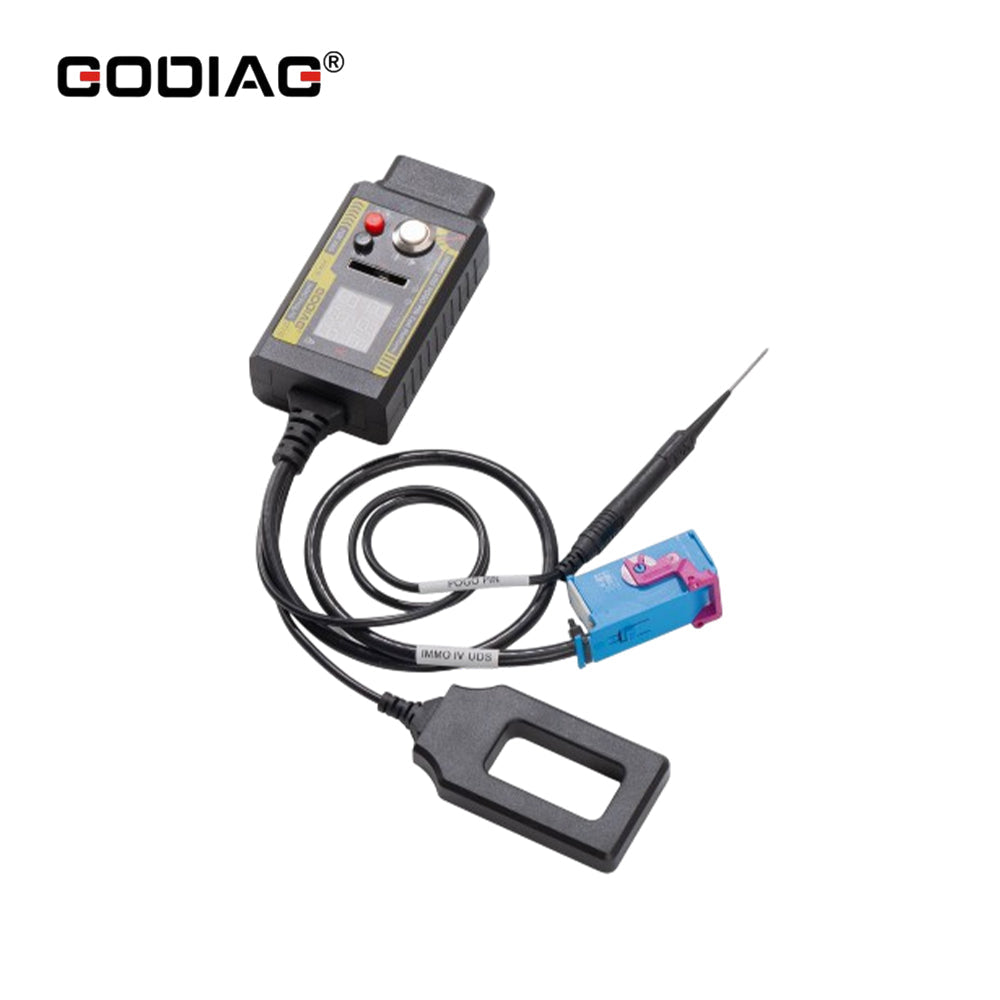

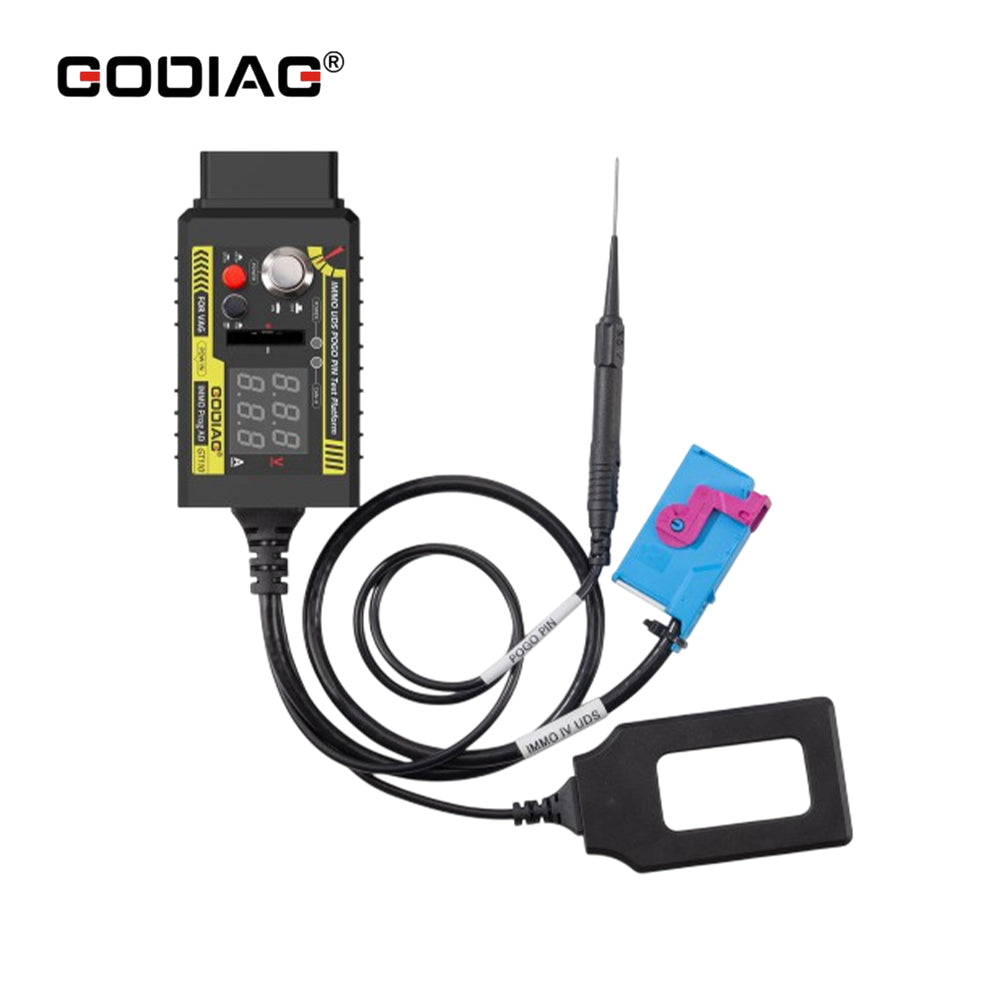

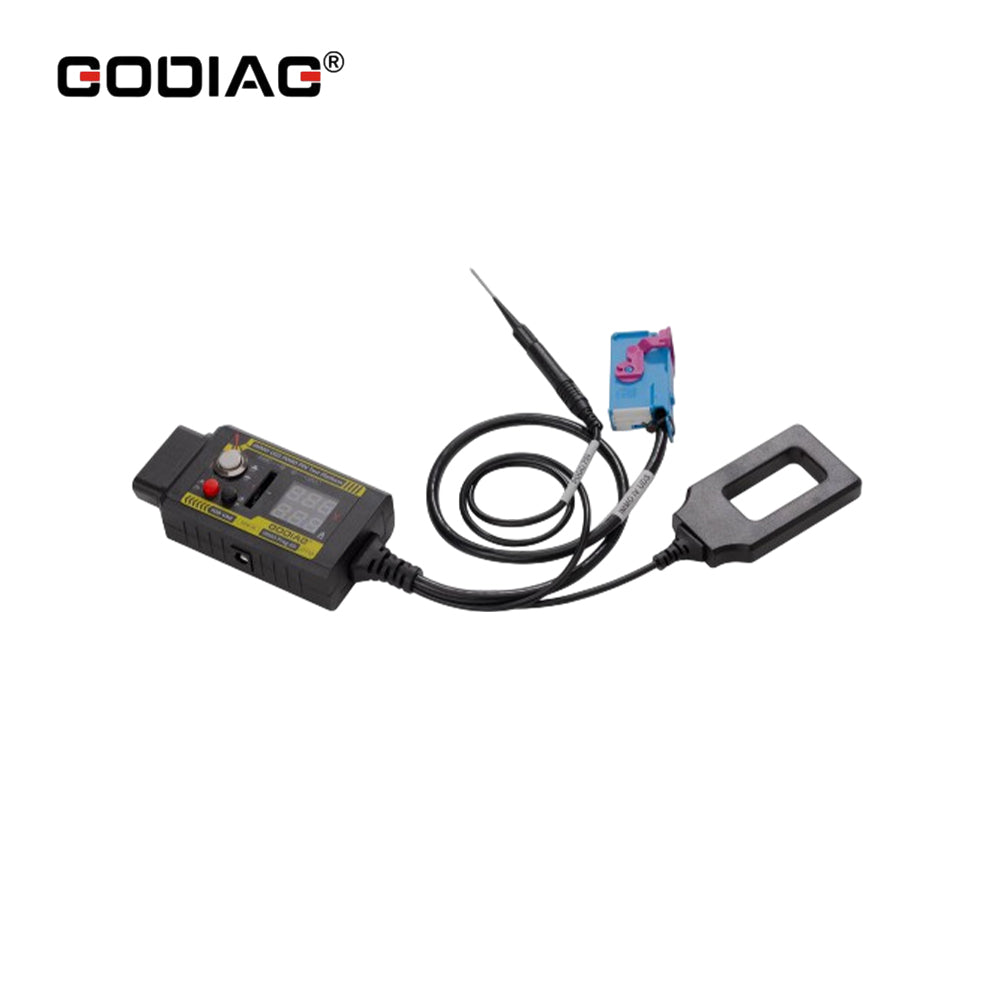

GODIAG GT110 UDS IMMO Test Cable for VW Skoda Seat 4th Generation Dashboards with POGO Pin

GODIAG GT110 UDS IMMO Test Cable for VW Skoda Seat 4th Generation Dashboards with POGO Pin

GODIAG GT110 UDS IMMO Test Platform Cable is designed for 4th-generation VW, Skoda, and Seat immobilizer systems. It supports offline POGO PIN data read/write, dashboard key programming, IMMO diagnostics, mileage correction, key matching, and emergency start area detection. Features include voltage/current display, ignition simulation, CAN UDS communication indicators, and CR2032 key battery testing. Compatible with OBDSTAR, Lonsdor, VVDI2, AVDI, Autel, VCDS, VAS5054A, and other professional diagnostic tools.

Features:

• Uses POGO PIN technology for stable dashboard data reading and writing.
• Converts offline dashboard connections to a standard OBD2 interface.
• Supports key chip and instrument cluster synchronization testing.
• Independent power switch for convenient operation.
• Simulated ignition switch for dashboard and IMMO testing.
• Real-time working voltage display.
• CR2032 remote key battery detection function.
• Real-time instrument working current display.
• CANH UDS communication status indicator light.
• Illuminated key induction adapter for key sensing and testing.
• Durable POGO PIN design provides stable contact and helps prevent cable damage.

Functions:

• Uses POGO PIN for stable reading and writing of dashboard data.
• Supports offline dashboard connection and conversion to standard OBD2.
• Performs key chip and instrument cluster synchronization testing.
• Built-in independent power switch for easy control.
• Simulates ignition switch for IMMO and dashboard testing.
• Real-time working voltage display for system monitoring.
• Supports CR2032 remote key battery detection.
• Displays real-time instrument working current.
• CANH UDS communication indicator light for status monitoring.
• Key induction adapter with LED light for signal detection.
• Improved POGO PIN design ensures stable connection and reduces cable damage.

POGO PIN usage steps:

• Connect the power supply (Note: the power switch must be off).
• Press the IGN ignition power (the IGN ignition switch must be turned on).
• Connect the instrument plug.
• Find the POGO PIN connection point of the corresponding instrument and connect it with a probe.
• Turn on the power switch for about 3-5 seconds. As long as the instrument ABS light is flashing, it means that the POGO PIN read and write mode has been entered.

Godiag GT110 vs Other Pogo Pin Cables:

• Add simulated ignition switch
• Adds CAN H indicator light
• Pogo PIN does not break, more stable to hold
• Add voltage and current display
• Add button battery CR2032 testing
• Add key and instrument sync detection
• Add emergency start sensing area recognition

Test Result Analysis:

• The light of the key identifier flashes and then goes out, indicating that the IMMO chip and the chip key are working properly.
• The light of the key identifier flashes for a long time, indicating that the chip key and the vehicle's IMMO system do not match, and the chip key needs to be re-matched.
• The light of the key identifier does not flash, which means that the vehicle's IMMO system is faulty. Please check the vehicle's IMMO system.

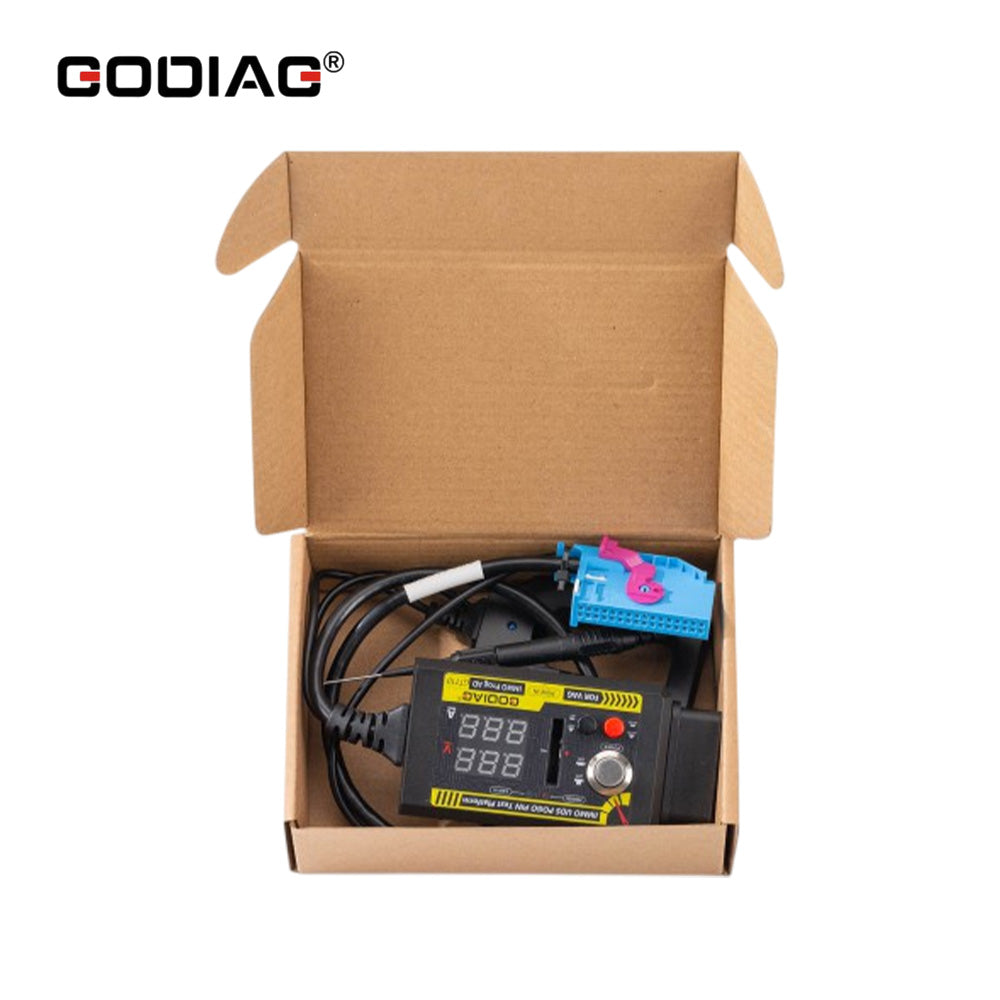

Package Includes:

• 1pc x GODIAG GT110 FOR VW Skoda Seat CAN-Bus UDS 4th Generation IMMO System Test Platform Cable with POGO PIN to Read & Write POGO PIN Data
