GODIAG GT114 K Line IMMO Test Cable for Audi A4 A6 C5 2nd and 3rd Generation Dashboards

GODIAG GT114 K Line IMMO Test Cable for Audi A4 A6 C5 2nd and 3rd Generation Dashboards

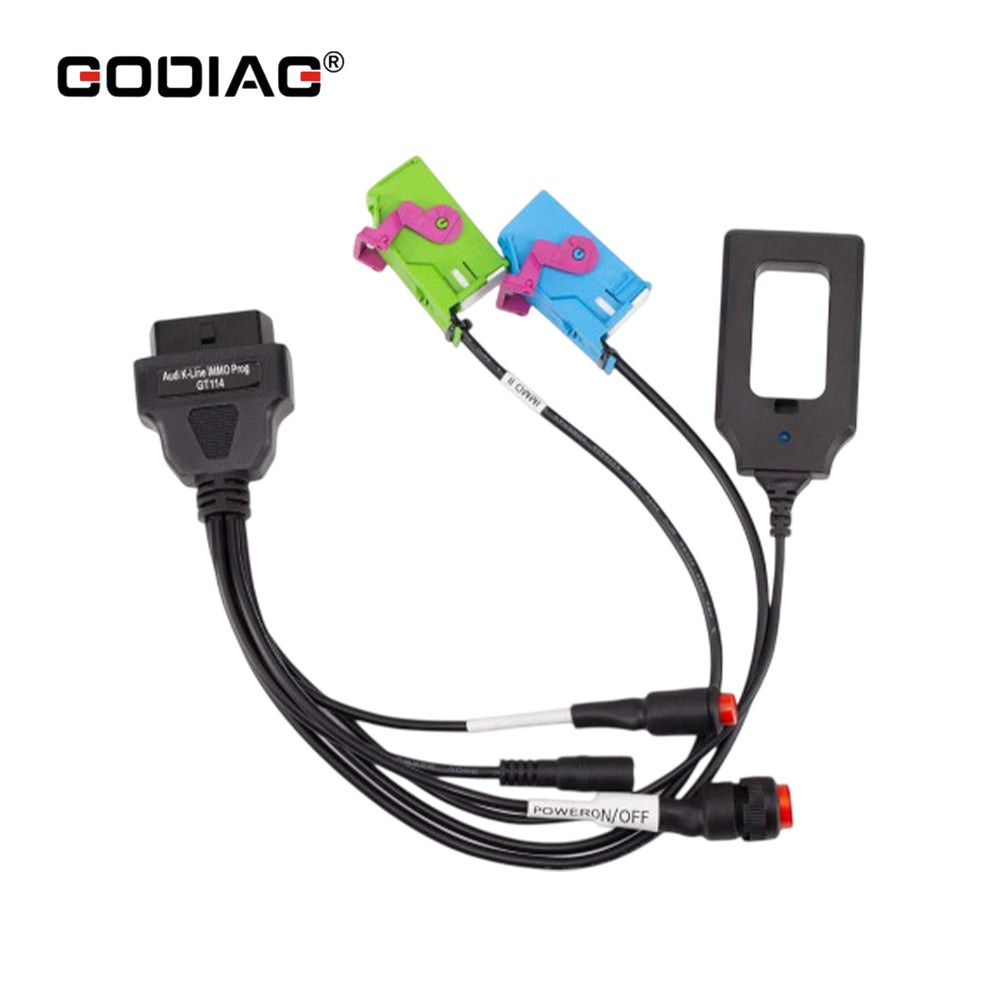

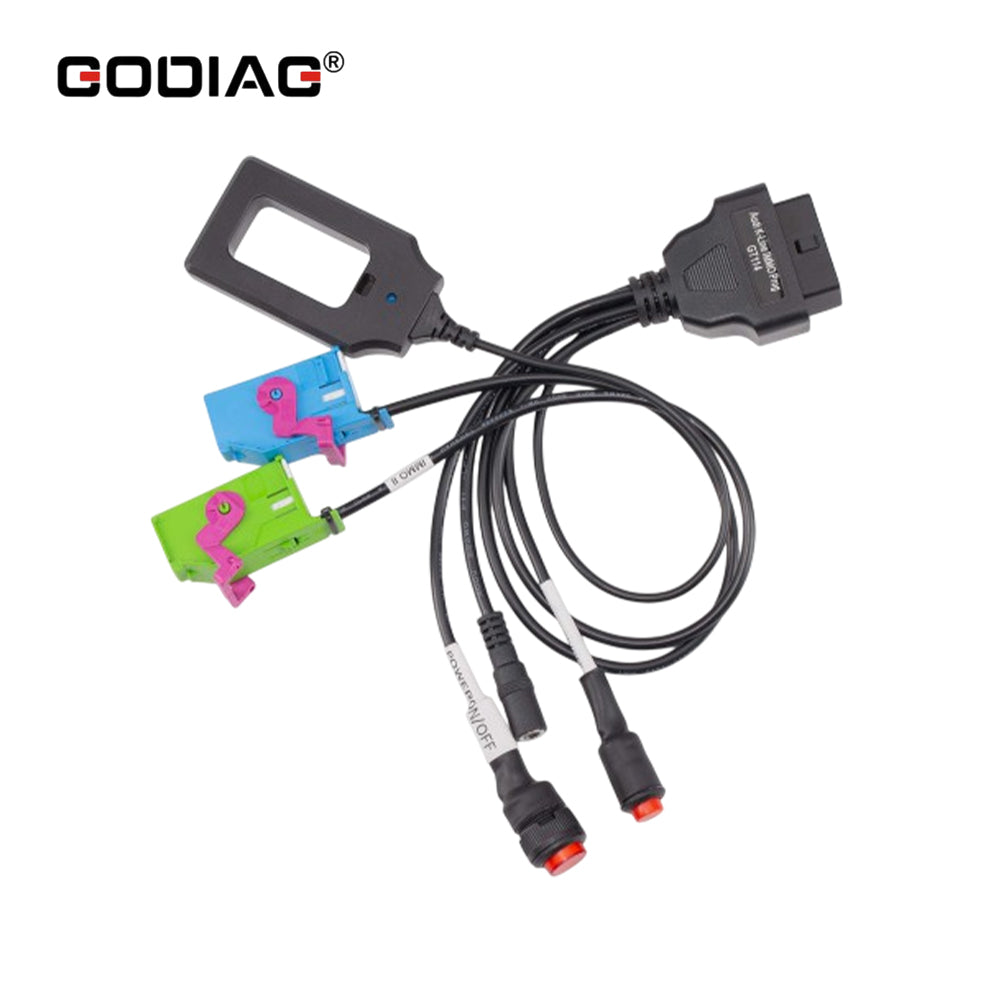

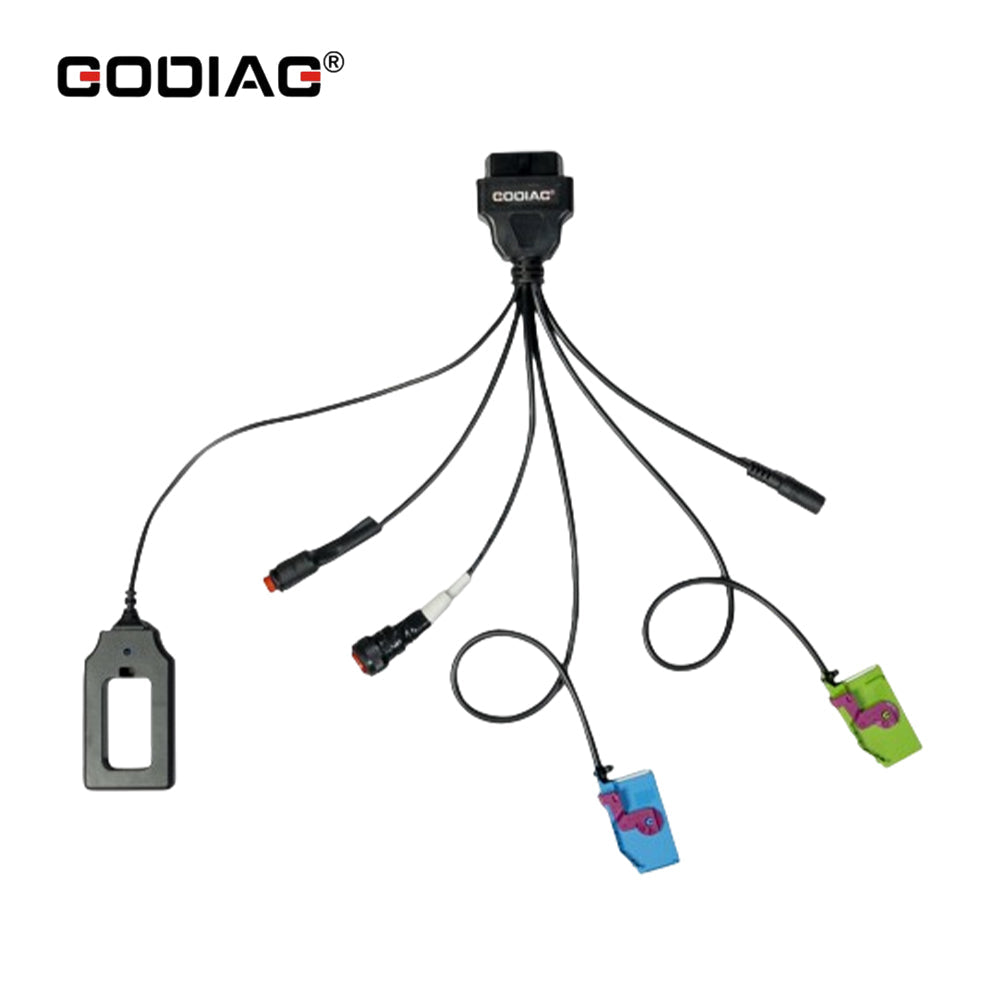

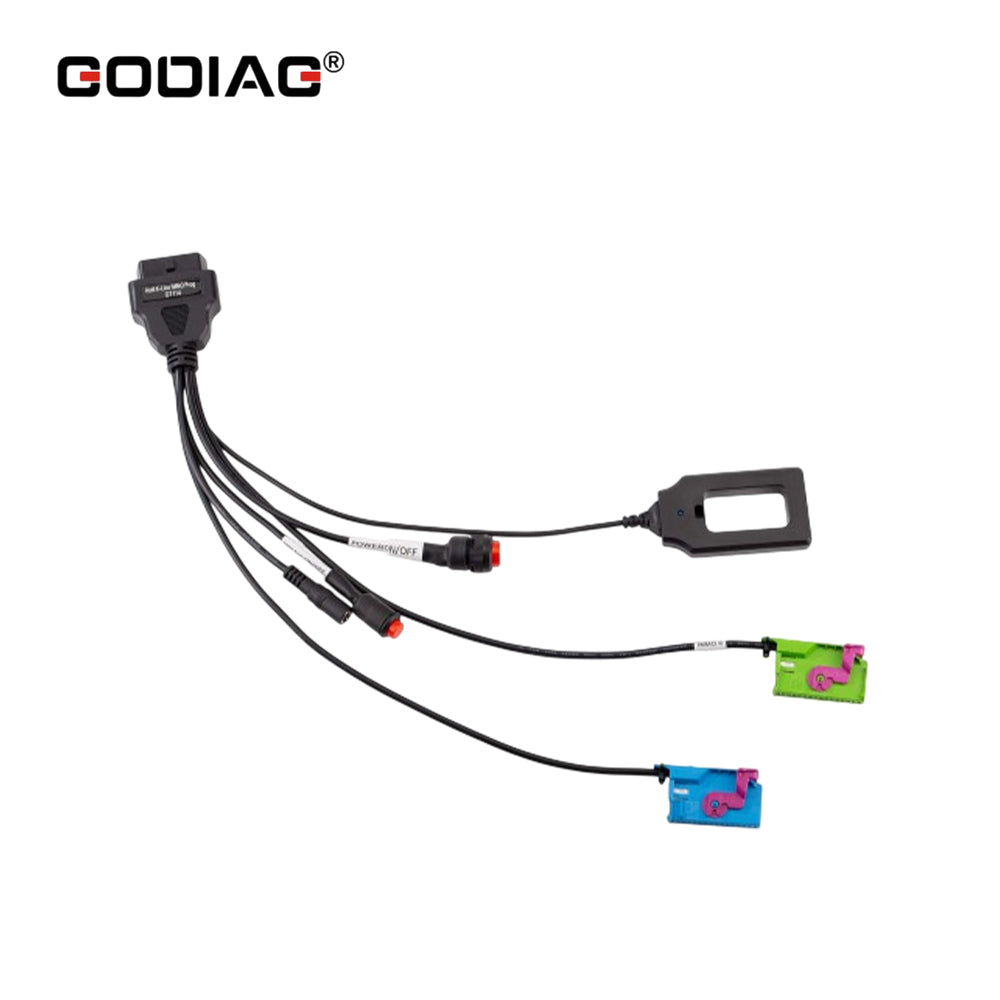

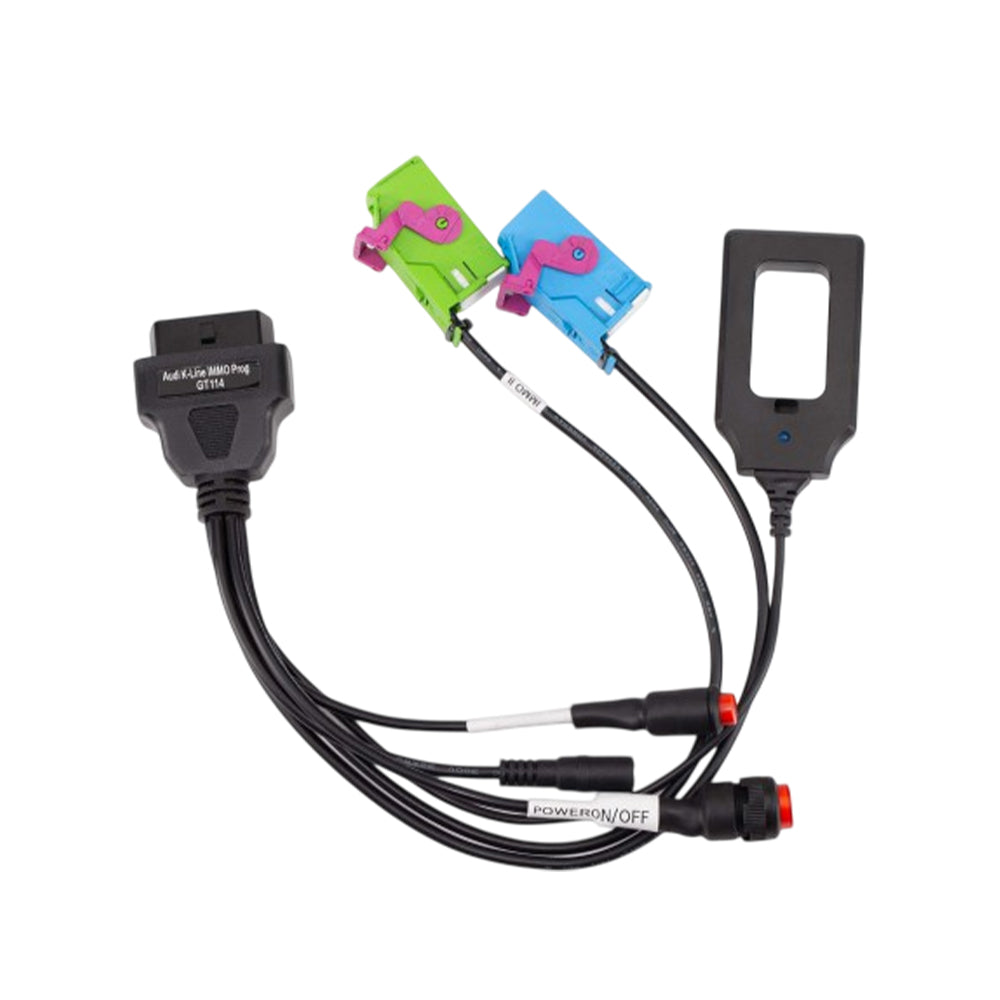

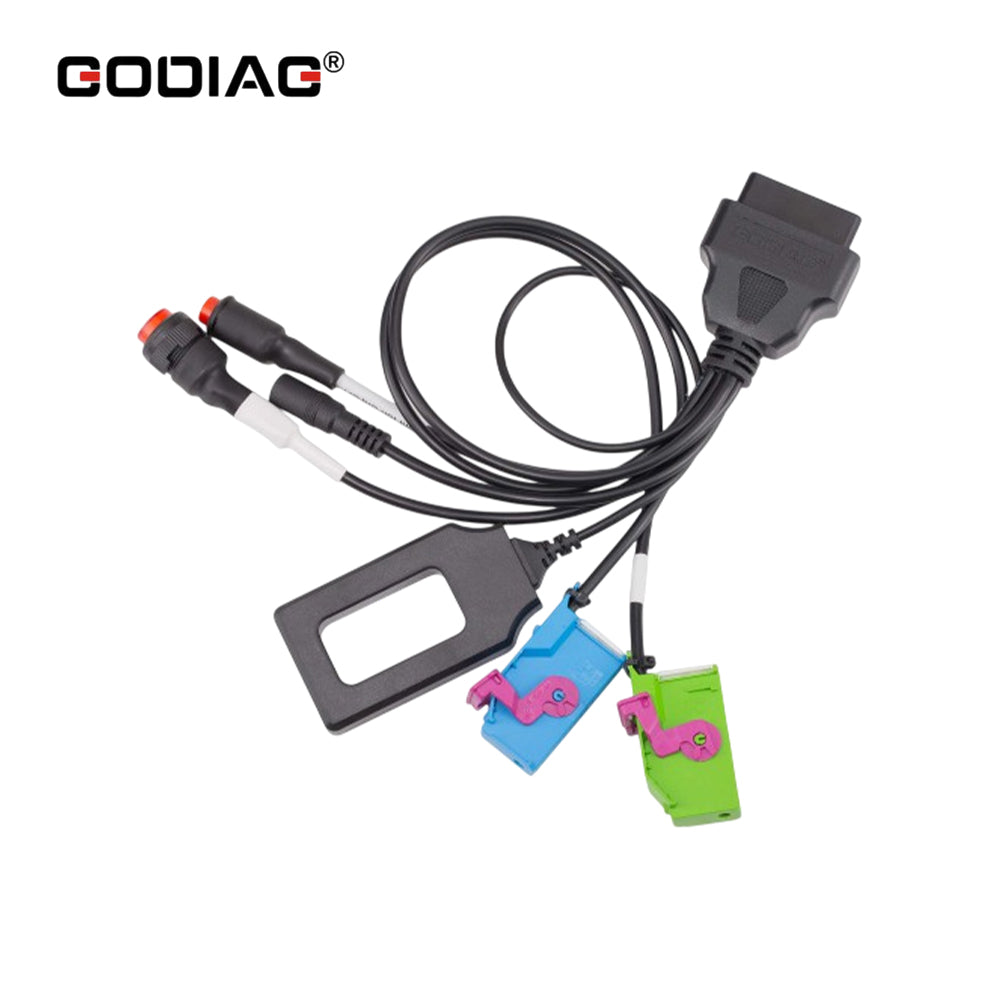

GODIAG GT114 Audi K-Line IMMO Test Platform Cable is designed for Audi A4 and Audi A6 C5 2nd & 3rd Generation IMMO systems. It supports offline key matching, IMMO instrument synchronization, dashboard diagnostics, IMMO data reading and writing, mileage repair, and emergency start area detection. Compatible with a wide range of diagnostic and key programming tools including VVDI2, AVDI, Autel, Obdstar, Lonsdor, VCDS, and more.

Features:

• Offline connection to the dashboard to convert to standard OBD2
• Performs key chip and instrument synchronization testing
• Built-in independent power switch for convenient operation
• Independent ignition switch for diagnostic and programming functions
• Key induction adapter with indicator light for easy detection

Tips for Audi A6 C5 Key Matching Process:

• The key matching requires a Megamos ID48 key. The xhorse Super Chip cannot be matched successfully. The generated IMMO instrument data must be written back and matching learning is required.
• After reading the data, remember the PIN code, as it will be required during the matching process. The learning process requires a clear ignition signal, and all prompts such as waiting times must be followed correctly.

Intelligent IMMO System Emergency Start Area Induction Detection:

Press the vehicle's start switch and bring the device's key identifier close to a certain area. If the key identifier light flashes or lights up, it means that the area is the vehicle's key emergency start sensing area. If the customer's smart key is out of power, place the dead smart key in the emergency start sensing area to start the vehicle.

Car IMMO Start and Start Key Chip Detection:

• Test Result Analysis:
  • The key identifier light flashes and then goes out, indicating that the IMMO chip and key are working properly.
  • The key identifier light flashes continuously, indicating that the key chip and the vehicle's IMMO system do not match and require re-matching.
  • The key identifier light does not flash, indicating a fault in the vehicle's IMMO system. Please check the IMMO system.

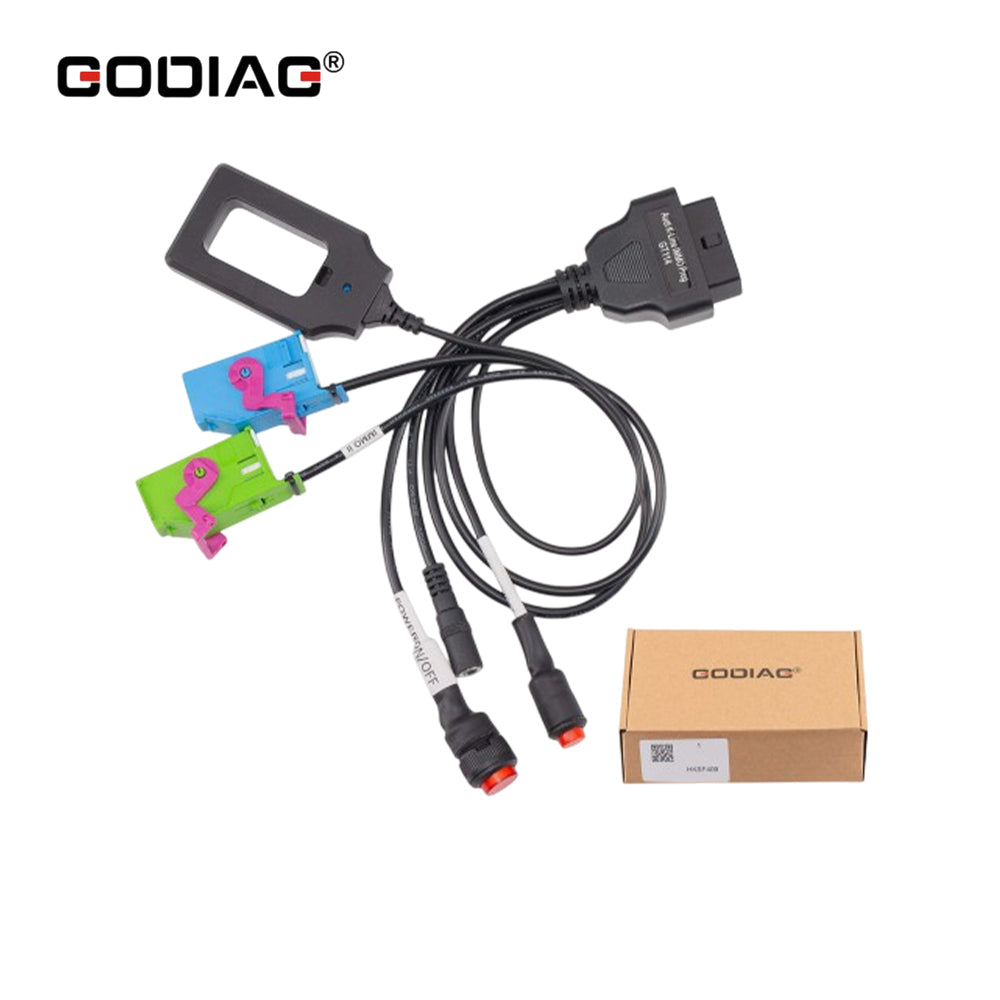

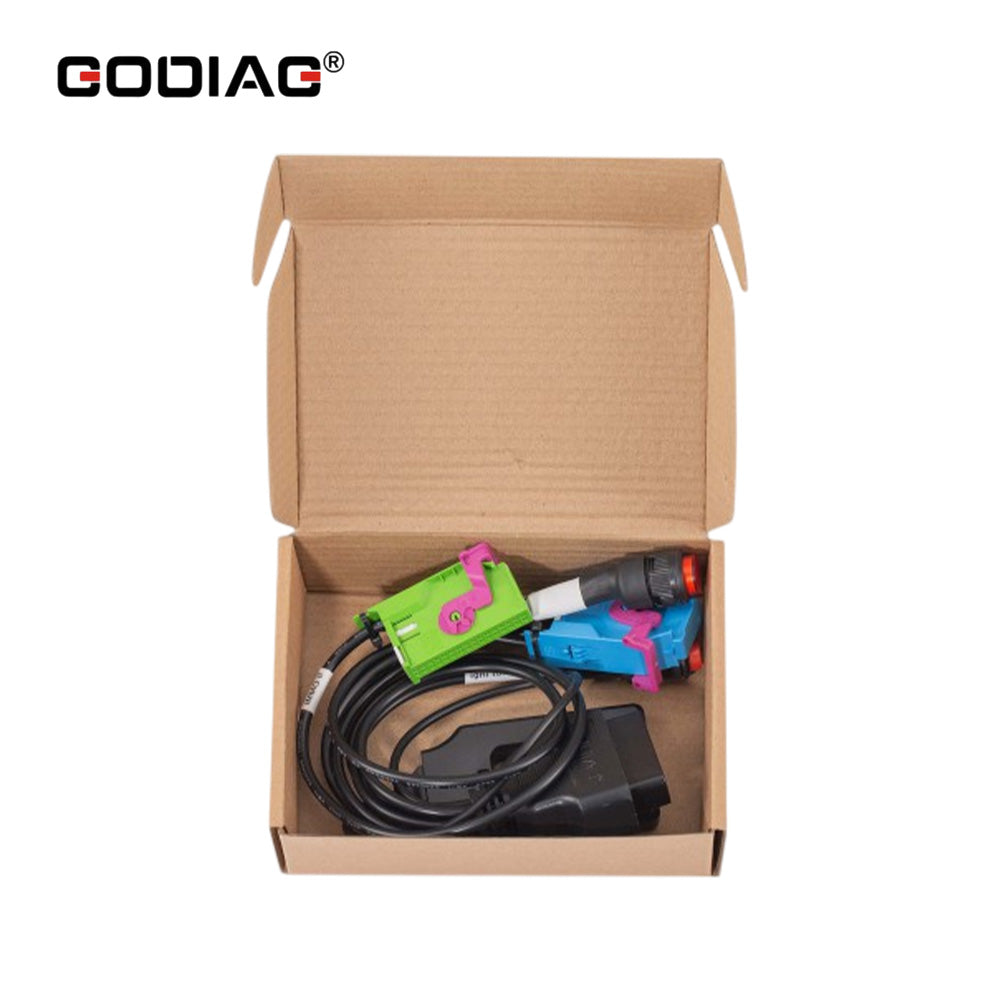

Package Includes:

• 1pc x GODIAG GT114 Audi K-Lline IMMO for Audi A4 A6 C5 2nd & 3rd Generation Dashboard IMMO Key Matching Test Platform Cable
