GODIAG GT115 MQB IMMO4 Test Platform Tool for VAG CAN Bus UDS 4th Gen Immobilizer Data Reading and Writing with POGO Pin

GODIAG GT115 MQB IMMO4 Test Platform Tool for VAG CAN Bus UDS 4th Gen Immobilizer Data Reading and Writing with POGO Pin

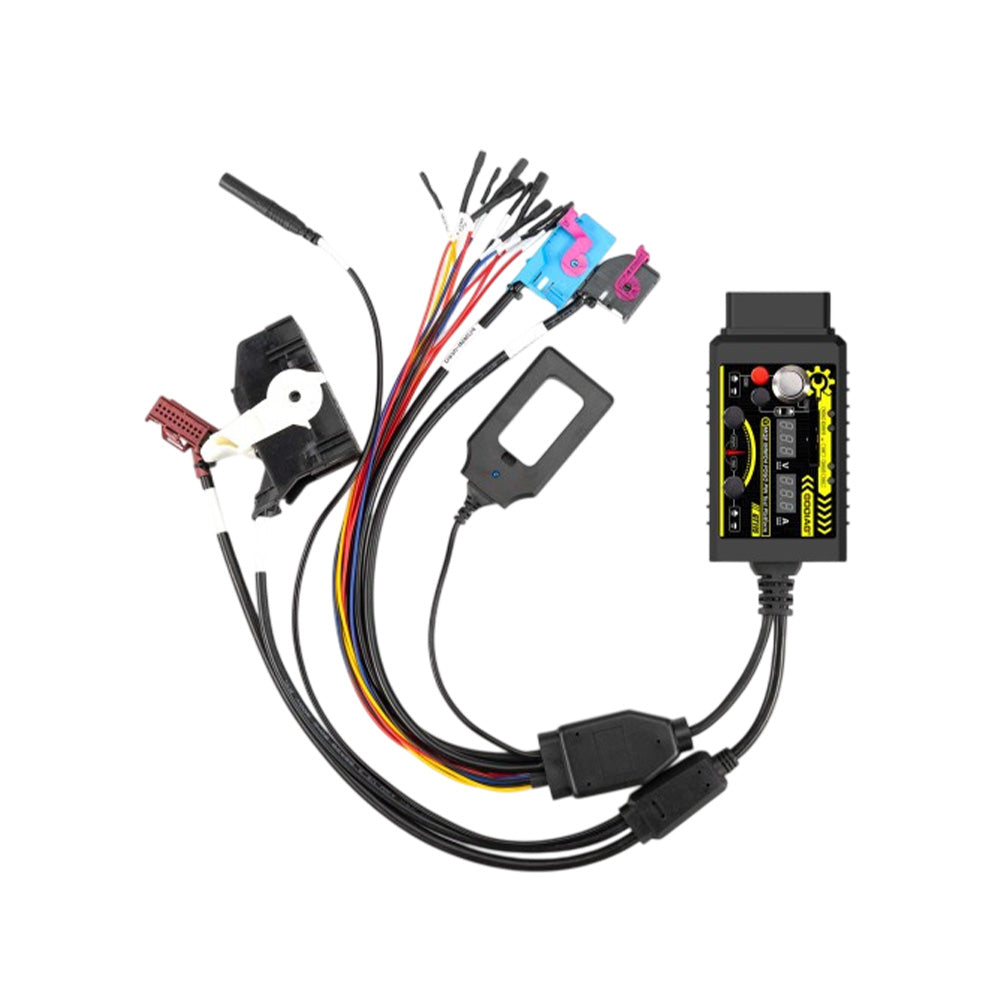

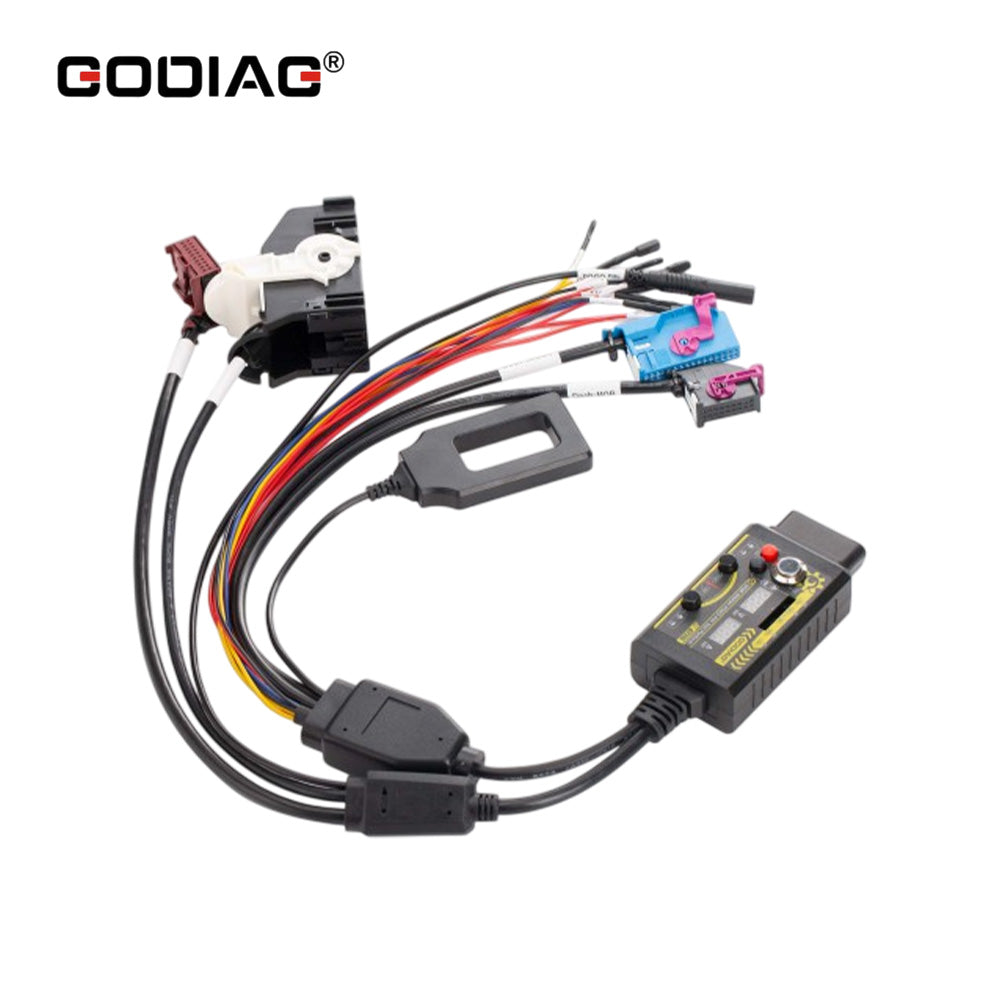

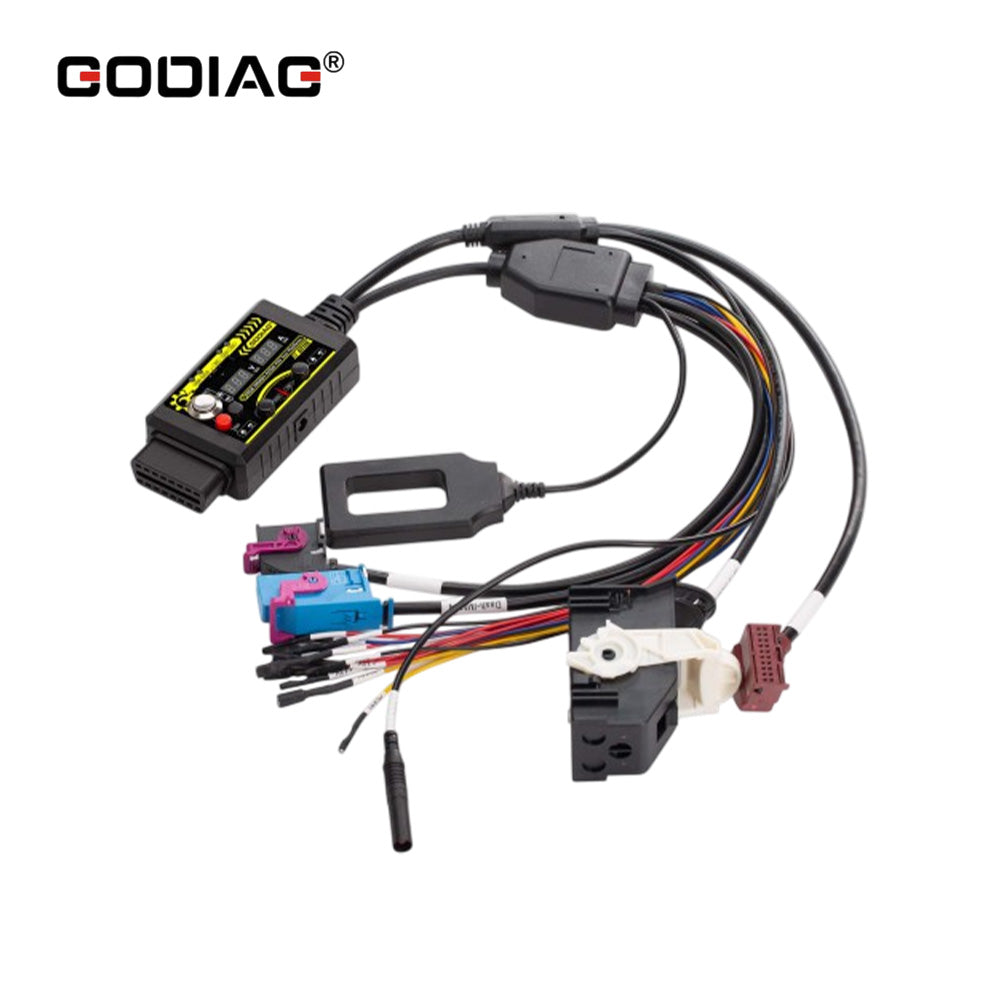

GODIAG GT115 MQB IMMO4 CAN-Bus UDS 4th Generation Test Platform is designed for VAG MQB immobilizer systems, enabling off-vehicle IMMO programming, key matching, and diagnostics. Equipped with a durable POGO PIN interface for dashboard data reading and writing, it provides a stable connection without damaging the cable, making it an ideal tool for professional locksmiths and automotive technicians.

Features:

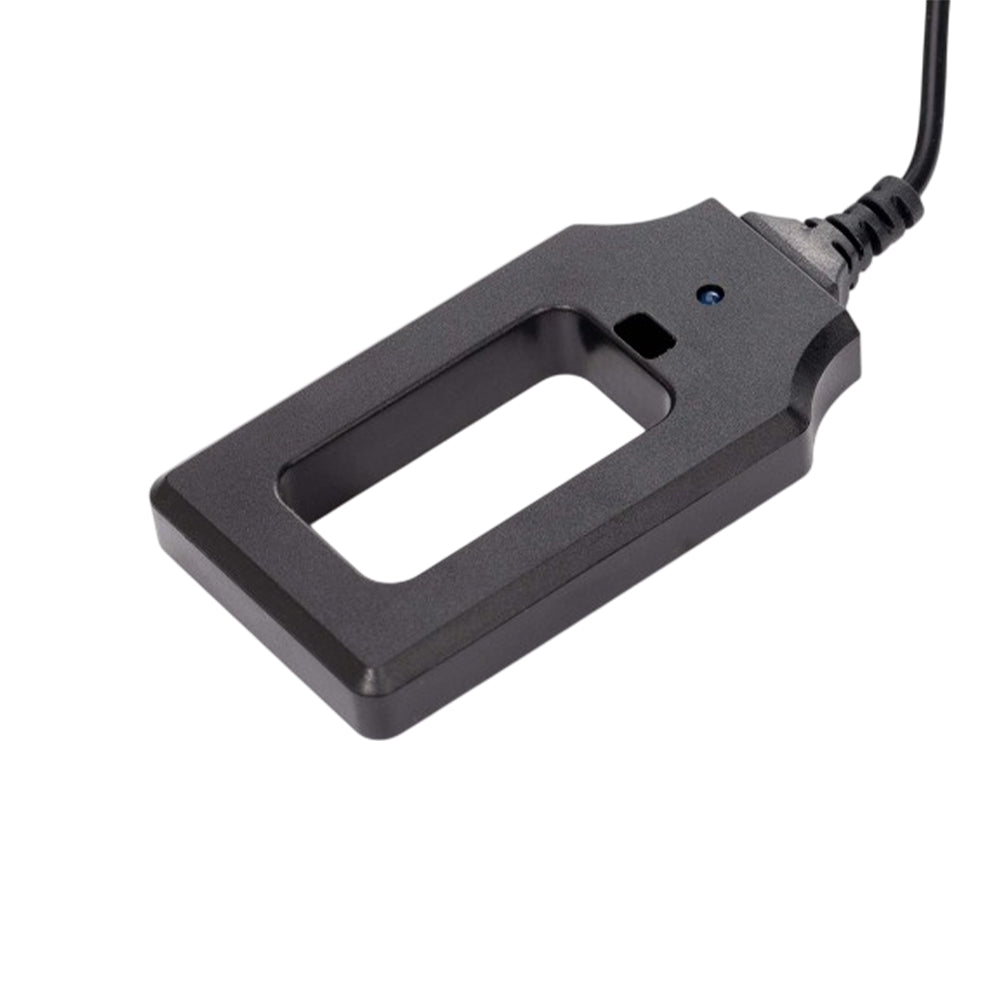

• Supports synchronous detection of keys and vehicle IMMO modules.
• Enables standalone diagnostics for engine and power expansion modules.
• Performs communication diagnostics and programming tests via the gateway.
• Utilizes POGO PIN technology for precise and stable dashboard data reading and writing.
• Supports BCM module testing through the gateway for seamless communication and programming.
• Displays real-time power supply voltage and module current for accurate monitoring.
• Includes CR2032 battery voltage detection to ensure optimal key performance.

Functions:

• Supports synchronous detection of keys and vehicle IMMO modules.
• Enables independent diagnostics of engine and power expansion modules.
• Performs communication diagnostics and programming tests for engine and power modules through the gateway module.
• Supports 4th-generation IMMO POGO PIN data reading/writing and key synchronization detection.
• Allows BCM module communication diagnostics and programming tests via the gateway module (corresponding switch required).
• Provides gateway module detection capabilities.

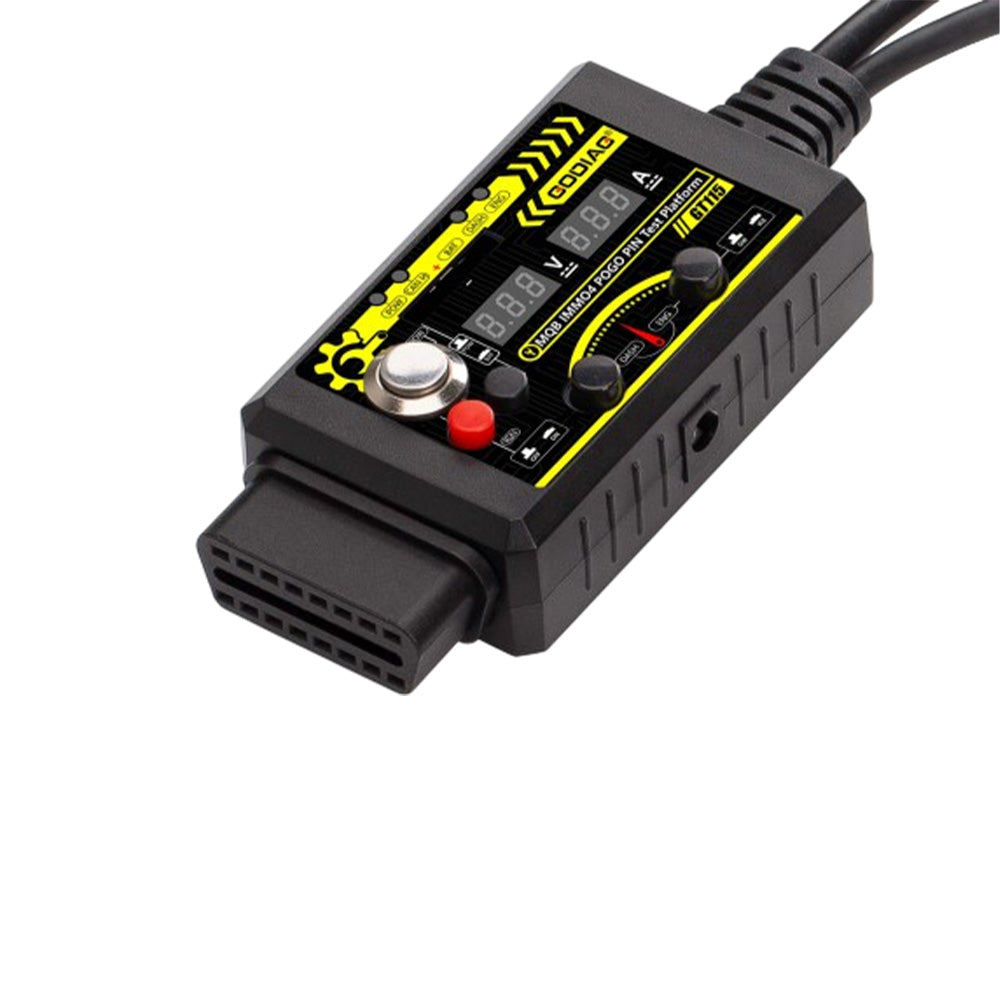

• Displays the current connected power supply voltage in real time.
• Displays the current consumption of the connected module.
• Supports CR2032 battery voltage detection.
• Features a POGO PIN interface for stable dashboard data reading and writing.

How to Use POGO PIN:

• Connect the power supply and ensure the power switch is in the OFF position.
• Turn on the IGN ignition switch to supply ignition power.

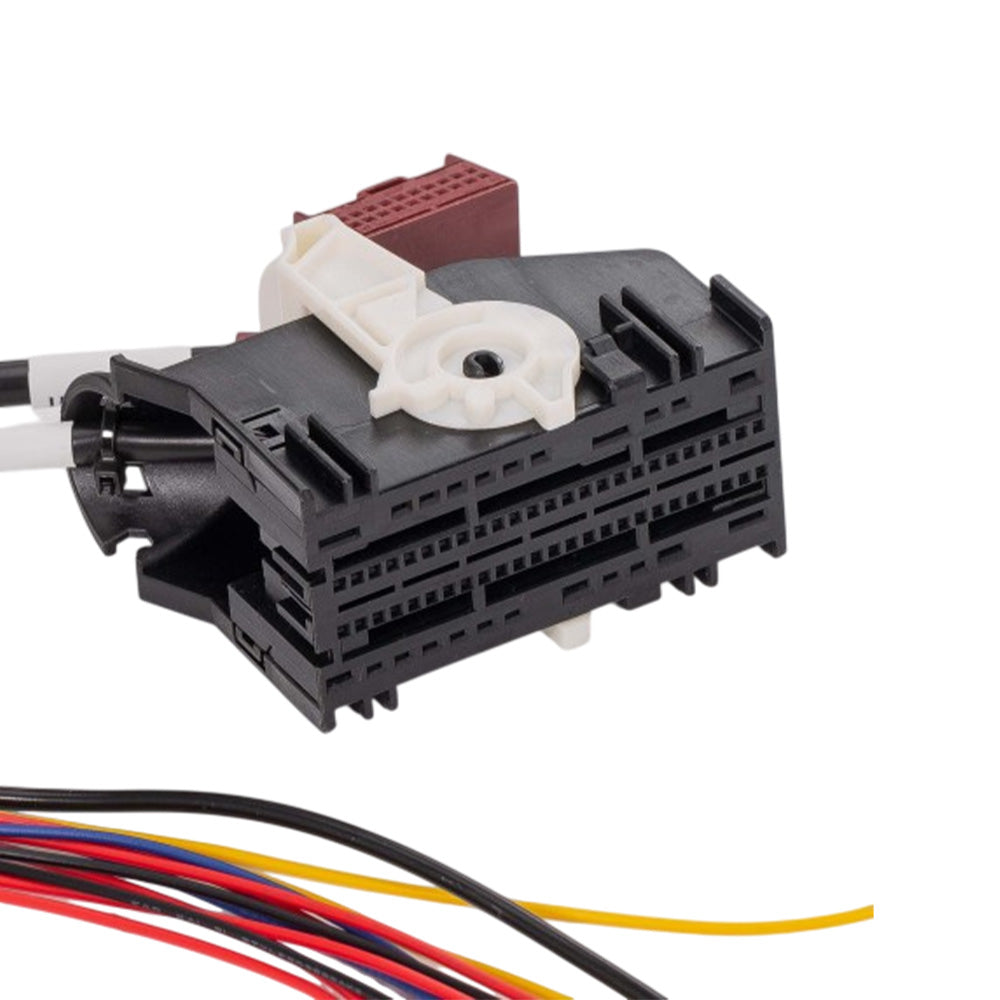

• Connect the instrument cluster plug.
• Locate the corresponding POGO PIN connection point on the instrument and attach the probe.
• Turn on the power switch and wait 3-5 seconds.
• If the ABS indicator light flashes, the device has successfully entered POGO PIN read/write mode.

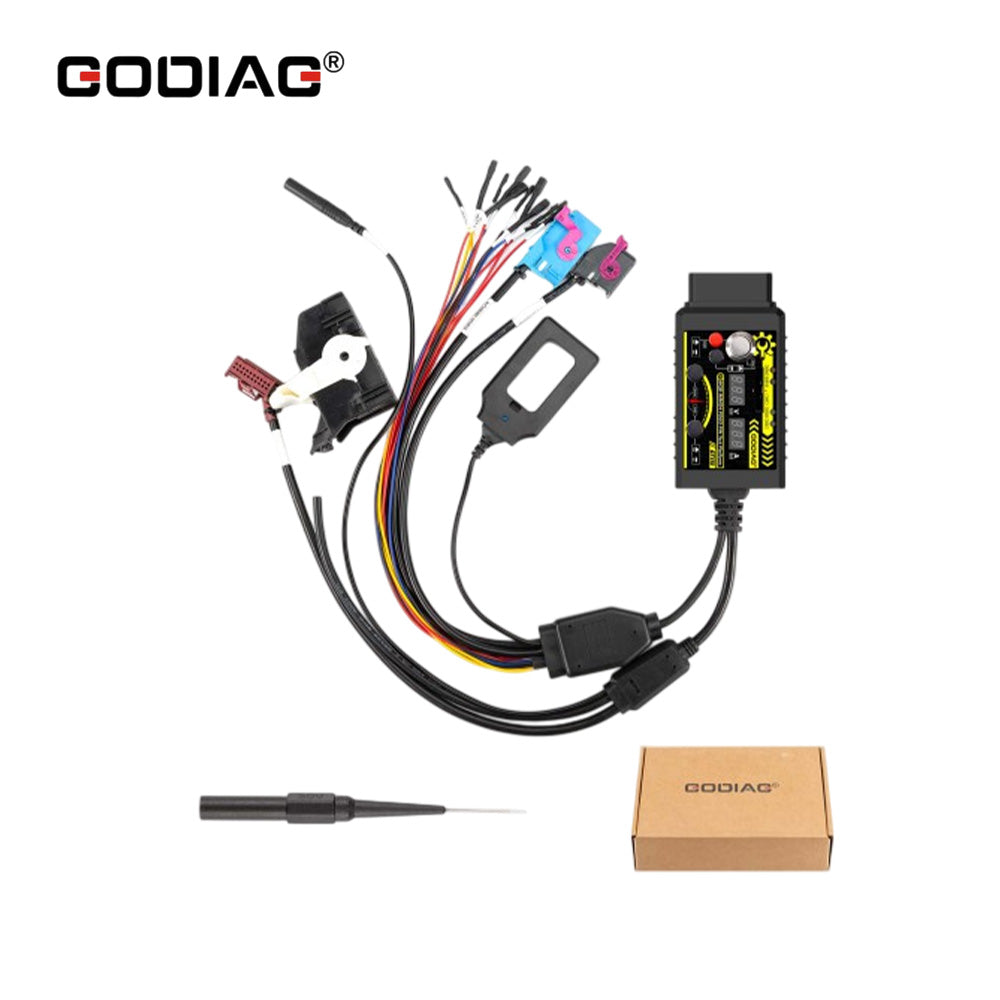

Package Includes:

• 1 x GODIAG GT115 for VAG MQB IMMO4 CAN-Bus UDS 4th Generation IMMO System Test Platform with POGO PIN for Data Read & Write
