GODIAG GT327 2026 Super ELM327 V1.5 OBD2 Scanner with DOIP ENET and Voltage Display

GODIAG GT327 2026 Super ELM327 V1.5 OBD2 Scanner with DOIP ENET and Voltage Display

GODIAG GT327 SUPER ELM327 v1.5 Bluetooth 4.0 OBDII Scanner is a versatile diagnostic tool designed for automotive technicians and DIY users. It supports Bluetooth 4.0 connectivity with Android and iOS devices for OBDII diagnostics, while the built-in DOIP ENET function allows connection to a PC via Ethernet for advanced vehicle programming, coding, and diagnostics using compatible software. Ideal for fast fault code reading, vehicle health checks, and professional maintenance tasks.

Features:

• Displays current vehicle diagnostic interface voltage for real-time battery and electrical system monitoring.
• Low-voltage alarm activates when vehicle voltage drops below 11V.
• Bluetooth connectivity for Android devices (Bluetooth name: OBD II) and iPhones (Bluetooth name: OBD BLE).
• Supports DOIP ENET vehicle diagnostic programming and coding functions.
• Compatible with 9V-30V motorcycles, cars, SUVs, trucks, and commercial vehicles.
• Works with the ProMasters Only Phone App for enhanced diagnostic capabilities.

Functions:

• Supports standard OBDII diagnostics including reading and clearing fault codes.
• Displays real-time live vehicle data for accurate troubleshooting.
• DOIP and ENET support for advanced programming, coding, and diagnostics.
• Wireless Bluetooth communication for convenient mobile diagnostics.
• Ethernet connection support for professional diagnostic software applications.
• Compatible with a wide range of OBDII-compliant vehicles.

Supported Software:

• BMW E-SYS
• BMW ISTA+
• BMW AI CODER
• VAG ODIS-E
• BimmerCode for BMW and MINI
• And many other compatible diagnostic applications

Supported Protocols:

• SAE J1850 PWM (41.6 Kbaud)
• SAE J1850 VPW (10.4 Kbaud)
• ISO 9141-2 (5 baud init, 10.4 Kbaud)
• ISO 14230-4 KWP (5 baud init, 10.4 Kbaud)
• ISO 14230-4 KWP (Fast Init, 10.4 Kbaud)
• ISO 15765-4 CAN (11-bit ID, 500 Kbaud)
• ISO 15765-4 CAN (29-bit ID, 500 Kbaud)
• ISO 15765-4 CAN (11-bit ID, 250 Kbaud)
• ISO 15765-4 CAN (29-bit ID, 250 Kbaud)
• DOIP ENET protocol support via Ethernet cable connection.

Android Bluetooth Diagnostic Function:

• Compatible with Torque, inCarDoc, CarScanner, MotorData OBD, DashCommand, OBD Car Doctor, Auto Doctor, MiniOBDII, EOBD, ProMasters Only Phone App, and more.
• Supports Bluetooth communication only; Wi-Fi and device-specific software are not supported.
• Displays real-time OBDII interface voltage and alerts users when voltage drops below 11V.
• Provides quick Bluetooth pairing with Android devices using the "OBD II" Bluetooth profile.

Android Setup Steps:

• Install a compatible app such as Torque, CarScanner, or MotorData OBD on your Android device.
• Ensure the DOIP ENET switch is OFF and do not connect the Ethernet cable during Bluetooth diagnostics.
• Connect the GT327 to the vehicle's OBDII port and verify the voltage display and power indicator are active.
• Enable Bluetooth on your phone, search for "OBD II," and pair using password 1234 or 0000.
• Open your diagnostic app and configure the connection settings according to the software requirements.
• For advanced DOIP ENET diagnostics, use an Ethernet cable and compatible PC software.

Note: Ethernet connectivity is intended only for DOIP/ENET-compatible computer diagnostic software.

iPhone Bluetooth Diagnostic Function:

• Compatible with Car Scanner, FasLink x OBDII Scanner ELM327, and many other iOS diagnostic applications.
• Supports Bluetooth communication only; Wi-Fi and dedicated device software are not supported.
• Displays real-time OBDII interface voltage and provides a low-voltage warning below 11V.
• Designed for quick and reliable wireless vehicle diagnostics on iPhone devices.

iPhone Setup Steps:

• Download and install a compatible iOS app such as Car Scanner or FasLink x.
• Ensure the DOIP ENET switch is OFF and do not connect the Ethernet cable during Bluetooth diagnostics.
• Connect the GT327 to the vehicle's OBDII port and verify the voltage display and power indicator are active.
• Enable Bluetooth on your iPhone. Note that iOS devices do not pair directly through the Bluetooth settings menu.
• Open the diagnostic app, select the Bluetooth device name OBD BLE, and enter the pairing code 1234 or 0000 if required.
• Configure the connection settings according to the selected application's requirements.

Note: The Ethernet cable is intended only for DOIP/ENET-compatible PC diagnostic software and should not be used for Bluetooth mobile diagnostics.

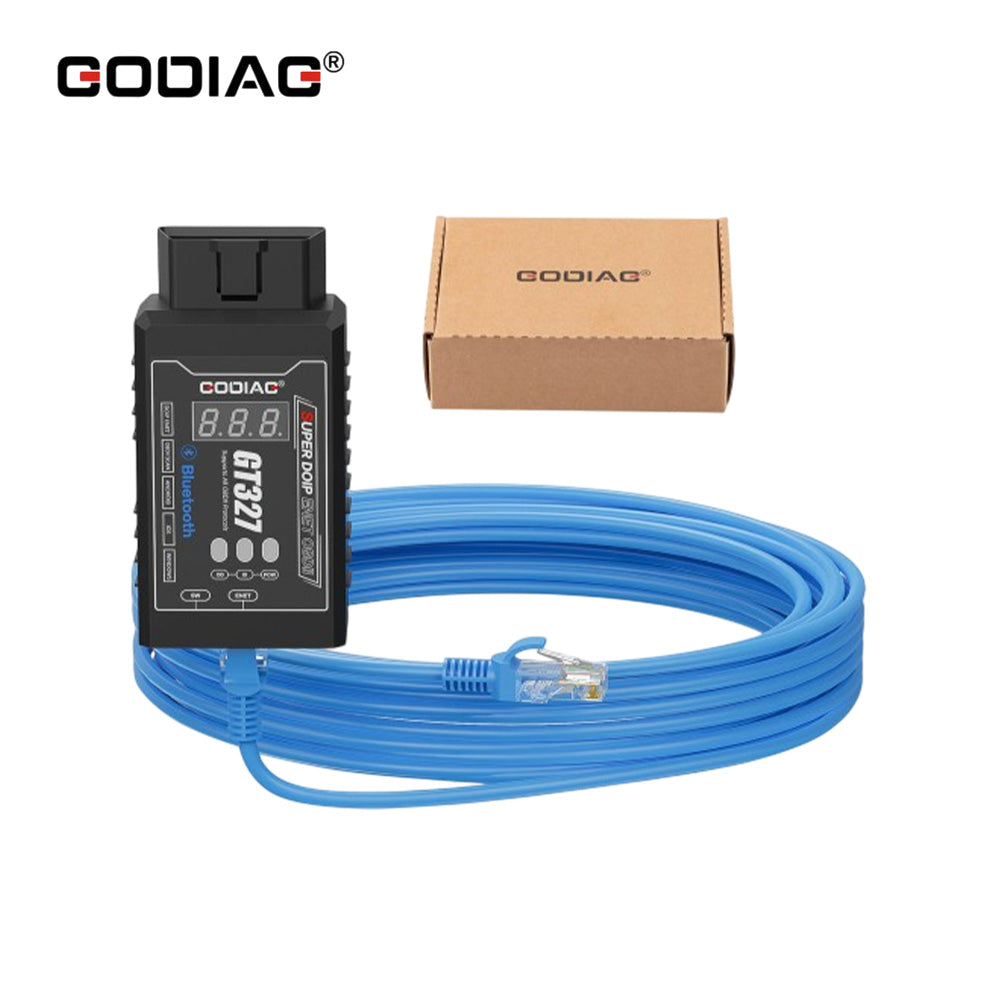

Package Includes:

• 1 x GODIAG GT327 SUPER DOIP ENET OBDII Scanner Host Unit
• 1 x ENET Ethernet Cable (3 Meters)
• 1 x PDF User Manual
