HAGER - 4501 - Mortise Exit Bar Wide Stile Pushpad and 36 Device Ex...
Description
Description

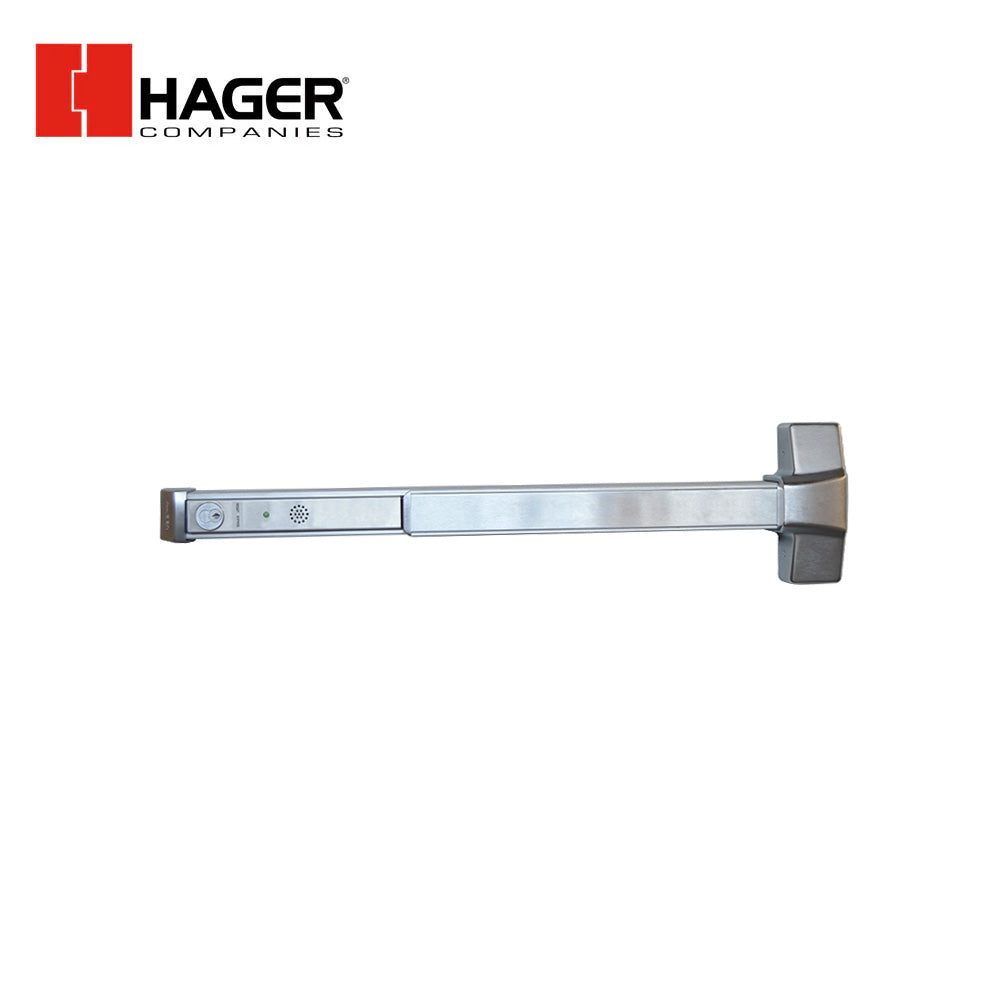

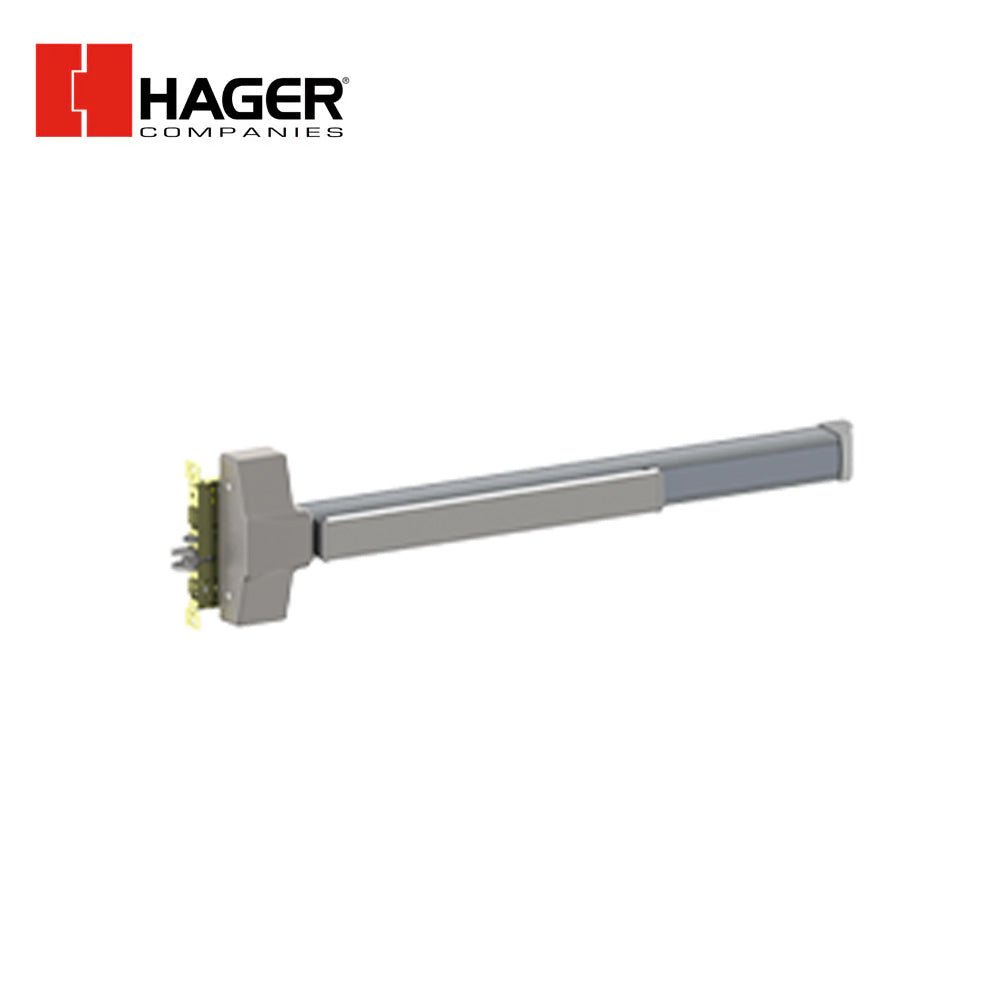

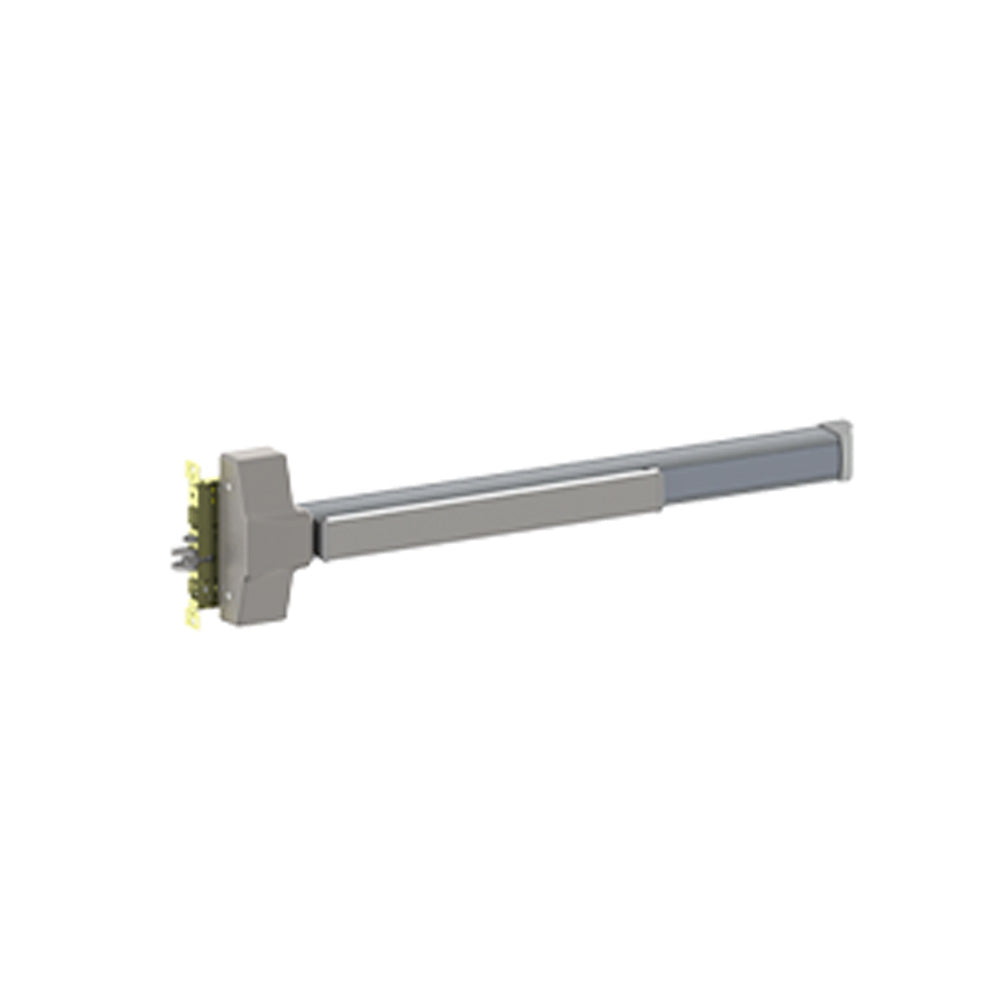

HAGER - 4501 - Mortise Exit Bar Wide Stile Pushpad and 36" Device Exit Only - Non-Handed - Grade 1 - Satin Chrome
Product Specifications:
| Vendor | Hager Companies |
| Manufacturer | Hager |
| Grade | Grade 1 |
| Installation | Commercial |
| Unit of Measure | Each |
| Application | Heavy Duty |
| Limited Warranty | Lifetime |
Technical Specifications:
| Physical Appearance | Wide Stile Pushpad |
| Device Type | Mortise |
| Mechanical Function | Exit Only |
| Device Length | 36" |
| Hand | Non Handed |
| Door Material | Metal or Wood |
| Door Width | 30" - 36" |
| Product Type | Mortise Exit Devices |
| Projection | 3" (76mm) in undogged position 2-5/8" (67mm) in dogged position |
| Latchbolt Type | 3/4" (19mm) throw with anti-friction tongue, all stainless steel with auxiliary deadlocking latch |
| Fasteners | Wood and machine screws Thru-bolts |
| Door Thickness | 1-3/4" (44 mm) - Standard |
| Strikes | 4-7/8" (124mm) ASA strike-standard Stainless steel with plated rollers included standard with panic devices |
| Finish | 626 - Satin Chrome |
Certifications:
- ANSI/BHMA A156.3-2014 Grade 1
- UL305 Listed for Panic Hardware
- UL/cUL Listed for up to 3 hours for "A" labeled doors up to 10' in height
- UL10C Positive Pressure Rated
- UL10B Neutral Pressure Rated
- Complies with ANSI A117.1 for accessible buildings and facilities
Door Width:
- 36" (914mm) field sizeable to 30" (762mm) panic-rated door and 28" (71 mm) fire-rated door
- 48" (1219mm) field sizeable to 36" (914mm) panic- or fire-rated door
- Reference electrified exit device for door width specifications
Dogging:
- Hex key dogging standard on panic rated devices
- Cylinder dogging available on panic rated devices - specify "CD". 3902 Mortise cylinder with standard cam sold separately. Cylinder Length of 1-1/8" (29mm) - 1-3/8" (35mm) is required
Trim:
- Archer, August, William or Withnell lever with escutcheon (3902, 1-5/8" cylinder with standard cam sold separately)
- Mortise trim (45MB, 45MC, 45MD) does not match center line of other 4500, Series trim ( 45BE, 45CE, 45DT, 45NL)
