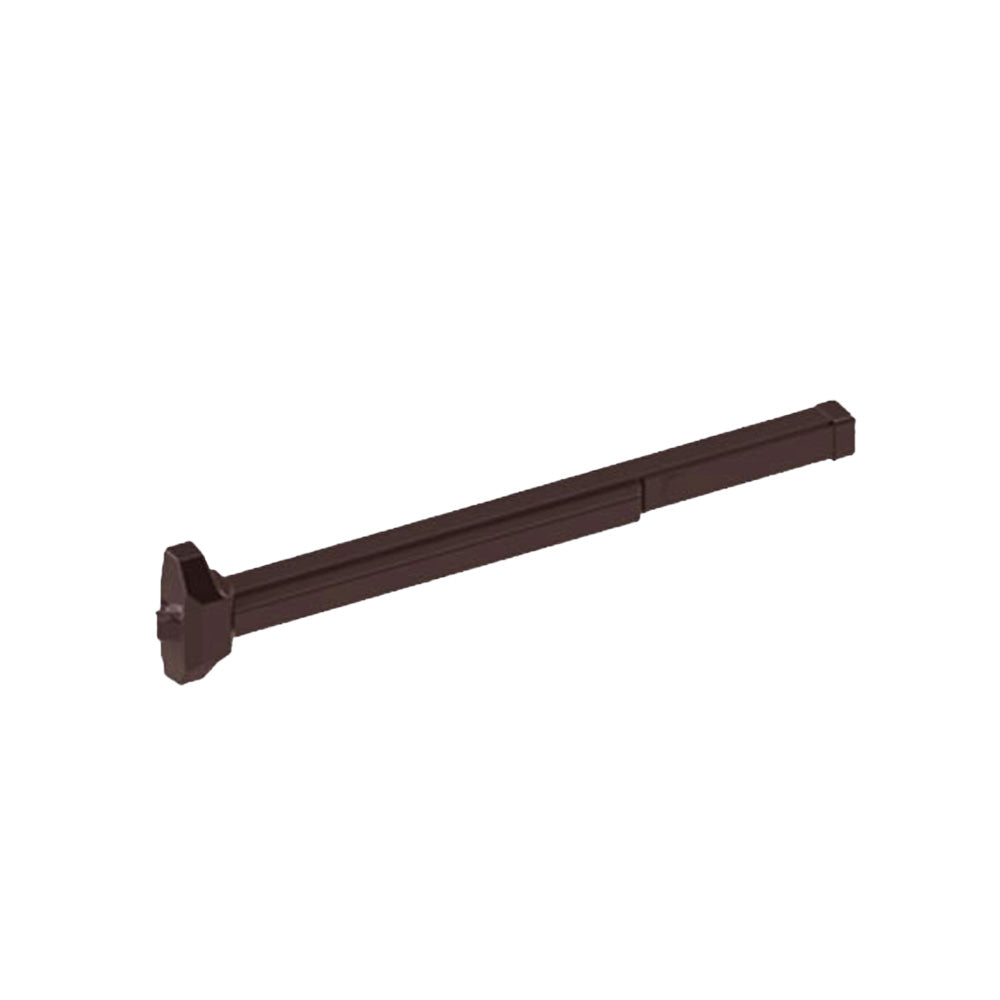

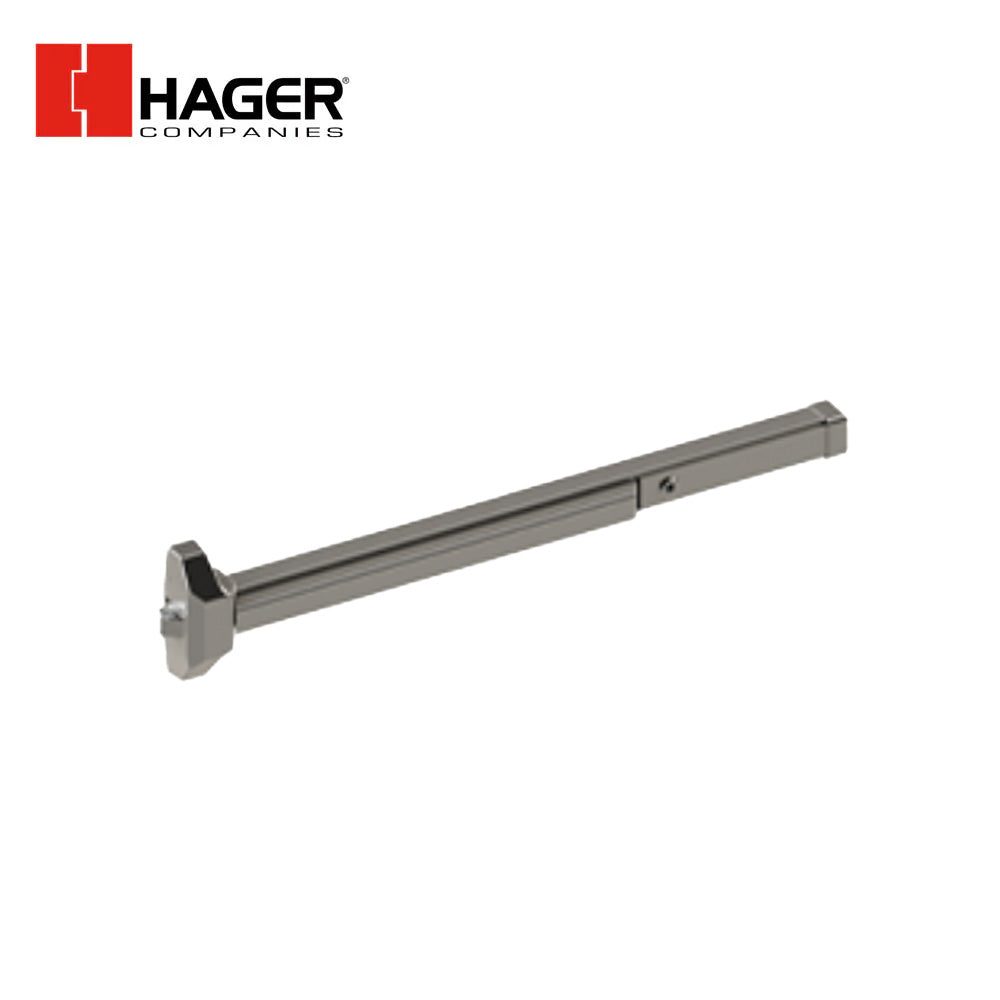

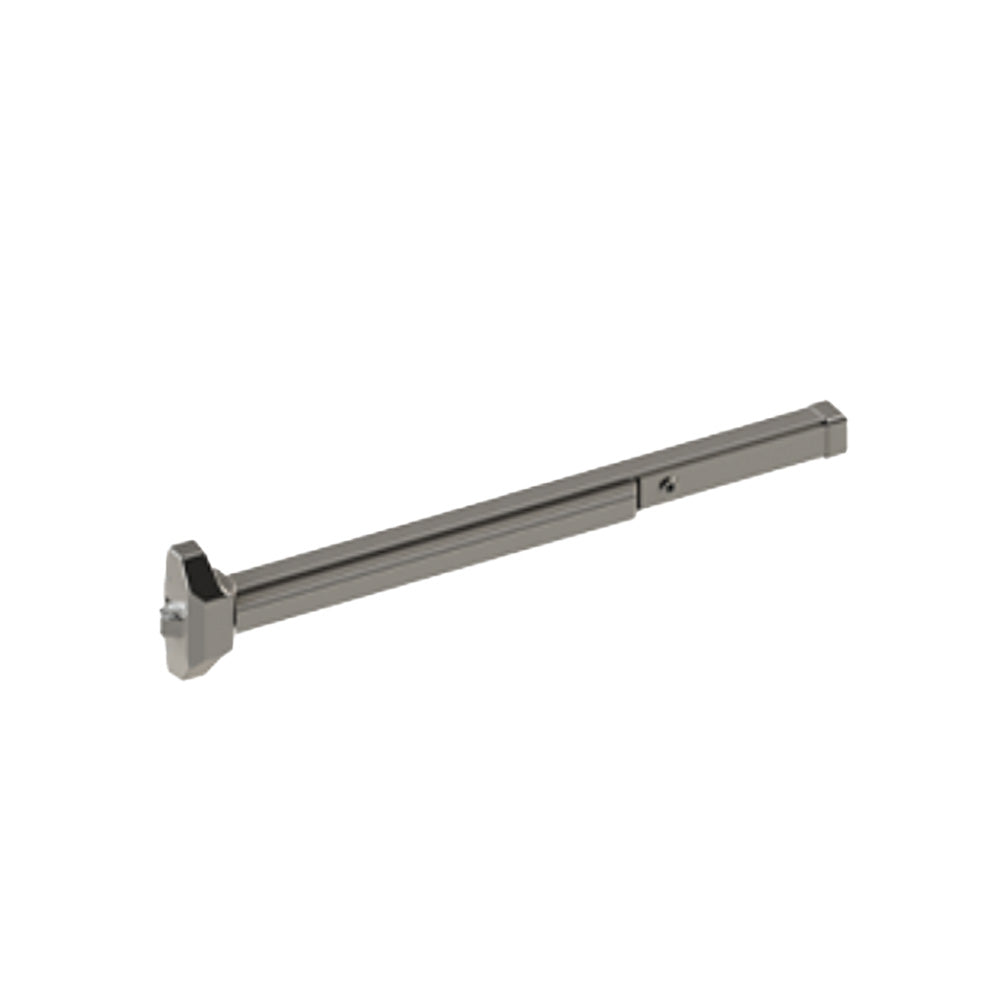

HAGER - 4701 - Rim Exit Bar with Wide Stile Pushpad and 48" Device Exit Only - Grade 1
Product Specifications:
| Vendor | Hager Companies |
| Manufacturer | Hager |
| Grade | Grade 1 |
| Installation | Commercial |
| Unit of Measure | Each |
| Application | Standard Duty |
| Base Material | Aluminum |
| Limited Warranty | 5 Years |
| ADA Compliance | Yes |
Technical Specifications:
| Physical Appearance | Wide Stile Pushpad |
| Device Type | Rim |
| Mechanical Function | Exit Only |
| Device Length | 48" |
| Hand | Non Handed |
| Door Material | Metal or Wood |
| Door Width | 30" - 36" |
| Door Thickness | 1-3/4" |
| Product Type | Rim Exit Devices |
Certifications:
- ANSI/BHMA A156.3-2014 Grade 1
- UL305 Listed for Panic Hardware
- UL/cUL Listed for up to 3 hours for "A" label single doors
- UL10C Positive Pressure Rated
- UL10B Neutral Pressure Rated
- Warnock Hersey listed for up to 3 hours with fire rated removable mullion
- Complies with ANSI A117.1 for accessible buildings and facilities
Stile Width:
- 5-3/8" (137mm) - Minimum stile width required for single doors and standard 5/8" (16 mm) stop
- 4-7/8" (124mm) - Minimum stile width required for double door x surface vertical rod with double door strike
- 5-3/4" (146mm) - Minimum stile width required for double door and 2" (51 mm) mullion
- 5" (127mm) - Minimum stile width required for double doors with a middle rail and a 2" mullion
- All stile widths are measured from the door edge
Strikes:
- Stainless steel with plated rollers - Included standard with panic devices
- Solid stainless steel - Included standard with fire-rated devices
- Surface applied to frame with slotted holes for easy adjustment
- Double door strike for use with surface vertical rod and rim device available
- For Rim x Rim x Mullion the 4912 strike is required on a fire-rated opening
Dogging:
- Hex key dogging standard on panic rated devices
- Cylinder dogging available on panic rated devices - specify "CD". 3902 Mortise cylinder with standard cam sold separately. Cylinder Length of 1-1/8" (29mm) - 1-3/8" (35mm) is required
