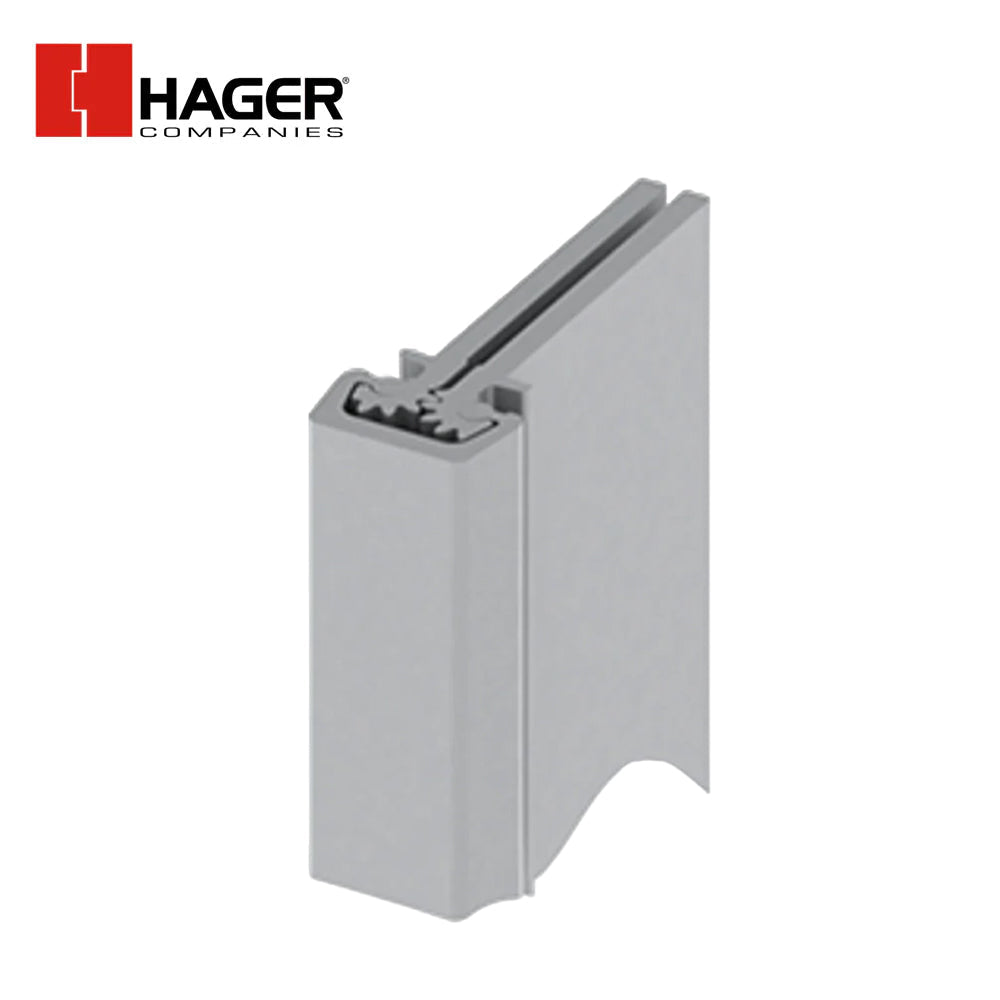

HAGER - 780-112 - Concealed Leaf Continuous Geared Hinge with Electric Through-Wire (ETW) - 4 Wire

HAGER - 780-112 - Concealed Leaf Continuous Geared Hinge with Electric Through-Wire (ETW) - 4 Wire

HAGER hinges are designed to meet a number of applications. Frequency of use (low, medium or high) and door/frame types combined with end use, environmental considerations and building code compliance determine the appropriate hinge application.

• ANSI/BHMA A156.26 C
• Finishes Brass, stainless steel and steel materials are polished in a range of finishes to meet strict ANSI and BHMA standards.
• Warranty: Lifetime warranty statements, associated exceptions and limitations are available online at www.HAGERco.com. HAGER warrants US10B finish only over brass or bronze base material. If steel base material is necessary, HAGER recommends US10A lacquer finish.

Product Specifications:

Applications:

• Lead lined model for hospital x-ray room doors with double row of fasteners to straddle lead (specify "LL")
• Frame and door leaf alignment ribs for proper hinge and door location

Clearance:

• 5/16" (8 mm) hinge side
• Plus standard lockside clearance

Electric Modifications:

• Power Transfer Preparation (EPT 2) or (EPT 10)
• Exposed Electric Contacts (E)
• Exposed Electric Switches (E1S)
• Electric Through-Wire (ETW)
• Electric Monitoring (EMN)
• Electric Through-Wire and Monitoring (ETM)

Fasteners:

• Standard: Dril-Kwik® – #12-24 X 11/16" Flat Head Screws
• Optional: 1/2 Dril-Kwik® Screws, 1/2 wood Screws
• Additional Options Available upon request

Features:

• Standard duty for medium frequency doors. Heavy duty for high frequency doors or heavy, medium frequency doors.
• Lead lined model for hospital x-ray room doors with double row of fasteners to straddle lead (Specify "LL")
• Frame and door leaf alignment ribs for proper hinge and door location.

Finishes:

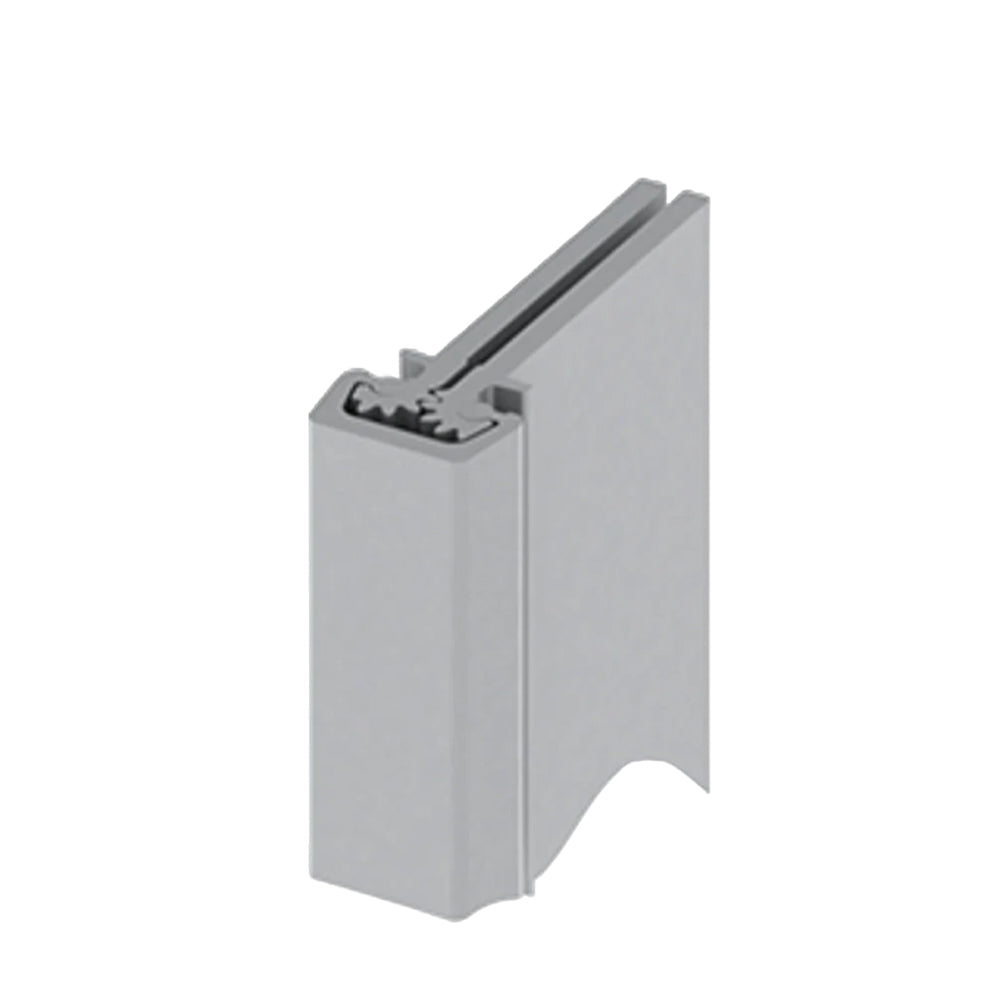

• DKB - Satin Aluminum Clear Anodized (628)

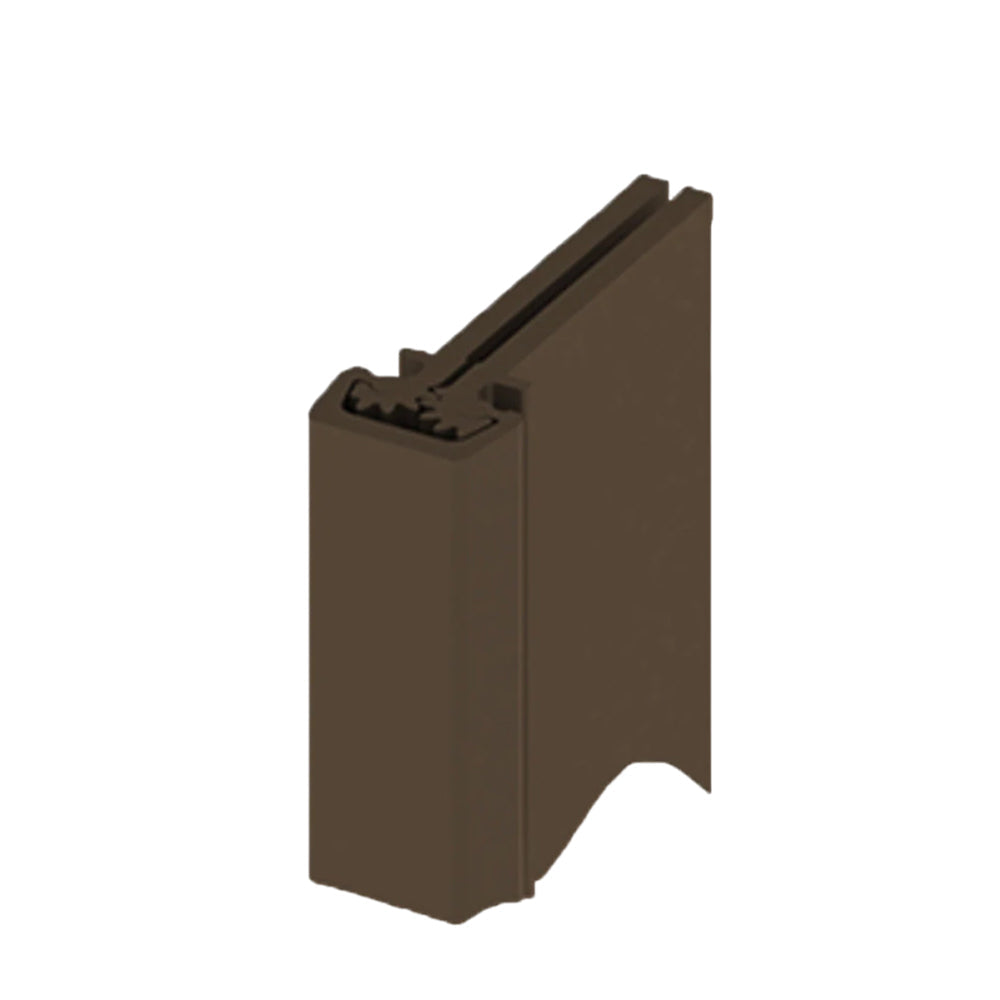

• DBA - Dark Bronze Anodized Aluminum (313)
• BLK - Black Etch Anodize

Fire Rating: Up to 3-hour metal and 90 minute wood composite (with studs)

Frame Reinforcement: None required to 200 lbs. Heavier weight use 16-gauge channel.

Door Reinforcement: None required to 200 lbs. Heavier weight use 16-gauge channel.

Length: 79", 83", 95"

Material: Aluminum 6063-T6

Notes:

EPD: Roton Continuous Hinges Environmental Product Declaration

Download:

• Roton Installation Instruction ETW
• Installation Instructions for UL Fire-Rated Hinge
• Roton Electrical Modifications
