Description
Description

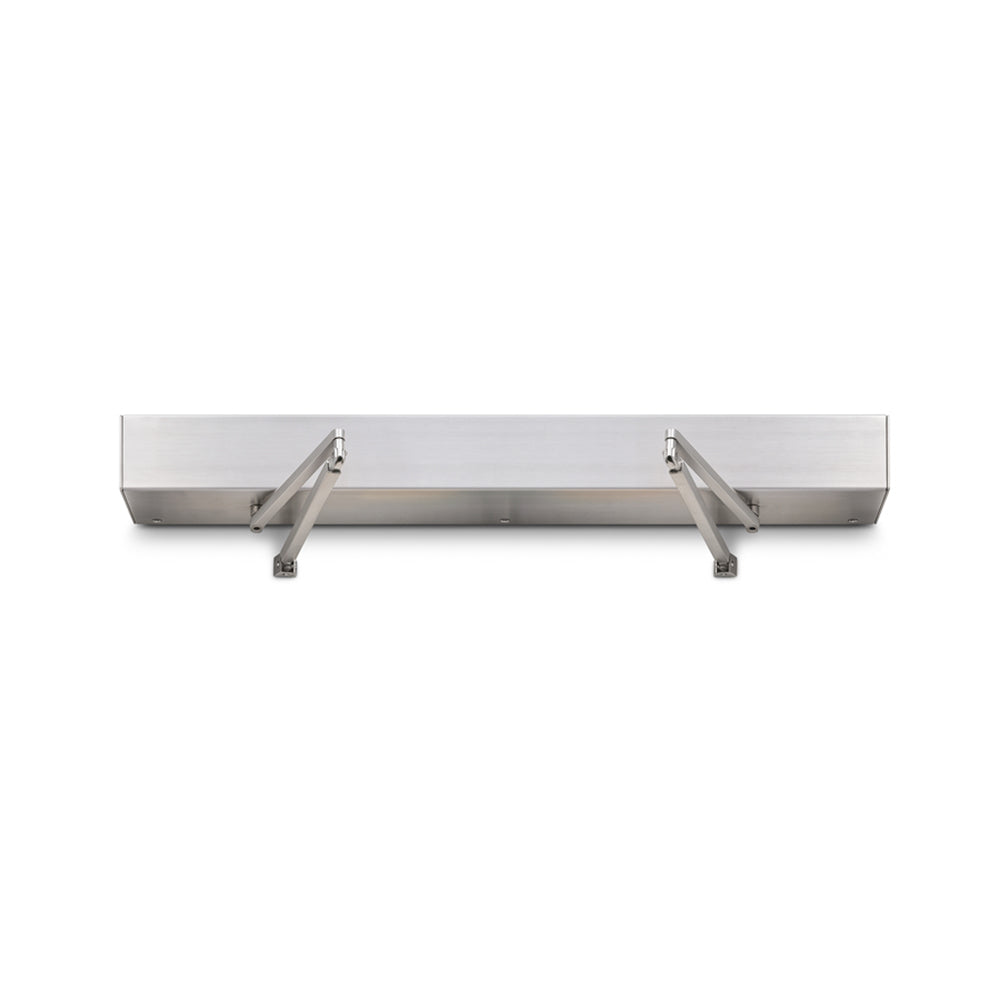

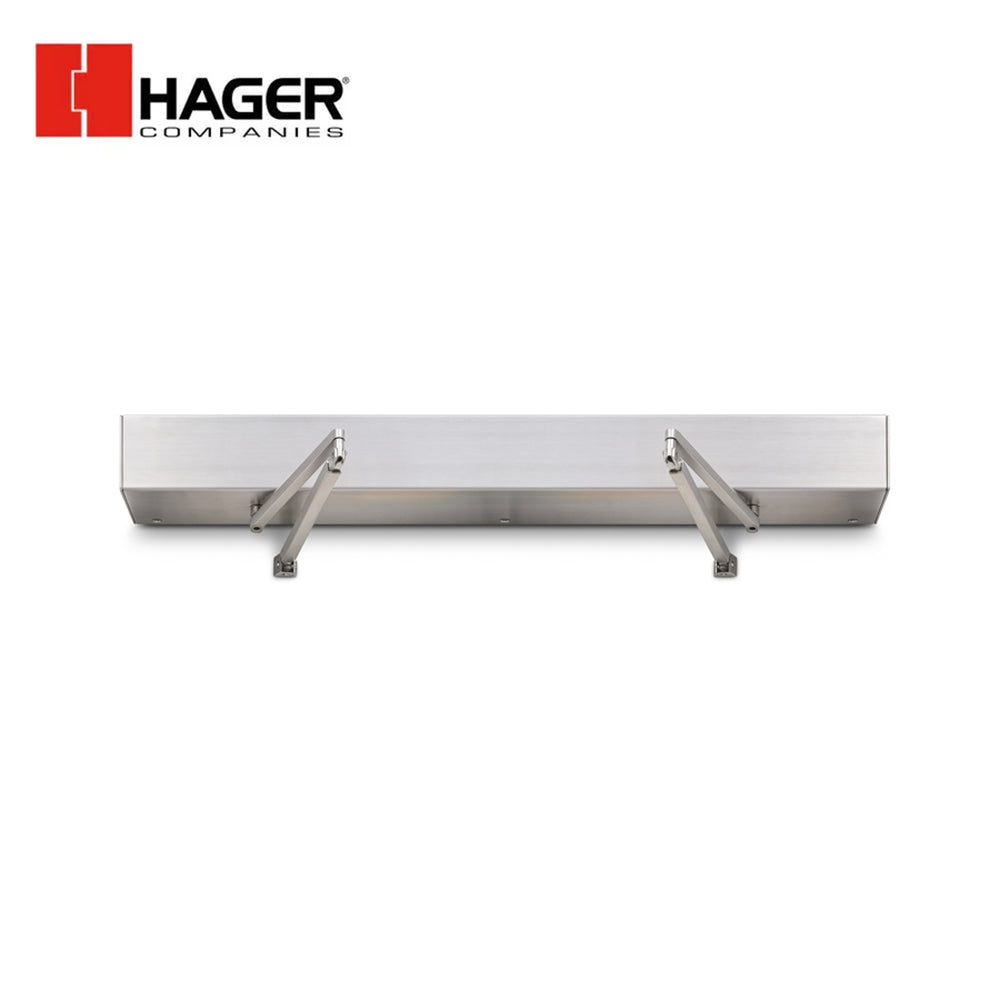

HAGER - 8319 - Low Energy Power Operator for Double Door Openings - Non-Handed - Push Side Mount
Features:
- Non-Handed
- Three Operating Modes (On/Off/Hold Open). 8319: switch is shared between both doors on independent configurations.
- Designed for doors up to 48" wide (1219 mm) single, 96" wide (2438 mm) double
- Designed for doors up to 350 lbs. (125 Kg)
- Power Open Spring Close
- Microprocessor controlled for ultra-flat reactions
- ANSI A156.19 compliant
- Complies with all U.S. and Canadian ADA requirements for low energy operators
- Appropriate door signage included with each operator
- ANSI/UL 325 listed for both United States and Canada
- ADA compliant
- UL/cUL Listed for up to 3-hours
- UL10C Listed for Positive Pressure Rating
Specifications:
| Power Requirements | 115 VAC 60 HZ |
| Current Draw | 0.4 A to 1.2 A (Max) |
| Onboard Power Supply | 24 VDC 1 A |
| Electric Lock Relay Type | Form "C" SPDT |
| Lock Relay Rating | 5.0A @ 28 VDC |
| Fused Protection | 3.5A Fuse |
| Dimensions | 5" h x 4-1/2" d x Door Opening Width + 3" |
| Reveal | Push Arm: 9-3/4" |
| Opening Force | < 15 lbs. - Exceeds all ADA Requirements |
| Closing Force | > 8 lbs |
| Max Degree of Swing | Powered - 180° (push), 140° (pull); Mechanical - 180° |
| On/Off/Hold Open Switch | Standard |
| On/Off Power Switch | Standard |
| Swing Direction | Inswing/Outswing |
| Operating Temperature | -4°F to +131°F |
| Enclosure Protection | NEMA 3R (IP23) Protection against spray water (i.e. rainstorm) |
| Adjustable Opening/Closing Speeds | Yes, Exceeds all ADA Requirements |
| Adjustable Swing Degree | 80° to 140° |
| Adjustable Latch Check Speed | Yes |
| Built-in-Stop | Manual swing to 180° / Power swing to 140° (pull), 180° (push) |
| Hold Open Time | 5 Second Minimum (per ADA) |
| Fire Alarm Input | FA input shunts swing activations until FACP is manually reset |
| Obstruction Stop | Unit will stop cycle if an obstacle is detected in the swing path |
| Auto Reverse | If the unit detects an obstacle, the door will travel in the opposite path |
| Push to Start ("Push N Go") | Yes * Safety Sensors required |
