HID - 5365EGP00 - MiniProx® 125 kHz Mullion Mount Proximity Card R...
Description
Description

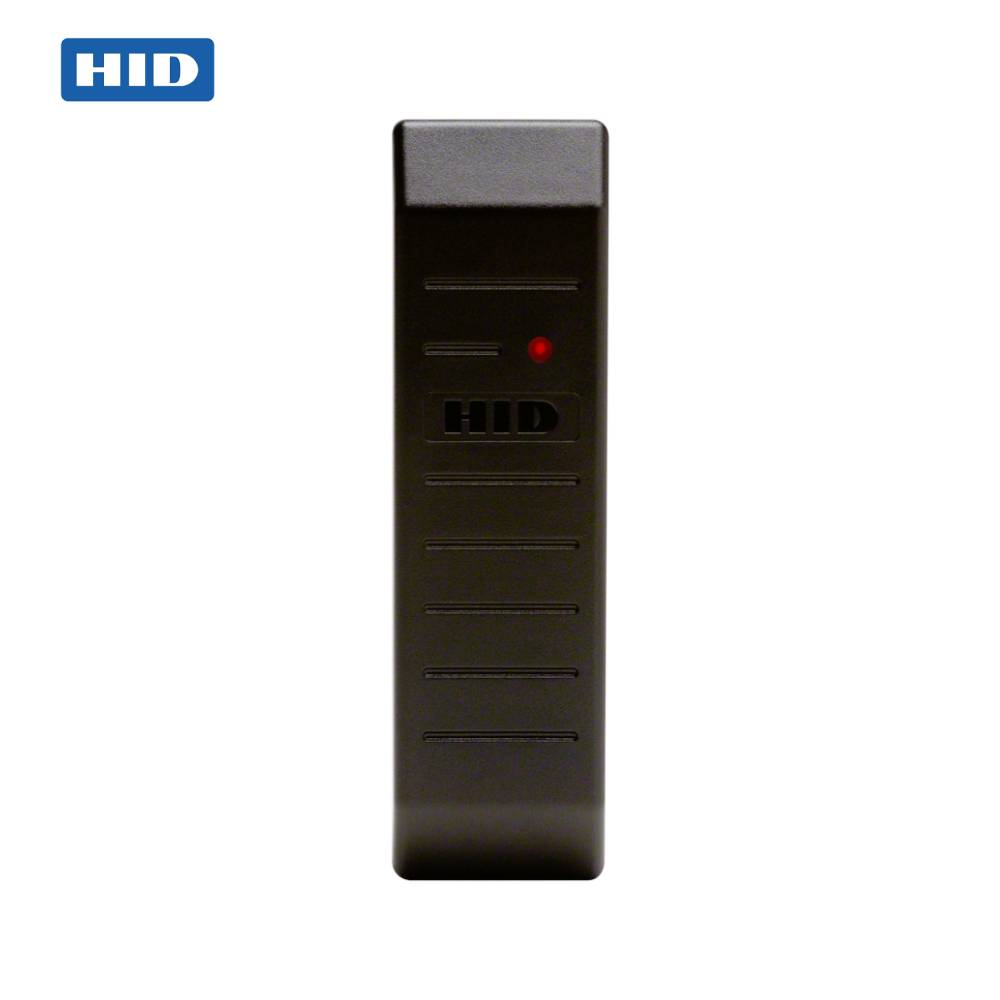

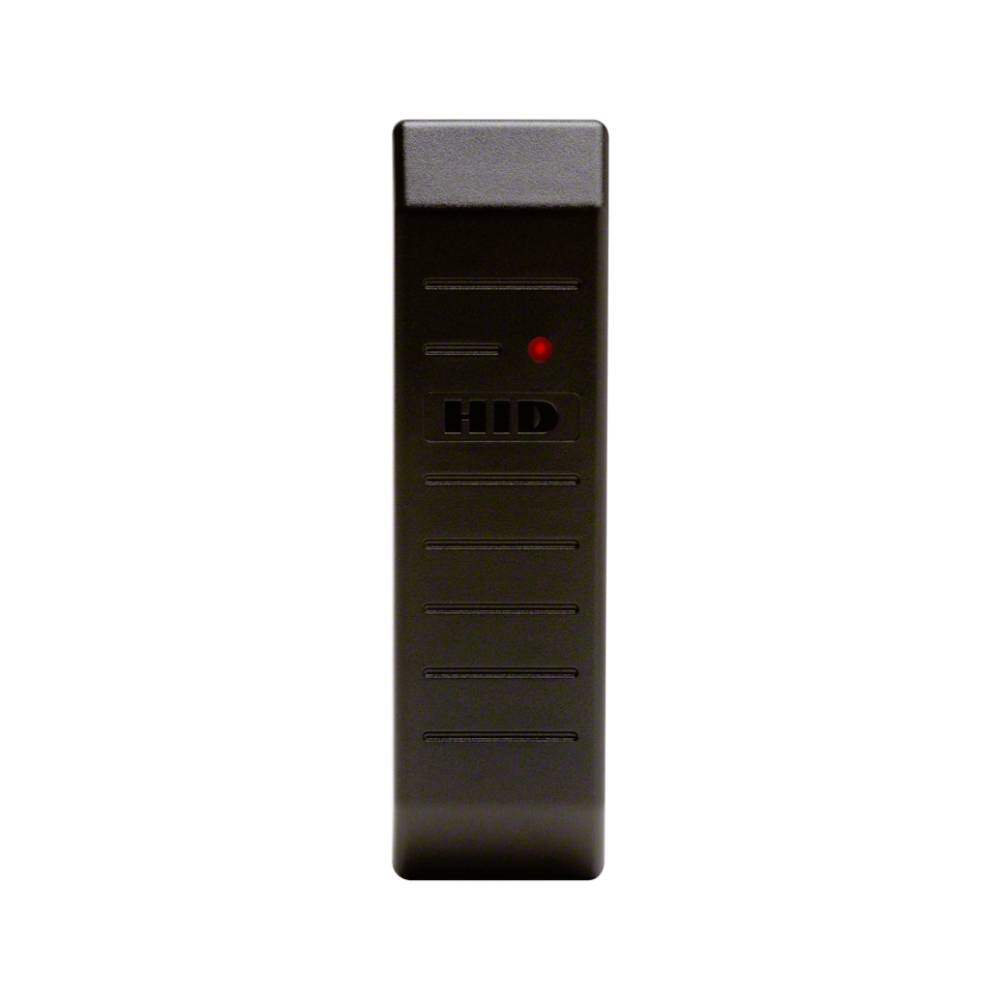

HID - 5365EGP00 - MiniProx® 125 kHz Mullion Mount Proximity Card Reader - Wiegand
The MiniProx® proximity card reader’s potted electronics enhance the security of the reader. The slim, attractive design is ideal for indoor or outdoor mounting.
- Available with either pigtail or terminal strip (terminal strip only for Hazardous Location version).
- Potted reader suitable for indoor or outdoor use.
- Hazardous Location version is UL 1604, Class I & II, Div. 2 and Class III listed.
Features
- Accepts 5 to 16 volts, meeting most voltage requirements.
- Available with Wiegand or Clock-and-Data interface
- Allows easy upgrade from magstripe to a proximity reader; no rewiring or pulling
- of new cable required.
- Offers high reliability, consistent read-range and low power consumption in an
- Mounts directly onto metal with no change in read range performance
- Provides multicolor LED, compatibility with all standard access control systems
- and internal or host control of LED and beeper.
- Includes multilingual installation manual.
Specification:
Typical Maximum Read Range
- ProxCard® II Card - up to 5.5" (14 cm)
- ISOProx® II Card - up to 5" (12.7 cm)
- DuoProx® II Card - up to 5" (12.7 cm)
- Smart ISOProx®/DuoProx® cards - up to 5" (12.7 cm)
- Proximity & MIFARE® Card - up to 5" (12.7 cm)
- ProxCard Plus® Card - up to 2" (5.1 cm)
- ProxKey® II Keyfob - up to 2" (5.1 cm)
- MicroProx® Tag - up to 2.5" (6.4 cm)
Dimensions
- 6.0" x 1.7" x 1.0"(15.2 x 4.3 x 2.54 cm)
Power Supply
- Standard MiniProx: 5-16 VDC
- Haz. Loc. MiniProx: 5-16 VDC
- Linear power supplies are recommended.
Current Requirements
- Average: 30 mA (5 VDC); 20 mA (12 VDC)
- Peak: 110 mA (5 VDC); 110 mA (12 VDC)
Operating Temperature
- -22° to 150° F (-30° to 65° C)
Operating Humidity
- 0-95% relative humidity non-condensing
Weight
- With terminal strip: 3.5 oz. (99 gm)
- With pigtail: 3.8 oz. (108 gm)
- Haz. Loc. MiniProx: 3.8 oz. (108 gm)
Cable distance
- Wiegand interface: 500 feet (150 m)
- Clock-and-data interface: 50 feet (15 m)
- Recommended cable is ALPHA 1295 (22 AWG)
- 5 conductor minimum stranded with overall shield or equivalent. Additional conductors may be
- required for LED or beeper control.
