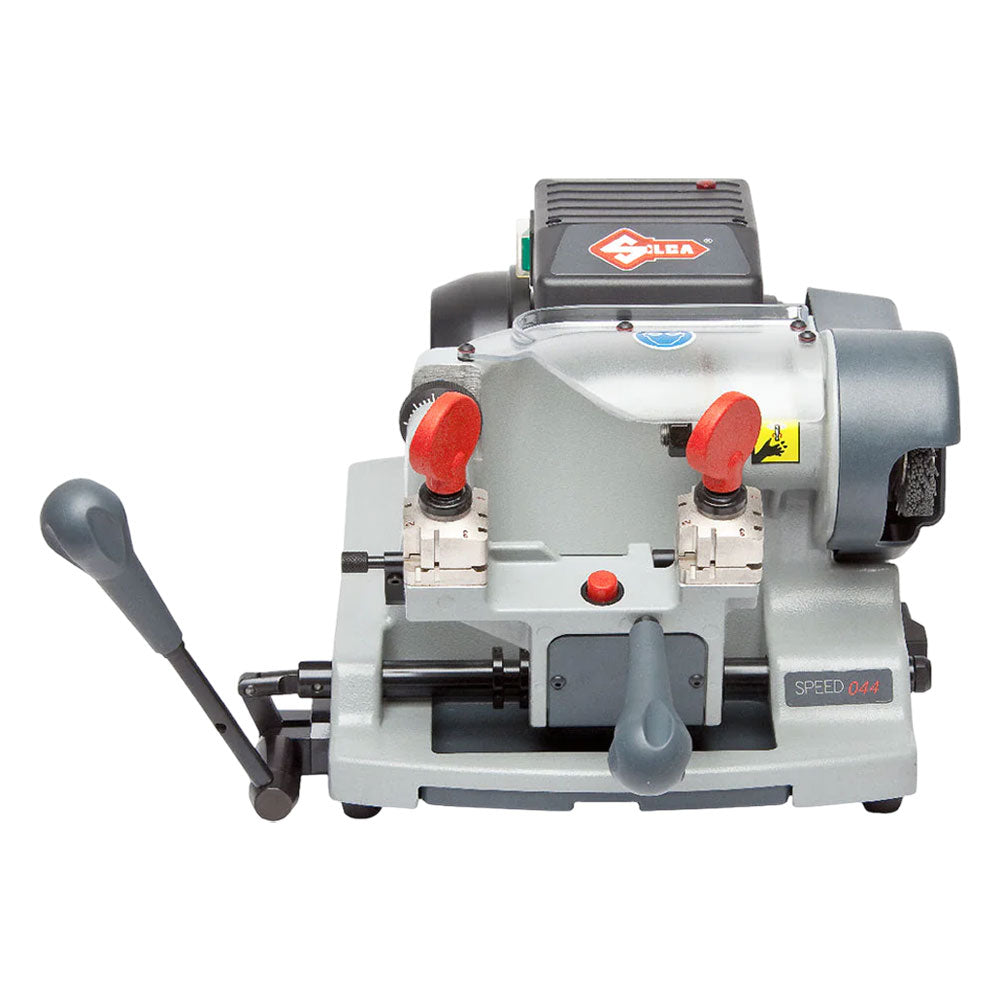

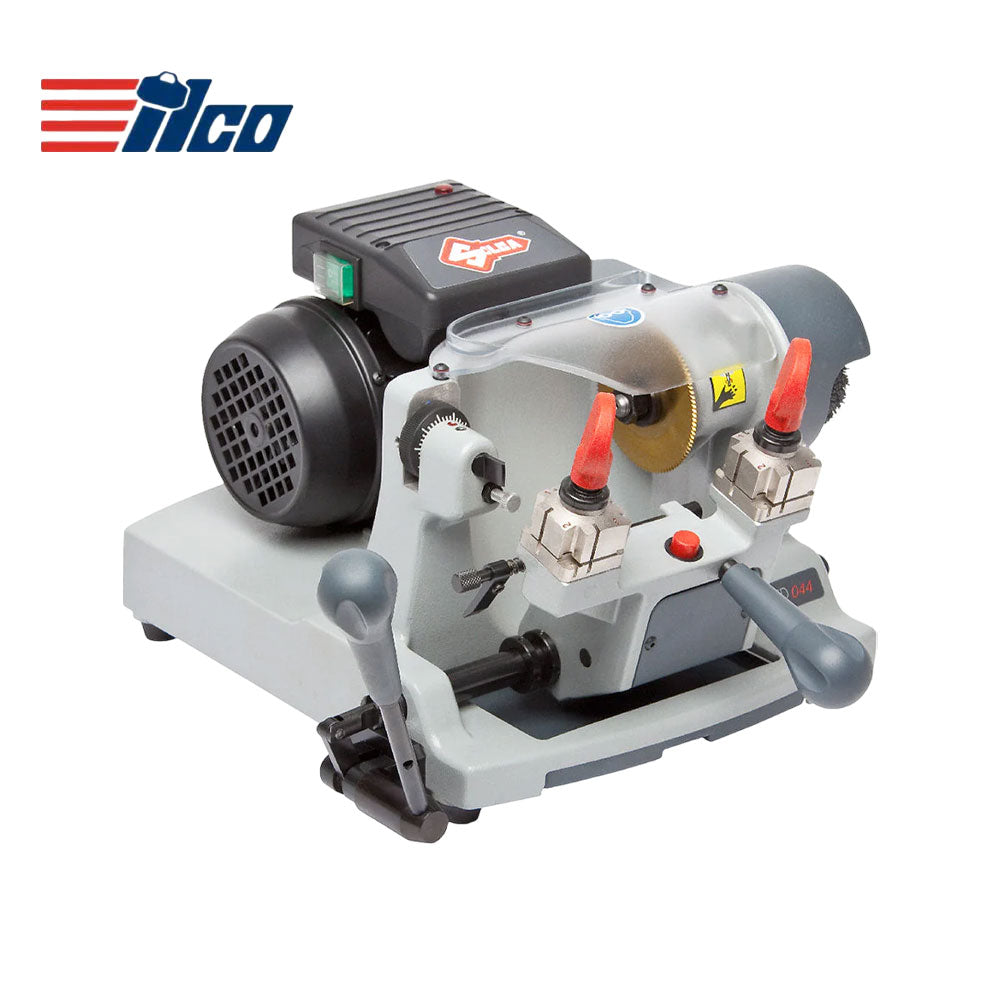

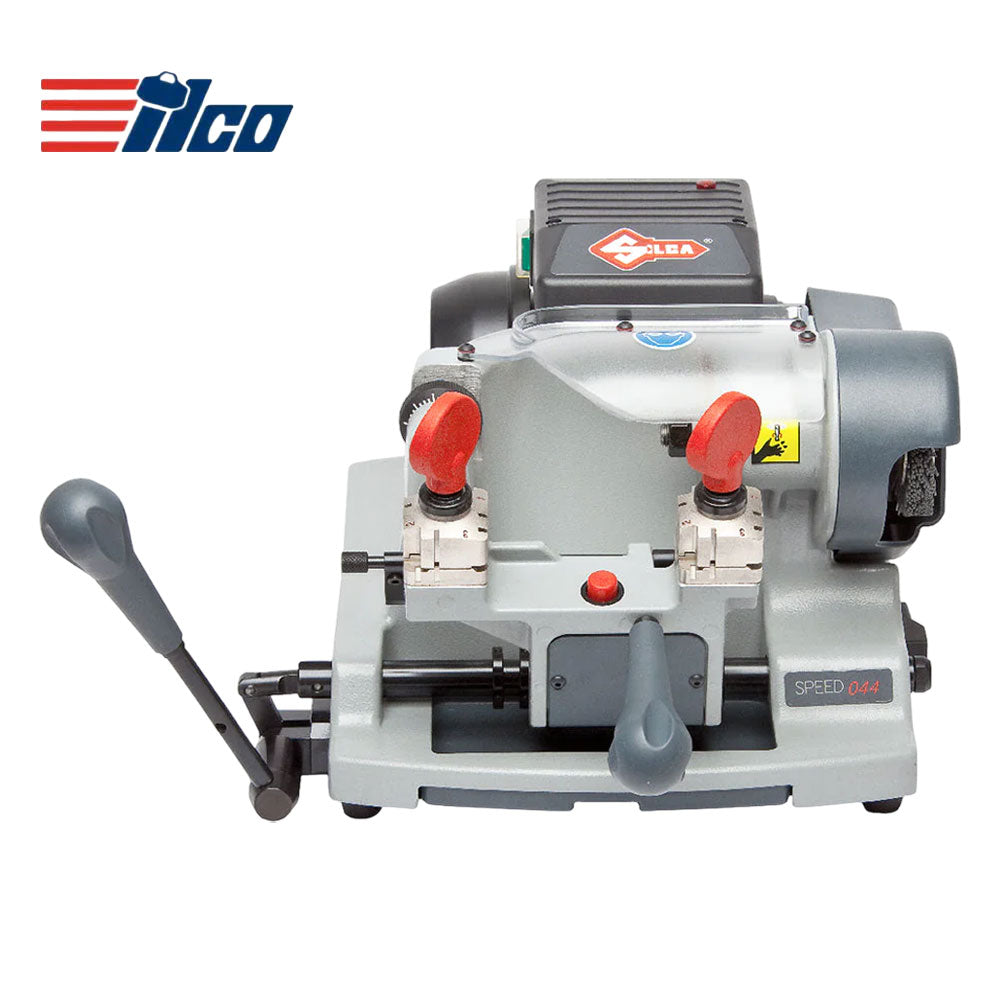

ILCO Speed 044 Semi-Automatic Duplicator Machine - Key Cutting Machine

ILCO Speed 044 Semi-Automatic Duplicator Machine Key Cutting Machine

The Speed 044 is designed for duplicating edge cut automotive, residential and commercial keys. The semiautomatic design allows the operator to duplicate keys with speed and accuracy. Once keys are loaded, the spring loaded carriage is engaged by the press of a button. The lever is then moved manually to control the carriage movement during the cutting cycle. The Speed 044 SemiAutomatic is loaded with features that any user will readily appreciate.

Features:

• The spring loaded carriage is engaged by the press of a button and applies a consistent cutting pressure while in automatic mode
• Four sided, nickel plated jaws for clamping the majority of all edge cut/flat type keys. Smooth rotation by simply twisting into position.
• Slotted jaw surfaces accommodate tip stop bars and a rigid shoulder gauge design to allow for greater accuracy when loading and gauging keys.
• Wide spacing 3 1/2” (88.9 mm) spacing between clamps accommodate large bow (head) and long blade keys, including flip style keys
• Depth tracer system with micro adjustment for precise calibration in increments of .00098” (0.025mm)
• TiN (Titanium Nitride) coated cutter for longer life and oxidation resistance
• Nylon deburring brush
• Electromagnetic “main” safety switch with a separate cutter motor switch for easy access.
• Large transparent cutter safety shield contains chips and provides a storage area for accessories
• Large drawer-type swarf (chip) tray under the carriage for easy access
• Mounting bracket included for securing the machine to counter
• Two year warranty

Specifications:

• Power Supply: 120V60Hz
• Maximum absorbed power: 2.8 Amp, 200 Watt
• Cutter motor: single phase and speed
• Movements: by ball joint on rectified carriage
• Tool Speed: 1350 rpm
• Carriage Runs: 1.65” (42 mm)
• Cutter: TiN coated
• Brush: Nylon, 5/8” (15.87 mm) bristles
• Dimensions: Width: 22.8” (580 mm)
• Depth: 18.1” (460 mm)
• Height: 9.8” (250 mm)
• Weight: 31 lbs.(14 kg) Part #: BB0032XXXX / D746222ZB

Return Policy:

• For technical support, please contact Kaba Ilco directly at 1-800-334-1381 (option 8),  or click here to visit their support page. Once you have a documented call to the Kaba Ilco tech support team and the Kaba Ilco sales representative then contact Locksmith Keyless for the return.
• Key machines that are used and not defective may not be eligible for return.
