LAB - EPD005 - .005 - Super Wedge Pro - Universal Rekeying Pin Kit - w/ Drawer
Review: 5 - "A masterpiece of literature" by , written on May 4, 2006
I really enjoyed this book. It captures the essential challenge people face as they try make sense of their lives and grow to adulthood.

LAB - EPD005 - .005 - Super Wedge Pro - Universal Rekeying Pin Kit - w/ Drawer

  • Product SKU: LAB-EPD005
$215.28
  • Order within

    and choose FedEx 2Day® Shipping


LAB - EPD005 - .005 - Super Wedge Pro - Universal Rekeying Pin Kit - w/ Drawer

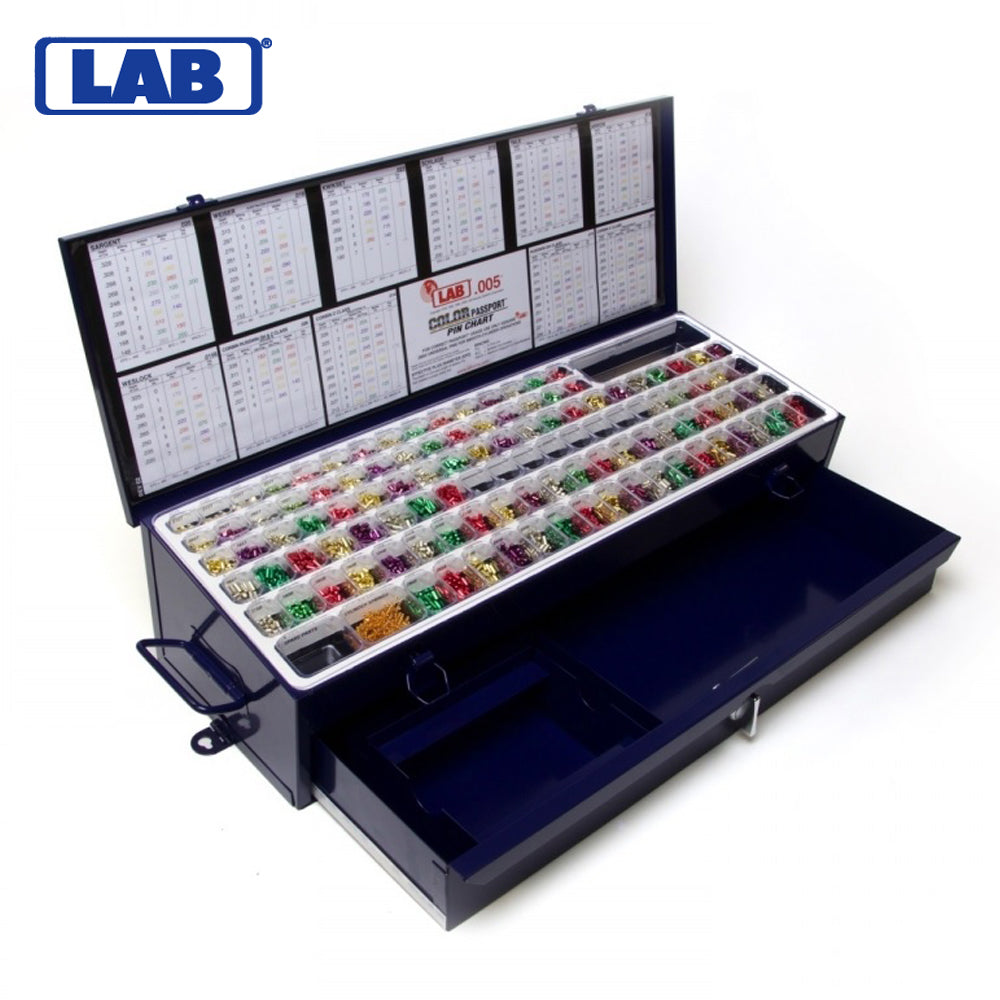

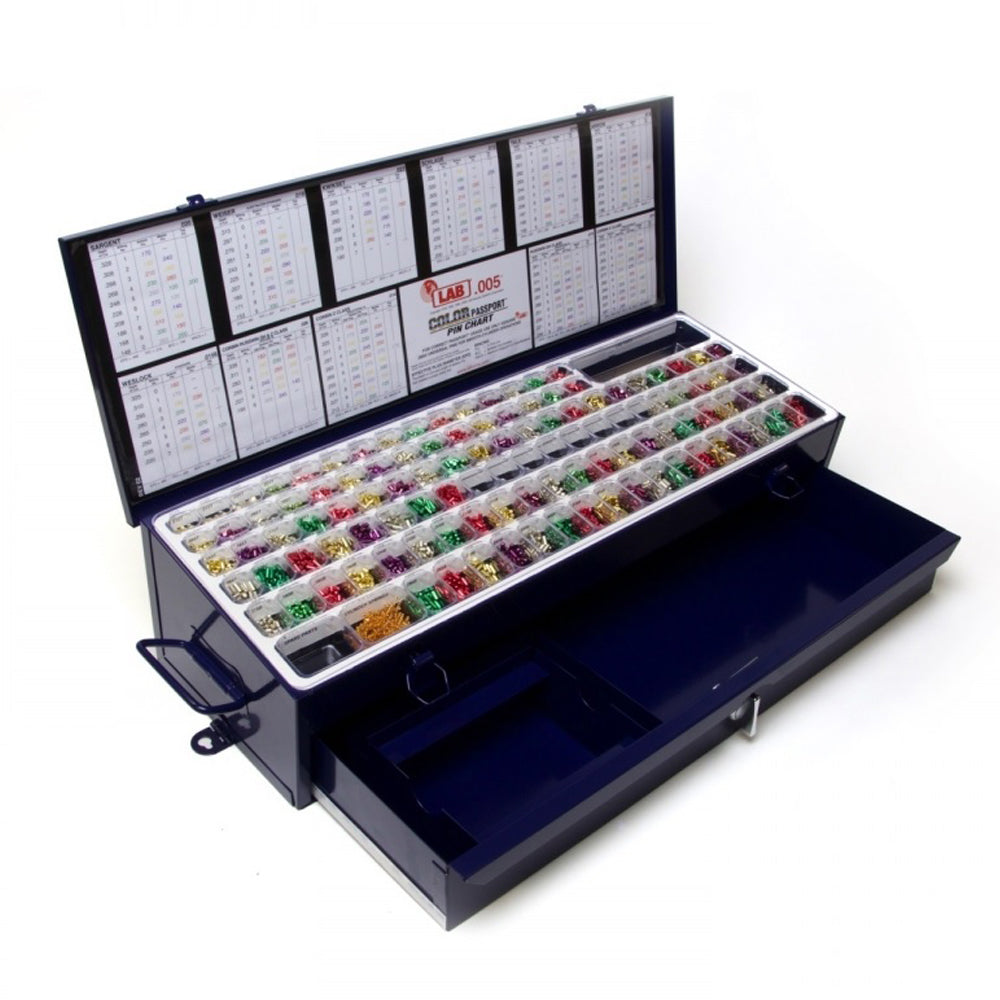

The LAB EPD005 Super Wedge Pro .005 Universal Rekeying Pin Kit is a universal pro rekeying kit that comes with a smart, tough solid metal case complete with double latches, a side carrying handle, and a large slide-out tool drawer. A seal-tight lid prevents the pins within from mixing with one another, while a dual-view pin tray shows enlarged pin sizes printed under a clear plastic tray both above and inside the pin pockets for easier viewing from any angle. These EPD005 pin kits feature the .005 Color Passport Pin Chart, where pin sizes are printed in the same color as the pin.

Features

- .005 Increments
- Accommodates 102 Pin sizes, 1 Spring size
- Top/Master Pins sizes: .010 - .300
- Bottom sizes: .150 - .360
- 50 Pins Per Pocket
- 100 Springs 115L
- Large Slide-Out Tool Drawer
- Solid Metal Construction - The most durable kit you can buy
- Seal-Tight Lid prevents pins from mixing
- Dual-View Pin Tray - Pin sizes are enlarged and printed under a clear plastic tray, both above and inside the pin pockets for easy viewing at all angles

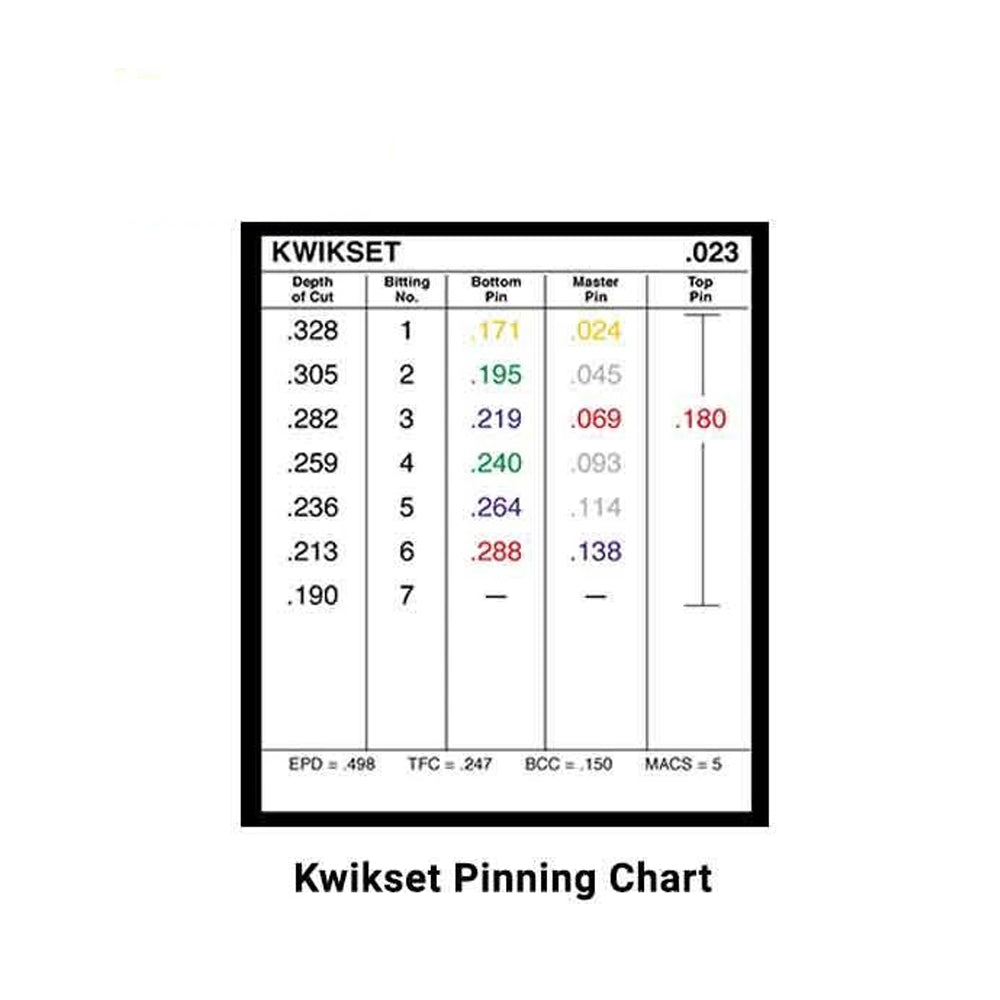

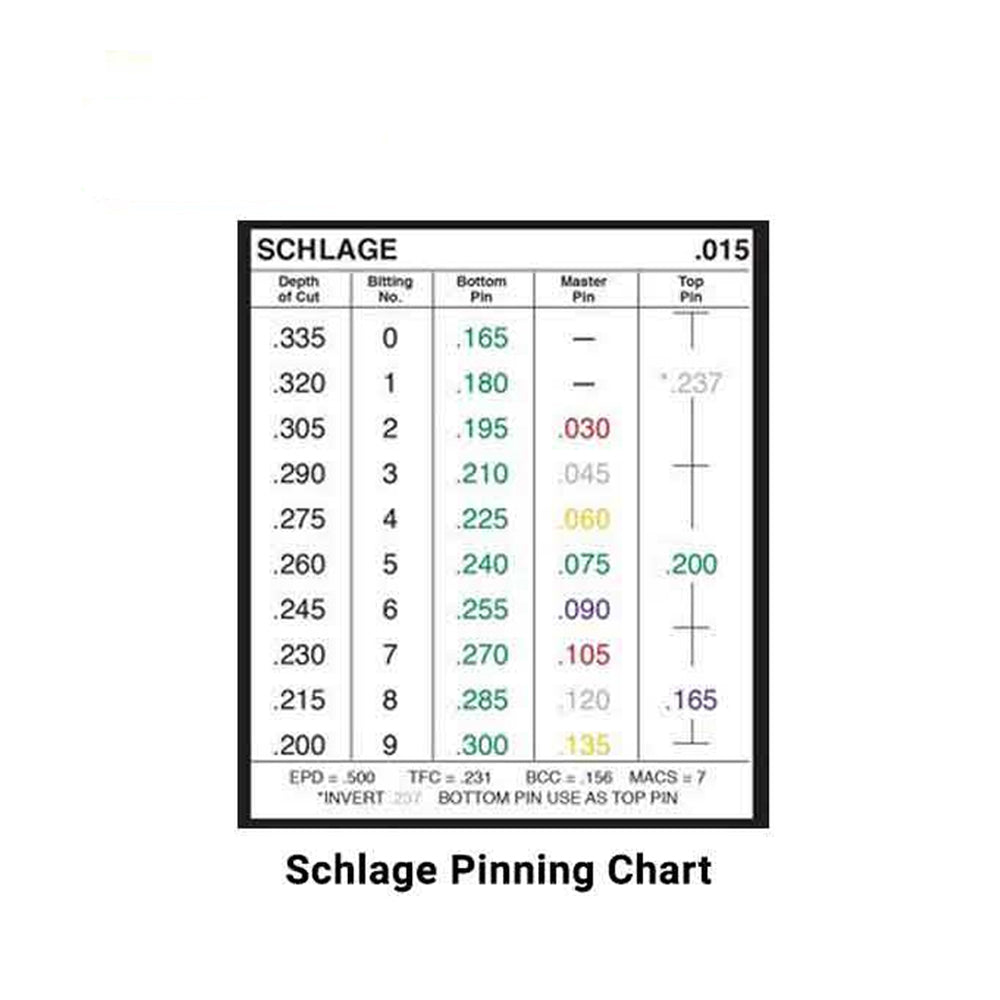

- Color Passport Pin Chart - Pin sizes printed the same color as the Pins
- Key Slots for Mounting to Work Bench
- Dimensions: 21" x 7-3/4" x 4-1/2" front x 5-3/4" back
- Internal Drawer Storage: 12-1/2″ x 7″ x 2-5/15″

List of Contents with Corresponding Color Codes

TYPE SIZE COLOR
FLAT BOTTOM PIN 0.15 SILVER
FLAT BOTTOM PIN 0.155 GREEN
FLAT BOTTOM PIN 0.16 RED
FLAT BOTTOM PIN 0.165 PLAIN
FLAT BOTTOM PIN 0.17 PURPLE
FLAT BOTTOM PIN 0.175 SILVER
FLAT BOTTOM PIN 0.18 GREEN
FLAT BOTTOM PIN 0.185 RED
FLAT BOTTOM PIN 0.19 PLAIN
FLAT BOTTOM PIN 0.195 PURPLE
FLAT BOTTOM PIN 0.2 SILVER
FLAT BOTTOM PIN 0.205 GREEN
FLAT BOTTOM PIN 0.21 RED
FLAT BOTTOM PIN 0.215 PLAIN
FLAT BOTTOM PIN 0.22 PURPLE
FLAT BOTTOM PIN 0.225 SILVER
FLAT BOTTOM PIN 0.23 GREEN
FLAT BOTTOM PIN 0.235 RED
FLAT BOTTOM PIN 0.24 PLAIN
FLAT BOTTOM PIN 0.245 PURPLE
FLAT BOTTOM PIN 0.25 SILVER
FLAT BOTTOM PIN 0.255 GREEN
FLAT BOTTOM PIN 0.26 RED
FLAT BOTTOM PIN 0.265 PLAIN
FLAT BOTTOM PIN 0.27 PURPLE
FLAT BOTTOM PIN 0.275 SILVER
FLAT BOTTOM PIN 0.28 GREEN
FLAT BOTTOM PIN 0.285 RED
FLAT BOTTOM PIN 0.29 PLAIN
FLAT BOTTOM PIN 0.295 PURPLE
FLAT BOTTOM PIN 0.3 SILVER
FLAT BOTTOM PIN 0.305 GREEN
FLAT BOTTOM PIN 0.31 RED
FLAT BOTTOM PIN 0.315 PLAIN
FLAT BOTTOM PIN 0.32 PURPLE
FLAT BOTTOM PIN 0.325 SILVER
FLAT BOTTOM PIN 0.33 GREEN
FLAT BOTTOM PIN 0.335 RED
FLAT BOTTOM PIN 0.34 PLAIN
FLAT BOTTOM PIN 0.345 PURPLE
FLAT BOTTOM PIN 0.35 SILVER
FLAT BOTTOM PIN 0.355 GREEN
FLAT BOTTOM PIN 0.36 RED
TOP PIN 0.01 PLAIN
TOP PIN 0.015 PLAIN
TOP PIN 0.02 SILVER
TOP PIN 0.025 GREEN
TOP PIN 0.03 RED
TOP PIN 0.035 PLAIN
TOP PIN 0.04 PURPLE
TOP PIN 0.045 SILVER
TOP PIN 0.05 GREEN
TOP PIN 0.055 RED
TOP PIN 0.06 PLAIN
TOP PIN 0.065 PURPLE
TOP PIN 0.07 SILVER
TOP PIN 0.075 GREEN
TOP PIN 0.08 RED
TOP PIN 0.085 PLAIN
TOP PIN 0.09 PURPLE
TOP PIN 0.095 SILVER
TOP PIN 0.1 GREEN
TOP PIN 0.105 RED
TOP PIN 0.11 PLAIN
TOP PIN 0.115 PURPLE
TOP PIN 0.12 SILVER
TOP PIN 0.125 GREEN
TOP PIN 0.13 RED
TOP PIN 0.135 PLAIN
TOP PIN 0.14 PURPLE
TOP PIN 0.145 SILVER
TOP PIN 0.15 GREEN
TOP PIN 0.155 RED
TOP PIN 0.16 PLAIN
TOP PIN 0.165 PURPLE
TOP PIN 0.17 SILVER
TOP PIN 0.175 GREEN
TOP PIN 0.18 RED
TOP PIN 0.185 PLAIN
TOP PIN 0.19 PURPLE
TOP PIN 0.195 SILVER
TOP PIN 0.2 GREEN
TOP PIN 0.205 PLAIN
TOP PIN 0.21 PURPLE
TOP PIN 0.215 SILVER
TOP PIN 0.22 GREEN
TOP PIN 0.225 RED
TOP PIN 0.23 PLAIN
TOP PIN 0.235 PURPLE
TOP PIN 0.24 SILVER
TOP PIN 0.245 GREEN
TOP PIN 0.25 RED
TOP PIN 0.255 PLAIN
TOP PIN 0.26 PURPLE
TOP PIN 0.265 SILVER
TOP PIN 0.27 GREEN
TOP PIN 0.275 RED
TOP PIN 0.28 PLAIN
TOP PIN 0.285 PURPLE
TOP PIN 0.29 SILVER
TOP PIN 0.295 GREEN
TOP PIN 0.3 RED
LAB Springs 0.115 N/A
