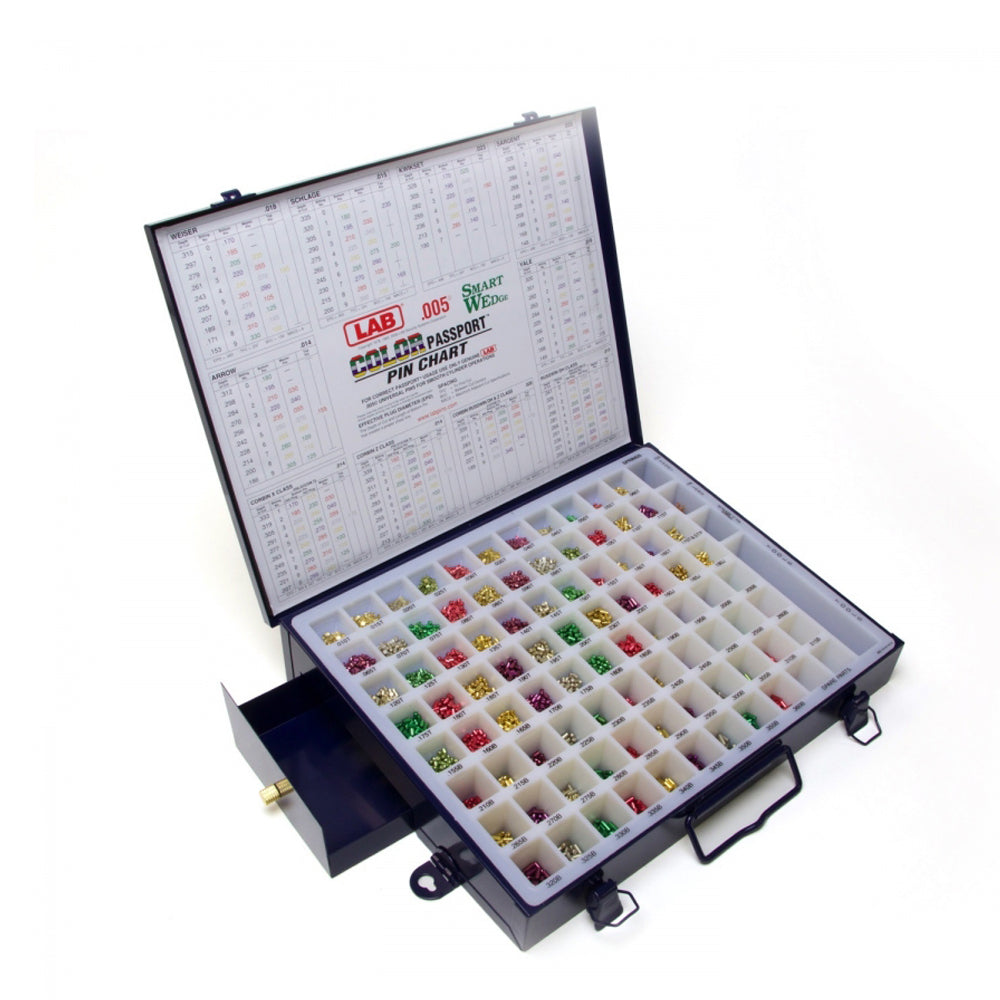

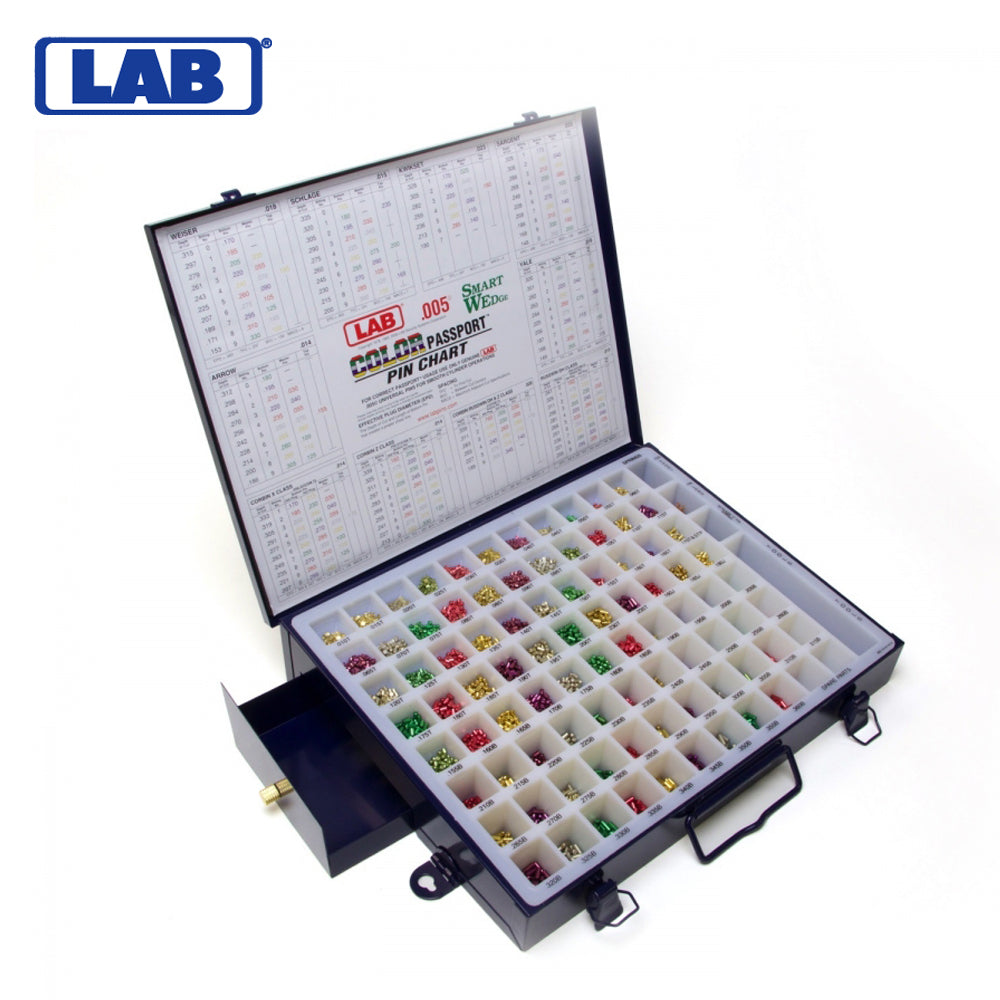

LAB - LSW005 - .005 - Smart Wedge - Universal Rekeying Pin KitThe LAB LSW005 Smart Wedge .005 Universal Rekeying Pin Kit is a universal smart wedge rekeying kit that comes with a smart, tough solid metal case complete with double latches, a center lid carrying handle, and a slide-out tool drawer. A seal-tight lid prevents the pins within from mixing with one another. These LSW005 pin kits feature the .005 Color Passport Pin Chart, where pin sizes are printed in the same color as the pin.
- Contains the most commonly used sizes - No Dead Stock
- Solid metal construction. The most durable kit you can buy
- Double latches
- Center lid carrying handle
- Slide-Out Tool Drawer
- Large Tool Pocket on Top of Tray
- Seal-Tight Lid prevents pins from mixing
- Injection Molded High-Impact Tray with Pin Sizes Printed 100% Larger

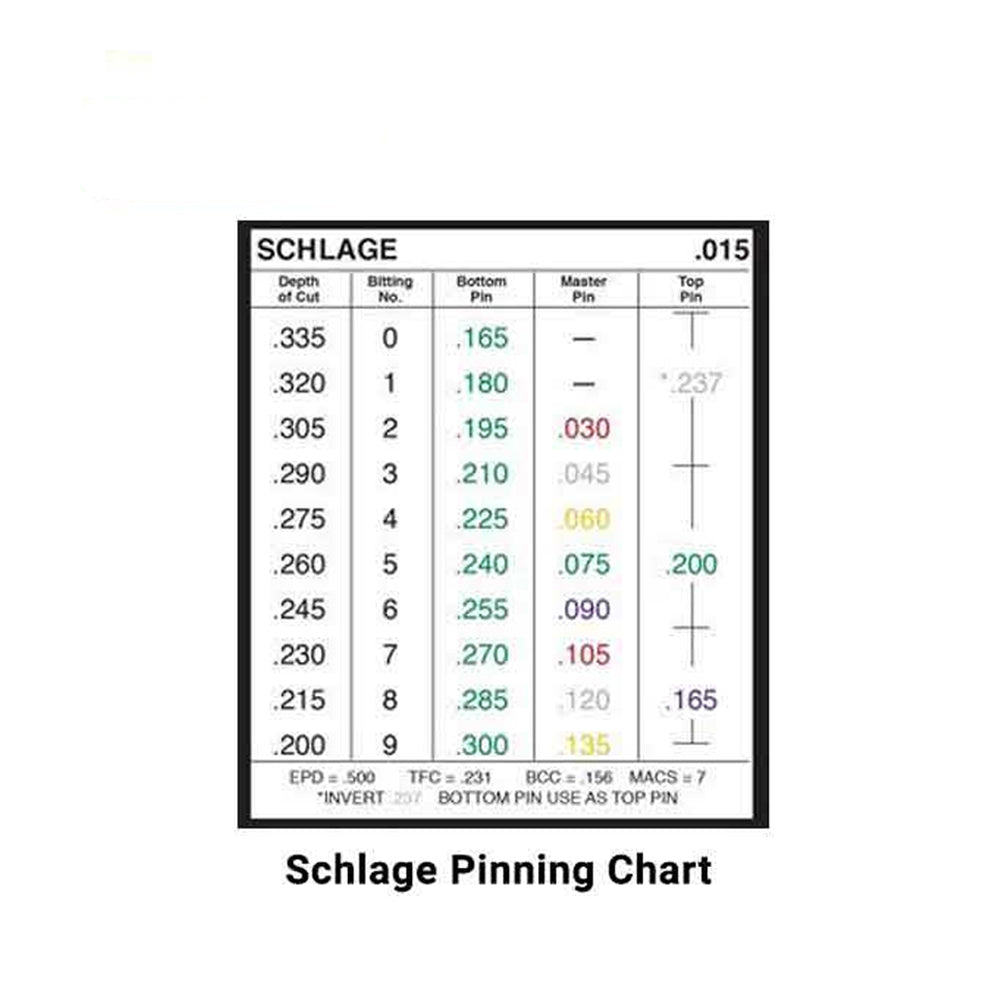

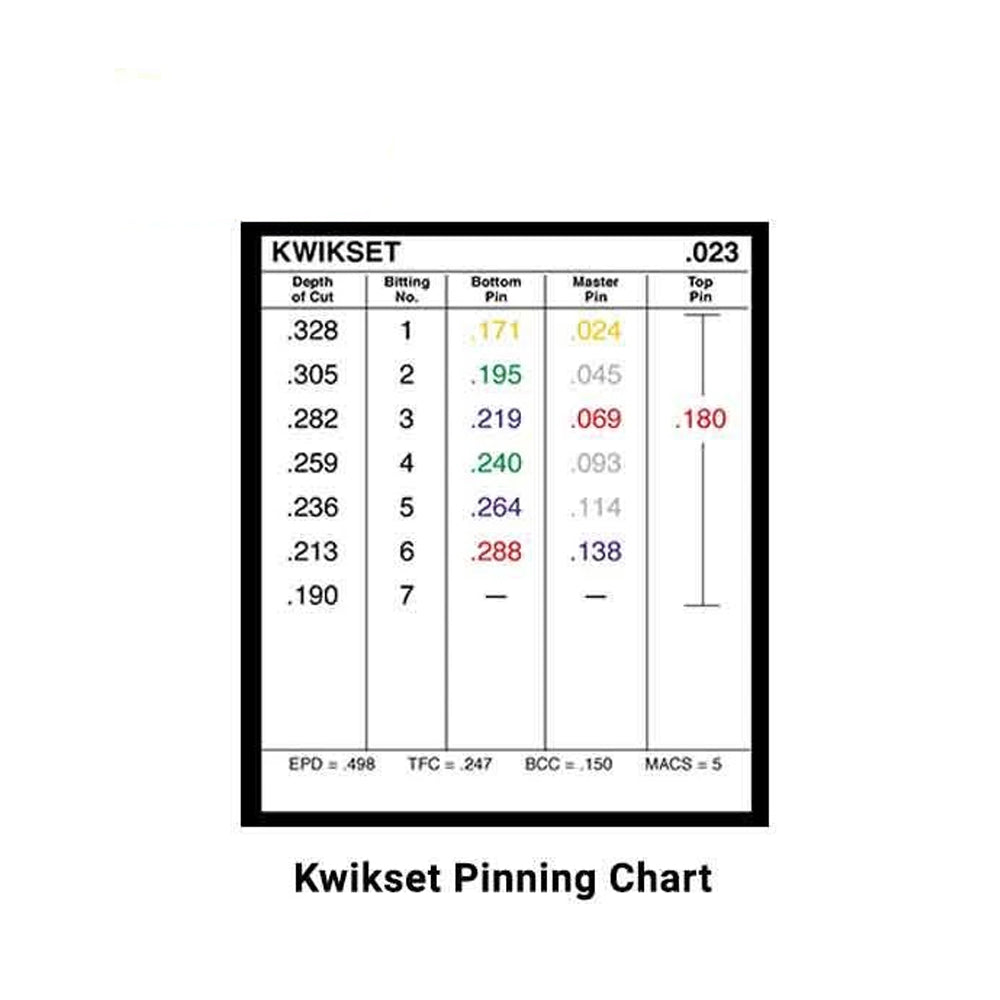

- Color Passport Pin Chart
- Key slots for mounting to work bench
- .005 Size Increments
- 3 Deep Spring Pockets
- Tangle Resistant .115 Long Springs & .115 Short Springs
- T-Pin Spring for Schlage “F” Series Cylinders
- Double-Sized Pin Pockets hold up to 200 pins per size
- 86 Sizes
- Top Pins: .010T - .200T, .230T, .235T
- Spool Pins: .160J, .165J, .180J
- T-Pin: .170TP
- Bottom Pins: .155B - .360B
- 72 pins per pocket, 100 springs per pocket
- Drawer Size 6-1/2″ long x 5-1/2″ wide, Height: 1-1-7/8″ side angled
- 40% Smaller in width than our Pro Kits 13-1/4″ x 10-1/2″, Height 2″ Front, 3 1/4″ Rear
List of Contents with Corresponding Color Codes
|FLAT BOTTOM PIN||0.155||GREEN|
|FLAT BOTTOM PIN||0.16||RED|
|FLAT BOTTOM PIN||0.165||PLAIN|
|FLAT BOTTOM PIN||0.17||PURPLE|
|FLAT BOTTOM PIN||0.175||SILVER|
|FLAT BOTTOM PIN||0.18||GREEN|
|FLAT BOTTOM PIN||0.185||RED|
|FLAT BOTTOM PIN||0.19||PLAIN|
|FLAT BOTTOM PIN||0.195||PURPLE|
|FLAT BOTTOM PIN||0.2||SILVER|
|FLAT BOTTOM PIN||0.205||GREEN|
|FLAT BOTTOM PIN||0.21||RED|
|FLAT BOTTOM PIN||0.215||PLAIN|
|FLAT BOTTOM PIN||0.22||PURPLE|
|FLAT BOTTOM PIN||0.225||SILVER|
|FLAT BOTTOM PIN||0.23||GREEN|
|FLAT BOTTOM PIN||0.235||RED|
|FLAT BOTTOM PIN||0.24||PLAIN|
|FLAT BOTTOM PIN||0.245||PURPLE|
|FLAT BOTTOM PIN||0.25||SILVER|
|FLAT BOTTOM PIN||0.255||GREEN|
|FLAT BOTTOM PIN||0.26||RED|
|FLAT BOTTOM PIN||0.265||PLAIN|
|FLAT BOTTOM PIN||0.27||PURPLE|
|FLAT BOTTOM PIN||0.275||SILVER|
|FLAT BOTTOM PIN||0.28||GREEN|
|FLAT BOTTOM PIN||0.285||RED|
|FLAT BOTTOM PIN||0.29||PLAIN|
|FLAT BOTTOM PIN||0.295||PURPLE|
|FLAT BOTTOM PIN||0.3||SILVER|
|FLAT BOTTOM PIN||0.305||GREEN|
|FLAT BOTTOM PIN||0.31||RED|
|FLAT BOTTOM PIN||0.315||PLAIN|
|FLAT BOTTOM PIN||0.32||PURPLE|
|FLAT BOTTOM PIN||0.325||SILVER|
|FLAT BOTTOM PIN||0.33||GREEN|
|FLAT BOTTOM PIN||0.335||RED|
|FLAT BOTTOM PIN||0.34||PLAIN|
|FLAT BOTTOM PIN||0.345||PURPLE|
|FLAT BOTTOM PIN||0.35||SILVER|
|FLAT BOTTOM PIN||0.355||GREEN|
|FLAT BOTTOM PIN||0.36||RED|
|LAB Springs (Short)||0.115||N/A|
|LAB Springs (Long)||0.115||N/A|
|SCHLAGE F506-451 T Top Pin||.170STP||N/A|
|LAB Springs Schlage F506-453 F Series Compressible Cylinder||N/A||N/A|
