Launch - ELB300 EV Battery Pack Cell Equalizer
Description
Description

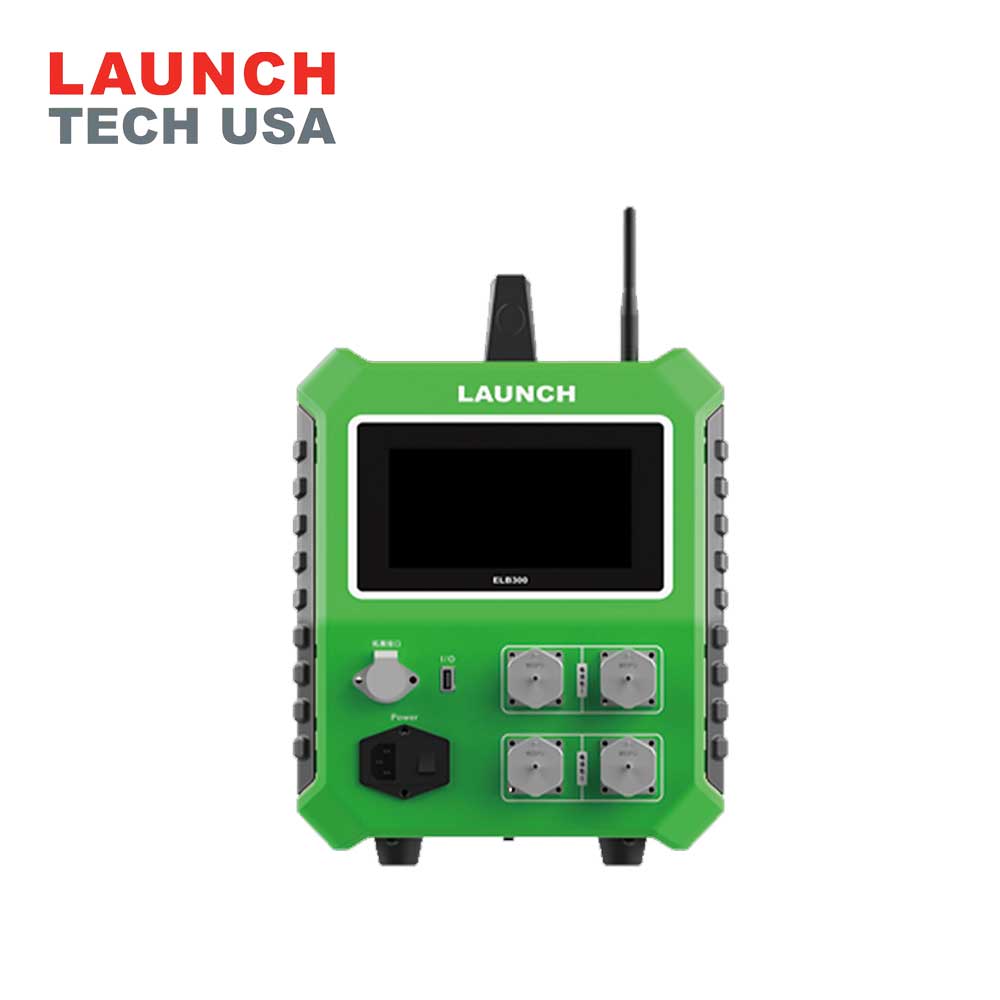

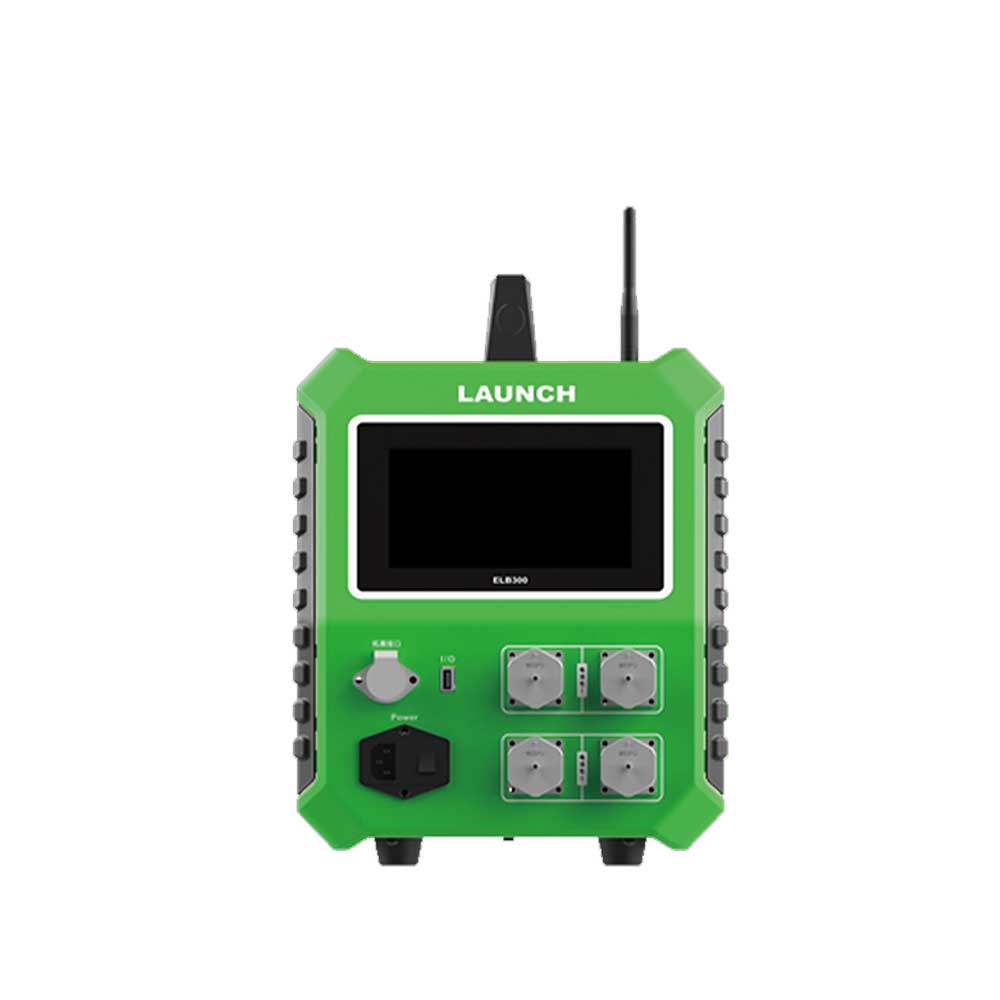

Launch - ELB300 EV Battery Pack Cell Equalizer
The Launch ELB300 Battery Pack Cell Equalizer is battery maintenance equipment diagnostic tool for EV Batteries and technology. The ELB300 diagnoses numerous issues such as inconsistent cell voltage, and individual battery cell capacity variances. The ELB300 issuer friendly and can be us for maintenance, battery production, research and development of new EV/Battery enterprises.
Features:
- The ability to test and address lithium battery pack with varying voltage levels.
- Lithium Batteries can be activated in the Balanced Maintenance Mode.
- By Testing, Voltage and temperature information allows for protection against overcharging and discharging the lithium batteries.
- The intelligent balancing function enables the individual batteries to be charged uniformly.
- Ability to balance the maintenance parameters customization.
- Ability to set abnormal operating parameters such as voltage, current, and temperature to ensure the safety of the batteries and equipment.
- Supports the functions such as overvoltage, undervoltage, overcurrent, output short circuit, anti-reverse protection, and overheating protection.
- Adopting wave width modulation technology with higher efficiency, higher power factor, lower noise, and lower electromagnetic interference.
- 7-lnch touch screen with a portable design that is user friendly and accessible.
- Built-in memory, supports the automatic storage of operational records.
Specifications:
- Display: 7" capacitive LCD touch screen, 800*480
- Power Input: Single phase AC 90-264V, 40-60Hz
- Charging and Discharging Voltage Range: DC 1.8~4.2V
- Voltage Measurement Accuracy: ±0.1%FS±2mV (maximum range 5V)
- Charging and Discharging Current Range: 0.1-5A (Max)
- Current Measurement Accuracy: ±1%FS±0. 05A (maximum range 5A)
- Battery Temperature Detection Accuracy: ±2°℃ (-25-+85°C) Charge and discharge temperature range can be set
- The Number of Channels: 2*12
- Charging and Discharging Power: 600W Max
- Battery Interface: 16 Pin, 24Pin
- PC Data Communication: TCP/IP, USB-Device
- Wireless Communication: Wi-Fi and BT (Wi-Fi external antenna)
- Radiation Method: Forced air cooling
- Working temperature range: -5-40°C; Storage temperature: -20-70°C
- Humidity: Relative humidity 0-90% (40±2°C)
- Elevation: Rated altitude 2000m
ERP CODE: 307010260
