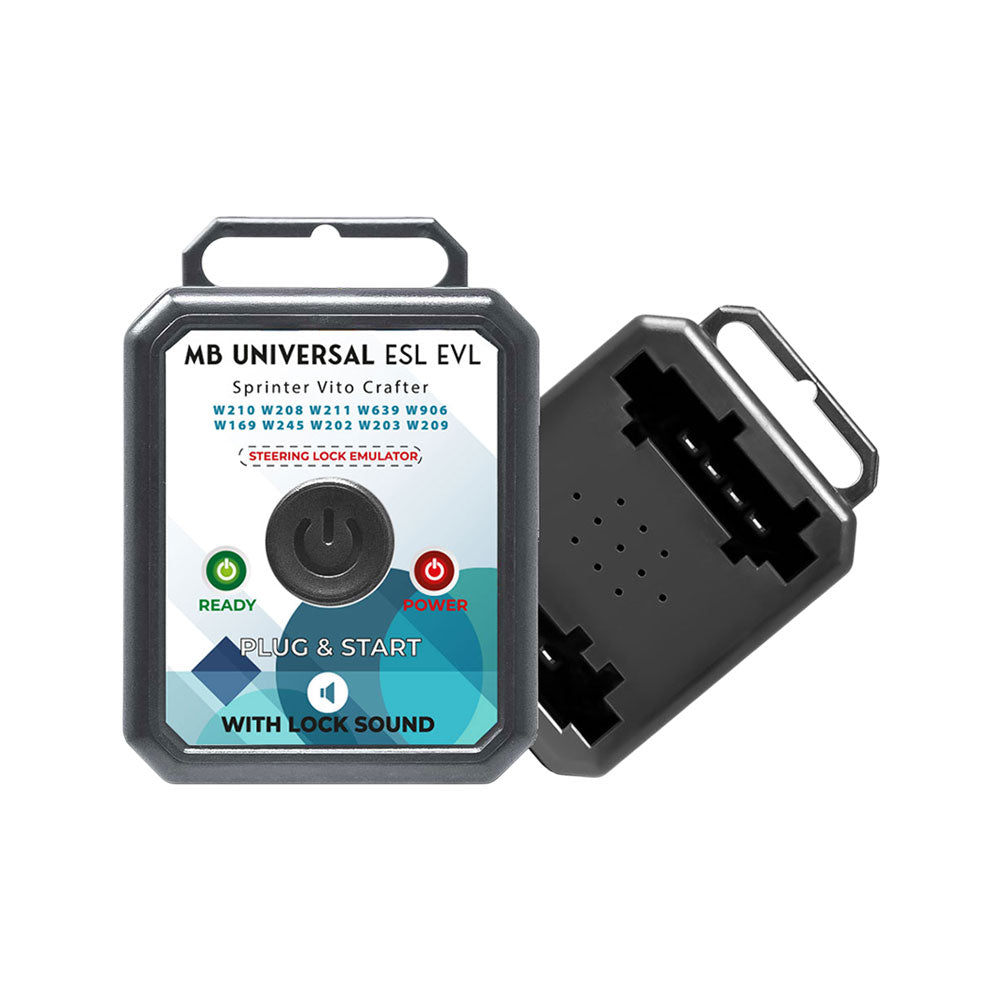

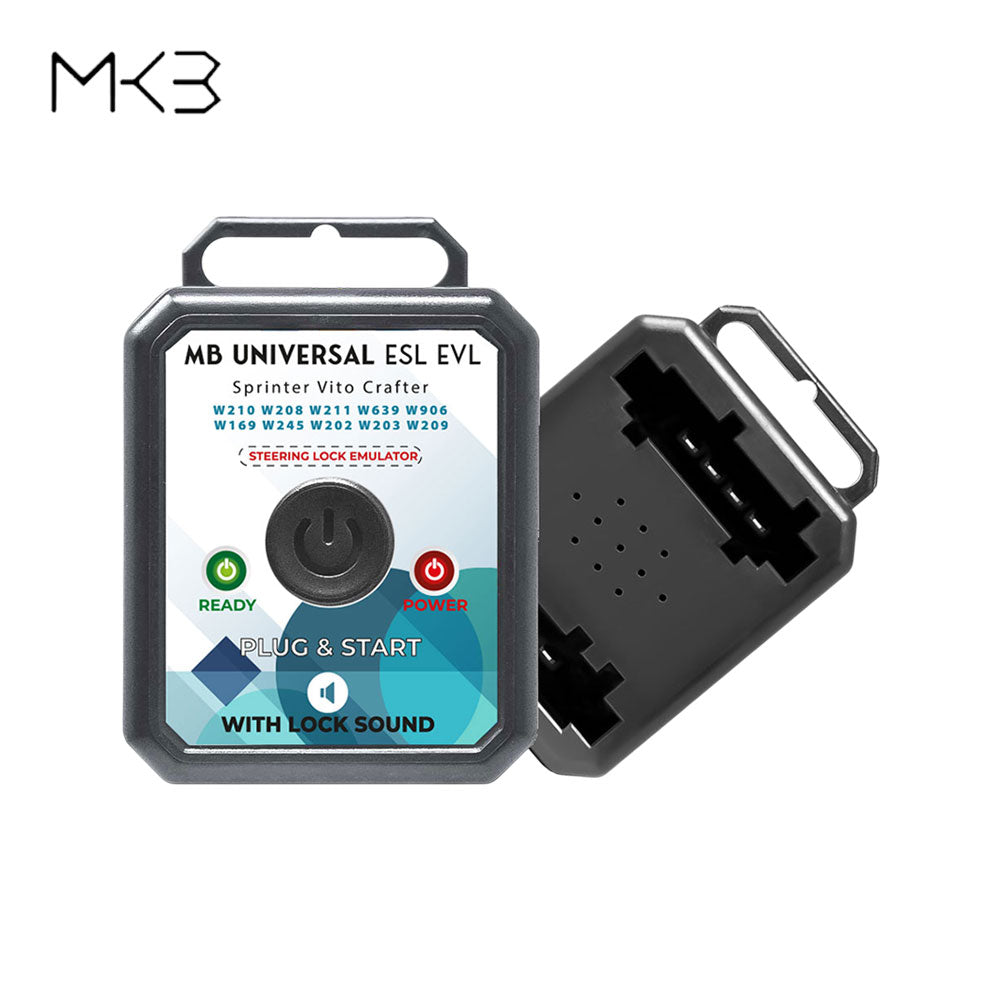

MK3 Mercedes Benz ESL ELV - VW Crafter Sprinter Universal Steering Lock Emulator with Lock Sound

MK3 Mercedes Benz ESL ELV - VW Crafter Sprinter Universal Steering Lock Emulator with Lock Sound

Mercedes electronic steering lock problems are among the most frequent issues in Mercedes-Benz starting systems. Resolving these malfunctions through a dealer typically requires ordering a new steering lock and programming it, which is both costly and time-consuming. This Electronic Steering Lock Mercedes Emulator provides an efficient solution by fixing steering lock errors and bypassing the Mercedes ELV system entirely. With no coding required, this plug-and-play device can be easily connected to resolve ESL malfunctions without additional effort. Moreover, the emulator is reusable and can be connected to different vehicles without reprogramming, making it a versatile tool for diagnosing and bypassing steering lock issues in various Mercedes-Benz models.

Features:

• Extremely simple and straightforward to use.
• No coding required.
• Built-in light indicator to show the status of ELV programming.

Emulator Overview:

• The ELV is a common mechanical failure in the steering column lock that occurs independently of other faults. When this issue arises, even if the vehicle key is functioning correctly, the vehicle will not start because the ELV steering column lock cannot be activated.
• To resolve this, a new ELV steering column lock must be installed and programmed into the vehicle. However, this problem is one of the most frequent issues in Mercedes-Benz starting systems, requiring dealers to order and program a new steering lock. This process is both expensive and time-consuming.
• The Mercedes-Benz ESL ELV Universal Steering Lock Emulator offers a cost-effective solution by addressing the steering lock malfunction error. It bypasses the Mercedes-Benz ELV system entirely, eliminating the need for programming. Simply connect the emulator, and it will fix the ESL failure without requiring coding.

Instructions for use:

• Unplug The Elv Wire From The First Car Steering Lock Unit.
• If Vehicle Steering Lock Is In Lock Mode, Steering Lock Must Be Faraway From The Car.
• Connect Our Mercedes Elv Emulator To The Car And Begin The Car.

Emulator Light Behavior:

• After Connecting To The Car, Or To The Testing Cables, Insert The Car Key To The Switch.
• If Emulator Light Turn Green That Mean It's Connected Well And Therefore The Car Is Prepared To Start Out.
• If Emulator Light Turn Red That Mean The Key Doesn't Belong To An Equivalent Eis / Ezs Otherwise You Have Mercedes Eis Problem.
• If Emulator Light Didn't Turn No You Want To Check The Facility Supply Of The Car / Cables.

Supported Models:

• Mercedes W639 Elv Emulator, Mercedes W639 Steering Lock Emulator.
• Mercedes W906 Elv Emulator, Mercedes W906 Steering Lock Emulator.
• Mercedes W209 Elv Emulator, Mercedes W209 Steering Lock Emulator.
• Mercedes W211 Elv Emulator, Mercedes W211 Steering Lock Emulator.
• Mercedes W219 Elv Emulator, Mercedes W219 Steering Lock Emulator.
• Mercedes W202 Elv Emulator, Mercedes W202 Steering Lock Emulator.
• Mercedes W208 Elv Emulator, Mercedes W208 Steering Lock Emulator.
• Mercedes W210 Elv Emulator, Mercedes W210 Steering Lock Emulator.
• Mercedes W203 Elv Emulator, Mercedes W203 Steering Lock Emulator.
• Mercedes W463 Elv Emulator, Mercedes W463 Steering Lock Emulator.
• Mercedes W169 Elv Emulator, Mercedes W169 Steering Lock Emulator.
• Mercedes Sprinter Elv Emulator, Mercedes Sprinter Steering Lock Emulator.
• Mercedes Vito Elv Emulator, Mercedes Vito Steering Lock Emulator.
• Mercedes Viano Elv Emulator, Mercedes Viano Steering Lock Emulator.
• Vw Crafter Elv Emulator, Vw Crafter Steering Lock Emulator.

Emulator Fitments:

• Mercedes Benz Sprinter.
• Mercedes Benz VITO.
• Volkswagen Crafter.
• Dodge Freightliner Vans.

Models:

Downloads:

• Data Sheet
