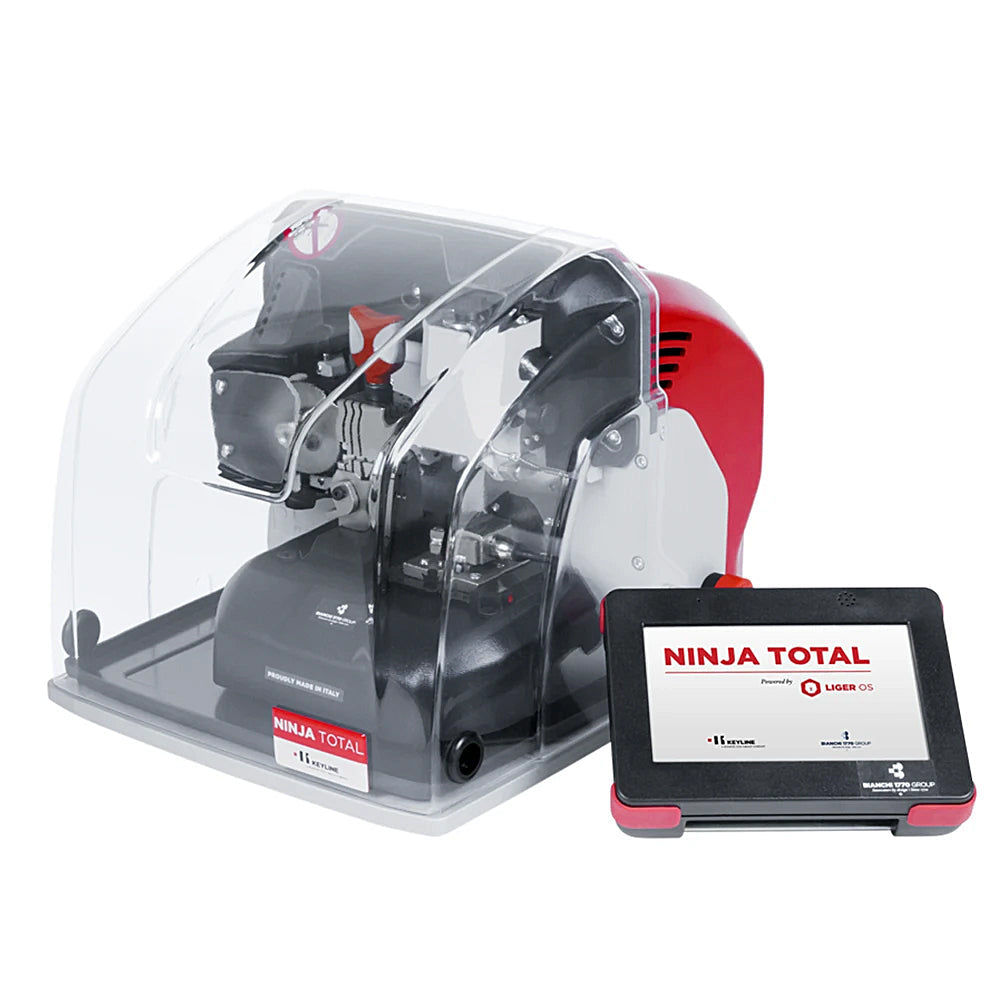

Keyline Ninja Total Key Machine

Ninja Total is the exclusive all-in-one electronic key cutting machine that copies, decodes, and codes edge cut keys and decodes and codes laser and dimple keys. ideal for locksmiths who want to offer a key cutting service with a complete and high-performing tool.

Details

Versatile and complete. The combination of two key-cutting stations makes it possible to cut both residential and car keys, with a single machine, quickly and easily, without sacrificing quality and precision during the cutting process. Ninja Total is available with the optional engraving function for the head of the keys, through the dedicated C25 clamp. An engraving clamp is also available.

Quick and performing. The high-quality technology based on the combined action of three axes and two powerful motors allows the key cutting in a single pass, speeding up machine performance.

Ergonomic and sturdy. Easy to handle and use, thanks to its wide operating station, Ninja Total is the ideal tool in all situations, for all jobs and environments.

Easy and intuitive. The advanced Liger Software developed by Keyline makes Ninja Total easy to use through an intuitive user interface, supported by an industrial console that allows quick access to one of the most complete key databases in the market.

Supported Keys
  • Edge Cut Keys
  • High Security Keys
  • Laser Keys
  • Dimple Keys
  • Tibbe Keys
Technical Specification

Power Supply: 110V 50-60Hz /220

External Connections: 2 USB 2.0 ports; 2 RS232 serial ports; 1 LAN port

Cutter: Edge Cut Key Side - 63 mm carbide cutter, Laser Key Side - 2.5mm

Motor: Edge Cut Key Side - Asynchronous, 0.18 KW, Laser Key Side - DC electronic motor.

Key Reading Systems: Laser Key Side - mechanical tracer with linear sensor, Laser, Dimple Key Side - electric contact.

Absorption: 250W (35W in stand-by)

Dimensions: Width: 15"/ Depth: 17"/ Height: 13"

Lighting: 2 LED STRIPS - lighted cutting bay.

Movements/Axes: 3 stepper motor-operated axes.

Cutter Speed: Edge Cut Key Side - 1500-3000 rpm (variable speed according to the programs), Dimple Key and Laser Key Side - 13,000 rpm.

Gauge: Edge Cut Key Side - Automatic gauge unlock through the movement of the axes.

Electronic Equipment: Mainboard with ARM Cortex A8 CPU, 256 MB RAM, NAND 1 GB memory, high-resolution axes control.

Jaws: Edge Cut Key Siden - 4 sided Laser/Dimple Key Side :A02, A03, C30.

Weight: 65 lbs.
