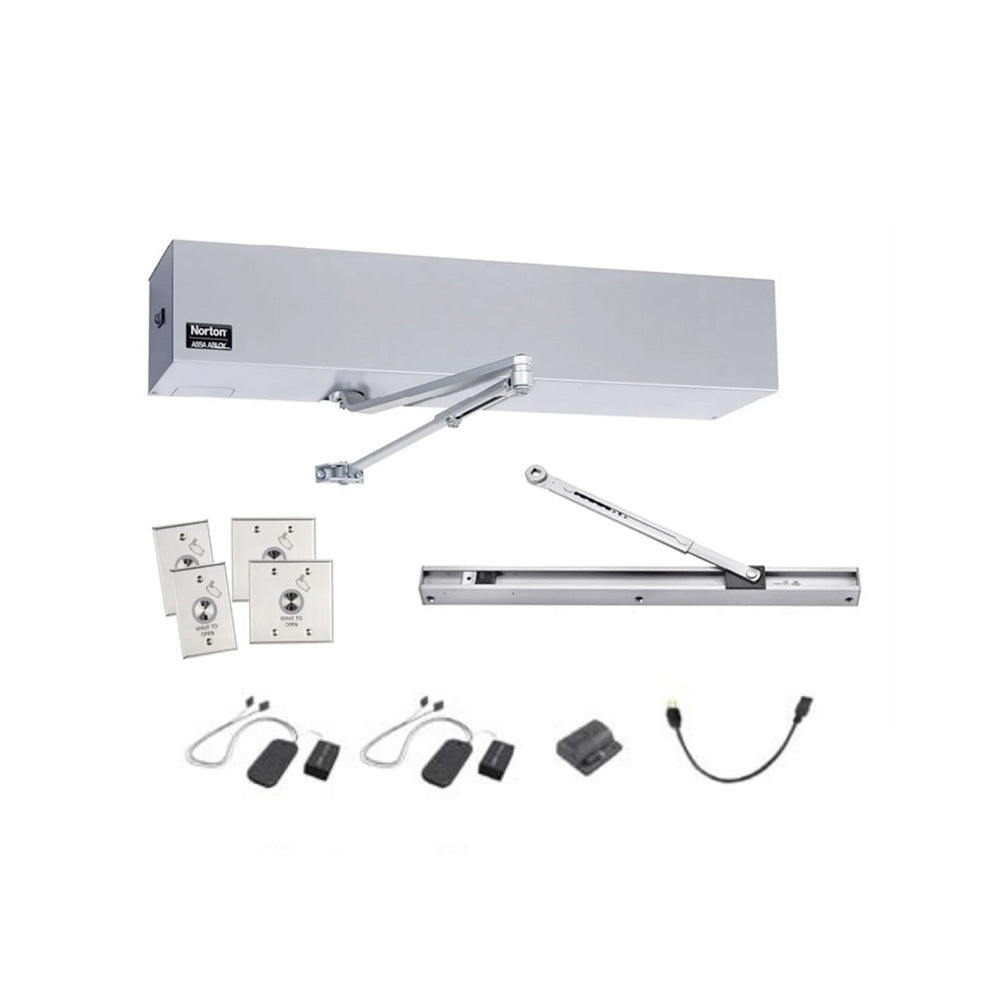

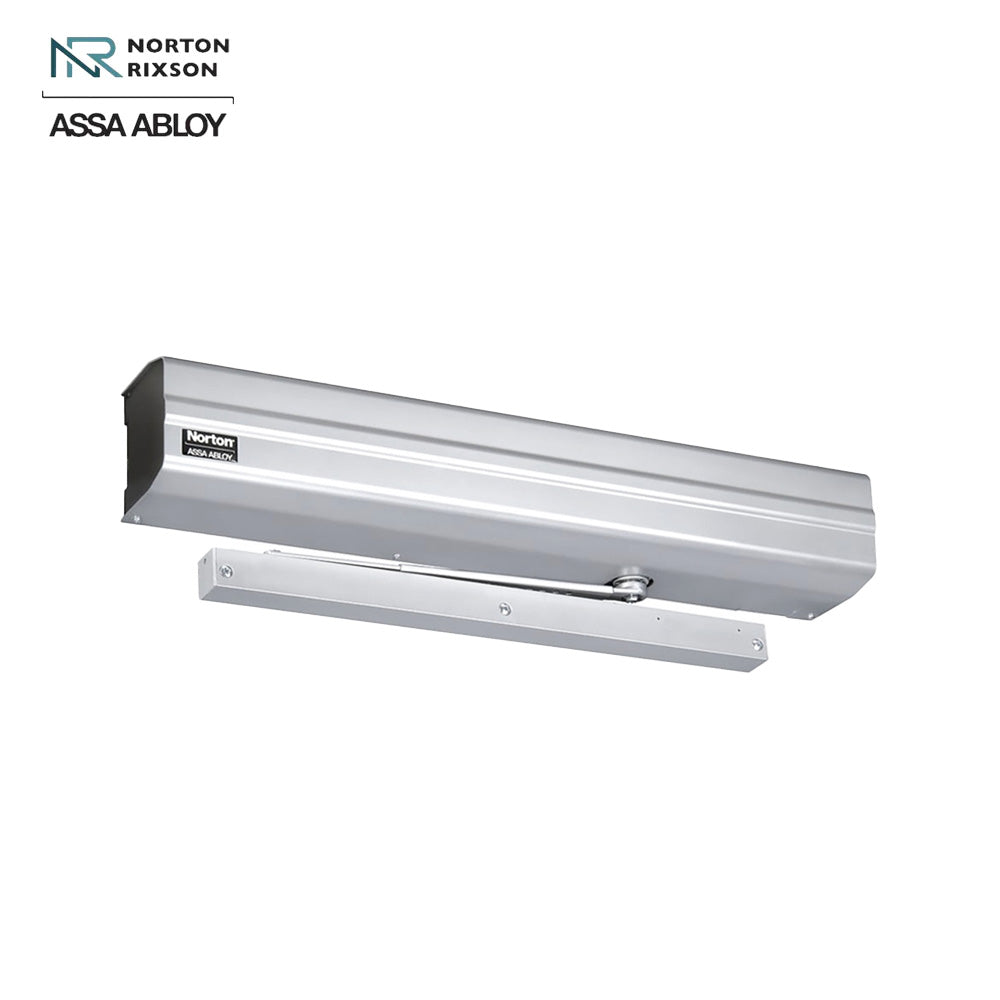

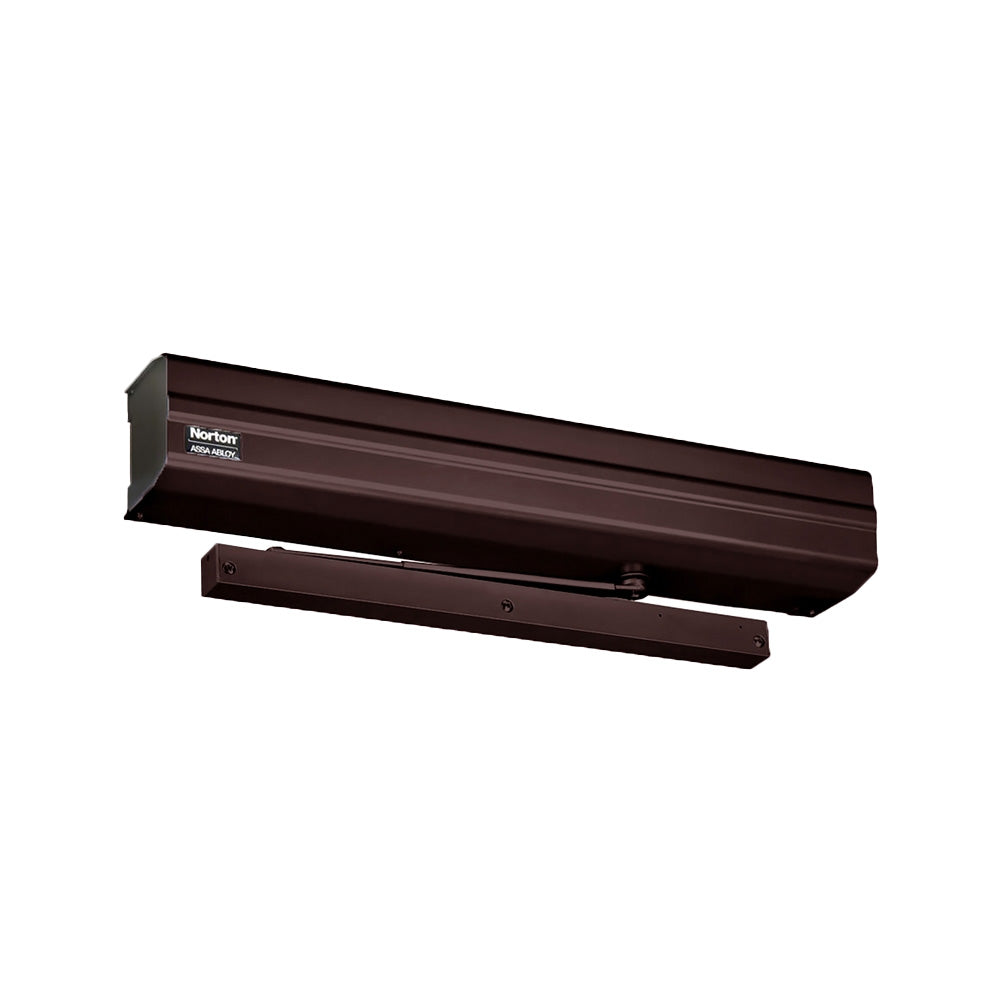

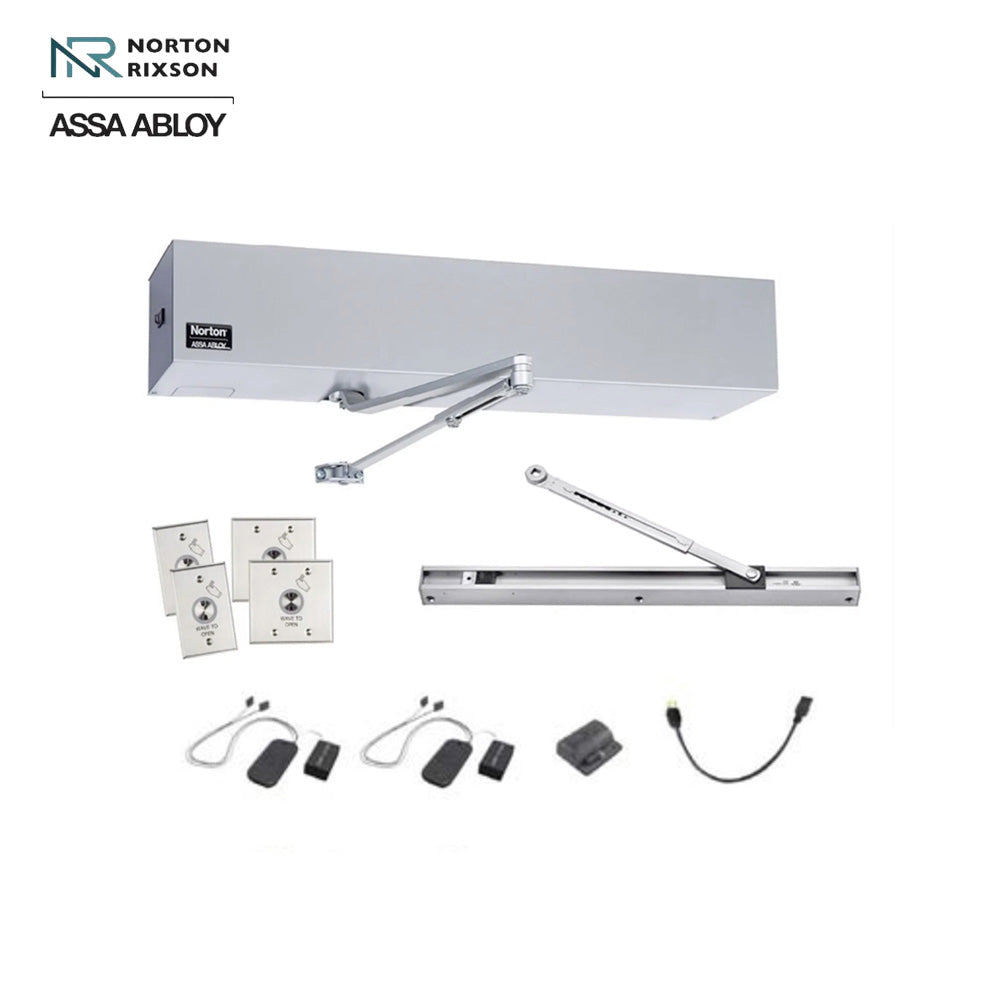

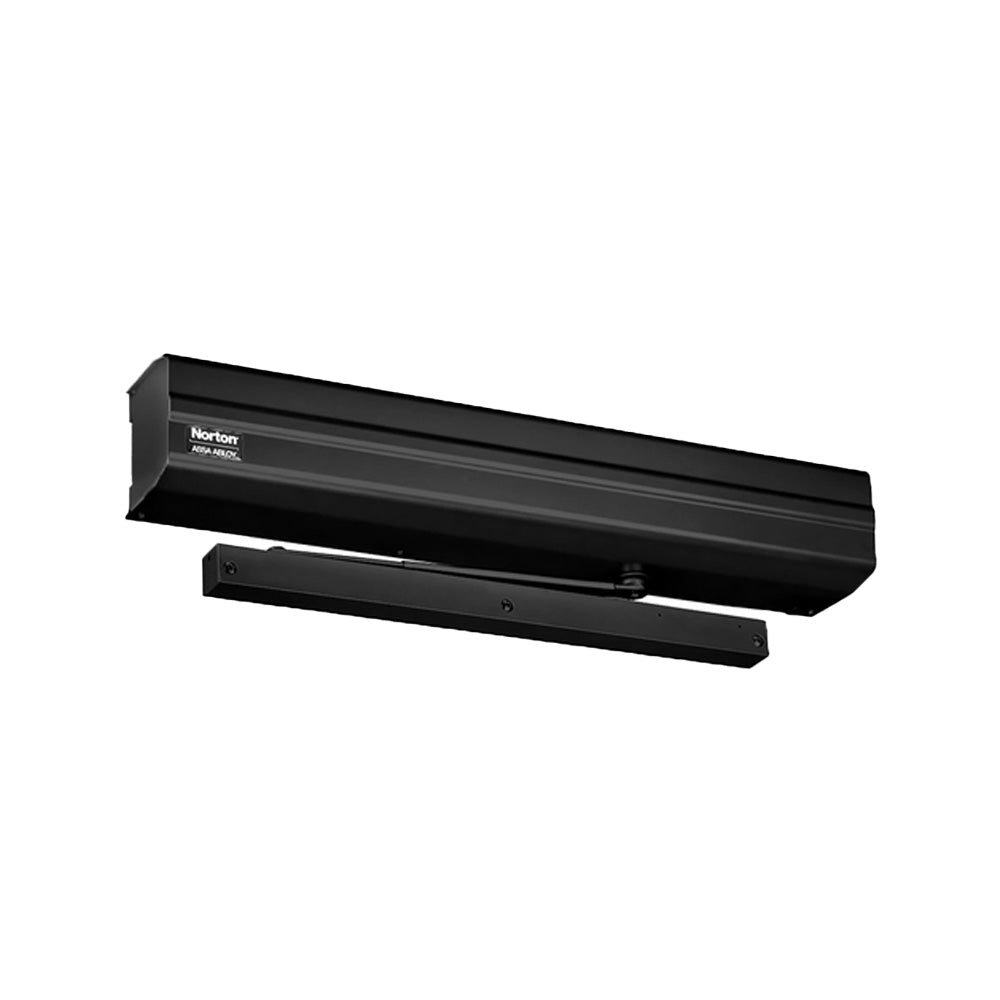

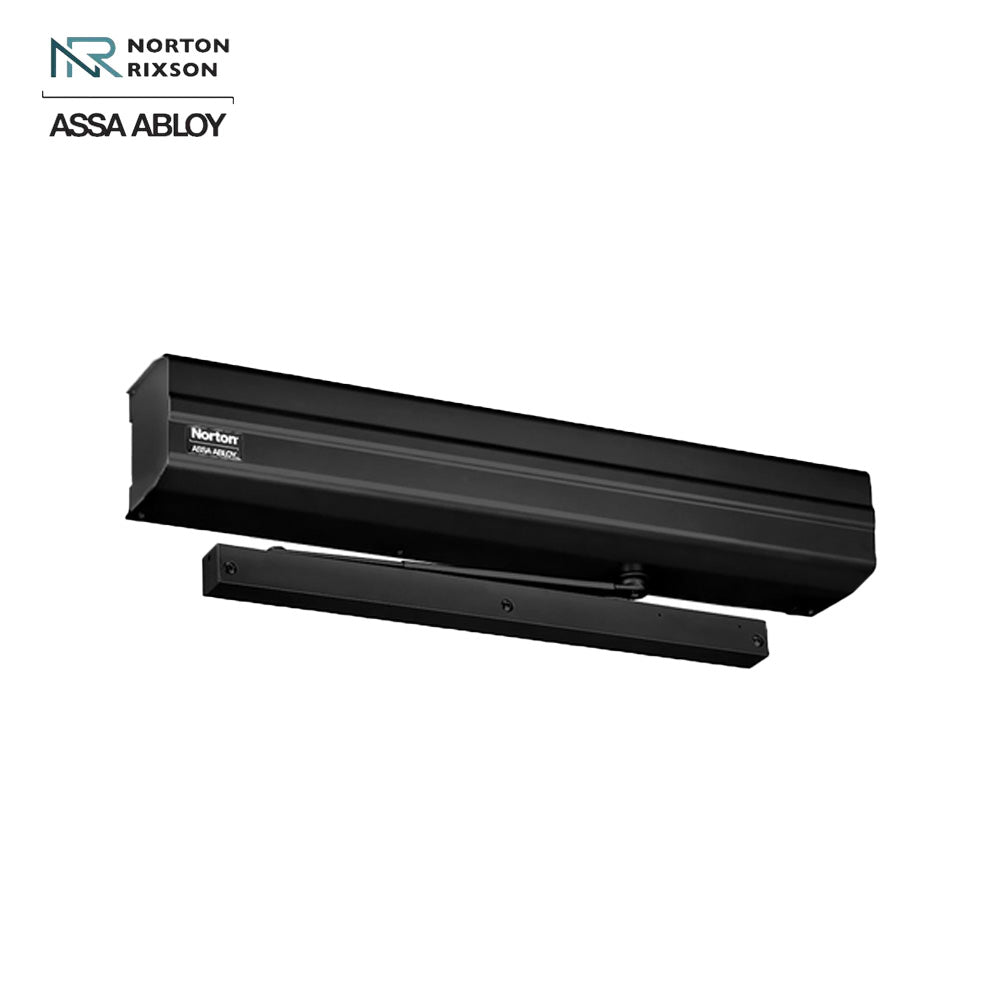

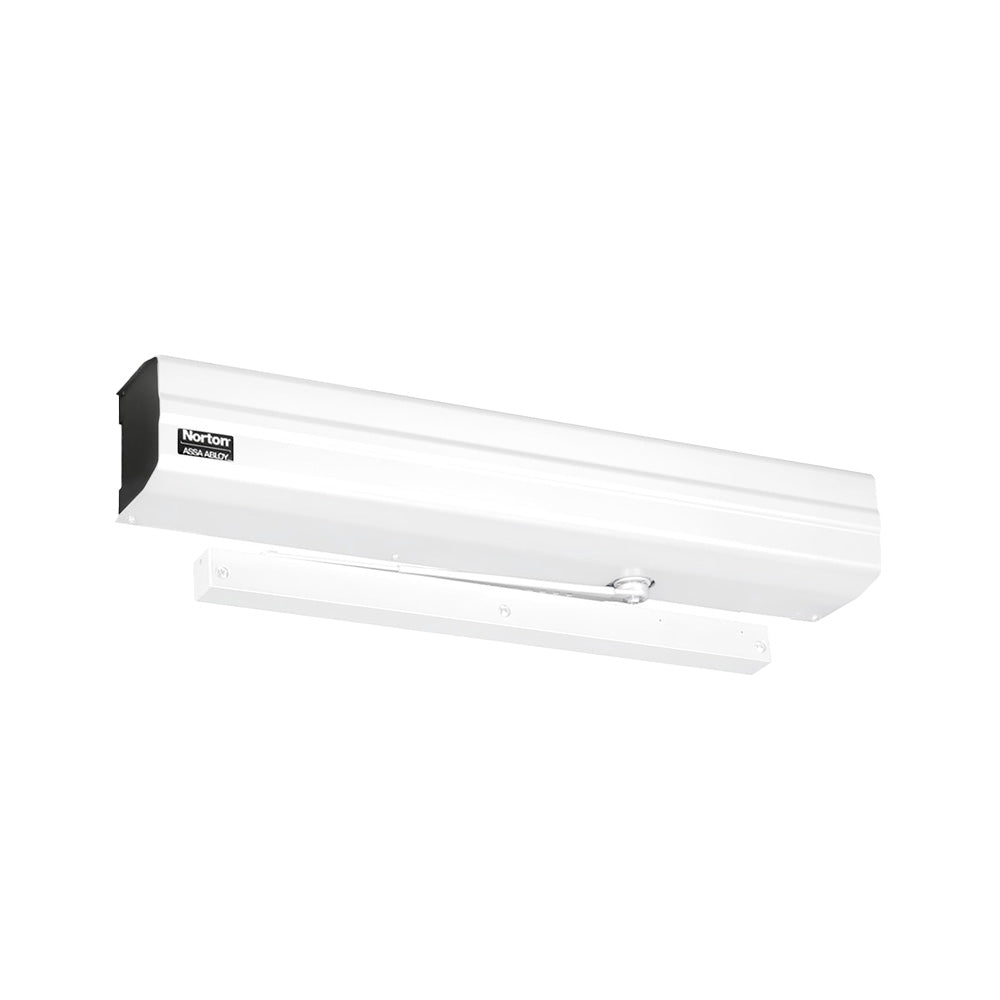

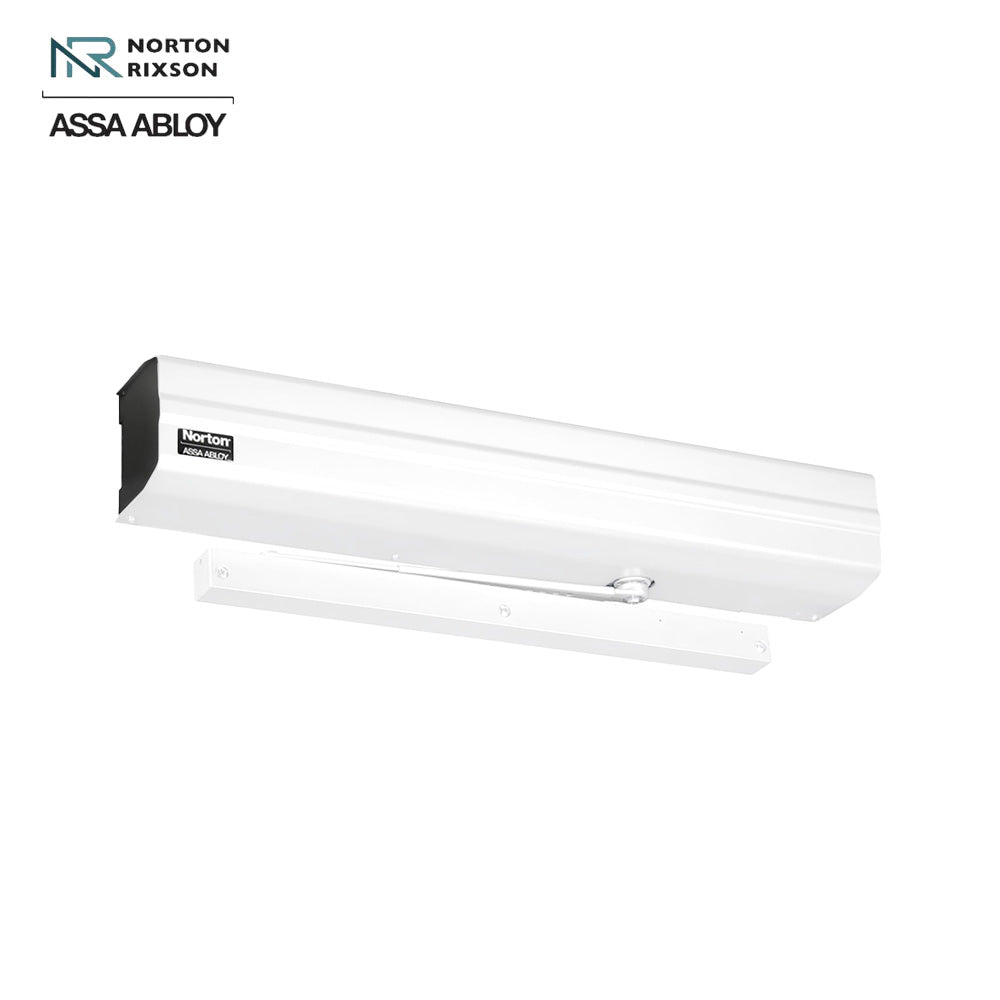

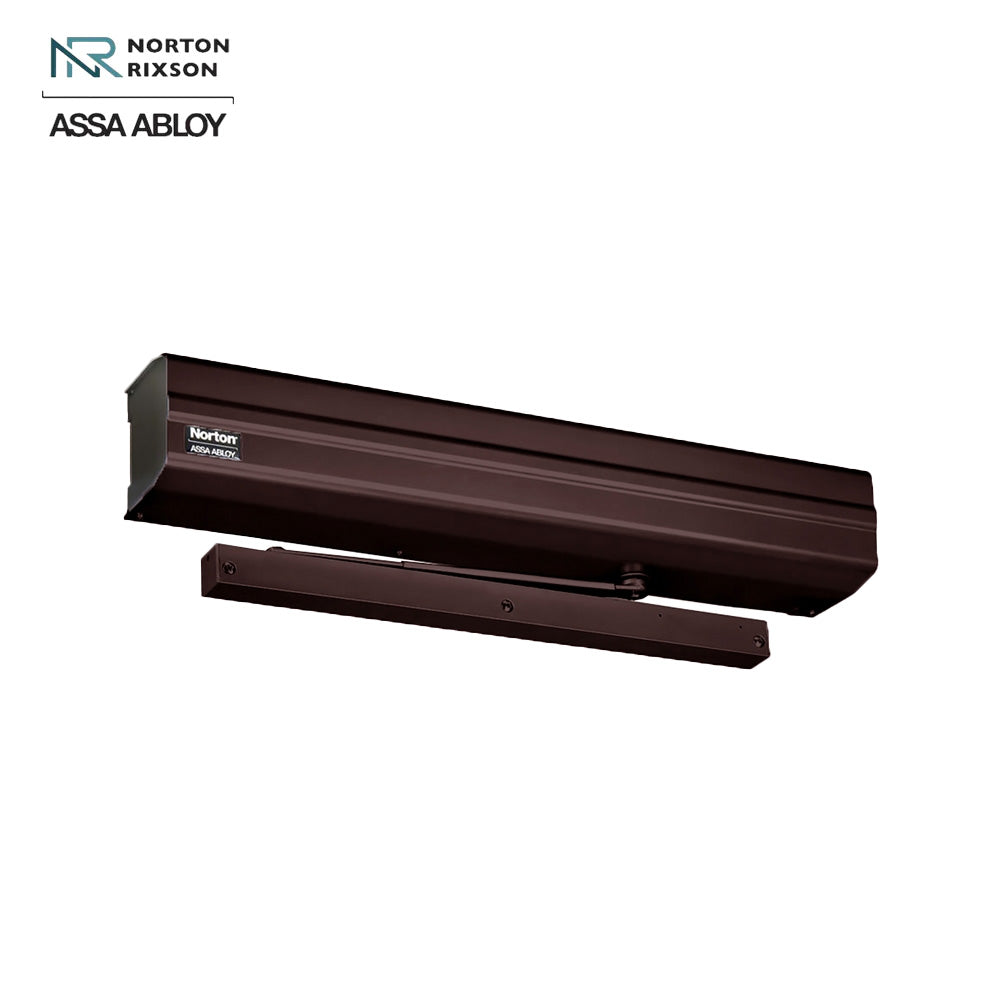

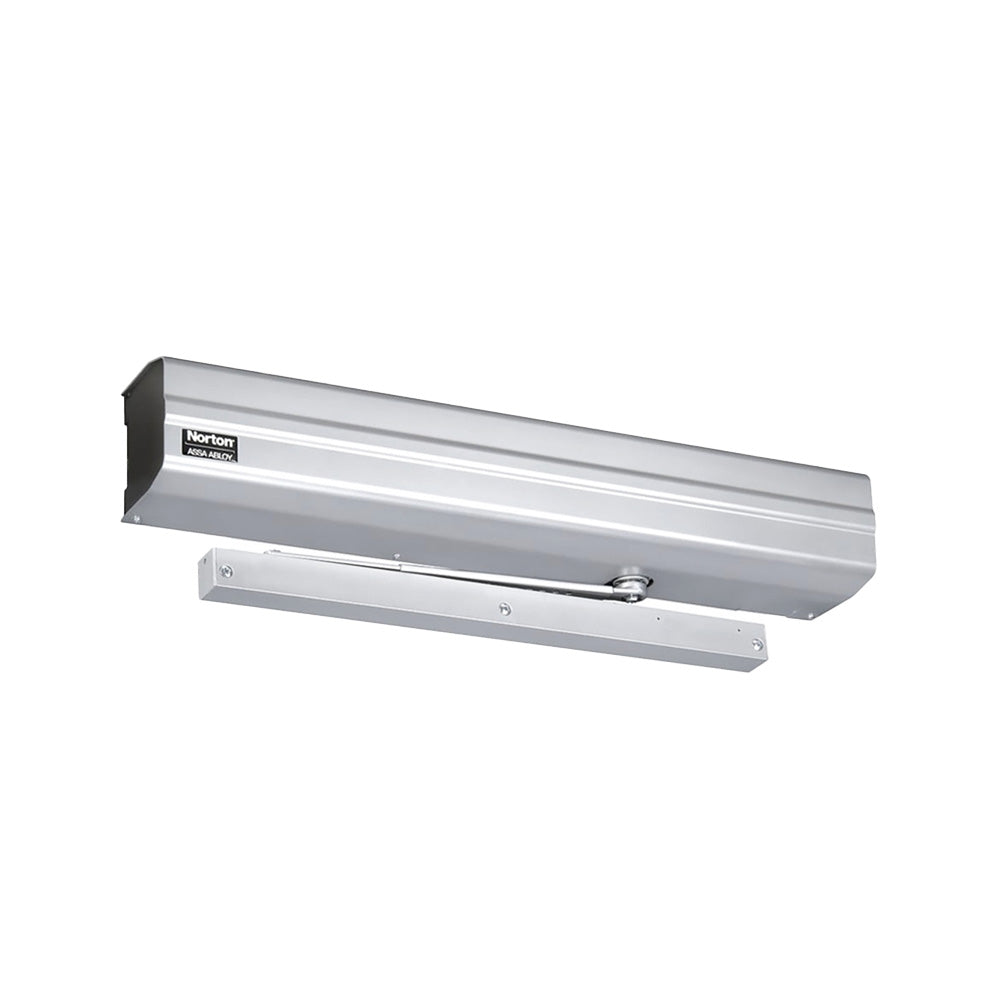

Norton - 5740K3 - Low Energy Surface Mounted Electrohydraulic Door Operator Universal Kit Push and Pull Arms with 2 Wall Switches and 2 Transmitters Receiver Power Cord

Norton - 5740K3 - Low Energy Surface Mounted Electrohydraulic Door Operator Universal Kit Push and Pull Arms with 2 Wall Switches and 2 Transmitters Receiver Power Cord

The 5700 Series design is based on ease and simplicity. This unit installs in minutes rather than hours and consists of three basic components: inverter, motor and Norton's 1601 closer body. Quiet and dependable, the 5700 meets the requirements of the Americans with Disability Act (A.D.A.) and ANSI/BHMA A156.4. Available push- or pull- side mounting, this unit is perfect for applications that don't require special features but demands reliability.

Features:

• Door Controls (interior) (exterior) swinging door(s) shall be of rack and pinion design contained within a precision cast aluminum housing.
• Door closing force shall be adjustable to ensure adequate closing control.
• Door closing speed shall be controlled by independent hydraulic adjustment valves in the sweep and latch range of the closing cycle.
• Door Operator shall provide conventional door closer opening forces unless the power operator motor is activated.
• Door Operator shall provide conventional door closing forces at all times except in the event of power outage during powered door open cycle.
• Door Operator opening force and speed shall be adjustable by independent electronic adjustment to ensure adequate opening control per accessibility codes.
• Door Operator shall have an adjustable hydraulic backcheck valve to cushion the door speed if door is opened violently.
• Door Operator shall have a manual adjustment to locate both full open and full closed door positions.
• Maximum door open shall be adjustable and capable to a maximum 180° conditions permitting. [(Door Operator shall be SELECTIVELY ACTIVATED by external initiating device, i.e., wall switch, etc.)]
• Door operator shall have adjustable hold open time capability in range from 5 to 30 seconds.
• Door operator shall have input line rating of 120VAC, .6A or 240VAC, .3A. Units shall have relay contact for interfacing products having a contact rating of 30VDC at 1A or 125VAC at .5A.
• Unit shall have an external On/Off Switch to defeat powered opening when desired.
• Unit shall have an internal circuit breaker switch to interrupt input power for servicing.
• Unit shall be U.L. Listed for automatic closing door.
• Unit shall be in compliance with the requirements of the Americans With Disabilities Act (ADA), ANSI standards A117.1 and A156.19.
• Unit shall meet C-UL US.

Product Specifications:

Technical Specifications:

Downloads:

• 5700 Series Operator, Pull Side Mounted
• 5700 Series Operator, Push Side Mounted
