Norton - 1601 - Tri Mount Surface Closer with Double Lever Arm Regular and 180 Deg. Swing - Adjustable Size 1-6 -Grade 1 - 693 (Black Painted)

  • Product SKU: NRT-1601-693
  • Order within

    and choose FedEx 2Day® Shipping

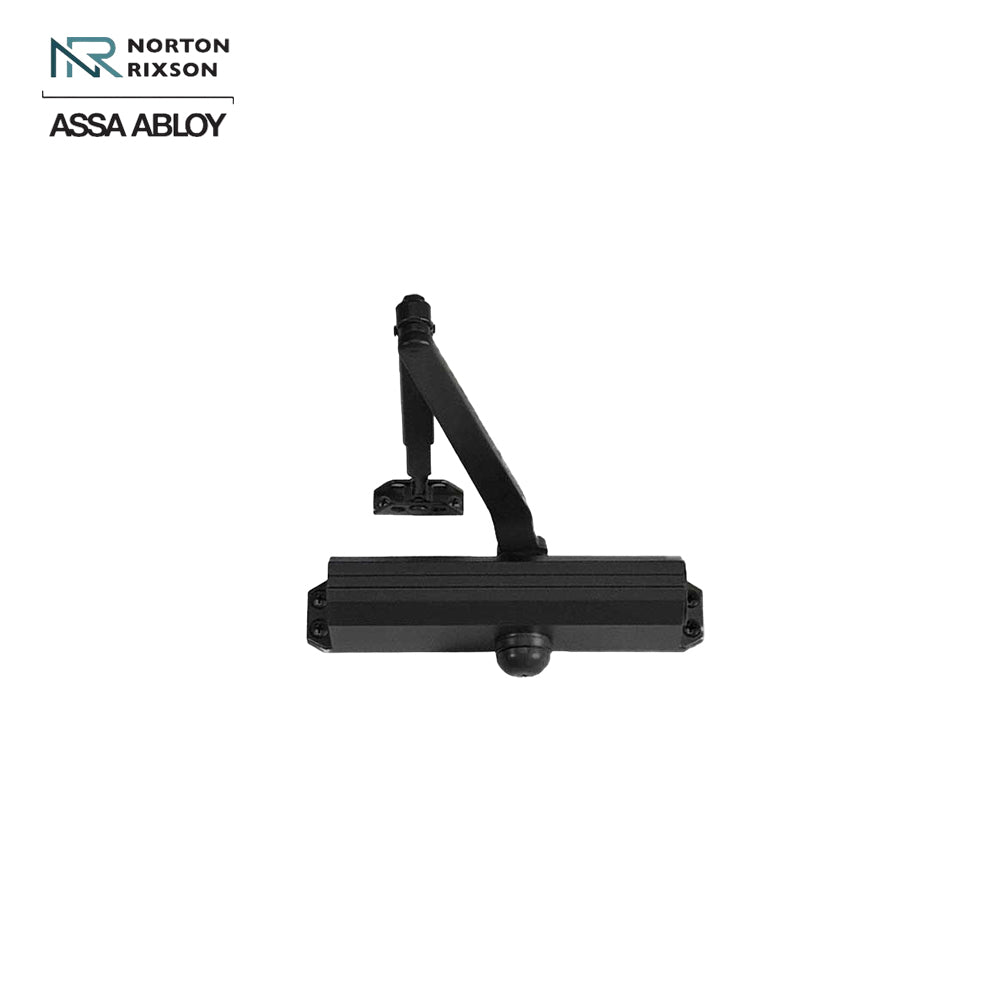

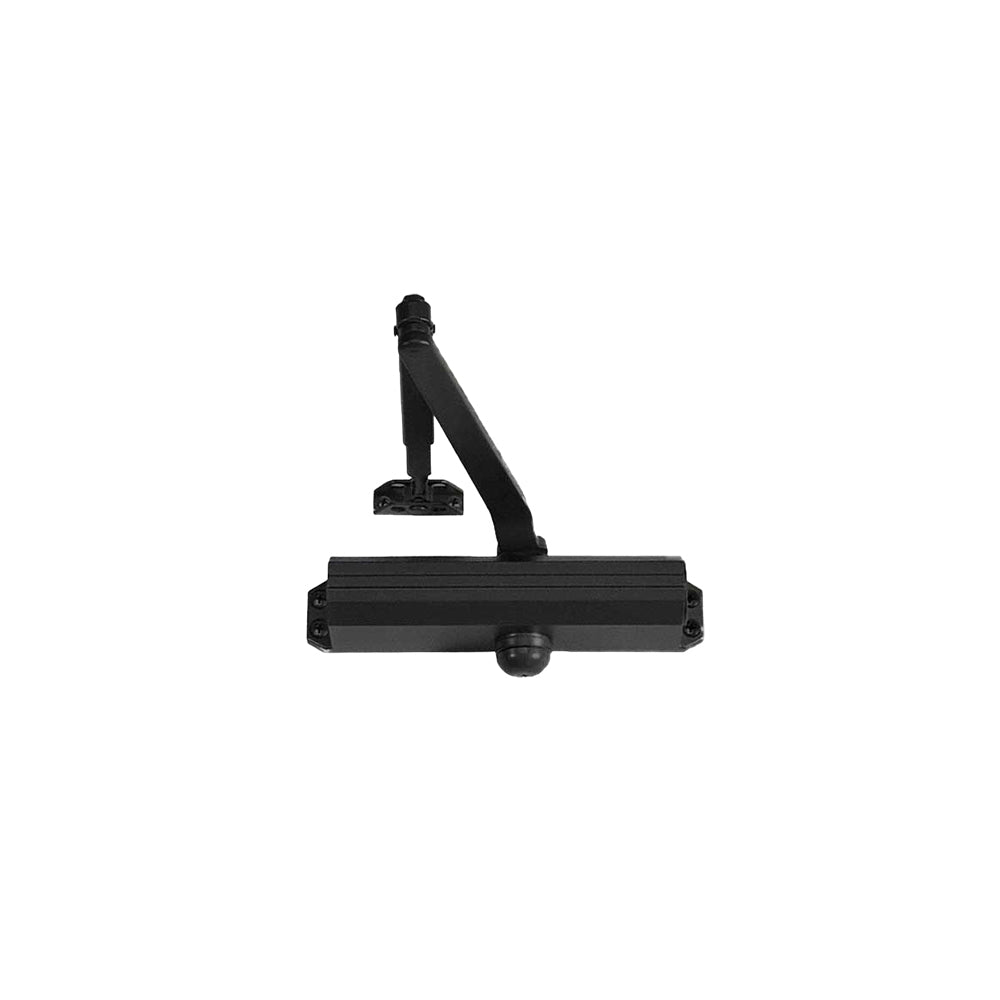

Norton - 1601 - Tri Mount Surface Closer with Double Lever Arm Regular and 180 Deg. Swing - Adjustable Size 1-6 -Grade 1 - 693 (Black Painted)

Norton 1601 Series Closers is fully adjustable door closer for aluminum storefronts and other medium traffic applications. It offer time-tested quality, performance and reliability. A long-standing staple in the industry, these Grade 1 closers are designed for interior or exterior doors.


  • Heavy duty, one-piece cast aluminum body
  • Available adjustable 1-6 and fixed spring sizes 3 and 4 units
  • Full variety of arms available as hold open or non- hold open
  • Maximum Degree of Swing: 180°, trim permitting
  • Non-handed
  • 2-7/8" projection
  • Plastic cover optional


  • Aluminum alloy closer body provides for long life
  • Independent sweep, latch and back-check intensity valves ensure positive control
  • Wide variety of arms and applications for most any environment
  • Features a quick-adjust slide arm for quick installation and adjustment
Product Specifications:
Vendor Assa Abloy
Manufacturer Norton
SKU 1601 693
UID NOR3001601693
Grade Grade 1
Installation Commercial
Unit of Measure Each
UL Listing Type UL10C
ANSI Number ANSI/BHMA A156.4, Grade 1 Certified
Limited Warranty 15 Years
Fire Rated 3 Hours {A}
Technical Specifications:
Type Surface
Technology Hydraulic
Mounting Location Push Side
Mounting Style Parallel Arm
Closer Size 1 to 6
Arm Type Parallel Arm Rigid
Hand Non-Handed
Degree Swing 180 Deg.
Back Check Adjustable
Door Weight 250 lbs.
Product Type Surface Closers
