Norton - 8301H - Hydraulic Tri Mount Push or Pull Side Mounting wit...
Description
Description

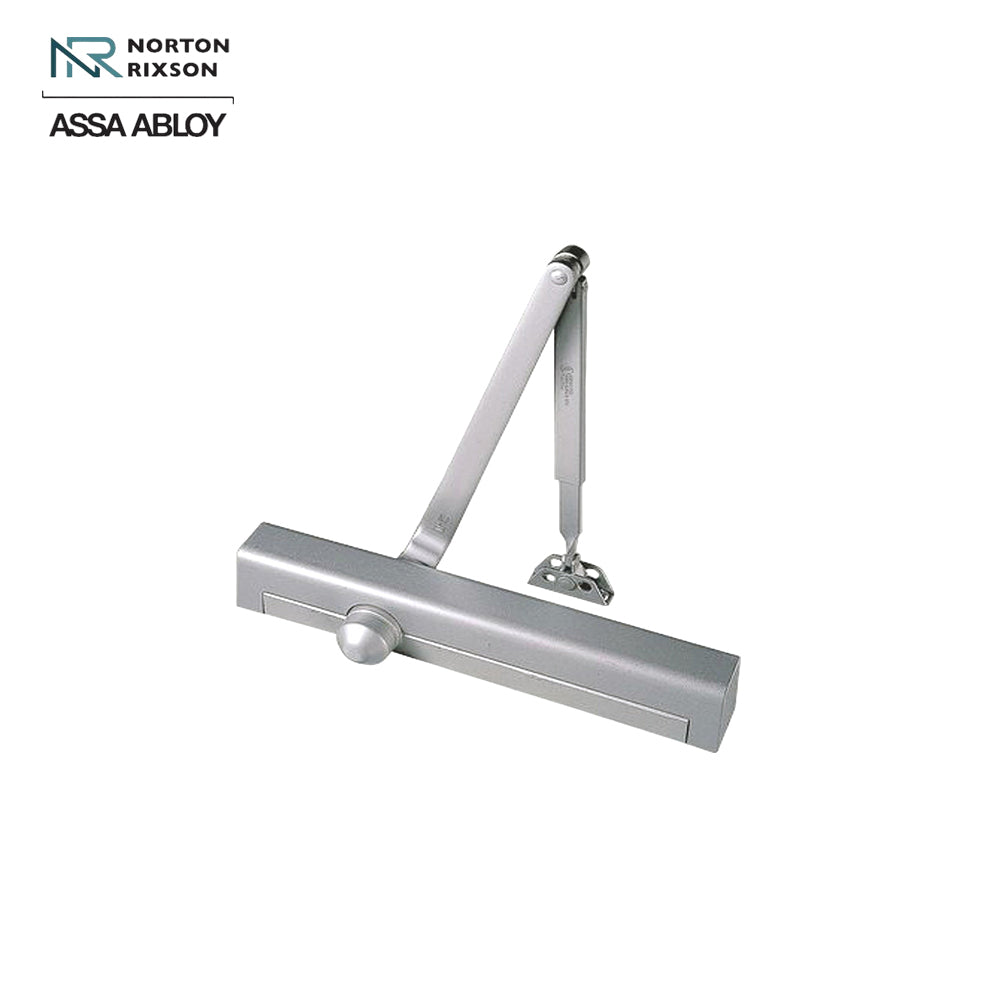

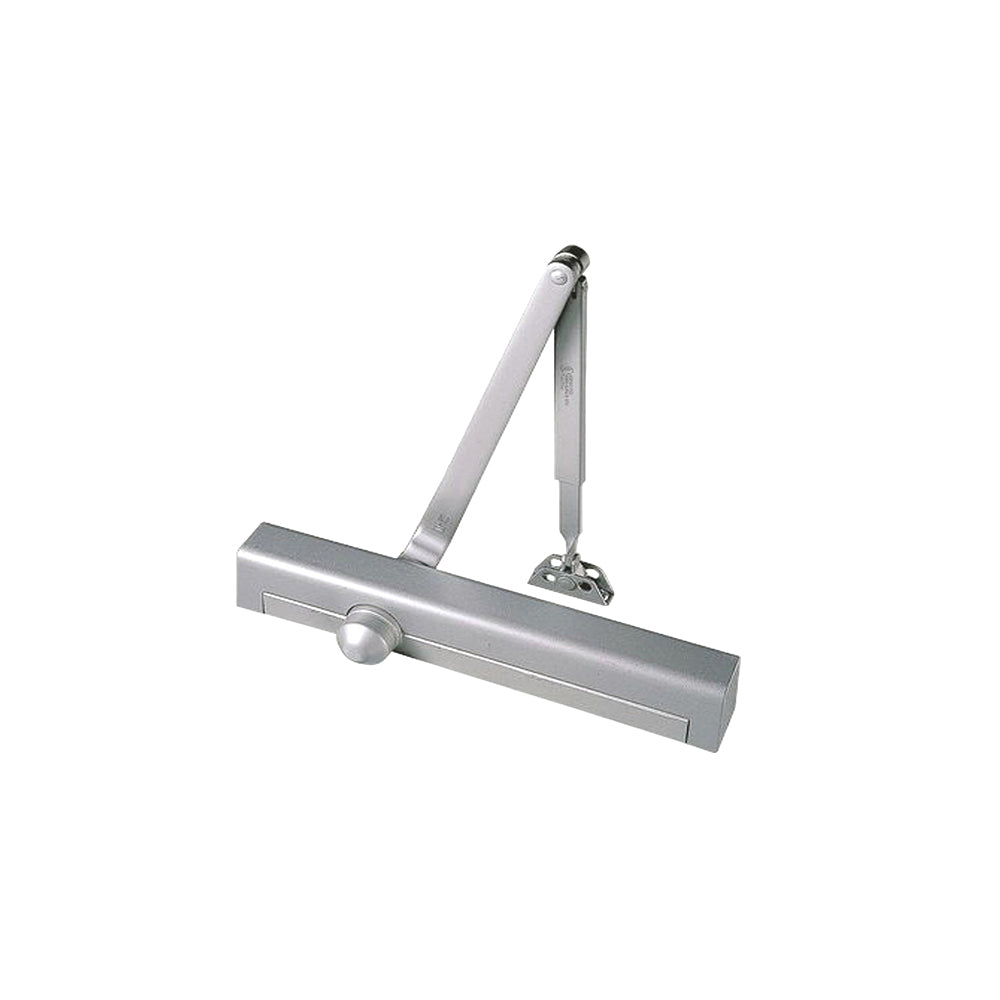

Norton - 8301H - Hydraulic Tri Mount Push or Pull Side Mounting with Regular Arm Size 1 to 6 and Adjustable Friction Hold Open - Grade 1 - 689 (Aluminum Painted)
The 8000 Series Door Closers offer the ideal combination of appearance, reliability and durability in today's market. With features such as staked valves, precise valve adjustment and a complete range of arm and cover options, the 8000 Series closer can meet virtually any application challenge.
Features:
- Closers for interior and exterior doors shall be full rack-and-pinion type with cast aluminum alloy shell.
- Closers shall be surface mounted and shall project no more than 2-1/8" from the surface of the door with standard cover.
- Closers shall be non-handed to permit installation on doors of either hand.
- Closer fluid shall contain lubricity and anti-oxidation agents.
- Closer fluid shall maintain stable viscosity to allow door closer to perform in temperatures ranging from extremely high to as low as -40°F.
- Closers shall have multi-size spring power adjustment to permit setting of spring from size 1 through size 6.
- Closers shall have two non-critical valves, hex key adjusted, to independently regulate sweep speed and latch speed.
- Closers shall have adjustable backcheck intensity controlled by a hex key adjusted valve.
- [Closers shall have adjustable delayed action closing controlled by a hex key adjustable valve.]
- Regular arm and top jamb closers shall have a non-hold open shoe permitting 15% ( + or – 7-1/2% ) power adjustment.
- **Closers shall be enclosed in a [molded resin cover] [plated or sprayed metal cover]
- Closers to be Norton® [8301/8501] [8501M] [8501MA] [8501A].
Product Specifications:
| Vendor | Assa Abloy |
| Manufacturer | Norton |
| SKU | 8301H 689 |
| UID | NOR3008301H689 |
| Grade | Grade 1 |
| Installation | Commercial |
| Origin | USA |
| Unit of Measure | Each |
| Application | Tri-Packed, Hold Open |
| Base Material | Varies |
| UL Listing Type | UL10C |
| ANSI Number | ANSI A156.4 |
| BAA Qualified | Yes |
| Limited Warranty | 25 Years |
| ADA Compliance | Yes |
Technical Specifications:
| Type | Surface |
| Technology | Hydraulic |
| Mounting Location | Push or Pull Side |
| Mounting Style | Tri Mount |
| Hold Open | Yes |
| Hold Open Type | Friction |
| Degree Hold Open | Adjustable |
| Closer Size | 1 to 6 |
| Arm Type | Double Lever Arm Regular |
| Hand | Non-Handed |
| Back Check | Adjustable |
| Cover | Plastic |
| Cold Weather Fluid | Yes |
| Product Type | Surface Closers |
