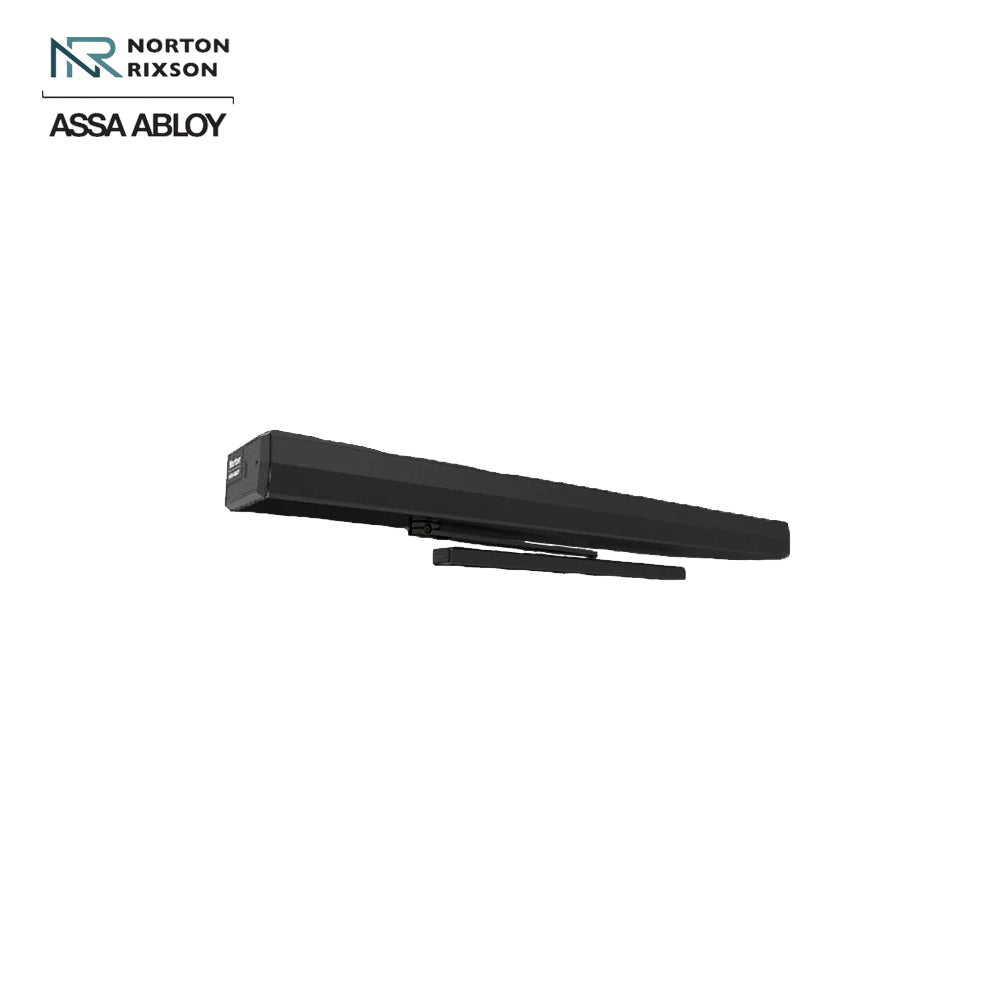

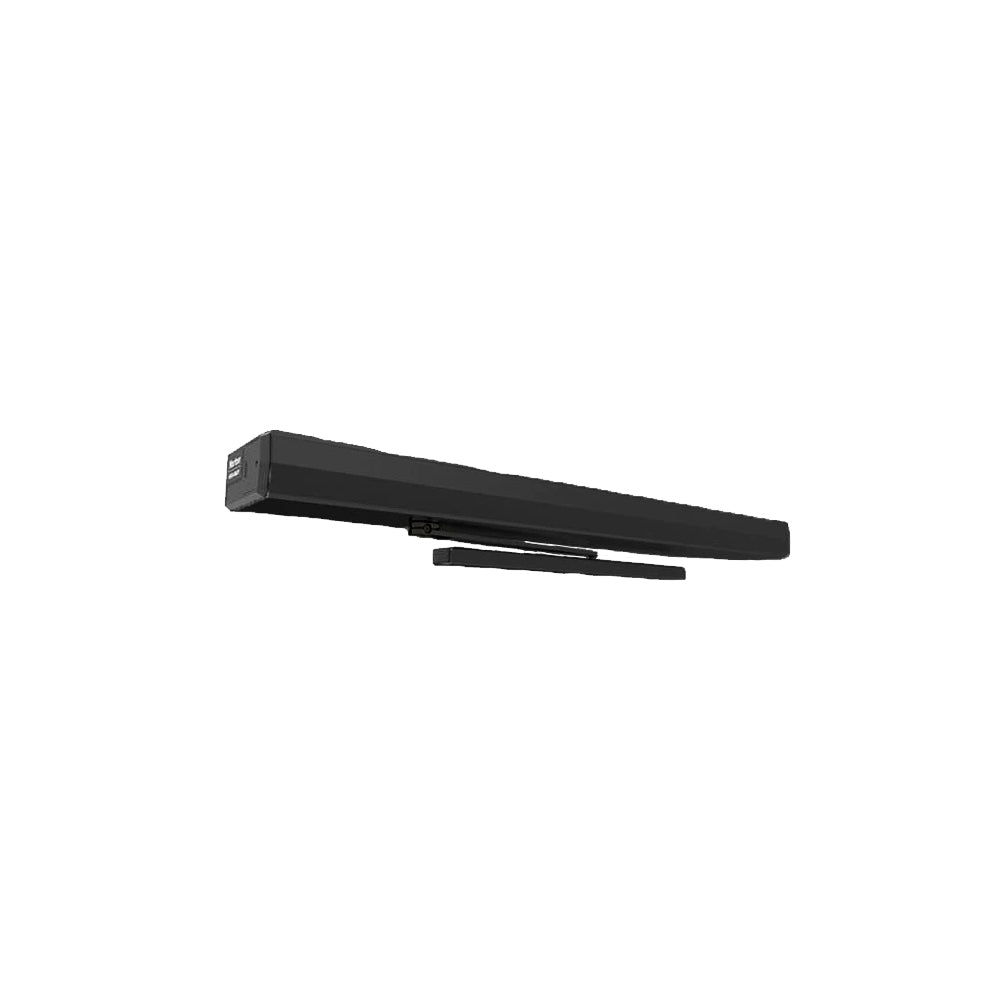

Norton - Low Energy Door Operator Surface Mount with Push or Pull Side and Double Lever Arm Regular - 690 (Dark Bronze)

The Norton 6300 Series Low Energy Operator offers a broad set of intelligent functions, such as power close, latch assist and obstruction detection to safely secure a variety of moderate to high traffic openings. A unique design with one of the slimmest profiles available allows the 6300 to blend more seamlessly with the frame while fitting challenging applications with minimal header space. A modular design, simple controls, and new wifi interface via a mobile device make for easy installation and setup.

  • First Two Digits "63" Is the Series
  • #3 STOP (PUSH) SIDE OF DOOR 3 –Standard-Duty Double Lever Arm 110°-135° (depending on reveal) Reveals 1/8" to 6-3/4" (3mm to 171mm)
  • #4 UNIVERSAL (PULL OR PUSH SIDE) MOUNTING 4 - Rigid Arm Slide Track AND Double Lever Arm
  • FOURTH DIGIT Identifies Model/ Cover Length 1 – 37-3/8" overall length
Produt Specifications:
Vendor Assa Abloy
Manufacturer Norton
SKU 6341 690
UID NOR6341690
Installation Commercial
Origin USA
Unit of Measure Each
Application Pairs of 36 In. Doors
BAA Qualified Yes
Limited Warranty 2 Years
ADA Compliance Yes
Technical Specifications:
Type Surface
Technology Low Energy Door Operator
Mounting Location Push or Pull Side
Mounting Style Slide Track or Top Jamb
Hold Open Type Electric
Degree Hold Open Adjustable
Arm Type Rigid Arm (Track) and Double Lever Arm Regular
Hand Non-Handed
Degree Swing Up to 180 Deg.
Back Check Adjustable
Delay Yes
Cover Full
Door Size Min. 36 In. - Max 48 In.
Door Weight 200 Lbs. Max
Reveal Size 1/8 In.
Voltage 24V
Product Type Door Operators
