Norton - Wireless Interface Module for Door Closer Parts -Version 5800 Series ADAEZ Low Energy Operator

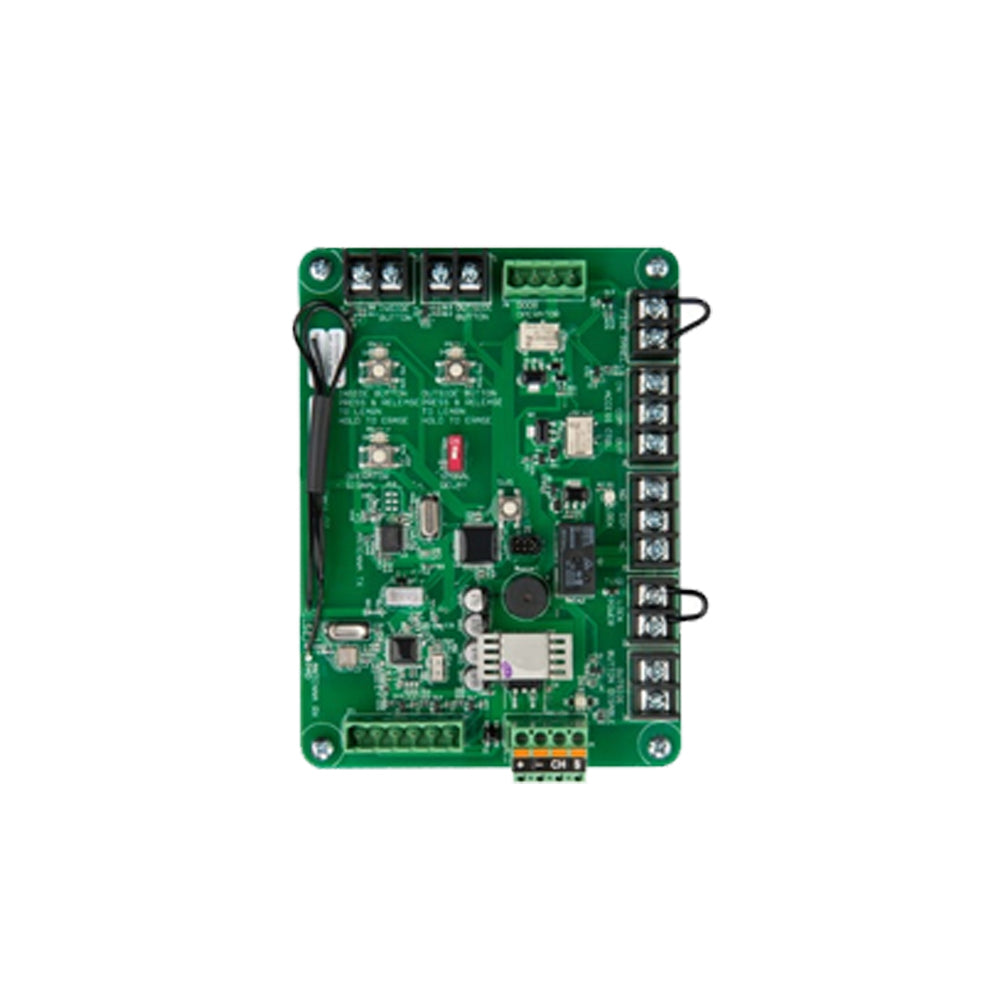

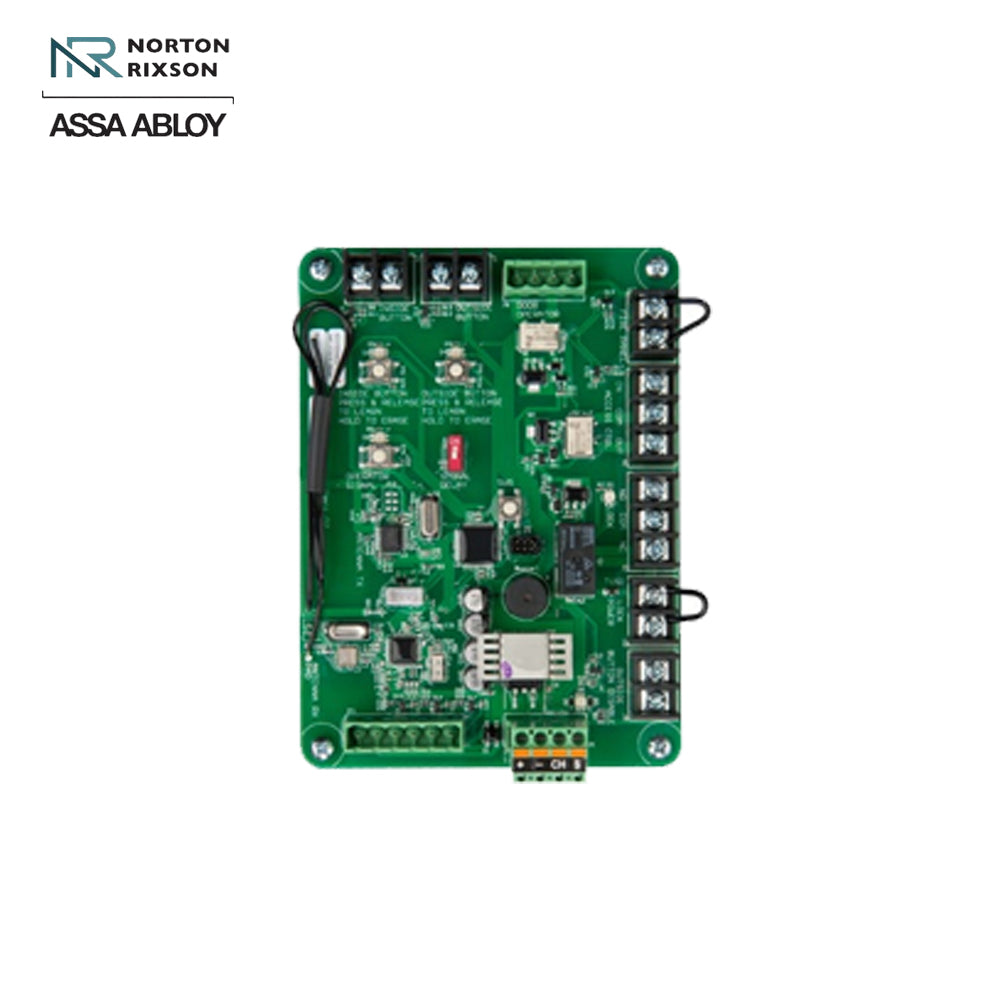

The Wireless Interface Module ADA1028W meets the need of a broader set of applications that requires simple and seamless door control through a variety of devices and systems. Designed to interface with all versions of the 5800 ADAEZ Low Energy Operator, actuators, systems, and wired or ADAEZ wireless push buttons. Mounts simply on the door with ease of installation. No voltage or low voltage power to opening. Patented Auto-Tune ensures safety and compliance. Characterized by it's flexibility adjustable open/closing force, controls doors up to 48' wide and 250 lbs. Functions like ordinary door closers when used manually. The Wireless Interface Module can be ordered separately; specify with part number ADA1028W.

The Wireless Interface Module allows the 5831 Series door operator to interface to 5800 wired or wireless push buttons, wireless remote, an electric lock, fire panel, access control, and an outside push button disable contact.

Features:

Mounting: The WIM (108mm x 146mm) is designed to fit inside a power supply cabinet.

Inputs:

  • Power input: 24VDC
  • Hardwire push buttons input: separate INSIDE and an OUTSIDE activation input
  • Wireless push button input: separate INSIDE and an OUTSIDE RF activation input
  • Operator connection cable: Plug in 5831 Series swing door cable connector interface
  • Lock power: Dry contact SPDT to power an electric lock
  • Outside push button disable: privacy feature

Outputs:

  • Wireless Output: RF signal to activate door opener
  • Output Contacts: SPDT dry contact output for AUX signal
  • Lock Contacts: SPDT dry contact output for LOCK
  • Access Control Contacts: indicates valid Unlock signal
  • Signal Delay Timer: 1.5 second lock release delay
  • Emergency Interface Relay (EIR): disables signal inputs
Specifications:
Vendor Assa Abloy
Manufacturer Norton
SKU ADA1028W
UID NOR300ADA1028W
Installation Commercial
Product Type Door Closer Parts
