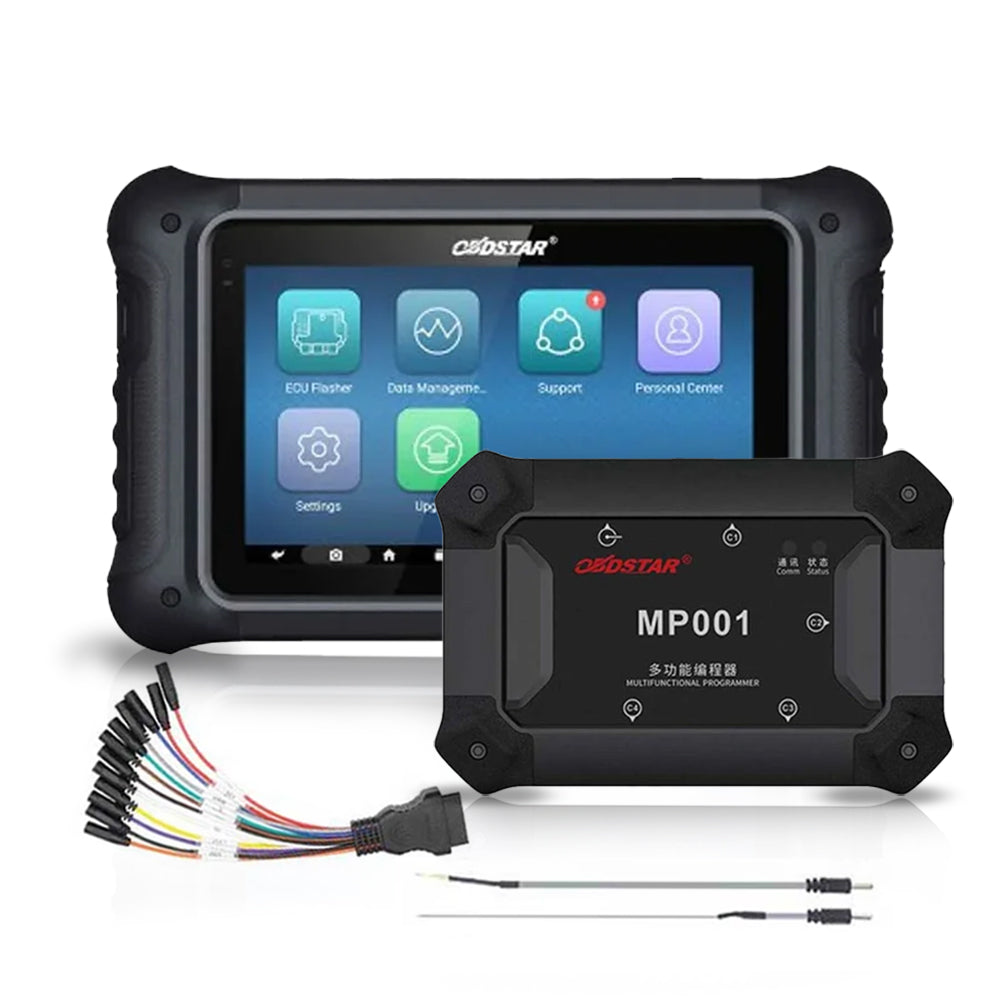

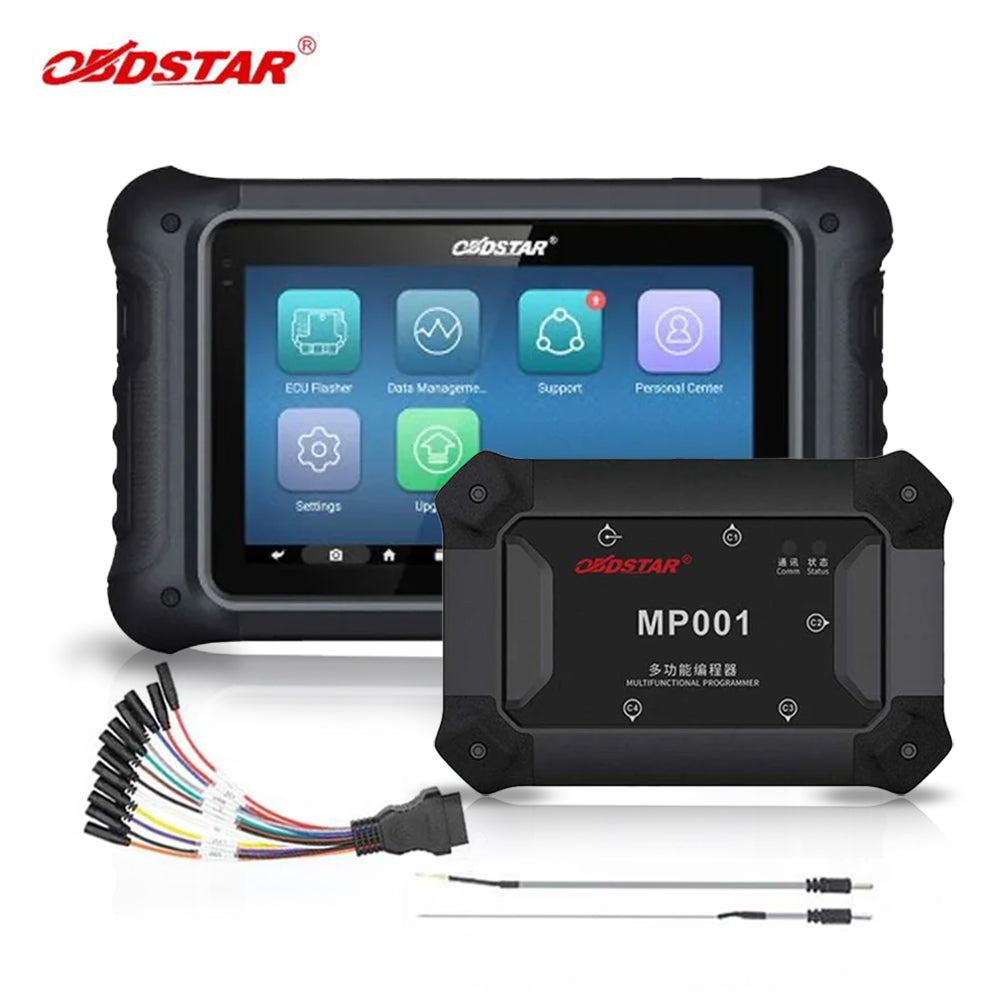

OBDSTAR DC706 ECU Tool Full Version Bundle with MP001 Kit and ECU Bench Jumper Cables

OBDSTAR DC706 ECU Tool Full Version Bundle with MP001 Kit and ECU Bench Jumper Cables

Includes:

• DC706 ECU Tool Full Version for Car and Motorcycle
• MP001 Kit with ECU Bench Jumper

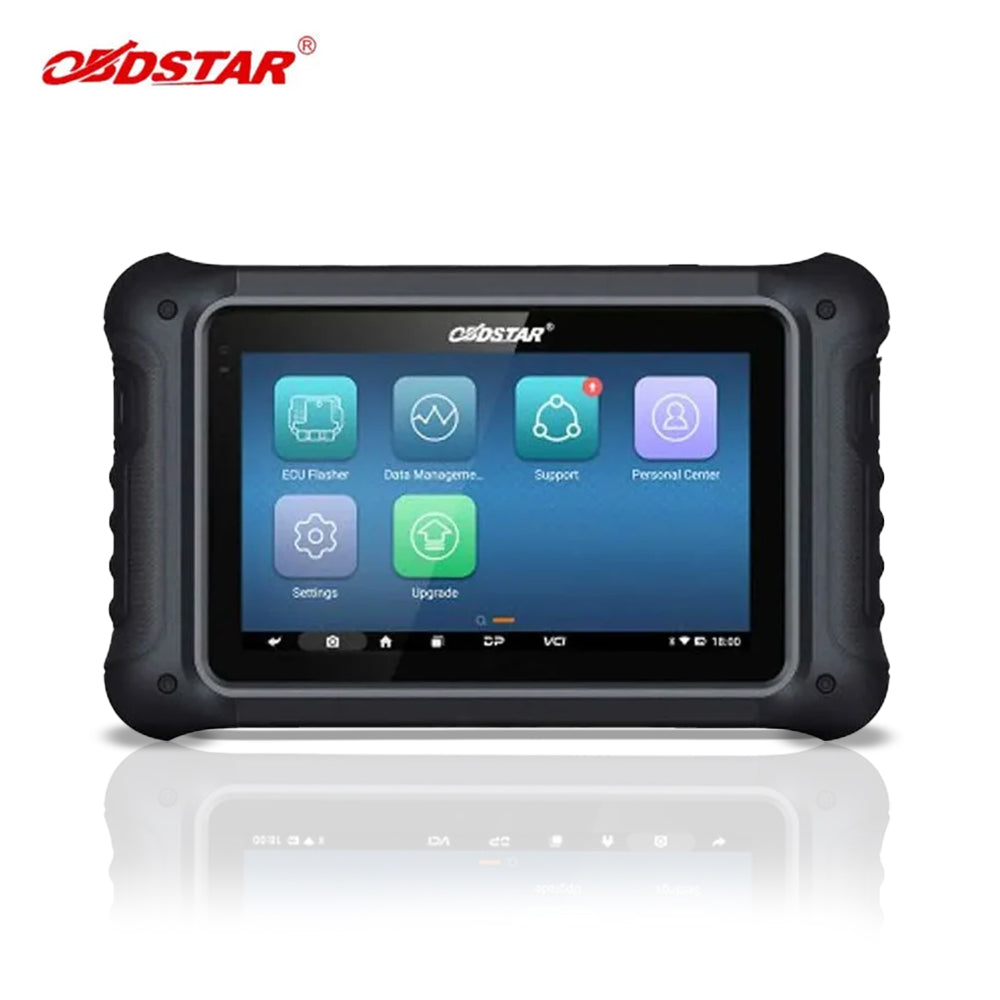

DC706 ECU Tool Full Version for Car and Motorcycle

Description:

• ECM, TCM & BODY Clone by OBD or BENCH
• ECU Clone for Cars and Motorcycles
• One Year Update for Free

OBDSTAR DC706 ECU tool is designed for vehicle ECM, TCM and body/other system for ECU programming. It can read ECU info, R/W Eeprom/Dflash/Pflash/MAP, reset ECU(Virgin), calibrate mileage, read IMMO PIN code, ECU recovery and so on. It's all by OBD or BENCH mode and makes ECU cloning easy. Support English only.

1 year update for free. 249 USD for another year of update. (There is a promotion, if you buy the one year update before it expires, 179 USD for one year update)

Full version: ECM clone (Car/Motorcycle) + TCM clone + Body/Other clone
Ship from the USA and EU warehouse, fast delivery & no tax to the USA and EU countries.

Now supports the latest encrypted Bosch BMW ECUs including MD1CP032, MG1CS201 and MG1CS024. Read and write Internal Flash and EEPROM, unlock ECUs, read BMW ISN codes and perform automatic checksum correction using Boot Mode with the RH850/V850 Adapter Kit (C4-06).

OBDSTAR DC706 Functions:

• ECU Clone/ All by OBD or Bench
• ECM clone for cars(Bosch, Continental, Delphi, Denso, Magneti Marelli, Siemens)
• ECM clone for motorcycles(Bosch, Delphi, EFI...)
• TCM clone(Ac Delco, Bosch, Continental, Getrag, GM, Kefico, Siemens, Temic, ZF)
• Body/Other clone(FCA, FIAT, FORD, GM/OPEL, LAND ROVER/JAGUAR, PSA, SMART, VOLVO...)
• BMW Locked ECU Support
• ECU Unlock
• Read BMW ISN
• Boot Mode Support

Note: BMW locked ECU operations require the OBDSTAR MP001 Programmer together with the RH850/V850 Adapter Kit (C4-06). Boot Mode connection is required.

Supported ECU Manufacturers:

• ALPS
• Autoliv
• Bosch
• Continental
• Delphi
• Denso
• Johnson Controls
• Lear
• Magneti Marelli
• Siemens
• Temic
• Valero

Supported Brands:

Car:

• ASTON MARTIN
• BMW
• FAW
• FCA(ALFA ROMEO, CHRYSLER, DODGE, FIAT...)
• FORD/LINCOLN
• GM/OPEL
• HYUNDAI/KIA
• LAND ROVER/JAGUAR
• LUXGEN
• MASERATI
• MAZDA
• MITSUBISHI
• NISSAN
• OPEL
• PSA
• SMART
• SUBARU
• SUZUKI
• VOLVO
• VW/AUDI/SEAT/SKODA

Motorcycle:

• APRILIA
• BRP
• CFMOTO
• DERBI
• GILERA
• GUZZI
• PEUGEOT
• PIAGGIO
• QJBENELLI
• VESPA

Advanced Functions:

• R/W eeprom/dflash/pflash/Map, reset ECU(Virgin), calibrate mileage, read IMMO pin code, ECU recovery
• Support 200+ ECM types Partial functions require P003 adapter
• Support dozens of TCM types
• Support 100+ body/other ECU types(AIRBAG, BCM, BSI, CEM, DDM/PDM, DIM, EPS, KeyLess(RFHUB/RFHM), KVM, RFA, SAM)
• Support VW DQXXX (TCM) calibrate mileage
• Support motorcycle Delphi MT05, MT05.2, MT05.3 ECU clone
• Support motorcycle BRP ME17.8.5 ECU clone works withP003 adapter
• Support Piaggio series engine ECU clone(such as MIU G4 (M4G1)
• Support intelligent search by brand, model, part No., ECU manufacturer, MCU controller type
• Support automatic identification
• Strong help data files
• All by OBD or Bench mode
• Support recalibrate ODO function for DQ200, DQ250, VL501, DQ500 (0BH) CONTINENTAL, VL381
• Added recalibrate driving time function for VL381

More functions in development.

OBDSTAR DC706 Different Configurations:

Specifications:

Warranty and Updates:

• 1-Year Free Update

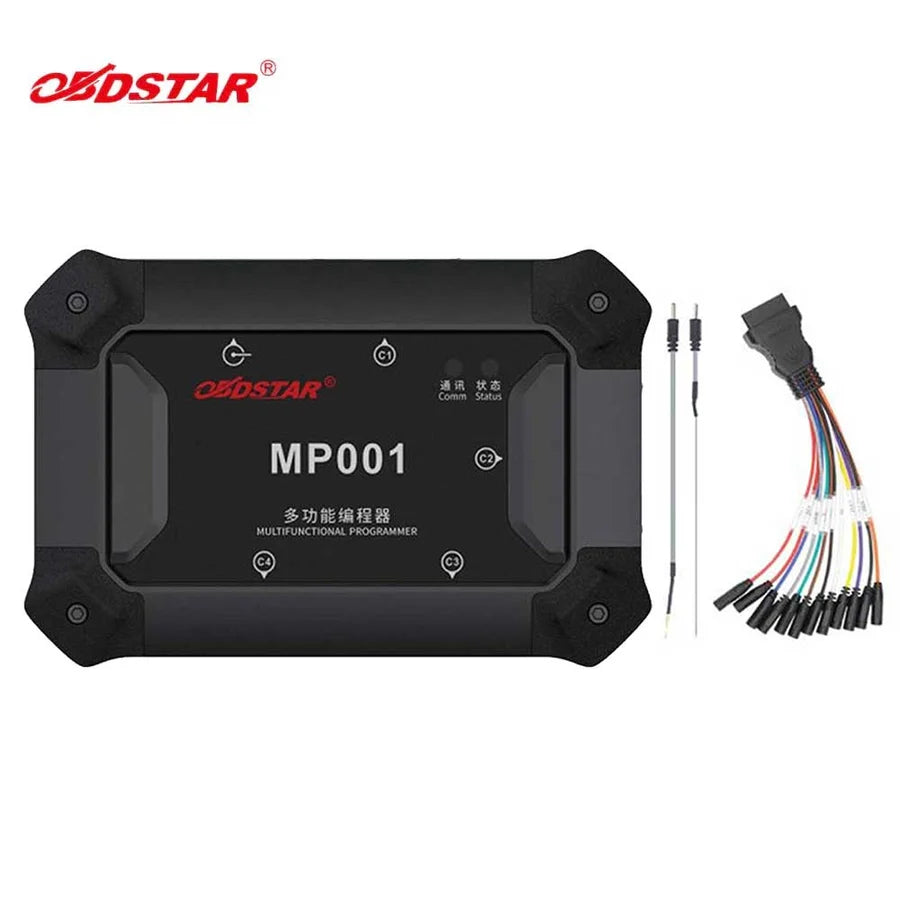

MP001 Kit with ECU Bench Jumper

MP001 is the latest automotive multi-function programmer developed by OBDSTAR. It fully supports EEPROM/MCU reading and writing/cloning/data processing for automobiles, commercial, new energy, motorcycles, marine (motorboats), etc., and is compatible with the P002 adapter (Toyota/Ford all-in-one adapter, Honda/Yamaha/Suzuki all-in-one adapter) and P003 adapter (some models of engine/gearbox clone K/CAN conversion, BOOT mode reading and writing) functions.

Software Function:

• EEPROM/MCU reading and writing
• Key flashing
• Steering angle repair
• Body computer data processing
• Immo off
• Pincode reading
• Battery module repair
• Instrument repair
• More functions are under development.

Specification:

Package List:

• W004 cable
• W005 cable
• C4-01 board
• C4-02 board
• W003 cable
• W007 clip cable

Note:

• Different tablet device models require different configuration software.
• To use MP001 programmer, you must have ECU bench jumper cables.

OBDSTAR ECU Bench Jumper for OBDSTAR MP001 Programmer

To use MP001 programmer, you must have ECU bench jumper cables.

Download:

• DC706 Function Display
• DC706 Accessories
• Moto ECU Clone Software Major Upgrade
• ECU Flasher Software Major Upgrade

Videos:
