OBDSTAR Key Master DP Plus Package A including 2 Year Software Update with Code Key Simulator, CANFD Adapter and Cables Package Bundle (Discontinued)

OBDSTAR Key Master DP Plus Package A including 2 Year Software Update with Code Key Simulator, CANFD Adapter and Cables Package Bundle

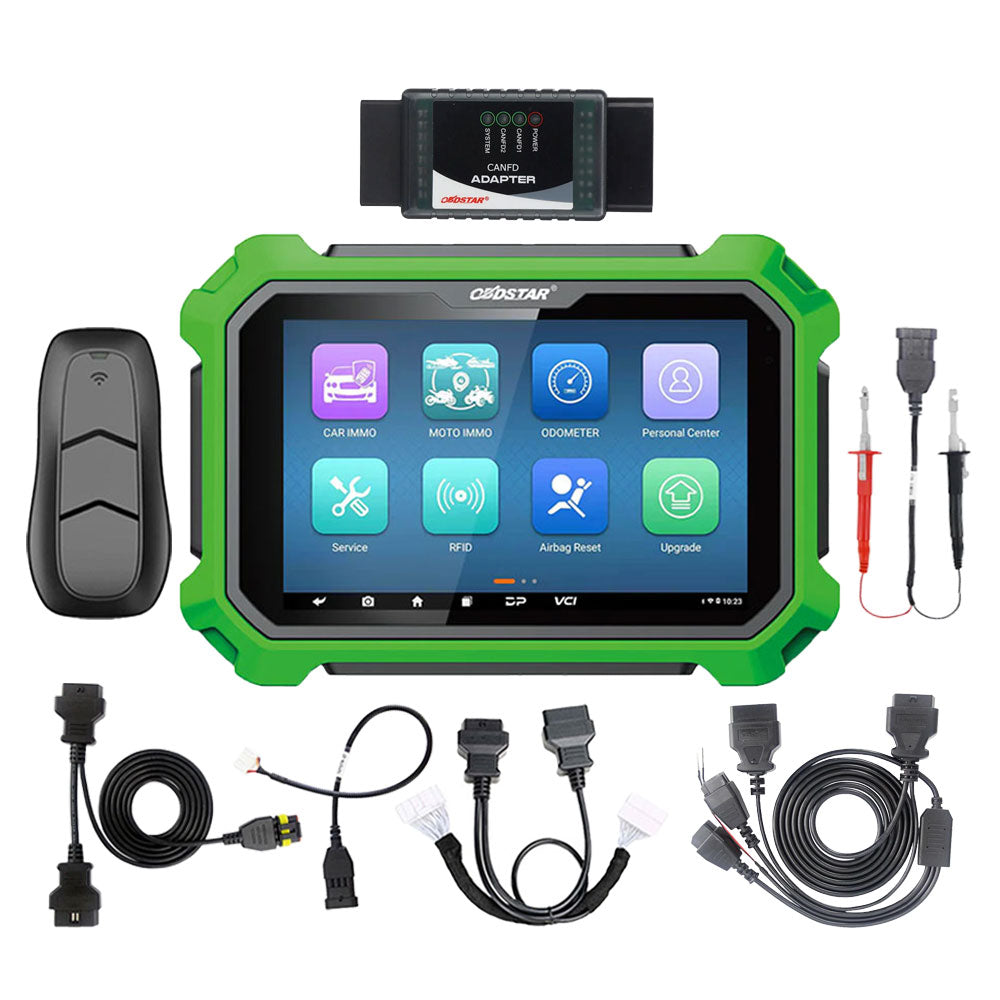

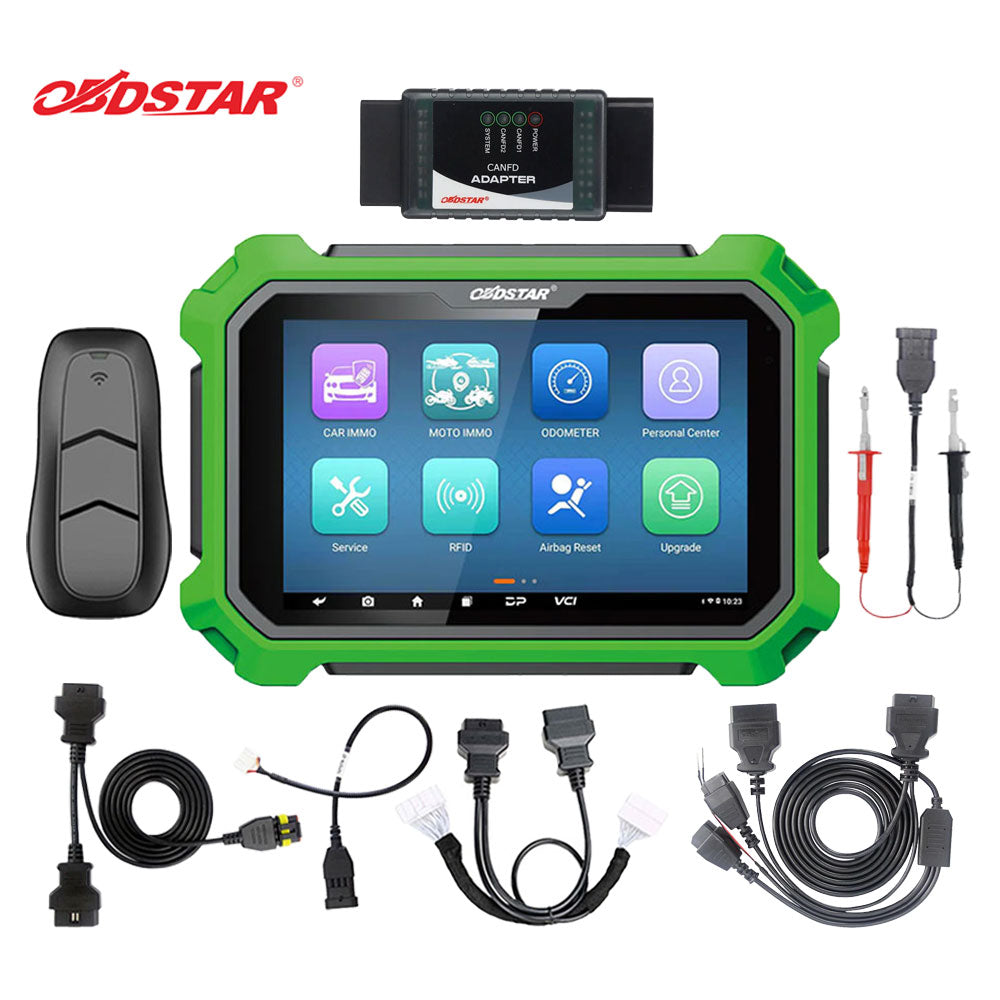

Includes:

• OBDSTAR Key Master DP Plus Package A
• OBDSTAR Code Key Simulator

• OBDSTAR CANFD Adapter
• OBDSTAR CAN Direct Kit
• OBDSTAR NISSAN-40 BCM Cable
• OBDSTAR FCA 12+8 Universal Adapter

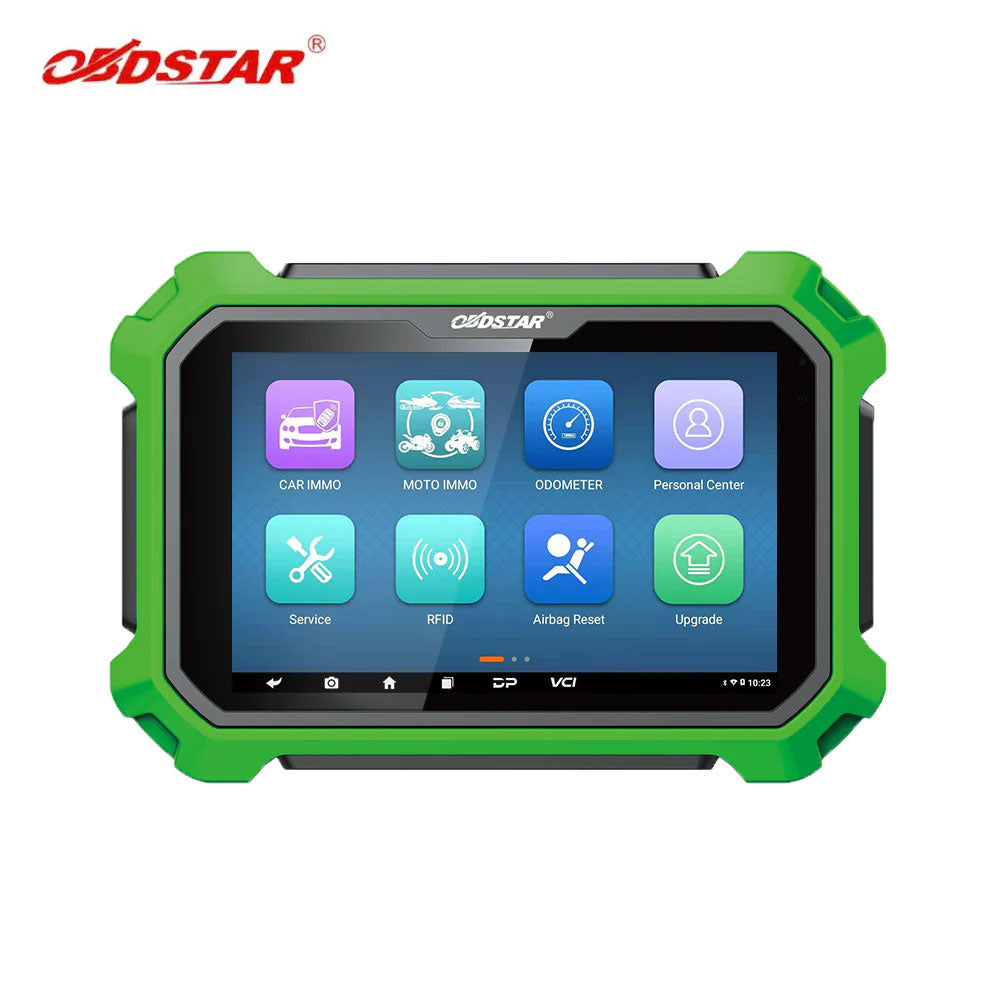

OBDSTAR Key Master DP Plus Programming Device Full Immobilizer Package A with 2 Year Software

Description:

This device is a new Android-based vehicle trouble diagnostic device developed for internet applications. It inherits from OBDSTAR advanced diagnosing technology and it is characterized by covering wide range of vehicles, featuring powerful function, and providing precise result. Through vehicle diagnostic OBD connector and variant mobile intelligent terminals, it achieves vehicle trouble diagnosis for full car model and full system vehicle. Meanwhile, taking advantage of mobile internet, this device integrates more application and service, such as Maintenance Database, remote assistant, One Key Upgrade etc.

Immobilizer A Package Includes:

• 12V2A DC Charger
• Main Cable
• P001 Programmer Unit
• C001 / C002 Circuit Boards
• W001 Cable
• W002 Cable
• W003 Cable
• IMMO Induction Coil
• RT100
• OBD II-16 Connector
• HYUNDAI-10 Connector
• KIA-20 Connector
• HONDA-3 Connector

Hardware Advantages:

• Built-in VCI box
• 8-inch touchscreen
• Charge directly via OBD interface
• Practical and high-end gift box
• Industrial design with silicone case
• Back bracket design:prop on the steering wheel or stand on the table
• P001 programmer: EEPROM adapter + RFID adapter + Key Renew adapter
• Add the clip of reading SOP 8PIN EEPROM
• C001/C002 circuit board to read and write chip data with welding
• IMMO induction coil to detect the key induction coil failure of the vehicle.
• Add wiring harness of ECU reading by OBD (for ECU cloning and switch activation)

Software Advantages:

• IMMO
• EEPROM
• Renew key
• Key programming
• Remote programming
• Cluster recalibration for KIA CEED 2021 RH850 DNPO
• Diagnosis

Package Feature Comparison

Download:

• Keymaster DP Plus User Manual
• Key Master Dp Plus Coverage 20220831

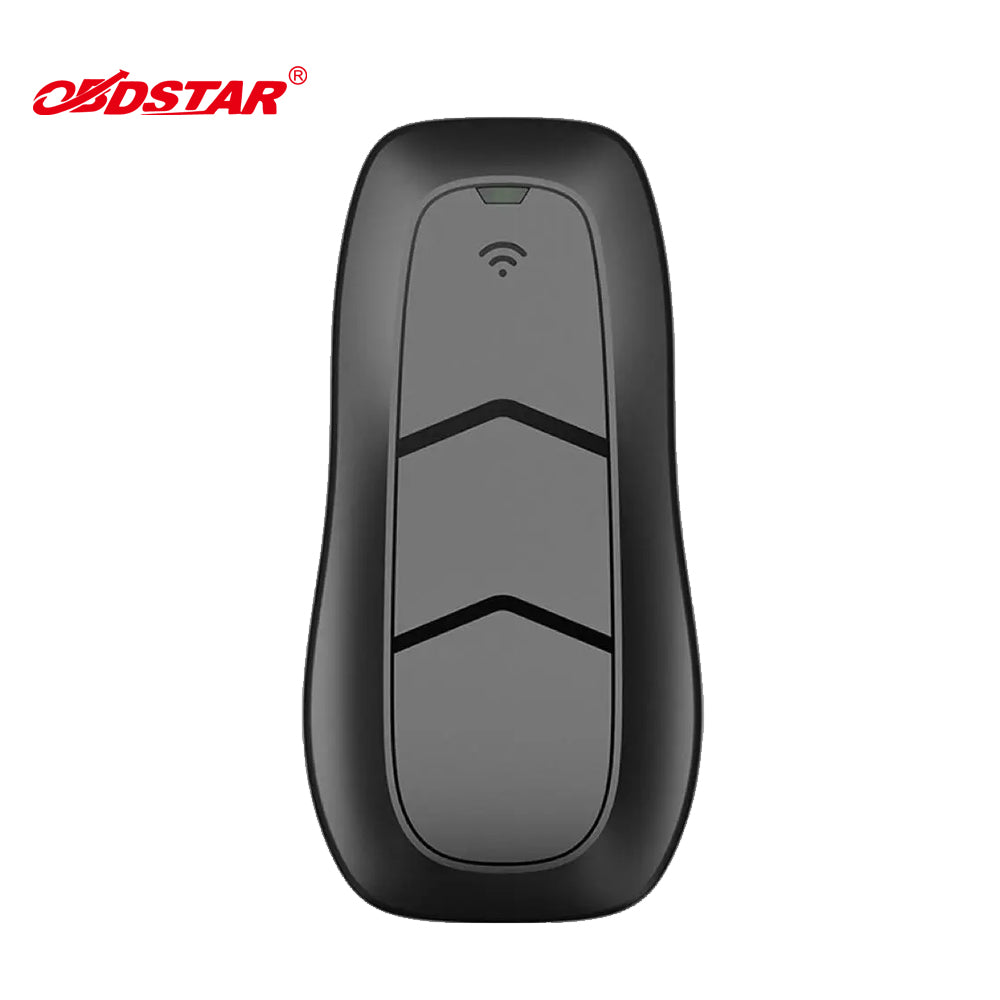

OBDSTAR Code Key Simulator

Description:

OBDSTAR Key SIM is a 5 in 1 key simulator that can generate keys with our devices in the case of all keys lost. So the ignition switch can be turned on, and then a new smart key can be added and programmed with our devices.

Works with X300 DP PLUS and X300 PRO4 to solved Toyota's all key lost.

Features:

• Supports 46, 4D data collection.
• 46 Transponder Password Calculation Support models:
• Porsche (2005-2010) 46 Pincode decryption.
• HYUNDAI/KIA 46 Pincode decryption, etc.
• Supports Toyota/Lexus 4D (94/D4, 98) Smart Key Simulation.
• Supports Toyota/Lexus H (88/A8, A9, 39) Smart Key Simulation.

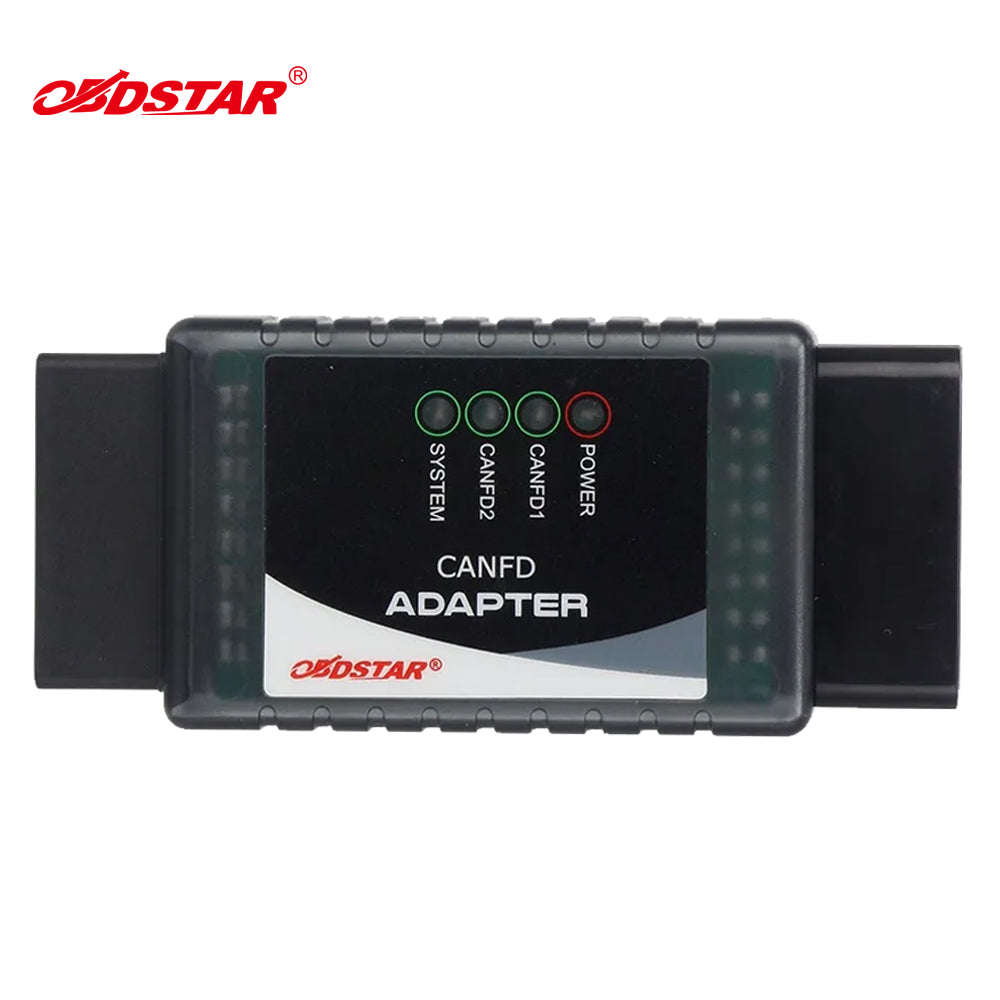

OBDSTAR Key Programming CANFD Adapter Compatible with GM 2020 2021 for OBDSTAR Machines

Description:

This adapter can only work with The OBDStar Key Master Superplus 5, DP Plus and The Code Cannibal (cannot work with DP X300).

This is currently the only after market tool in the World that will allow the user to read pin codes, add duplicate keys, or program keys when all keys are lost on each of the following.

Models:

• 2021 - 2021 Buick Envision Proximity
• 2020 - 2020 Chevrolet Trax / Tracker Blade
• 2020 - 2020 Chevrolet Trax / Tracker Proximity
• 2021 - 2021 Chevrolet Tahoe Proximity
• 2021 - 2021 Chevrolet Silverado Proximity
• 2021 - 2021 Chevrolet Suburban Proximity
• 2021 - 2021 Cadillac CT4 Proximity
• 2020 - 2020 Cadillac CT5 2020 Proximity
• 2021 - 2021 Cadillac Escalade Proximity
• 2021 - 2021 GMC Denali Proximity
• 2021 - 2021 GMC Sierra Proximity
• 2021 - 2021 GMC Yukon Proximity

OBDSTAR CAN Direct Kit for Read ECU data of Gateway Vehicles

Description:

CAN DIRECT KIT is used to read ECU data of gateway vehicles. Split design is easy to connect with more ECU cables, similar to COROLLA 4A.

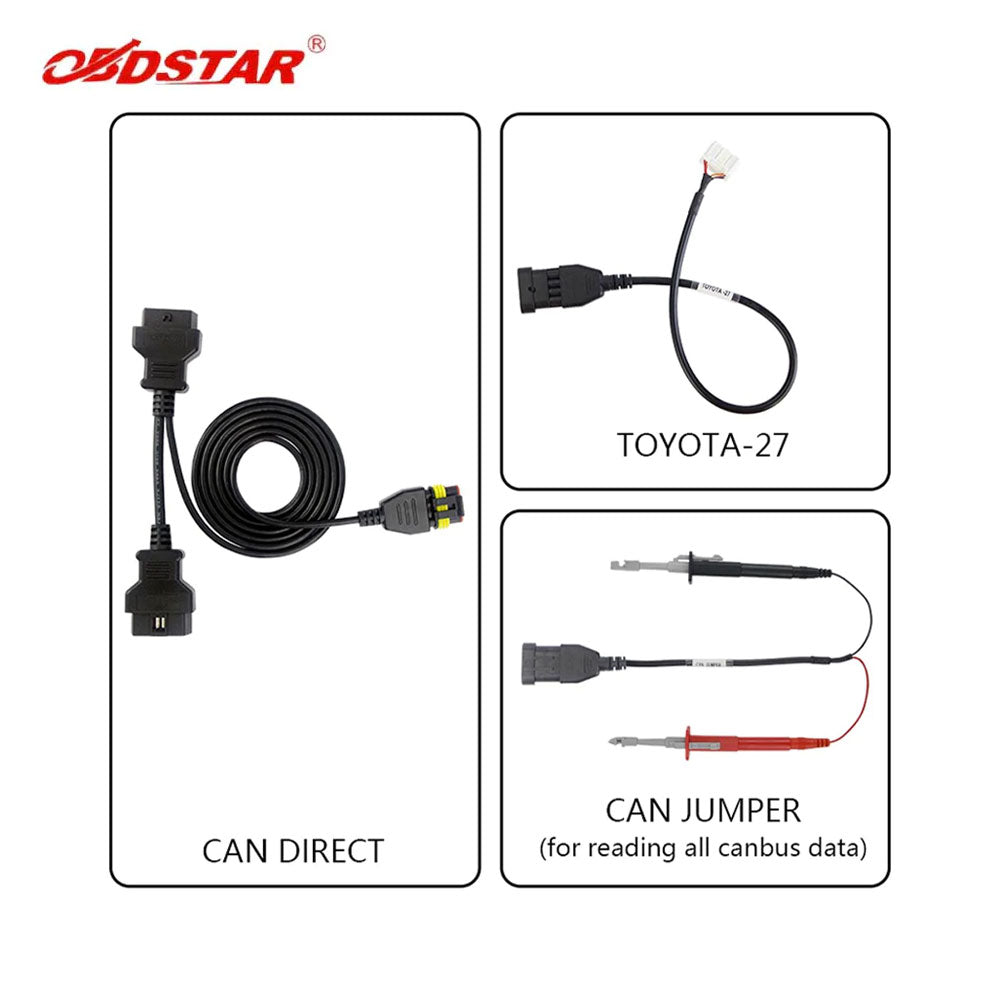

CAN DIRECT KIT Accessories:

• CAN DIRECT
• TOYOTA-27
• CAN JUMPER(for reading all canbus data)

Functions:

• 2019- COROLLA 4A proximity key programming(free pincode)
• 2021- COROLLA CROSS 4A proximity key programming(free pincode)
• 2021- COROLLA CROSS HV 4A proximity key programming(free pincode)
• 2021- COROLLA SPORT 4A proximity key programming(free pincode)
• 2021- COROLLA SPORT HV 4A proximity key programming(free pincode)
• 2021- COROLLA TOURING 4A proximity key programming(free pincode)
• 2021- COROLLA TOURING HV 4A proximity key programming(free pincode)
• 2021- COROLLA HV 4A proximity key programming(free pincode)
• 2019- LEVIN 4A proximity key programming(free pincode)
• 2021- LEVIN HV 4A proximity key programming(free pincode)
• 2021- ALLION 4A proximity key programming(free pincode)
• 2021- LIVIN 4A proximity key programming(free pincode)
• 2018- TOYOTA CAMRY proximity(8A-A9) key programming(free pincode)
• 2018- TOYOTA C-HR proximity(8A-A9) key programming(free pincode)
• 2018- TOYOTA IZOA proximity(8A-A9) key programming(free pincode)
• 2018- LEXUS RX450H proximity(8A-A9) key programming(free pincode)

Development Background

With the development of the automobile industry, more and more vehicles are equipped with gateway modules for communication safety. Therefore, our company has developed CAN DIRECT KIT for reading ECU data of gateway vehicles. (Note: If reading data of a gateway vehicle by an OBD diagnostic connector, it will be blocked!).

Connecting Method:

• 2021 TOYOTA COROLLA

Package List:

• CAN DIRECT
• TOYOTA-27
• CAN JUMPER

Download:

• TOYOTA 4A PROXIMITY KEY PROGRAMMING (FREE PINCODE)

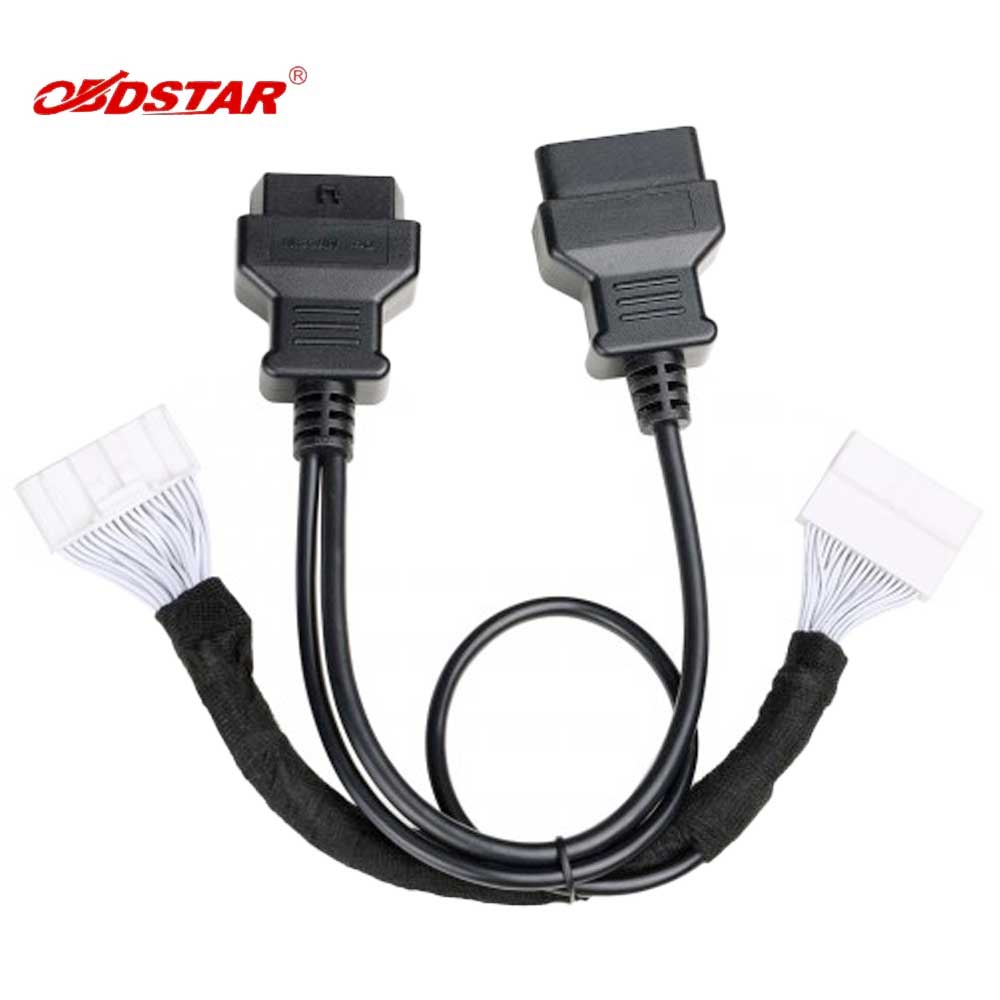

OBDSTAR NISSAN-40 BCM Cable for X300 DP PLUS/ X300 PRO4/ X300 - DP Key Master

Description:

OBDSTAR NISSAN-40 BCM cable works with X300 DP PLUS/ X300 PRO4/ X300 DP Key Master for Nissan Sentra/ Rogue T33/ Pathfinder and Mitsubishi Outlander.

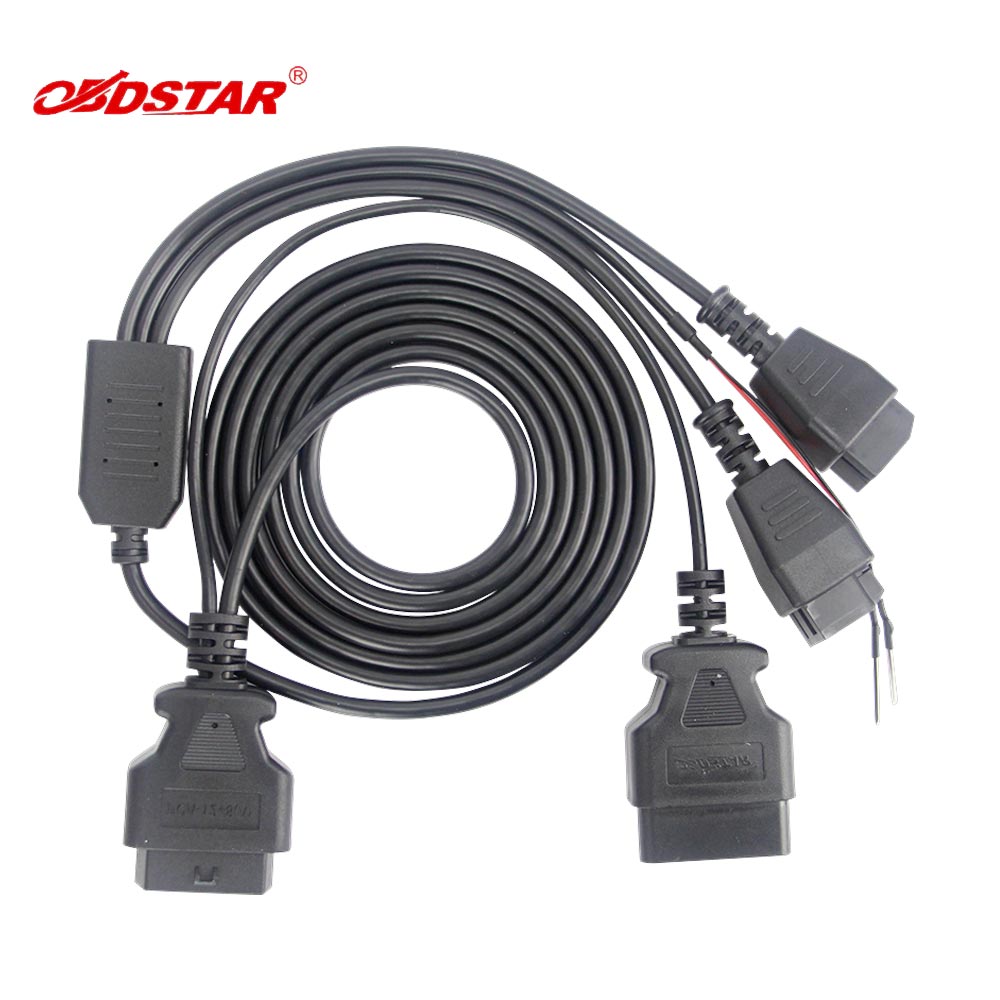

OBDSTAR FCA 12+8 Universal Adapter for X300 DP/ X300 DP Plus/ X300 PRO4/ Odo Master/ X200 PRO2

Description:

All FCA vehicles after 2018 are equipped with SGW security gateway module to prevent attacks on the vehicle network through the CAN bus. Directly plug in the OBD II-16 connector cannot communicate with them. For this problem, you can connect to the 12PIN and 8PIN connections on the car through the FCA 12 + 8 cable to help normal communication with the car.

The following models must use this connector

Chrysler:

• 2018-chrysler 300
• 2018-chrysler Pacifica

Dodge:

• 2018-dodge Challenger
• 2018-dodge Charger
• 2018-dodge Durango
• 2018-dodge Journey
• 2018-dodge Ram

Jeep:

• 2018-jeep Cherokee
• 2018-jeep Grand Cherokee
• 2018-jeep Compass
• 2018-jeep Wrangler
• 2018-jeep Renegade

Jeep:

• 2018-maserati, Include Ghibli, Levante,president

Fiat:

• 2018-fiat

Support Function:

• OBD Odometer Recalibration
• OBD Key Programming
• Oil/Service Reset
• can be used with other diagnostic equipment for reading code and clear code etc.

Develop Background:

All 2018- FCA (FIAT/CHRYSLER/ALFA ROMEO) vehicles are equipped with SGW security gateway module, which can prevent access to the vehicle from the OBD2 port through non-original diagnostics. The purpose of this module is to prevent attacks on the vehicle network via the CAN bus.

How to use FCA 12+8 Cable:

Find and unplug the 12PIN and 8PIN connectors of the SGW module, and then connect the FCA 12+8 directly to the 12PIN and 8PIN (connecting to the two connectors of the SGW) connector on the car. At this time, normal communication with the car can be realized.

Package List:

• 1pc*FCA 12+8 cable

Package List:

• 1pc*FCA 12+8 cable
