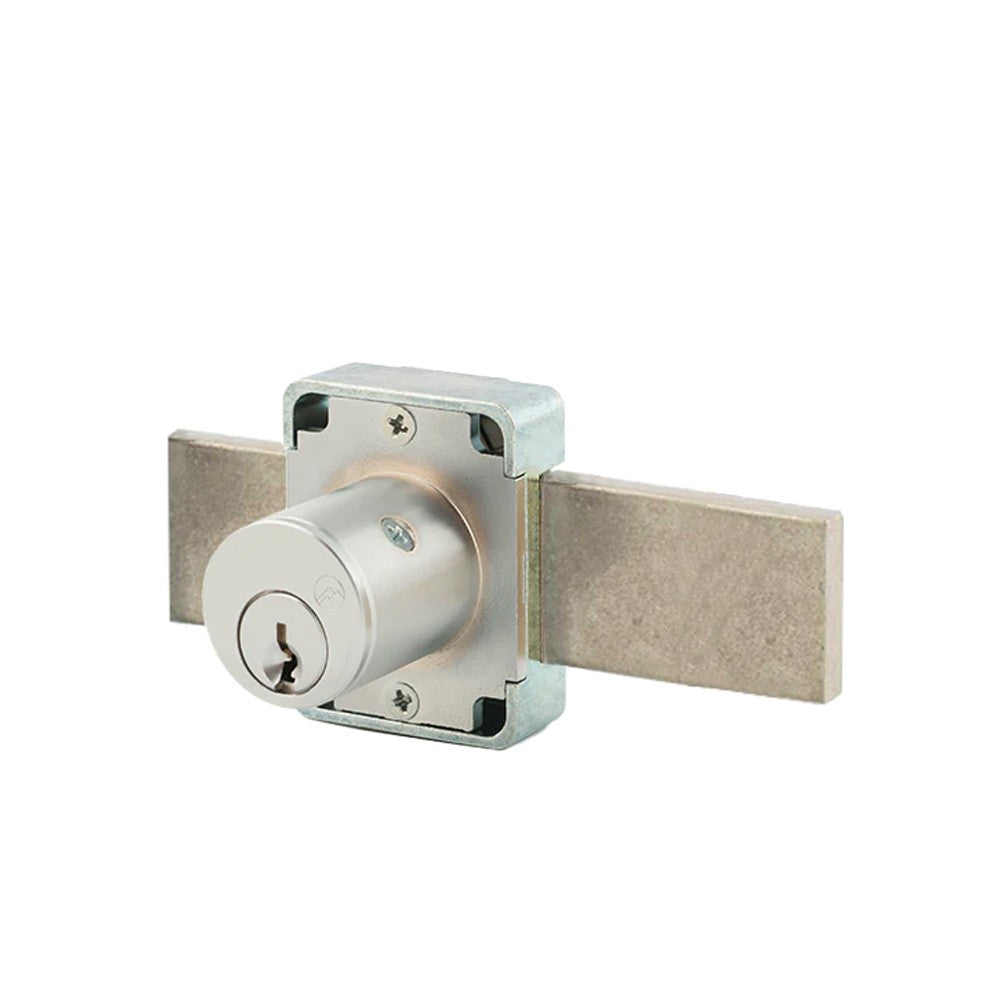

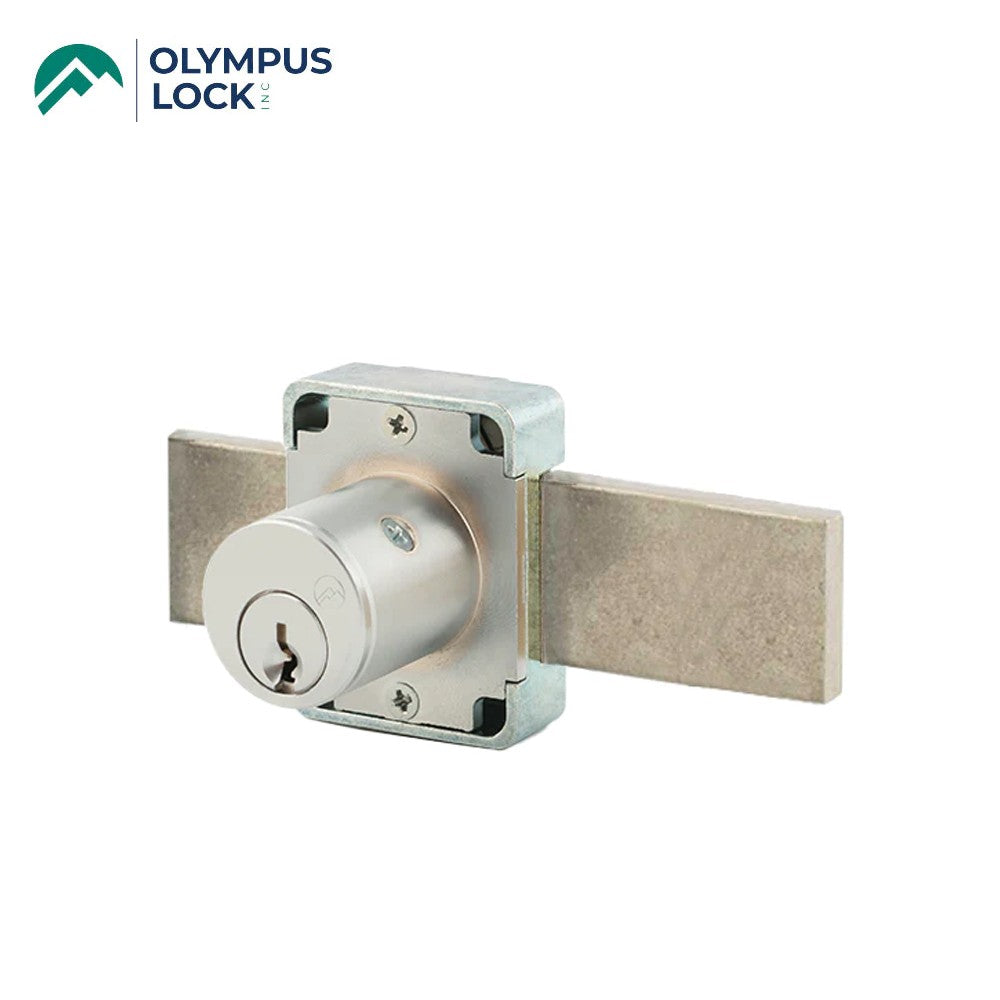

OLYMPUS LOCK - 100DR - Cabinet Deadbolt Door Lock - N Series - Optional Cylinder Length - Long Bolt - Optional Keying - US26D (Satin Chrome-626)

OLYMPUS LOCK - 100DR - Cabinet Deadbolt Door Lock - N Series - Optional Cylinder Length - Long Bolt - Optional Keying - US26D (Satin Chrome-626)

Feature:

• N Series: National Keyway
• 100DR deadbolt door lock
• All non-ferrous (non-magnetic) materials and parts
• Easily rekeyable via set screw cylinder release mechanism
• For standard locks
• For weather resistant locks
• Solid brass pin tumbler cylinder drilled for 5 pins
• (E07041) ANSI/BHMA Grade 1
• Barrel lengths: 15/16", 1-3/8" or 1-5/8" (see below). Specify barrel length when ordering
• Barrel diameter: 7/8"
• Stanard function: locks are non-handed with key removable in the locked and unlocked position.
• US26D finish
• Includes bar strike 56-1
• US Patent Nos: 4,899,563; 4,920,774
• 1-5/8" barrel length for 3/4" x 3/4" drawer construction

Specification:

• Keying: Can be keyed together with other N Series locks
• Rekeyable: Easily rekeyable via set screw cylinder release mechanism
• ANSI/BHMA: Passed ANSI/BHMA A156.11 Grade 1 performance requirements.
• Equivalent to E07121(100DR) / E07041(200DW).
• Standard function: Key removable in locked or unlocked position. Standard function locks are non-handed.
• Body: Zinc die cast
• Cylinder: Solid brass, pin tumbler
• Cylinder length: 15/16", 1-3/8" or 1-5/8"
• Barrel diameter: 7/8"
• Finish: 26D

Keying Information:

• Keyway: N Series (equivalent to National D4291 4-pin or D4292 5-pin system)
• Keys: Includes 2 keys per lock
• Stock keying: KD/KA - 4 pin standard
• Stock KA#: 101, 103, 107, 915, 51001, 51002, 51003, 51004*note
• Masterkeyed: 5 pin standard
• Grand masterkeyed: Available
• Keyblank 4-pin: KBN-4-NP (equivalent to NA14, 1069L)
• Keyblank 5-pin: KBN-5-NP (equivalent to NA12, 1069LA)
• Keyblank 5-pin copper plated: KBN-5B (use with 100M/200M MRI locks)

Included Acessories:

• 200M: 2 keys, 56-1 bar strike, and lock mounting screws (keys, components and materials are nonferrous/non-magnetic)
• 100DR/100B: 2 keys, 56-1 bar strike, and lock mounting screws

Optional Accessories:

• Spacers: WP20 (3/16" thick), WP21 (3/32" thick), WP22 (1/4" thick), WP23 (1/2" thick)
• Strikes: 07S, 12-1, 12-2, 12-3, 12-5, 12-4, 56-1
• Trim ring: TR1256
• Through-bolt hardware: ETS2 trim plate, ETS2-PL trim pull and ETST2 template
• Long bolt (bolt only): 15-1-35 for use with 200DW/200B/200M locks

MPN: 100-26D138LB-101
