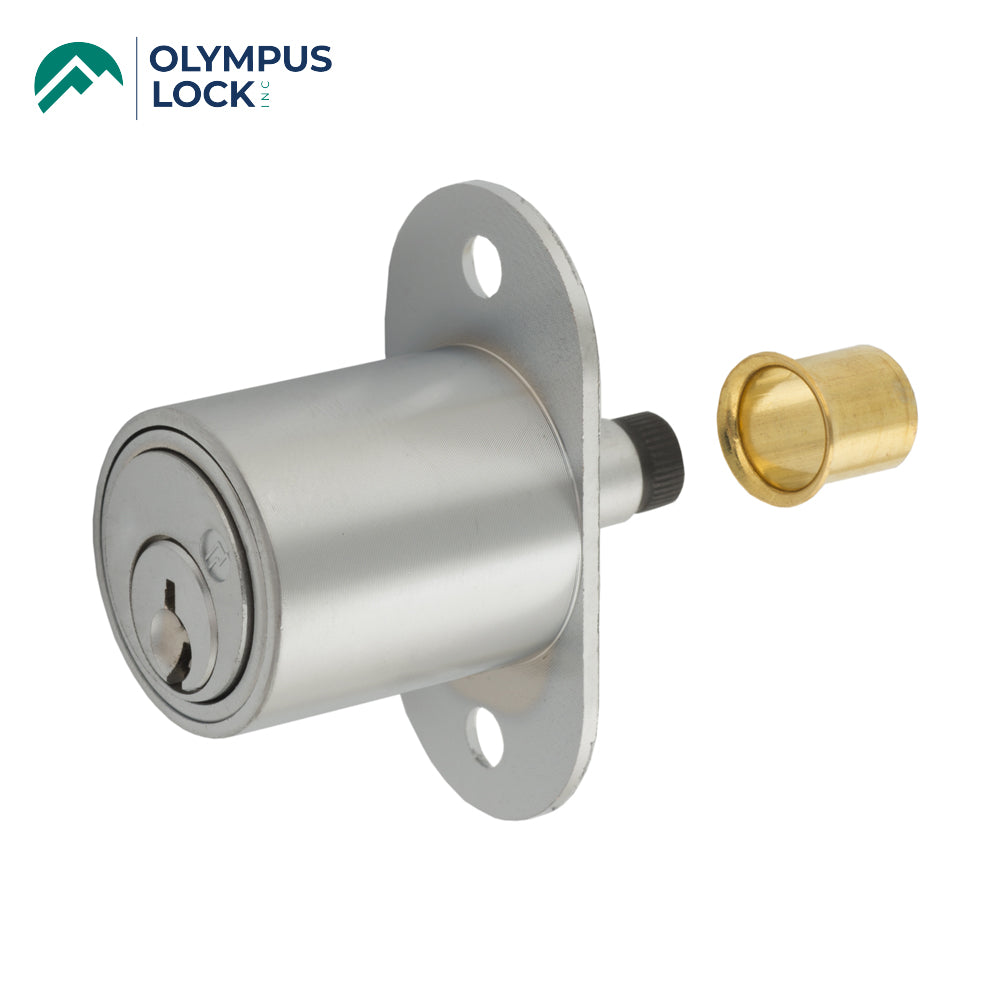

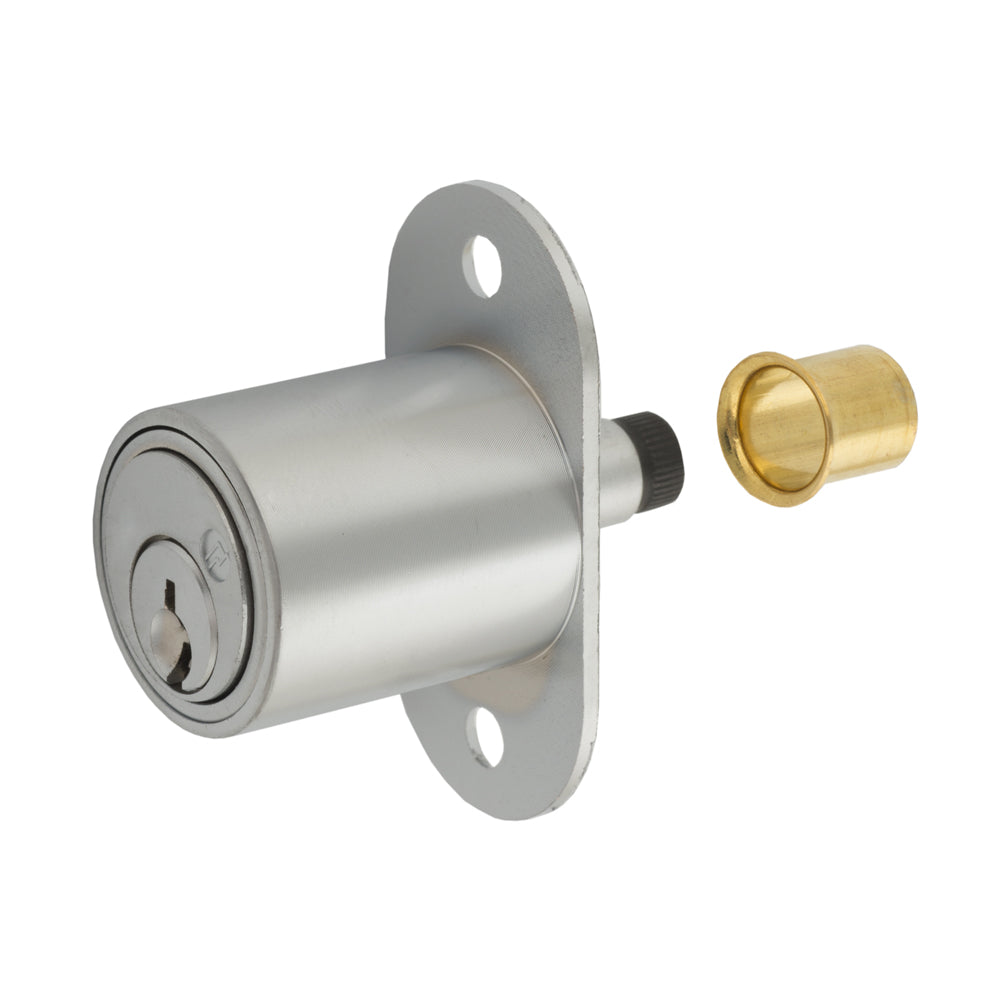

OLYMPUS LOCK - 300SD - Sliding Door Plunger Lock - N Series National - 26D - Satin Chrome - KA 107

OLYMPUS LOCK - 300SD - Sliding Door Plunger Lock - N Series National - 26D - Satin Chrome - KA 107

Feature:

• Sliding door plunger lock
• Speed release mechanism for easy rekeying
• Solid brass pin tumbler cylinder drilled for 5 pins
• For material thickness: 7/8"
• Barrel diameter: 1"
• Includes strike locator to easily position thimble strike on inner door
• Includes 10-24 machine threaded bolt extender for varying gaps between bypassing doors
• 26D, US3 or 10B finish
• US Patent Nos: 4,920,774, 5,121,619

Specification:

• Keying: Can be keyed together with otherN Series locks
• Rekeyable: Easily rekeyable via speed-release cylinder release mechanism
• Standard function: Key removable in locked or unlocked position.
• Body: Zinc die cast
• Cylinder: Solid brass, pin tumbler
• Cylinder length: 1"
• Barrel diameter: 1"
• Finish: 26D, US3 or 10B

Keying Information:

• Keyway: N Series (equivalent to National D4291 4-pin or D4292 5-pin system)
• Keys: Includes 2 keys per lock
• Stock keying: KD/KA - 4 pin standard
• Stock KA#: 107
• Masterkeyed: 5 pin standard
• Grand masterkeyed: Available
• Keyblank 4-pin: KBN-4-NP (equivalent to NA14, 1069L)
• Keyblank 5-pin: KBN-5-NP (equivalent to NA12, 1069LA)

Included Accessories:

• 34-9 matching thimble strike
• 10-24 machine thread bolt extender for varying gaps between bypassing doors
• 10-24 machine thread strike locator

MPN: 300SD-26D78-101

Download:

• Data Sheet
• Installation Instruction
