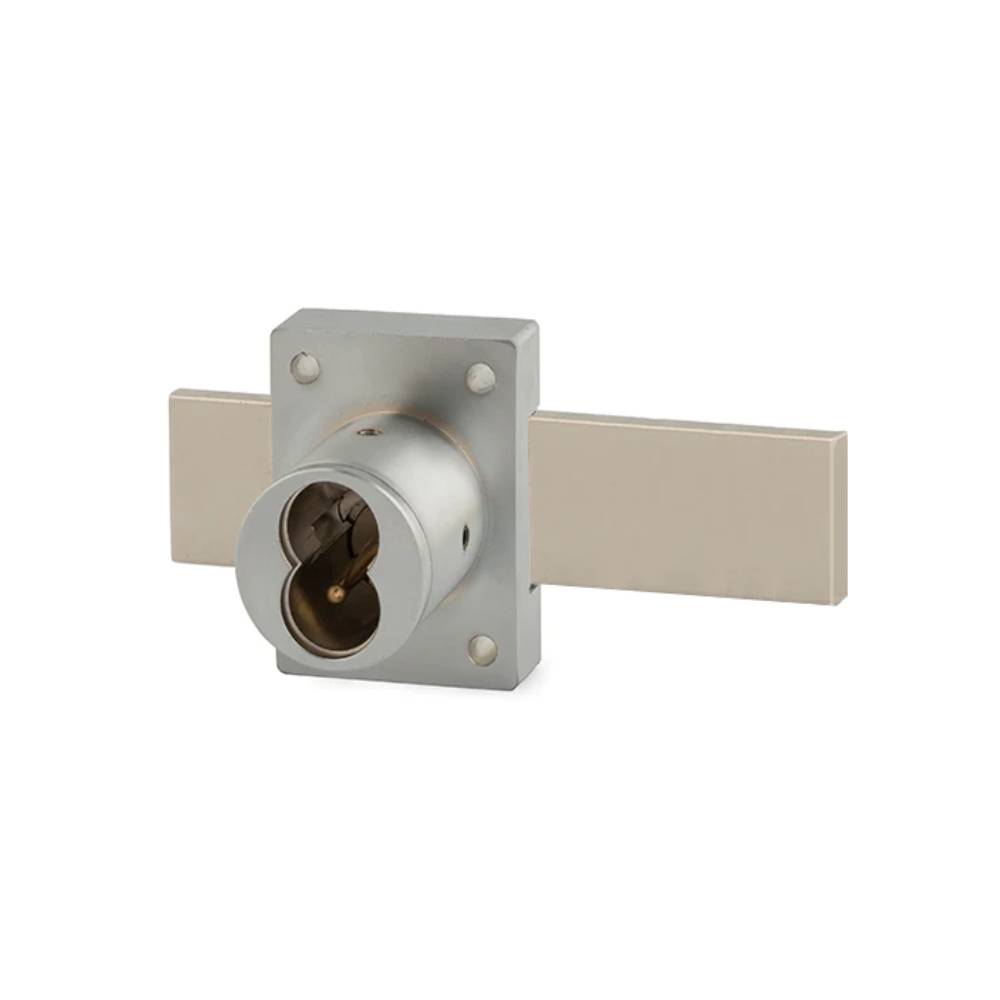

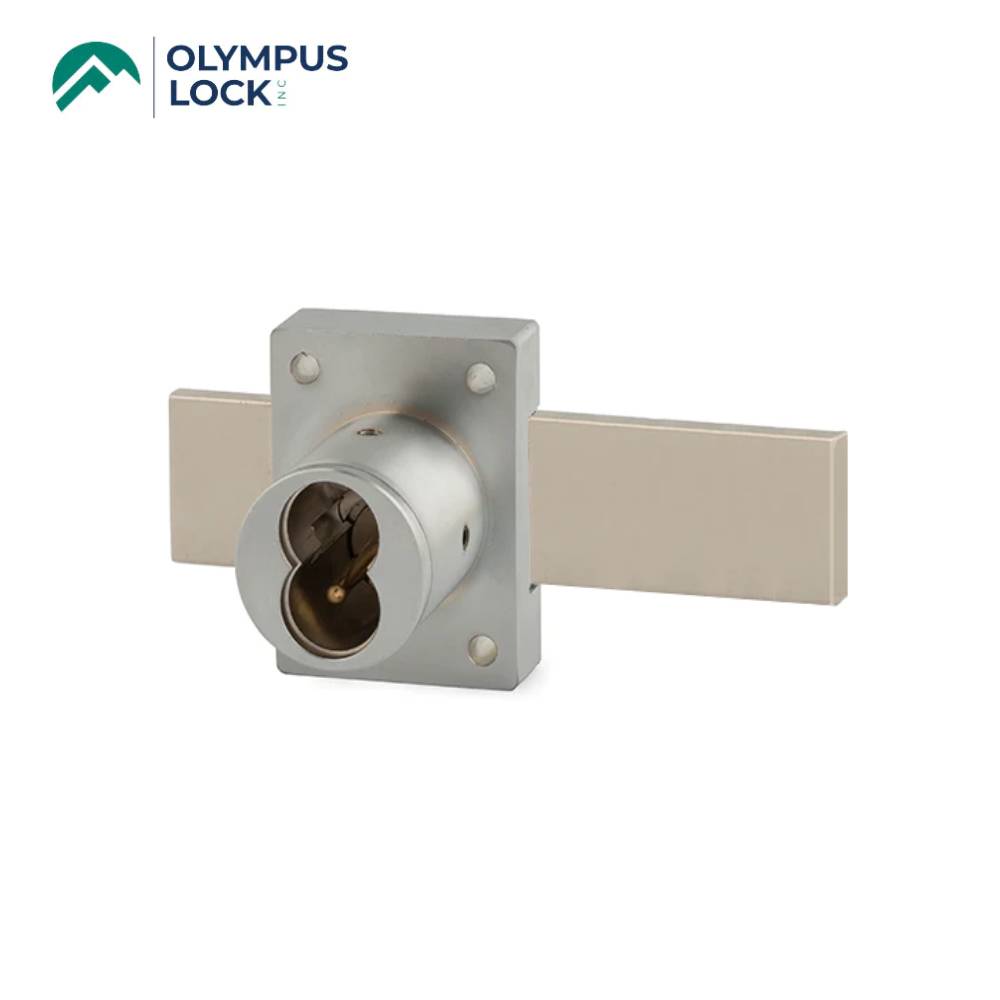

OLYMPUS LOCK - 721DR - Small Format (BEST) IC Core Deadbolt Cabinet Door Lock - Optional Cylinder Length - Long Bolt - Optional Key Retaining - Optional High Security - US26D (Satin Chrome-626)

OLYMPUS LOCK - 721DR - Small Format (BEST) IC Core Deadbolt Cabinet Door Lock - Optional Cylinder Length - Long Bolt - Optional Key Retaining - Optional High Security - US26D (Satin Chrome-626)

Olympus Lock manufactures institutional-grade cabinet locks that reflect the Company’s culture of design and ingenuity. The company pioneered rekeyable cabinet locks and holds numerous North American patents speaking to those inventions. By incorporating feedback from locksmiths at airports, casinos, schools, and hospitals, Olympus engineered its products to be both durable and easy to work with, making it the preferred choice of institutional locksmiths. The Company has been around for over three decades, is still family owned and operated, and boasts industry leading ship times.

Feature:

• 721DR deadbolt door lock
• Similar to Best original 3L series
• Optional key retaining and high security features
• Long bolt length
• (E07121) ANSI/BHMA Grade 1
• Cylinder length: 1-1/4"
• Barrel diameter: 1-1/8"
• Accepts Best, Arrow, Falcon or equivalent small format interchangeable core cylinders.
• Standard function: locks are non-handed with key removable in the locked and unlocked position.

Specification:

• Function: Deadbolt cabinet door lock
• Reversible: Field reversible between door and drawer functions
• Retrofits: Best 3L
• Bolt: Long bolt extends bolt 3/4” on both ends
• High Security Option: For Sargent XC or Marks high security cores. Includes short pin prong driver 721DW-11-SP1
• Standard function: Key removable in locked or unlocked position. Standard locks are non-handed
• Body: Zinc die cast
• Finish: Satin Chrome US26D
• Cores: Not Included
• Accepts: Best, Arrow, Falcon, KSP, Schlage SFIC or equivalent small format interchangeable cores
• Compatible electronic cylinders: Medeco Nexgen XT or VIDEX CyberLock SFIC cylinders
• Certifications: Passed ANSI/BHMA A156.11 Grade 1b performance requirements

Included Acessories:

• 725-1 spacer to fit 6 or 7 pin cores
• 725-PA plastic thumbturn
• 10-350 (qty 3) plastic spacers
• 10-054 1/4” plastic bar strike
• 10-057 .65” plastic bar strike

MPN: 721DR-LB-26D

Download:

• Installation Instruction
• Data Sheet
